END OF LIFE

Device Overview

General Description

The BAL-0620SMG is a Surface Mount Microlithic™ balun. As with all Microlithic™ baluns, it features excellent amplitude balance, phase balance, and common mode rejection across a broad bandwidth and in a miniaturized form factor. It has significant isolation, reducing the reflection of unwanted common mode signals. The BAL-0620SMG is a lead free, RoHS compliant package compatible with standard leaded and lead-free solder reflows. SMA connectorized evaluation packages are available. The BAL-0620SMG is an excellent choice for balanced amplifiers, clock distribution, and higher order Nyquist sampling in analog to digital converters.

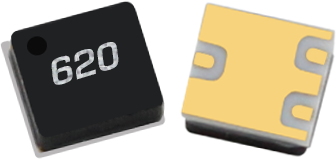

Photo of BAL-0620SMG

Features

  • 2:1 Impedance Ratio
  • 6 GHz to 20 GHz Balun (Balanced to Unbalanced Transformer)
  • Transforms 50 Ω Input to 100 Ω Differential (50 Ohm Single) Output
  • Tuned for Optimal Phase/Amplitude Balance

Applications

  • Analog to Digital Converters
  • Balanced Receivers
  • Balanced Amplifiers
  • Mixers
  • Clock Distribution
  • Signal Integrity

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport ClassificationRecommended Replacement
BAL-0620SMGSURFACE-MOUNT BROADBAND BALUN SMG

REACH

RoHS

End of LifeEAR99MBAL-0220CSP2
EVAL-BAL-0620SMEvaluation Board, 6 - 20 GHz Broadband BalunEVAL

REACH

RoHS

Not Recommended for New DesignEAR99

-

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2014-01-01Datasheet initial Release
A2016-01-01Typical Performance Plots Updated
B2020-07-01Specs table update
C2020-10-01Specs table update
D2024-07-31Product Lifecycle Update to EOL

Rev: D | Copyright © 2014, 2016, 2020, 2024 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

Diagram of the port configuration for BAL-0620SMG

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
0° Port (Balanced)0° Port The 0o port is DC short to the 180o port and passes through a resistor to ground.Equivalent circuit for the 0° Port
180° Port (Balanced)180° Port The 180o port is DC short to the 0o port and passes through a resistor to ground.Equivalent circuit for the 180° Port
Common Port (Unbalanced)RF Input The common port is DC open to ground.Equivalent circuit for the RF Input

Rev: D | Copyright © 2014, 2016, 2020, 2024 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

ParameterMaximum RatingUnit
RF Power Handling 1W

Package Information

ParameterDetailsRating
Dimensions-2.79 x 2.54 mm
Moisture Sensitivity Level-MSL 1

Rev: D | Copyright © 2014, 2016, 2020, 2024 Marki Microwave LLC.

4

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
Impedance Ratio -- --2:1-
Amplitude Balance -6 20-0.20.6°
Common Mode Rejection -6 182834-dB
Common Mode Rejection -18 202031-dB
Insertion Loss as a Mode Converter 1-6 20-2.64.2dB
Isolation -- --14-dB
Nominal Phase Shift -6 20-180-°
Phase Balance -18 20-415°
Phase Balance -6 181-5°
VSWR -- --2-

[1] Includes fixture losses.

Rev: D | Copyright © 2014, 2016, 2020, 2024 Marki Microwave LLC.

5

Typical Performance

Common to balanced port insertion loss graph for BAL-0620SMG
Amplitude balance between balanced ports graph for BAL-0620SMG
Return loss for common port and balanced ports graph for BAL-0620SMG
Phase balance between balanced ports graph for BAL-0620SMG
Common mode rejection graph for BAL-0620SMG
Balanced port to balanced port isolation graph for BAL-0620SMG

Rev: D | Copyright © 2014, 2016, 2020, 2024 Marki Microwave LLC.

6

Mixed Mode Scattering Parameters

Mixed mode scattering parameters are used to characterize differential circuits. For baluns, this means that the 0° and 180° ports become a single 100Ω differential port and the common port remains the same 50Ω common port. The two-port s-parameters of the balun are then characterized based on differential (d), common mode (c), or single-ended (s) signals. For example: Scs12 is the Common output response given a single ended input.

Insertion Loss as a Mode Converter graph for BAL-0620SMG
Differential Port Return Loss (dB) graph for BAL-0620SMG
Insertion Loss Of A Common Mode Signal graph for BAL-0620SMG
Reflection Converted Between Differential And Common Modes graph for BAL-0620SMG
Return Loss Of A Common Mode Signal graph for BAL-0620SMG
Unbalanced Port Return Loss graph for BAL-0620SMG

Rev: D | Copyright © 2014, 2016, 2020, 2024 Marki Microwave LLC.

7

Mechanical Data

Rev: D | Copyright © 2014, 2016, 2020, 2024 Marki Microwave LLC.

8
