APM-7516PSM

1.5-20 GHz Surface Mount Low Phase Noise Amplifier

The APM-7516PSM is a broadband low phase noise driver amplifier designed to provide enough power to drive the LO port of an H or L-diode mixer with a range of input powers. This amplifier uses GaAs HBT technology for low phase noise and provides +18 to 23 dBm output power from 1.5 GHz to 20 GHz. This amplifier can be operated with a variety of bias conditions for both low and high-power applications. The APM-7516SM shows less variation in current supply under saturation than similar HBT amplifiers, has a lower thermal resistance, and is less sensitive to damage from high input powers. The APM-7516PSM is packaged in a compact 4 mm QFN with integrated blocking capacitors and power supply inductor for surface mount integration on circuit board-based systems.

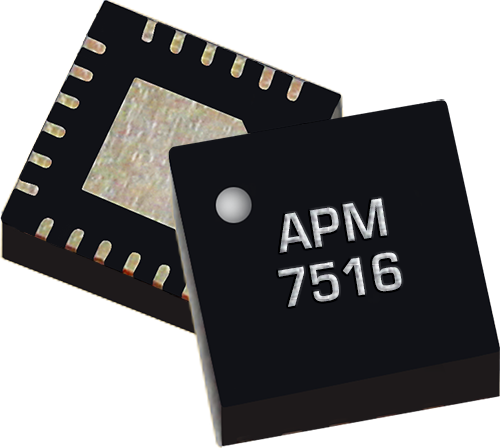

Product Variant : APM-7516PSM
Sorted by: No sorting applied
EVB-APM-7516PSM
Driver
Distributed
Low Phase Noise
1.520------Released
APM-7516PSM
Driver
Distributed
Low Phase Noise
1.520115.42233-4 x 4 mmReleased
