Port Diagram

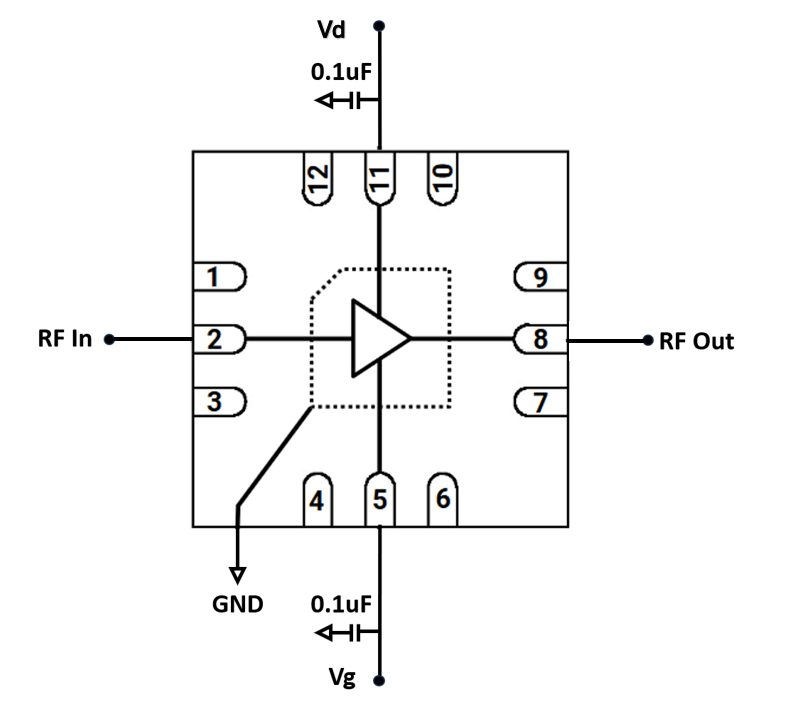

A port diagram of the AMM-10861PSM is shown below (X-ray view).
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description

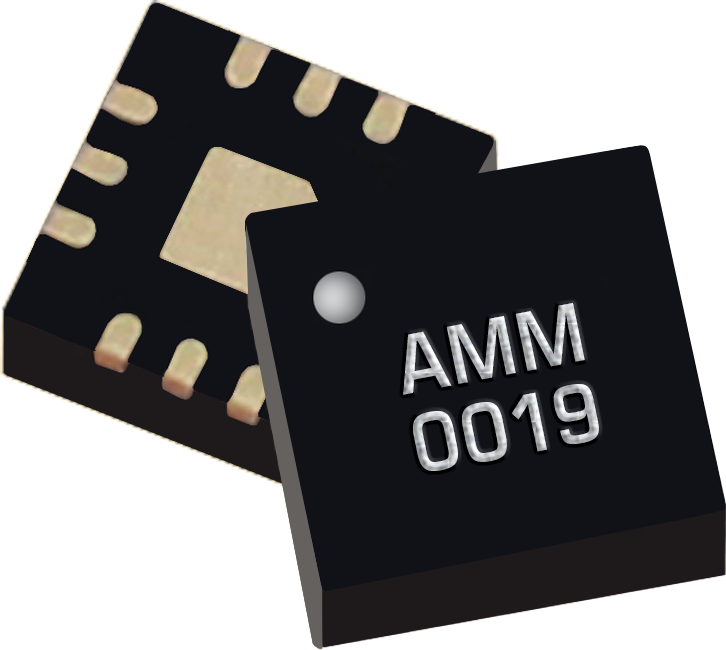

The AMM-10861PSM is a wideband pHEMT-based GaAs surface-mount gain block driver amplifier operating from 15 to 45 GHz. This amplifier offers high gain at 24 dB, +21 dBm saturated output power, and strong linearity with output IP3 of +28 dBm. It’s an excellent driver for our H- and S-diode mixers and multipliers, and comes in a compact 3 mm surface-mount package for easy integration onto printed circuit boards.
Features
- Wideband, 15 to 45GHz
- High Gain, 24 dB Typical
- High Output Power, +21 dBm Typical
- Minimal Application Circuit
- Internal Blocking Capacitors
- Small 3 x 3 mm QFN Package
Applications
- Electronic Warfare
- Radar
- Satellite Communications
- Driver Amplifier for H and S - Diode Mixers
- Test and Measurement Equipment
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| AMM-10861PSM | 15-45 GHz Broadband Gain Block Driver Amplifier | Plastic QFN | REACH RoHS | Released | 3A001.b.2.f |
| EVB-AMM-10861P | Evaluation Board, 15 - 45 GHz Broadband Power Amplifier | EVB | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| AMM-10861PSM | 15-45 GHz Broadband Gain Block Driver Amplifier | Plastic QFN | REACH RoHS | Released | 3A001.b.2.f |
| EVB-AMM-10861P | Evaluation Board, 15 - 45 GHz Broadband Power Amplifier | EVB | REACH RoHS | Released | EAR99 |
AMM-10861PSM
15-45 GHz Broadband Gain Block Driver Amplifier
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Operation
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2026-04-01 | Initial Release |
AMM-10861PSM
15-45 GHz Broadband Gain Block Driver Amplifier
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Ground Paddle | Ground | Ground paddle and non-connected pins must be connected to a DC/RF ground potential with high thermal and electrical conductivity, and low inductance. |  |
| Pin 11 | Vd | Pin 11 is the DC bias supply for the amplifier. The voltage at this pin should be set to 4V for normal operation. This part requires an off-chip bypass capacitor of 0.1uF installed at this pin as close to the IC as possible. See applications circuit. |  |
| Pin 2 | RF Input | Pin 2 is the amplifier's RF input pin. This port is internally matched to 50 Ohms and is internally DC blocked. |  |
| Pin 5 | Vg | This is the negative DC bias voltage for the amplifier IC. The voltage at this pin controls the current draw Id of the part. Higher voltage results in higher current. For normal operation, the voltage at this pin is adjusted to produce an Id of 158mA when Vd=4V. This part requires an off-chip 0.1uF bypass capacitor installed at this pin as close to the IC as possible. See applications circuit. |  |
| Pin 8 | RF Output | Pin 8 is the amplifier's RF output pin. This port is internally matched to 50 Ohms and is internally DC blocked. Equivalent circuit for the RF Output | |
AMM-10861PSM
15-45 GHz Broadband Gain Block Driver Amplifier
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime. This amplifier is designed and characterized in a 50Ω system, and operation in a reflective environment can cause performance degradation.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 85 | °C |
| Maximum Storage Temperature | 150 | °C |
| Max Junction Temperature for MTTF > 1E6 hours | 175 | °C |
| Minimum Operating Temperature | -40 | °C |
| Minimum Storage Temperature | -65 | °C |
| Positive Drain Supply Current (with RF Input) | 200 | mA |
| Positive Drain Supply Voltage (Vd) | 4.5 | V |
| RF Input Power | 15 | dBm |
| Gate Supply Voltage (Vg) | 0 | V |
| Thermal Resistance, θJC | 110 | ºC/W |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | < 250 Volts | HBM Class 0 |
| Dimensions | - | 3 x 3 mm |
| Moisture Sensitivity Level | - | MSL 1 |
Recommended Operating Conditions
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications. Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the Electrical Specifications. For limits, above which damage may occur, see Absolute Maximum Ratings .
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ambient Temperature | -40 | 25 | 85 | °C |
| Gate Bias DC Voltage (Vg) | -0.3 | -0.16 | -0.05 | V |
| Power Supply DC Voltage (Vd) | 3 | 4 | 4 | V |
| Positive DC Current (Id) (No RF Input) | 98 | 158 | 190 | mA |
AMM-10861PSM
15-45 GHz Broadband Gain Block Driver Amplifier
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. QFNs are 100% RF tested.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Small Signal Gain | 4V/-0.16V, 158mA | 15 | 45 | - | 24.2 | - | dB |
| Input Return Loss | 4V/-0.16V, 158mA | 15 | 45 | - | 14 | - | dB |
| Output Return Loss | 4V/-0.16V, 158mA | 15 | 45 | - | 14 | - | dB |
| Reverse Isolation | 4V/-0.16V, 158mA | 15 | 45 | - | 50 | - | dB |
| Saturated Output Power | 4V/-0.16V, 158mA | 15 | 45 | - | 20.82 | - | dB |
| Input P1dB | 4V/-0.16V, 158mA | 15 | 45 | - | -4.5 | - | dBm |
| Output P1dB | 4V/-0.16V, 158mA | 15 | 45 | - | 18 | - | dBm |
| Input IP3 | 4V/-0.16V, 158mA, -18dBm input, 1 MHz tone spacing | 15 | 45 | - | 4 | - | dBm |
| Output IP3 | 4V/-0.16V, 158mA, -18dBm input, 1 MHz tone spacing | 15 | 45 | - | 28 | - | dBm |
| Input IP2 | 4V/-0.16V, 158mA, -20dBm input, 1 MHz tone spacing | 15 | 23 | - | 8.5 | - | dBm |
| Output IP2 | 4V/-0.16V, 158mA, -20dBm input, 1 MHz tone spacing | 15 | 23 | - | 33 | - | dBm |
| Noise Figure | 4V/-0.16V, 158mA | 15 | 45 | - | 6.8 | - | dB |
| Current Consumption 1 | 4V/-0.16V | - | - | - | 158 | - | mA |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Small Signal Gain | 4V/-0.16V, 158mA | 15 | 45 | - | 24.2 | - | dB |
| Input Return Loss | 4V/-0.16V, 158mA | 15 | 45 | - | 14 | - | dB |
| Output Return Loss | 4V/-0.16V, 158mA | 15 | 45 | - | 14 | - | dB |
| Reverse Isolation | 4V/-0.16V, 158mA | 15 | 45 | - | 50 | - | dB |
| Saturated Output Power | 4V/-0.16V, 158mA | 15 | 45 | - | 20.82 | - | dB |
| Input P1dB | 4V/-0.16V, 158mA | 15 | 45 | - | -4.5 | - | dBm |
| Output P1dB | 4V/-0.16V, 158mA | 15 | 45 | - | 18 | - | dBm |
| Input IP3 | 4V/-0.16V, 158mA, -18dBm input, 1 MHz tone spacing | 15 | 45 | - | 4 | - | dBm |
| Output IP3 | 4V/-0.16V, 158mA, -18dBm input, 1 MHz tone spacing | 15 | 45 | - | 28 | - | dBm |
| Input IP2 | 4V/-0.16V, 158mA, -20dBm input, 1 MHz tone spacing | 15 | 23 | - | 8.5 | - | dBm |
| Output IP2 | 4V/-0.16V, 158mA, -20dBm input, 1 MHz tone spacing | 15 | 23 | - | 33 | - | dBm |
| Noise Figure | 4V/-0.16V, 158mA | 15 | 45 | - | 6.8 | - | dB |
| Current Consumption 1 | 4V/-0.16V | - | - | - | 158 | - | mA |
[1] Bias conditions for Id tested with no RF input power. Bias conditions presented as Vd/Vg
AMM-10861PSM
15-45 GHz Broadband Gain Block Driver Amplifier

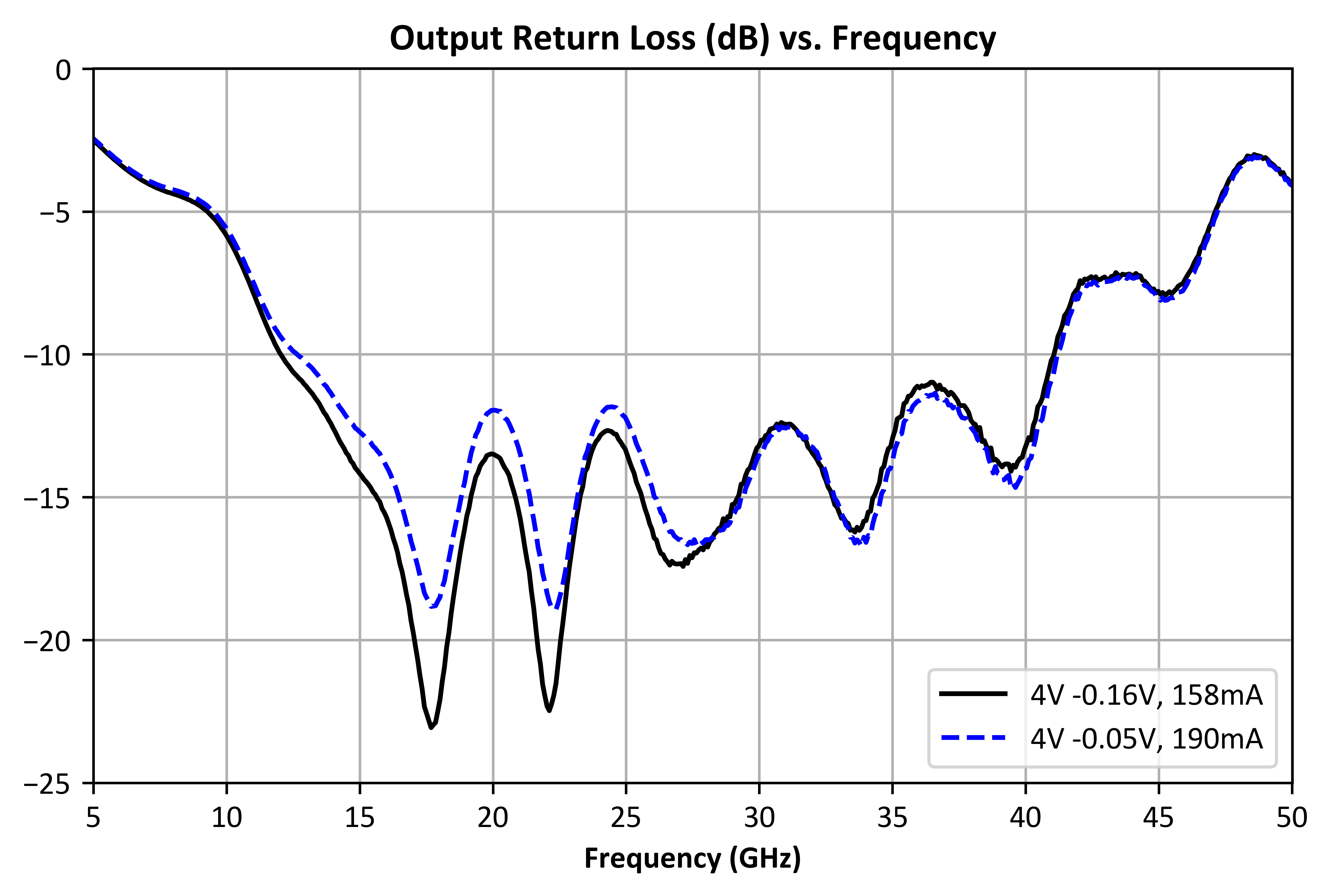

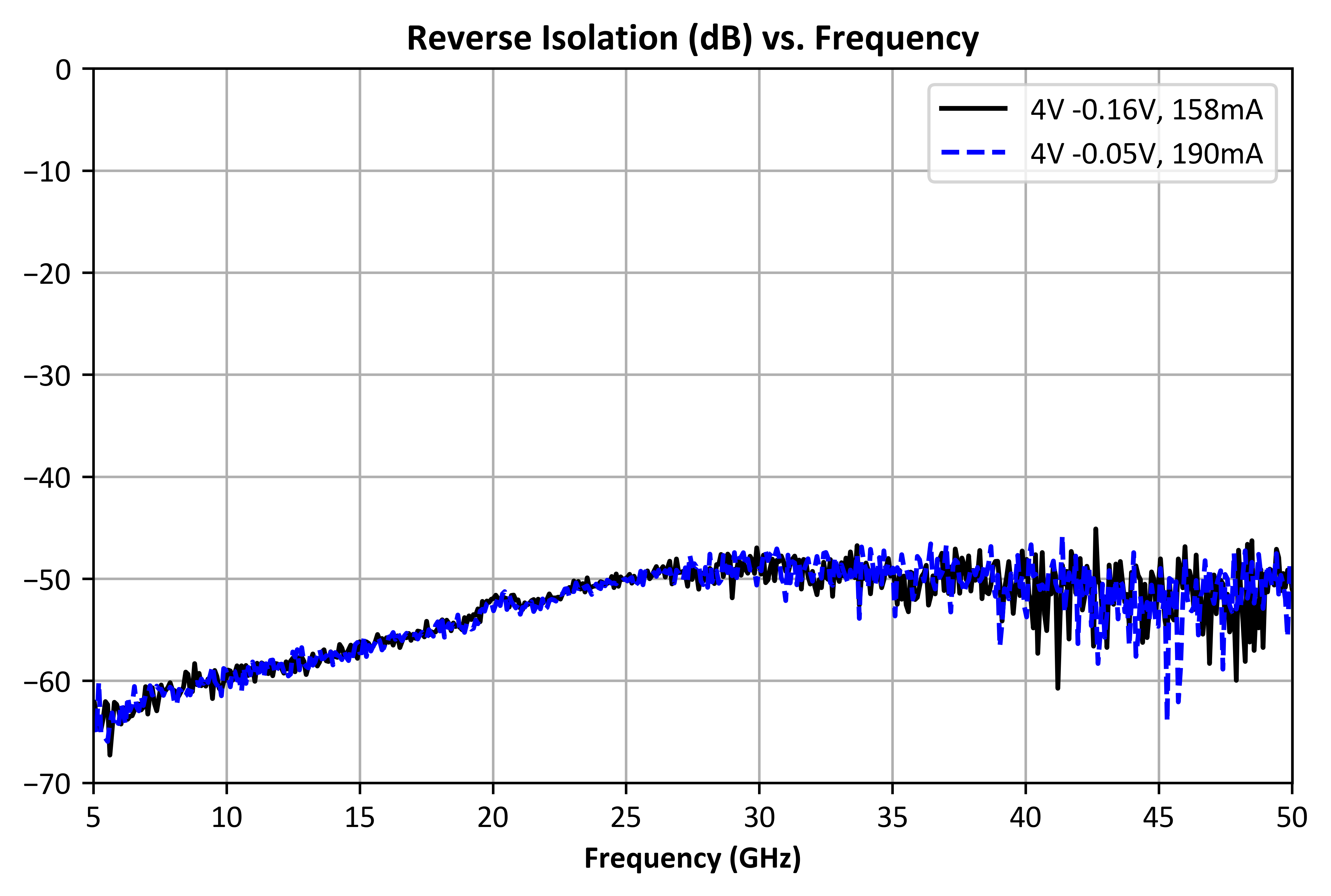

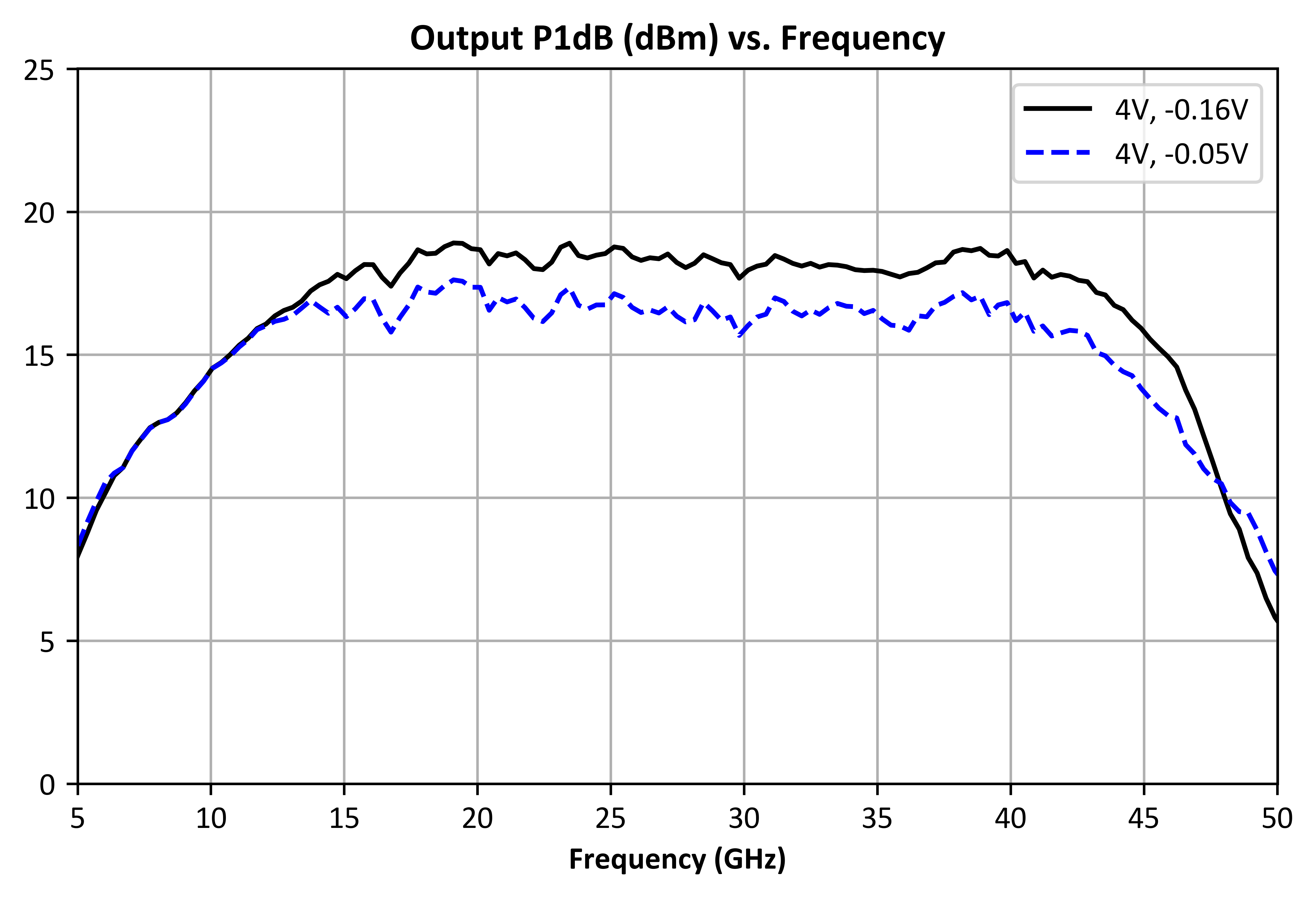

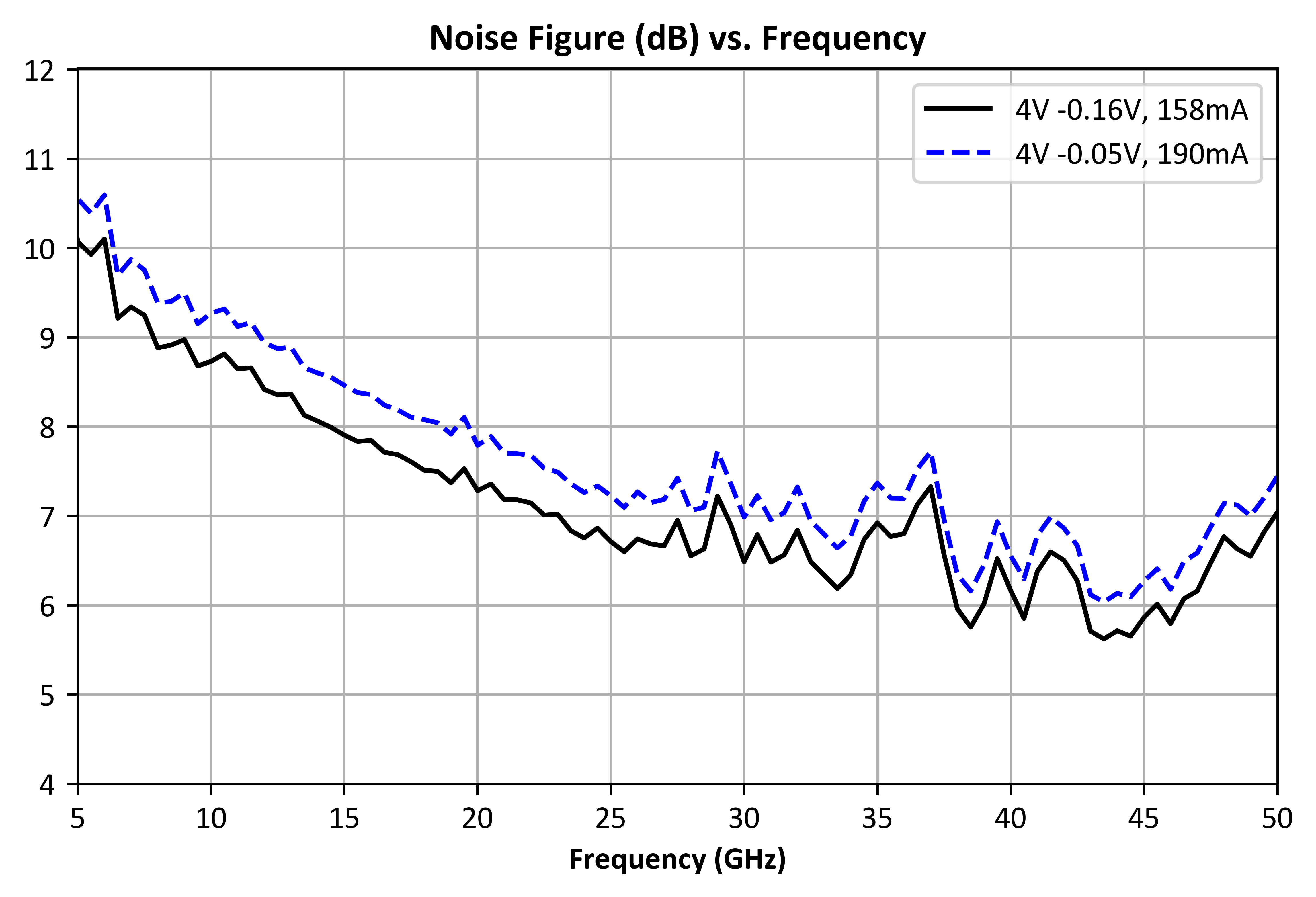

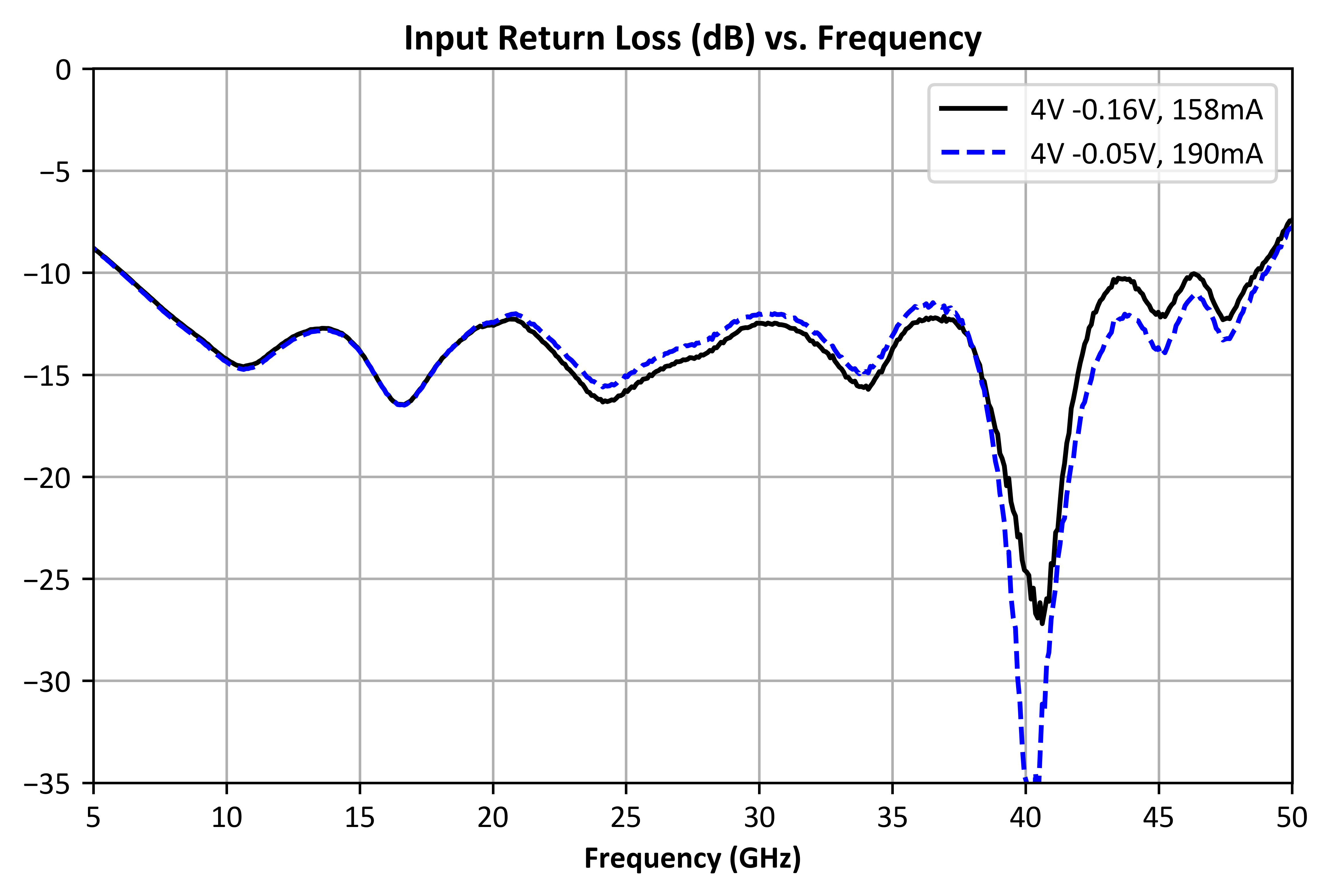

Typical Performance Plots (vs Bias)

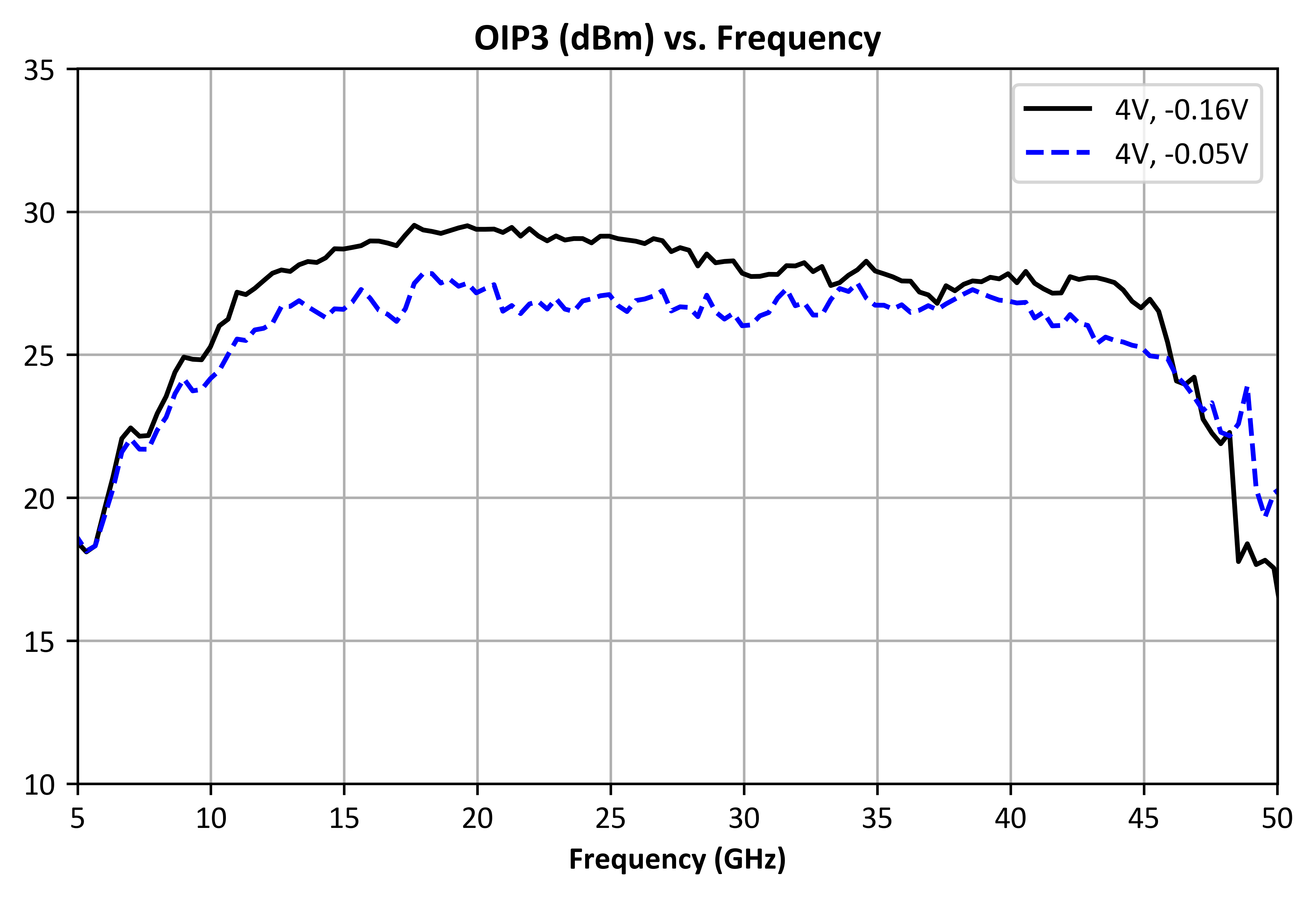

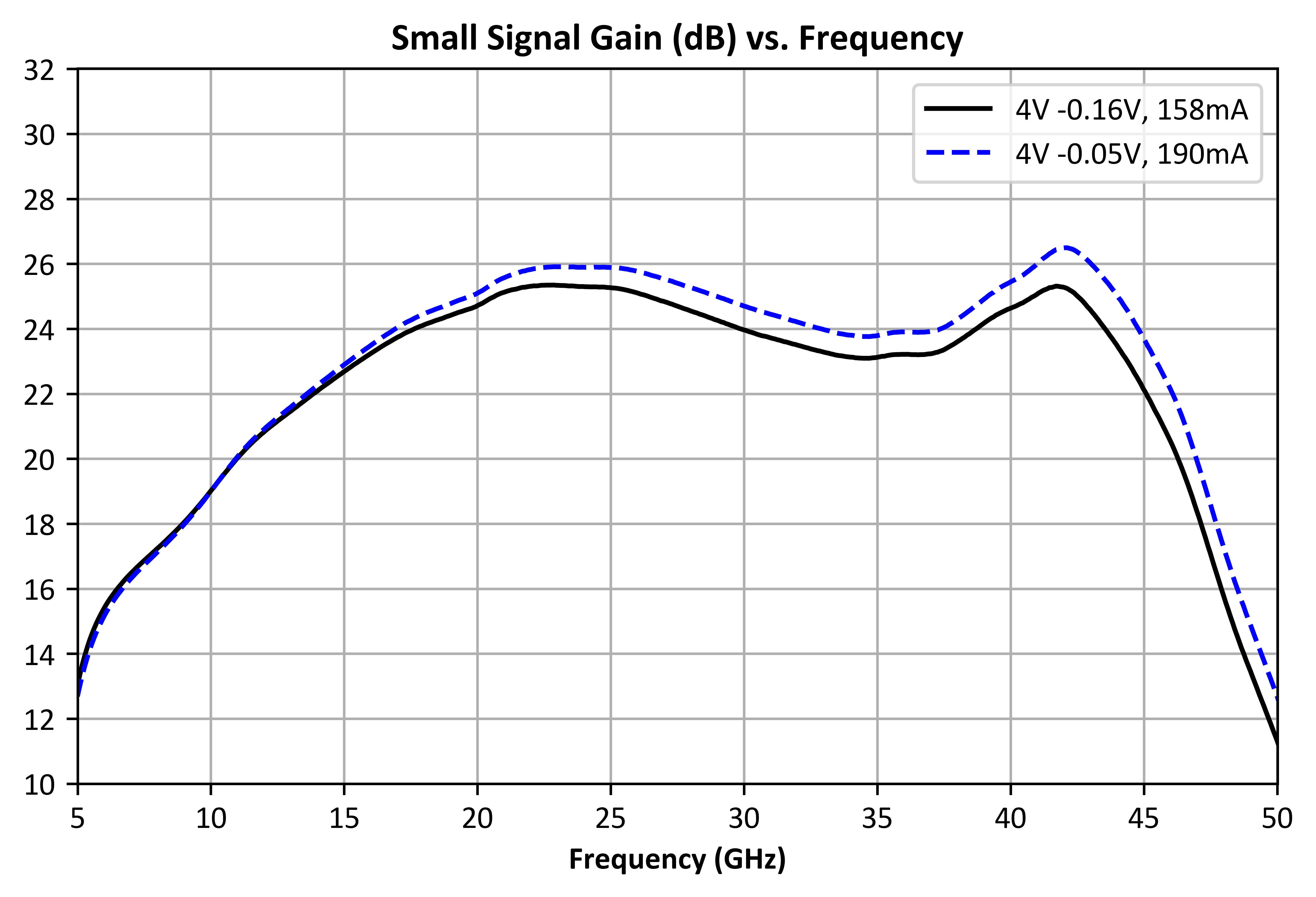

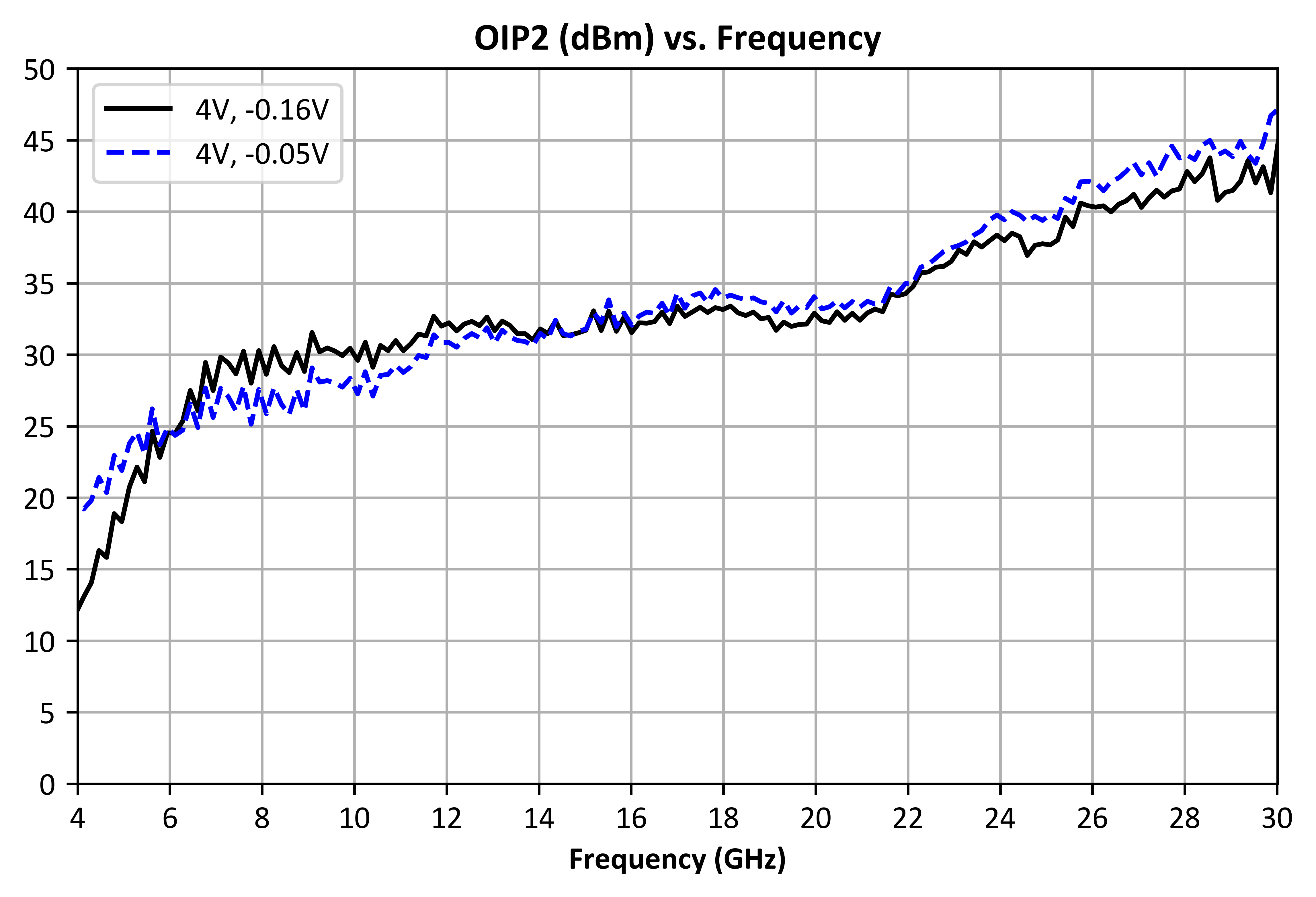

%20vs.%20Frequency.png)
%20vs.%20Frequency.png)
%20vs.%20Frequency.png)
%20vs.%20Frequency.png)
%20vs.%20Frequency.png)
%20vs.%20Frequency.png)
%20vs.%20Frequency.png)
%20vs.%20Frequency.png)
AMM-10861PSM
15-45 GHz Broadband Gain Block Driver Amplifier

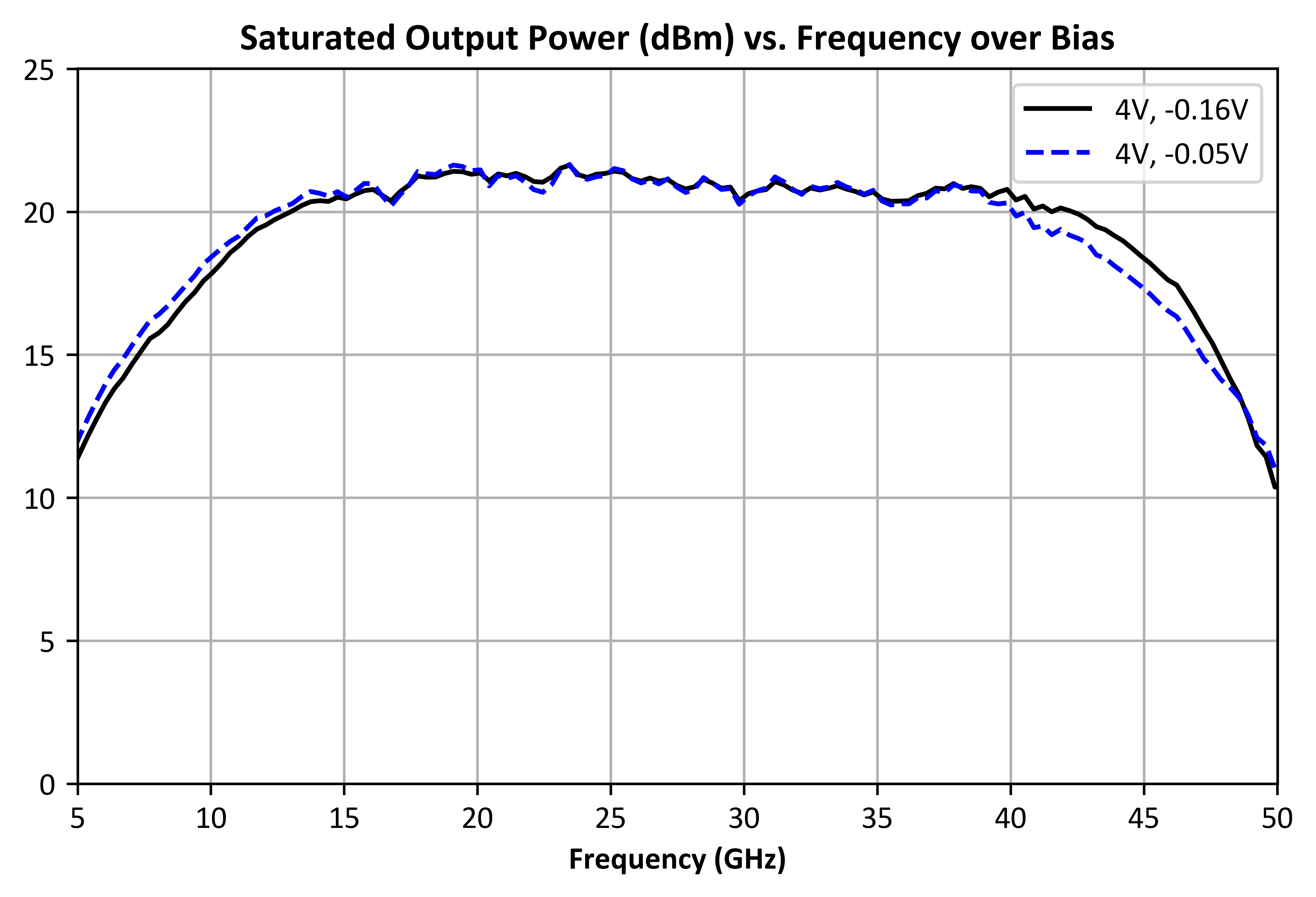

%20vs.%20Frequency%20over%20Bias.png)
AMM-10861PSM
15-45 GHz Broadband Gain Block Driver Amplifier

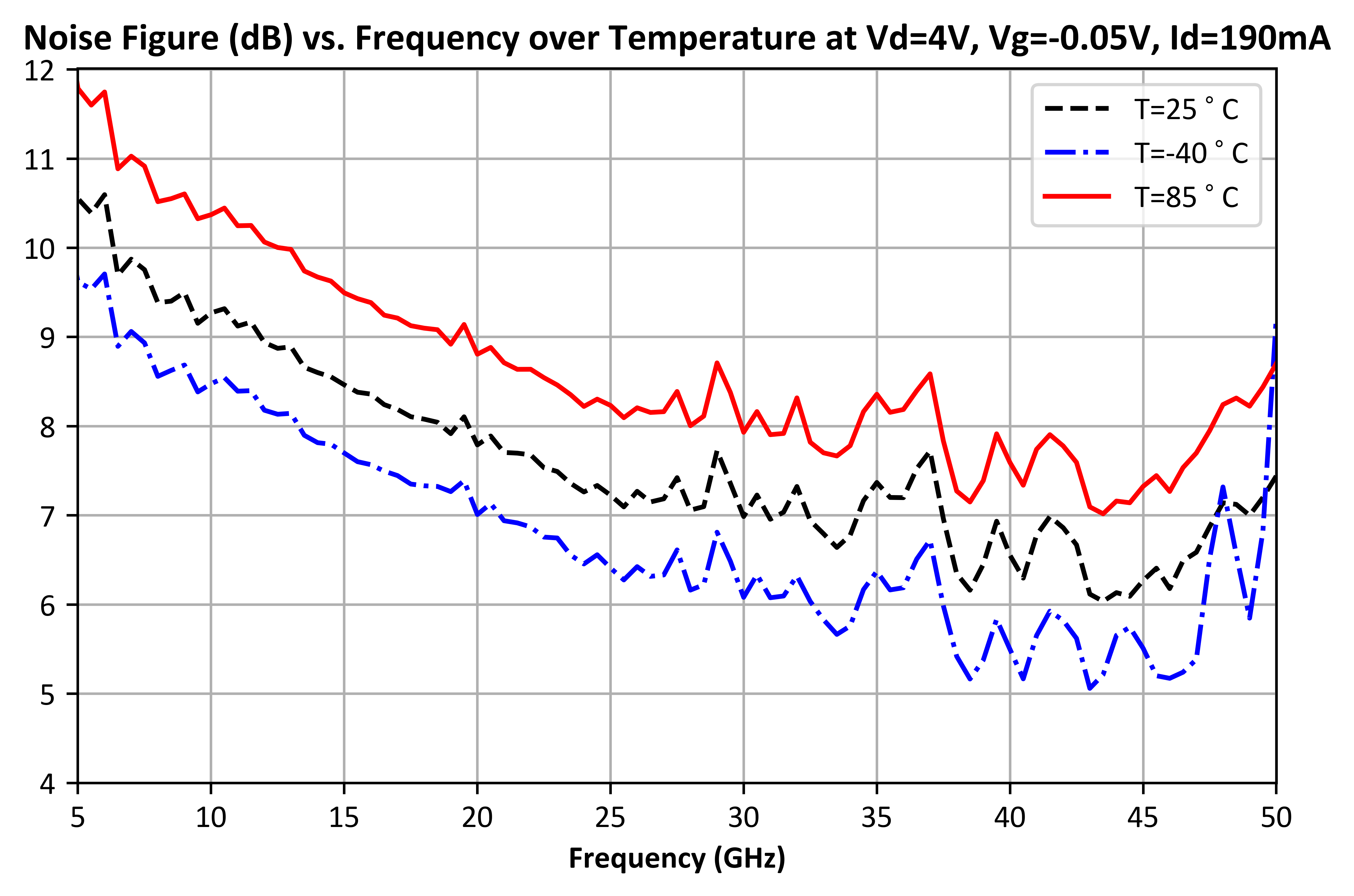

Typical Performance Plots (vs Temperature)

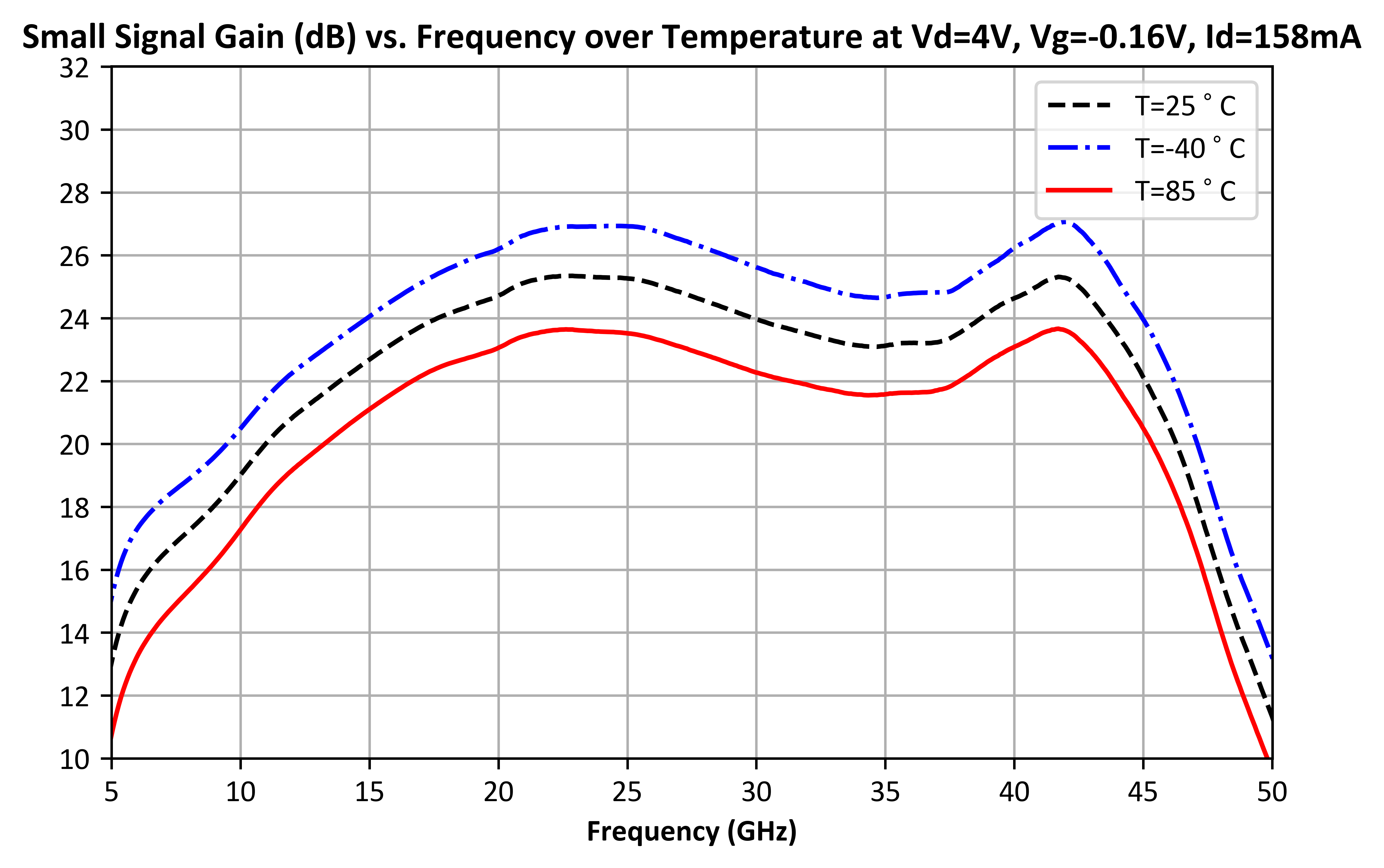

%20vs.%20Frequency%20over%20Temperature%20at%20Vd=4V,%20Vg=-0.16V,%20Id=158mA.png)

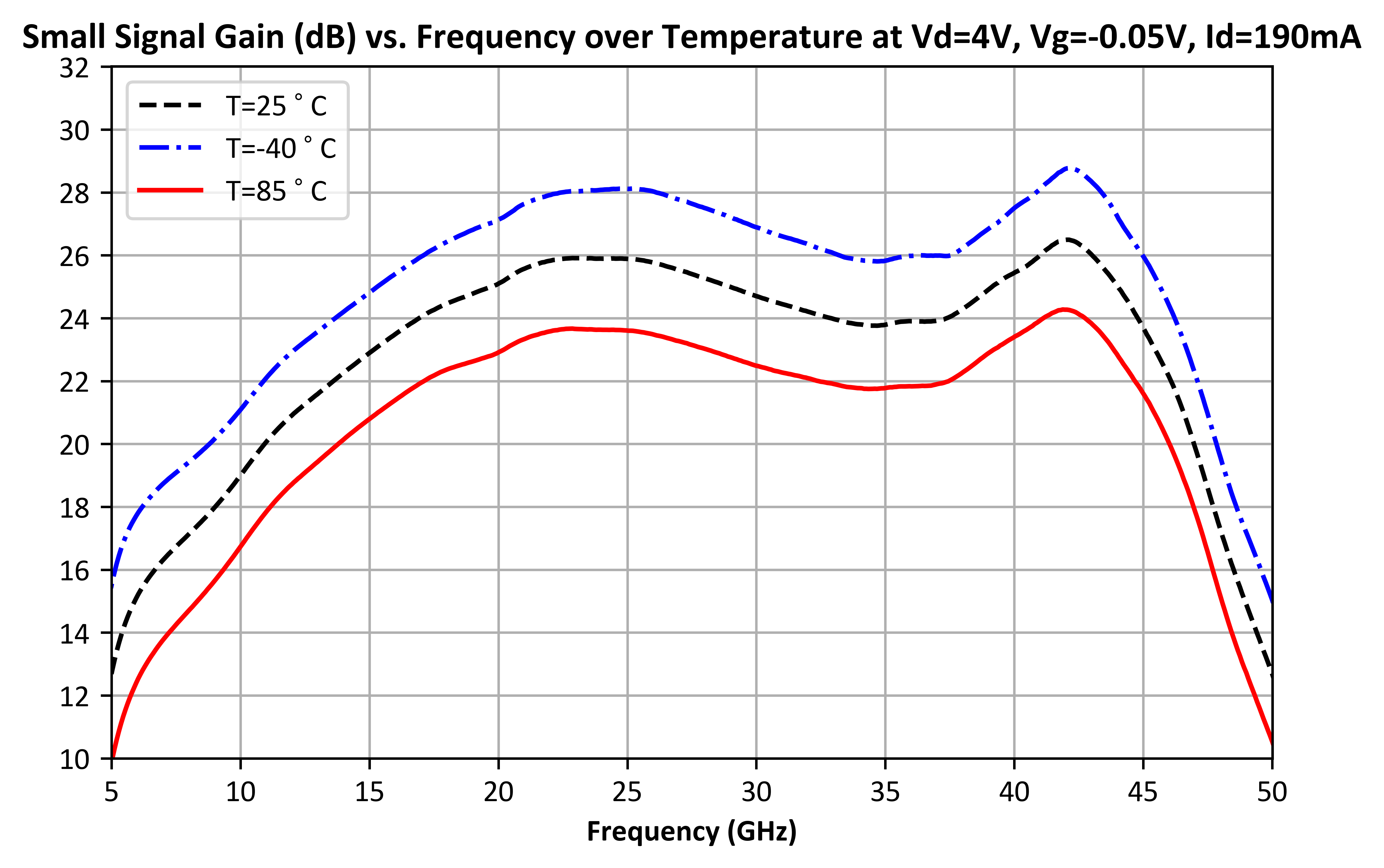

%20vs.%20Frequency%20over%20Temperature%20at%20Vd=4V,%20Vg=-0.05V,%20Id=190mA.png)

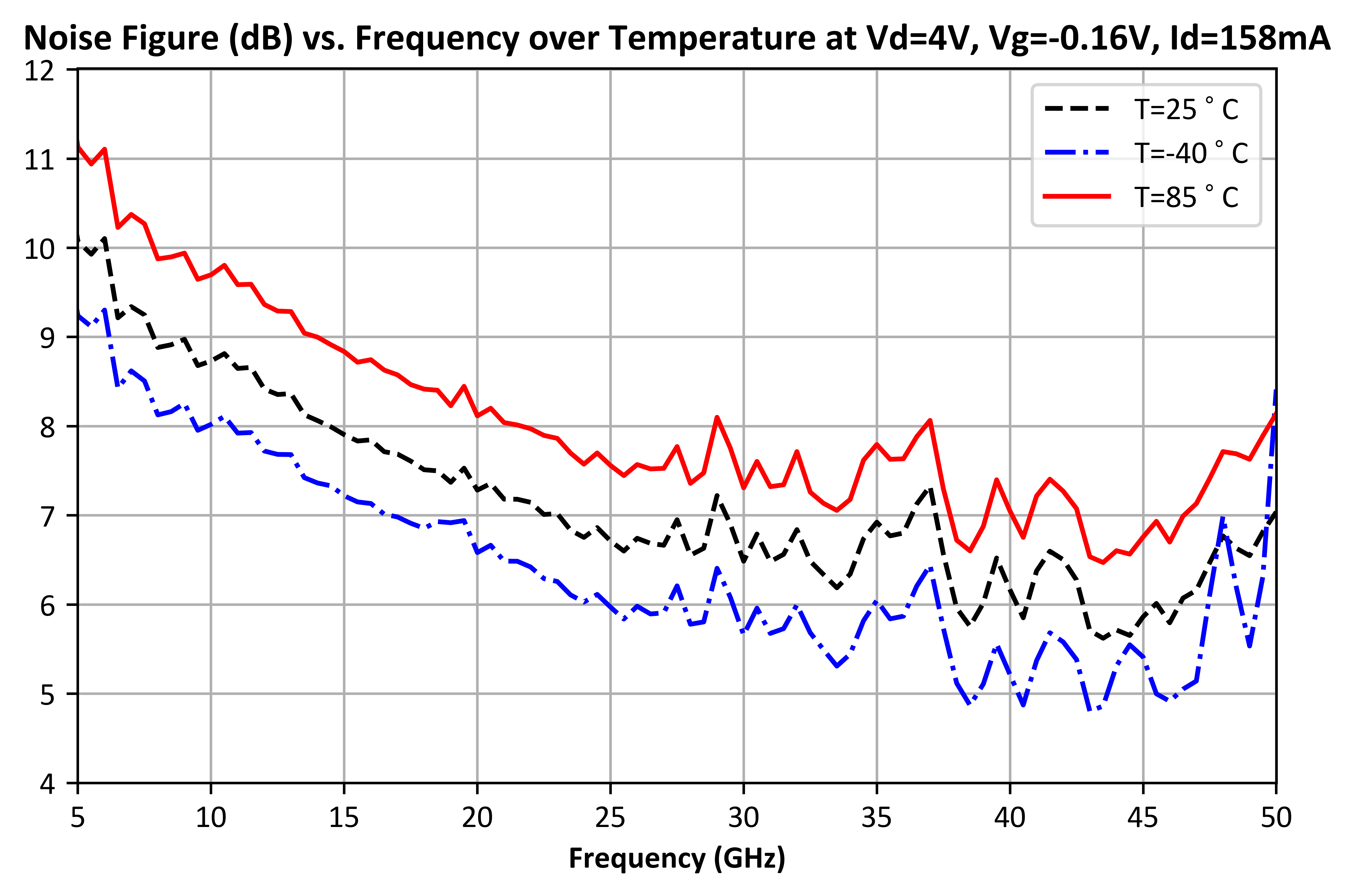

%20vs.%20Frequency%20over%20Temperature%20at%20Vd=4V,%20Vg=-0.16V,%20Id=158mA.png)
%20vs.%20Frequency%20over%20Temperature%20at%20Vd=4V,%20Vg=-0.05V,%20Id=190mA.png)
AMM-10861PSM
15-45 GHz Broadband Gain Block Driver Amplifier
Application Circuit
AMM-10861PSM
15-45 GHz Broadband Gain Block Driver Amplifier

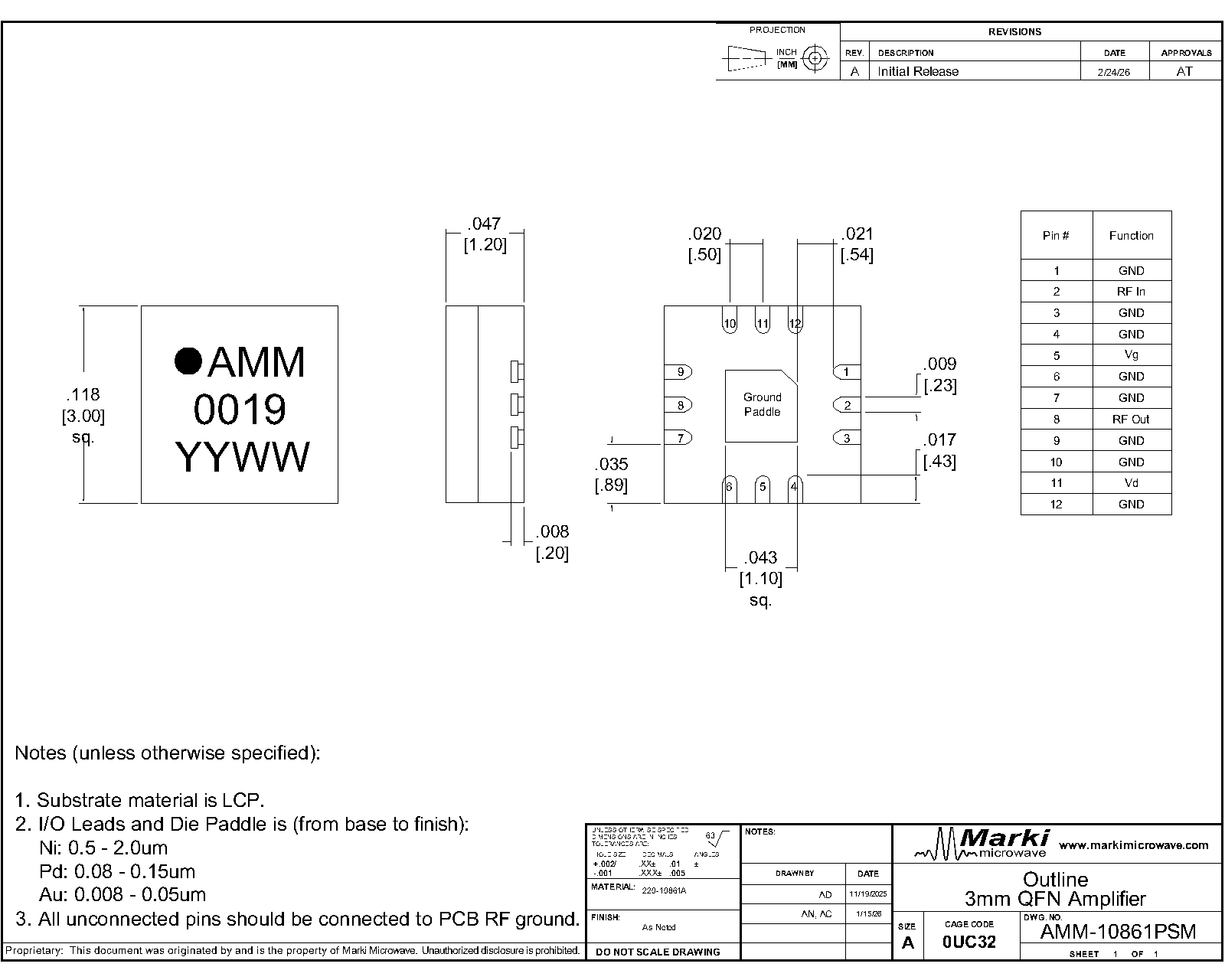

Mechanical Data
AMM-10861PSM
15-45 GHz Broadband Gain Block Driver Amplifier

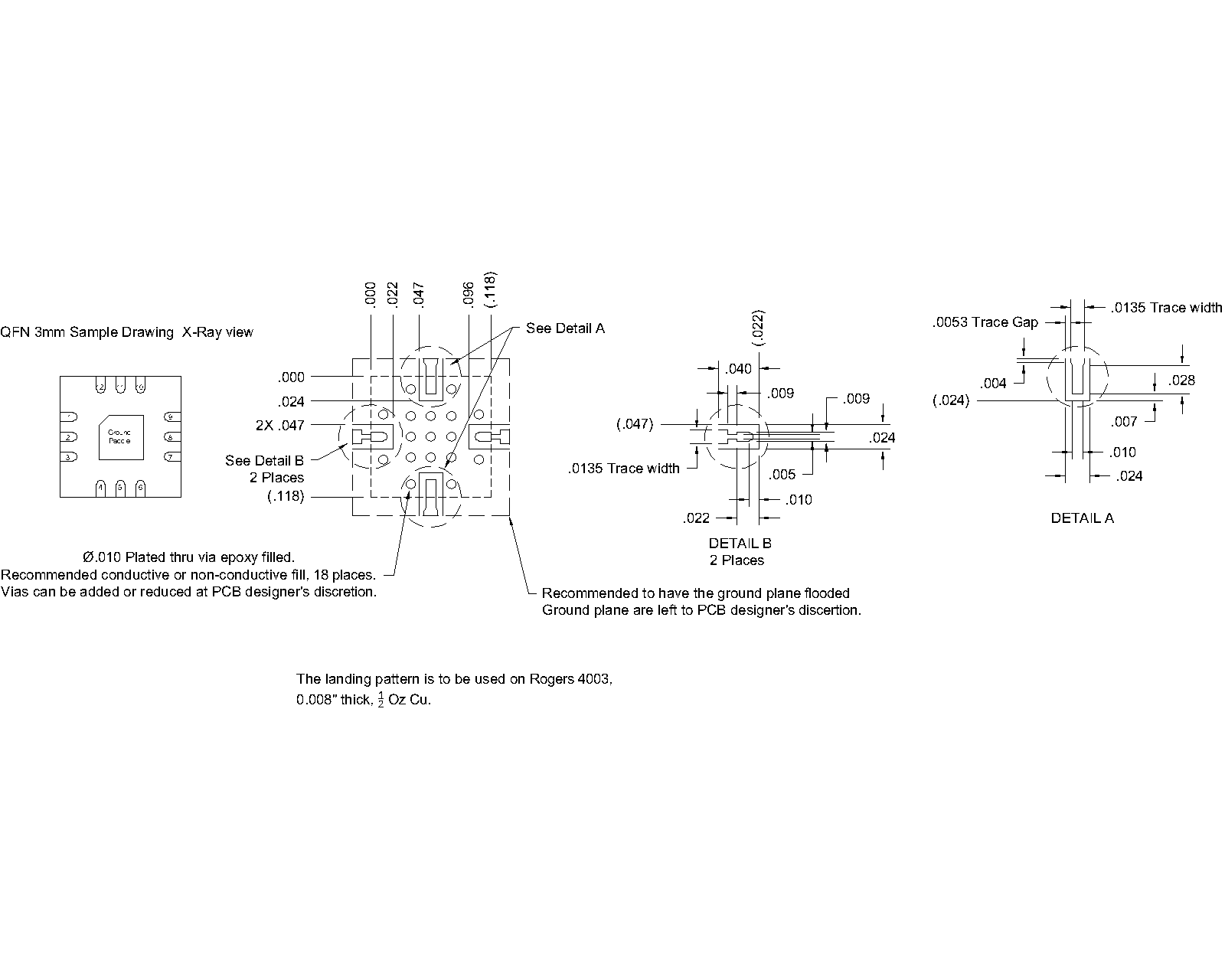

Footprint Image
Download : Footprint Drawing
AMM-10861PSM
15-45 GHz Broadband Gain Block Driver Amplifier

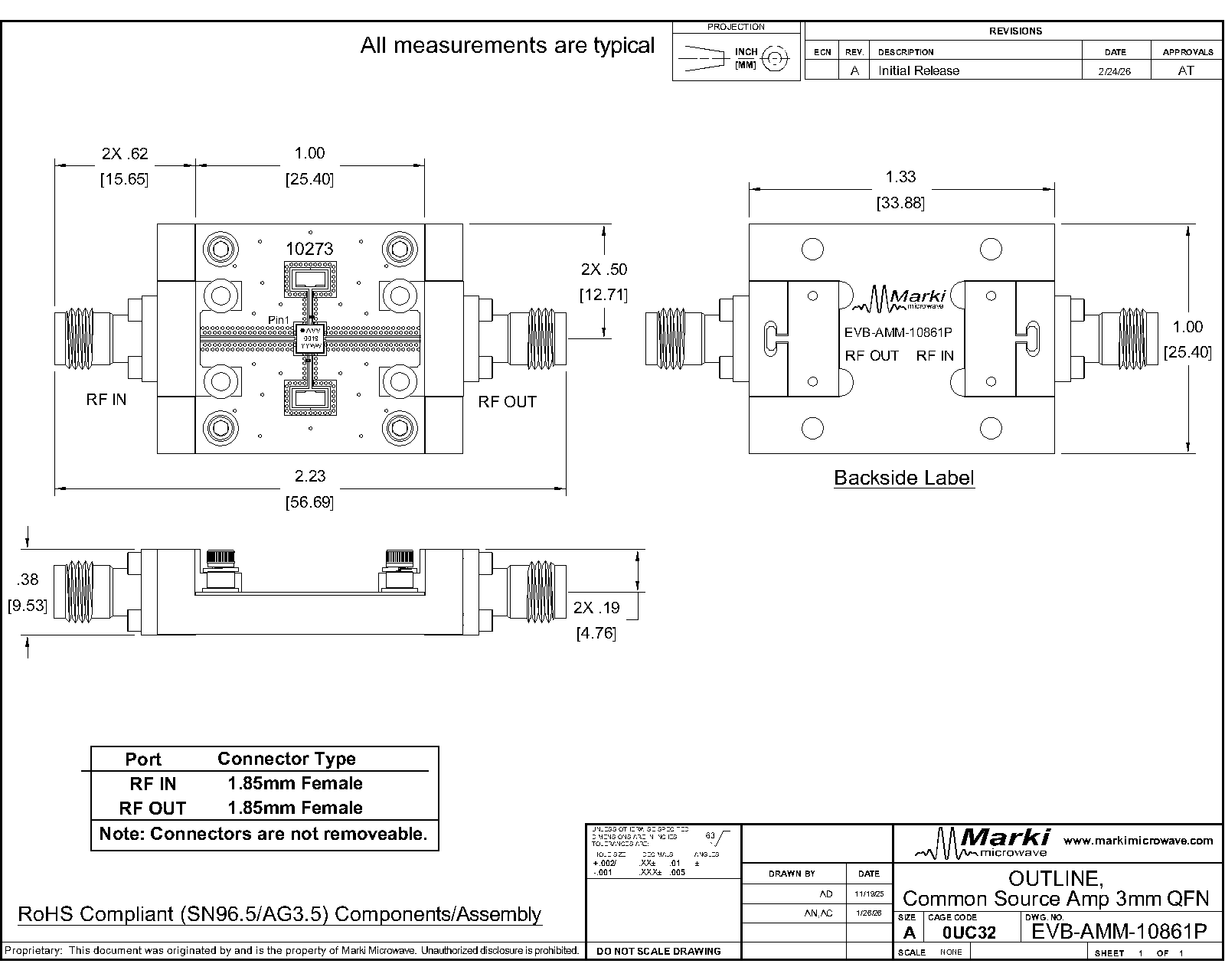

Evaluation Board - Outline Drawing
