ADM-9028PSM

300kHz - 26 GHz Distributed Amplifier

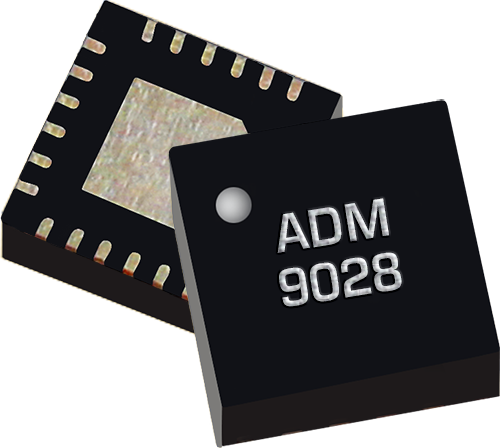

The ADM-9028PSM is a wideband distributed low noise amplifier capable of providing 16 dB gain and +24 dBm OIP3 from 10MHz to 26 GHz and a low 2.5 dB typical noise figure from 6 to 20 GHz. The ADM-9028PSM is an ideal linear signal amplifier for applications requiring low power consumption and small form-factors. ADM-9028PSM is DC coupled with the low end limited by the blocking capacitors. Available in a surface mount 4x4mm QFN package. The amplifier has excellent return losses and gain flatness.

Product Variant : ADM-9028PSM
Sorted by: No sorting applied
ADM-9028PSM
Distributed
Gain Block
LNA
020172.5202414.54 x 4 mmReleased
EVB-ADM-9028P
Distributed
Gain Block
LNA
0.000326------Released
