ADM-8625PSM

0.75 - 8 GHz High Dynamic Range Gain Block

The ADM-8625PSM is a high-linearity low noise amplifier capable of providing 18 dB gain, 1.5 dB noise figure and +27 dBm OIP3 from 750 MHz to 8 GHz. The ADM-8625PSM can serve either as a linear signal amplifier, or as a saturated driver amplifier for H- or S-diode mixers. The amplifier features excellent return losses, gain flatness and high dynamic range making it suitable for RF front-end applications. The size and low power consumption of the ADM-8625PSM make it ideal for low SWaP applications. The ADM-8625PSM is available in a compact 3x3 mm QFN

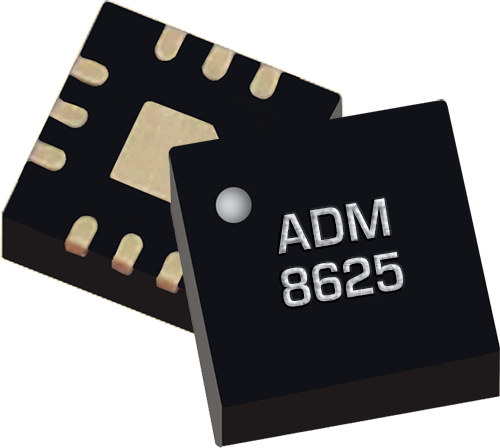

Product Variant : ADM-8625PSM
Sorted by: No sorting applied
EVB-ADM-8625P
Gain Block
0.758-----25.40x50.80 mmReleased
ADM-8625PSM
Gain Block
0.758181.51927173 x 3 mmReleased
