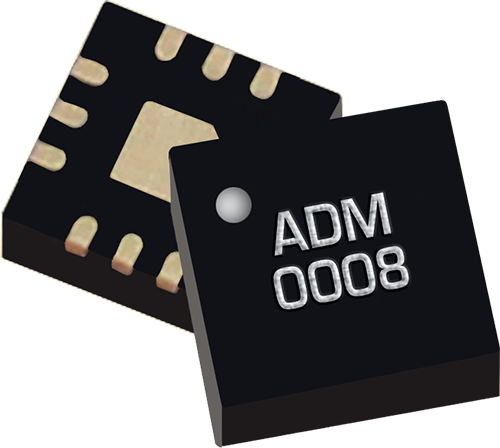

The ADM-10701PSM is a broadband low noise amplifier covering 2 GHz to 20 GHz. Optimized for ultra-low power consumption in compact systems, it operates from a single 2 V supply at just 15 mA bias current, providing 13 dB of small-signal gain with a typical noise figure of 2.4 dB. The ADM-10701PSM requires no application circuit other than bypass capacitors on the DC supply lines, which simplifies integration and reduces board space. Packaged in a compact 3 mm QFN, it is well suited for wideband front-end applications that demand low power, moderate gain, and minimal added noise. Measured small-signal S-parameters are available to support accurate system simulation.
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ADM-10701PSM | 2-20 GHz Broadband, Low DC Power, Low Noise Amplifier | Plastic QFN | REACH RoHS | Released | EAR99 |
| EVB-ADM-10701P | Evaluation Board, 2 - 20 GHz Broadband Low Power Low Noise Amplifier | EVB | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ADM-10701PSM | 2-20 GHz Broadband, Low DC Power, Low Noise Amplifier | Plastic QFN | REACH RoHS | Released | EAR99 |
| EVB-ADM-10701P | Evaluation Board, 2 - 20 GHz Broadband Low Power Low Noise Amplifier | EVB | REACH RoHS | Released | EAR99 |
ADM-10701PSM
2-20 GHz Broadband, Low DC Power, Low Noise Amplifier
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-10-20 | Initial Release |
ADM-10701PSM
2-20 GHz Broadband, Low DC Power, Low Noise Amplifier

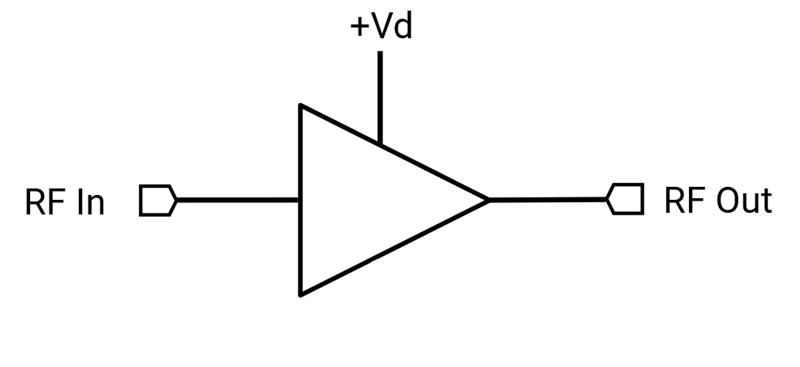

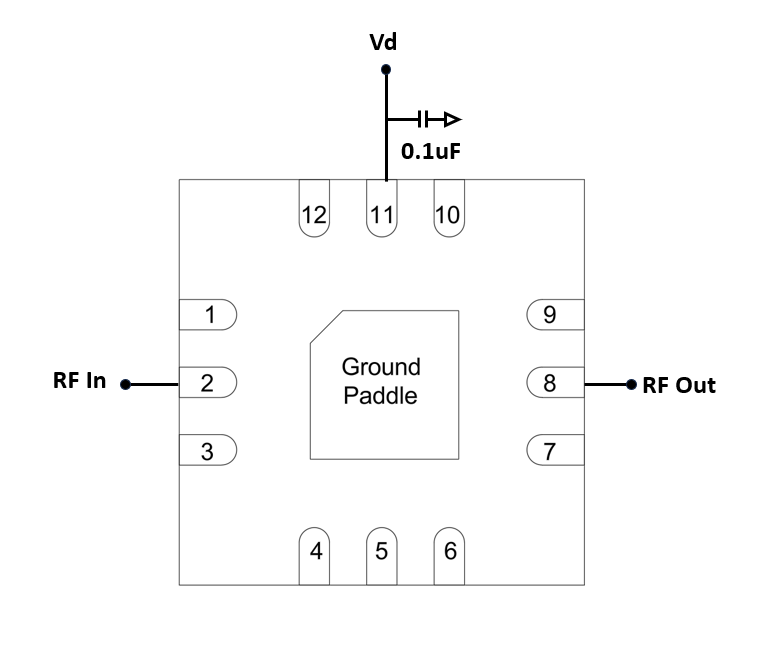

Below is the recommended application circuit for the ADM-10701PSM. This is the configuration that is used to characterize this device. However, each PCB layout and environment are different which may require minor modifications of the biasing network. Please contact [email protected] for more information.

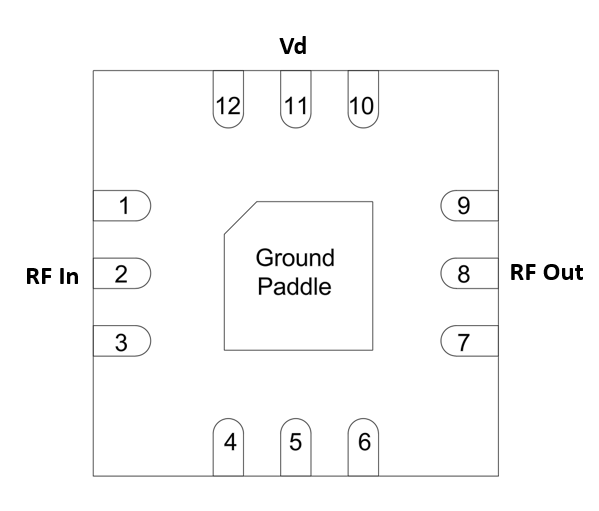

| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | Ground paddle and non-connected pins must be connected to a DC/RF ground potential with high thermal and electrical conductivity, and low inductance. |  |
| Pin 11 | Vd | Pin 11 is the DC bias supply for the amplifier. The voltage at this pin should be set to 2V for normal operation. This part requires an off-chip bypass capacitor of 0.1uF installed at this pin as close to the IC as possible. See applications circuit. |  |
| Pin 1,3,4,5,6,7,9,10,12 | Ground | These pins are not internally connected to the amplifier die. It is recommended to connect these pins to ground to provide RF isolation and mechanical stability. See the recommended landing pattern for details. Datasheet performance was measured with these pins connected to GND. | - |
| Pin 2 | RF Input | Pin 2 is the amplifier's RF input pin. This port is internally matched to 50 Ohms and is internally DC shorted to GND. This pin may be left floating if no DC is present on the line but should be DC blocked otherwise. |  |
| Pin 8 | RF Output | Pin 8 is the amplifier's RF output pin. This port is internally matched to 50 Ohms and is internally DC shorted to GND. This pin may be left floating if no DC is present on the line but should be DC blocked otherwise. |  |
ADM-10701PSM
2-20 GHz Broadband, Low DC Power, Low Noise Amplifier
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime. This amplifier is designed and characterized in a 50Ω system, and operation in a reflective environment can cause performance degradation.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 85 | °C |
| Maximum Storage Temperature | 150 | °C |
| Max Junction Temperature for MTTF > 1E6 hours | 175 | °C |
| Minimum Operating Temperature | -40 | °C |
| Minimum Storage Temperature | -65 | °C |
| Positive Drain Supply Current (with RF Input) | 60 | mA |
| Positive Drain Supply Voltage (Vd) | 6 | V |
| RF Input Power | 10 | dBm |
| Thermal Resistance, θJC 1 | 100 | ºC/W |
[1] TBD
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 3 x 3 mm |
| Moisture Sensitivity Level | - | MSL 1 |
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications. Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the Electrical Specifications. For limits, above which damage may occur, see Absolute Maximum Ratings .
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ambient Temperature | -40 | 25 | 85 | °C |
| Power Supply DC Voltage | 2 | 2 | 5 | V |
| Positive DC Current (Id) (No RF Input) | 15 | 15 | 49 | mA |
ADM-10701PSM
2-20 GHz Broadband, Low DC Power, Low Noise Amplifier
The electrical specifications apply at TA=+25°C in a 50Ω system. QFNs are 100% RF tested.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Small Signal Gain | 2V bias, -30 dBm Input Power | 2 | 20 | - | 13 | - | dB |
| Input Return Loss | 2V bias, -30 dBm Input Power | 2 | 20 | - | 11 | - | dB |
| Output Return Loss | 2V bias, -30 dBm Input Power | 2 | 20 | - | 13 | - | dB |
| Reverse Isolation | 2V bias, -30dBm Input Power | 2 | 20 | - | 19 | - | dB |
| Noise Figure | 2V bias, -30 dBm Input Power | 2 | 20 | - | 2.4 | - | dB |
| Output P1dB | 2V bias | 2 | 20 | - | 6.2 | - | dBm |
| Output IP3 | 2V bias | 2 | 20 | - | 18 | - | dBm |
| Current Consumption 1 | 2V bias | - | - | - | 15 | - | mA |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Small Signal Gain | 2V bias, -30 dBm Input Power | 2 | 20 | - | 13 | - | dB |
| Input Return Loss | 2V bias, -30 dBm Input Power | 2 | 20 | - | 11 | - | dB |
| Output Return Loss | 2V bias, -30 dBm Input Power | 2 | 20 | - | 13 | - | dB |
| Reverse Isolation | 2V bias, -30dBm Input Power | 2 | 20 | - | 19 | - | dB |
| Noise Figure | 2V bias, -30 dBm Input Power | 2 | 20 | - | 2.4 | - | dB |
| Output P1dB | 2V bias | 2 | 20 | - | 6.2 | - | dBm |
| Output IP3 | 2V bias | 2 | 20 | - | 18 | - | dBm |
| Current Consumption 1 | 2V bias | - | - | - | 15 | - | mA |
[1] Bias conditions for Id tested with no RF input power. Bias conditions presented as Vd.
ADM-10701PSM
2-20 GHz Broadband, Low DC Power, Low Noise Amplifier

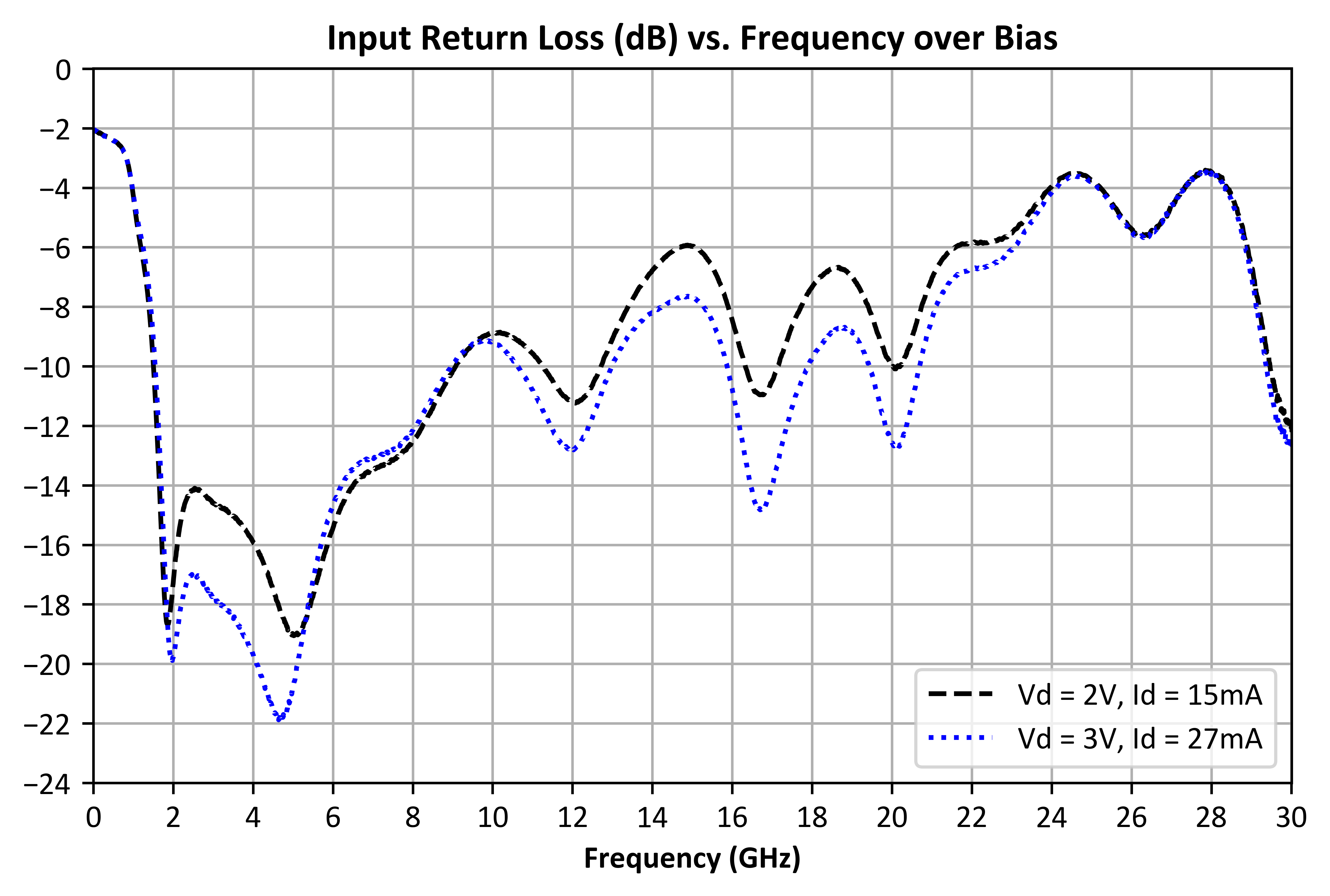

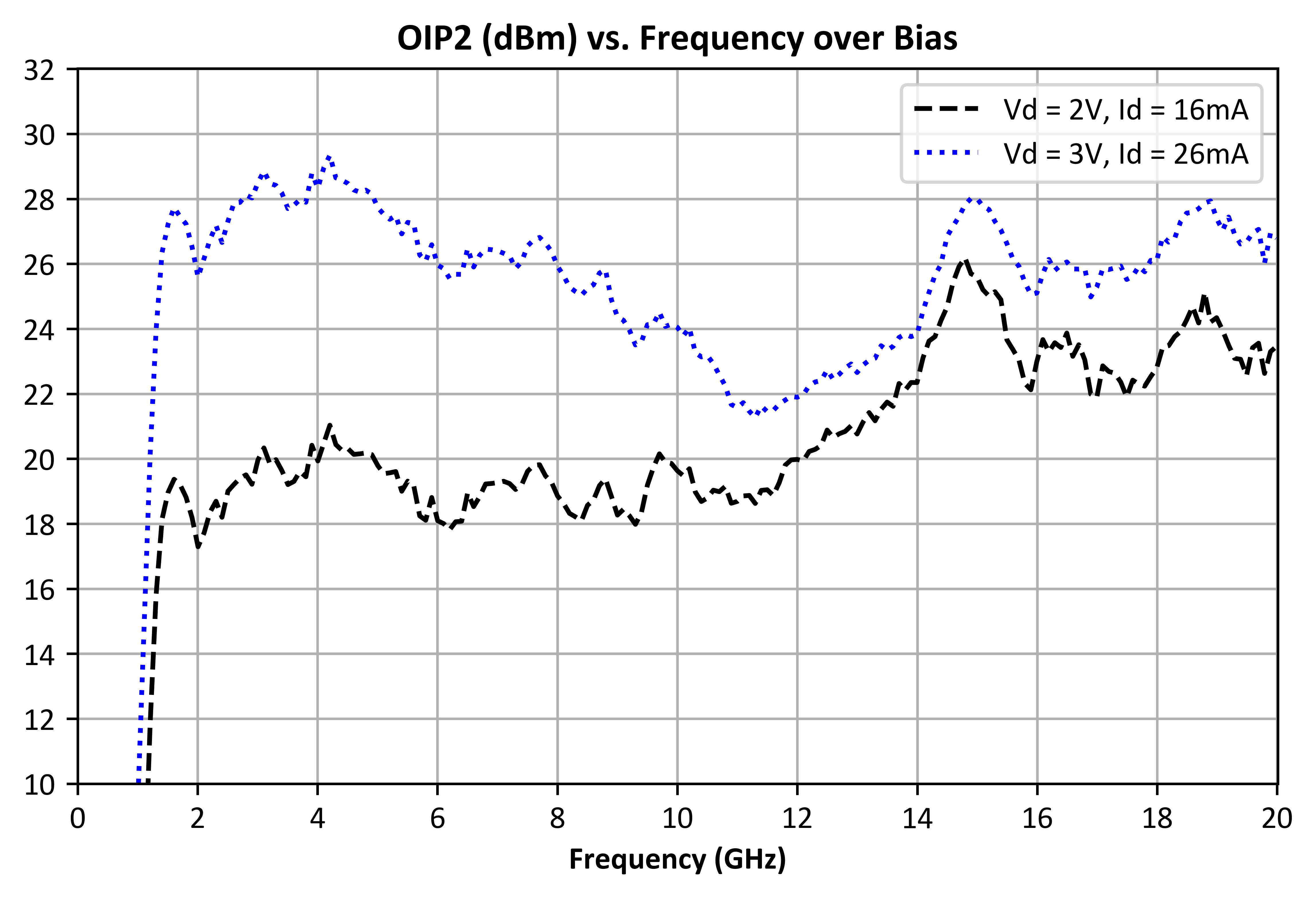

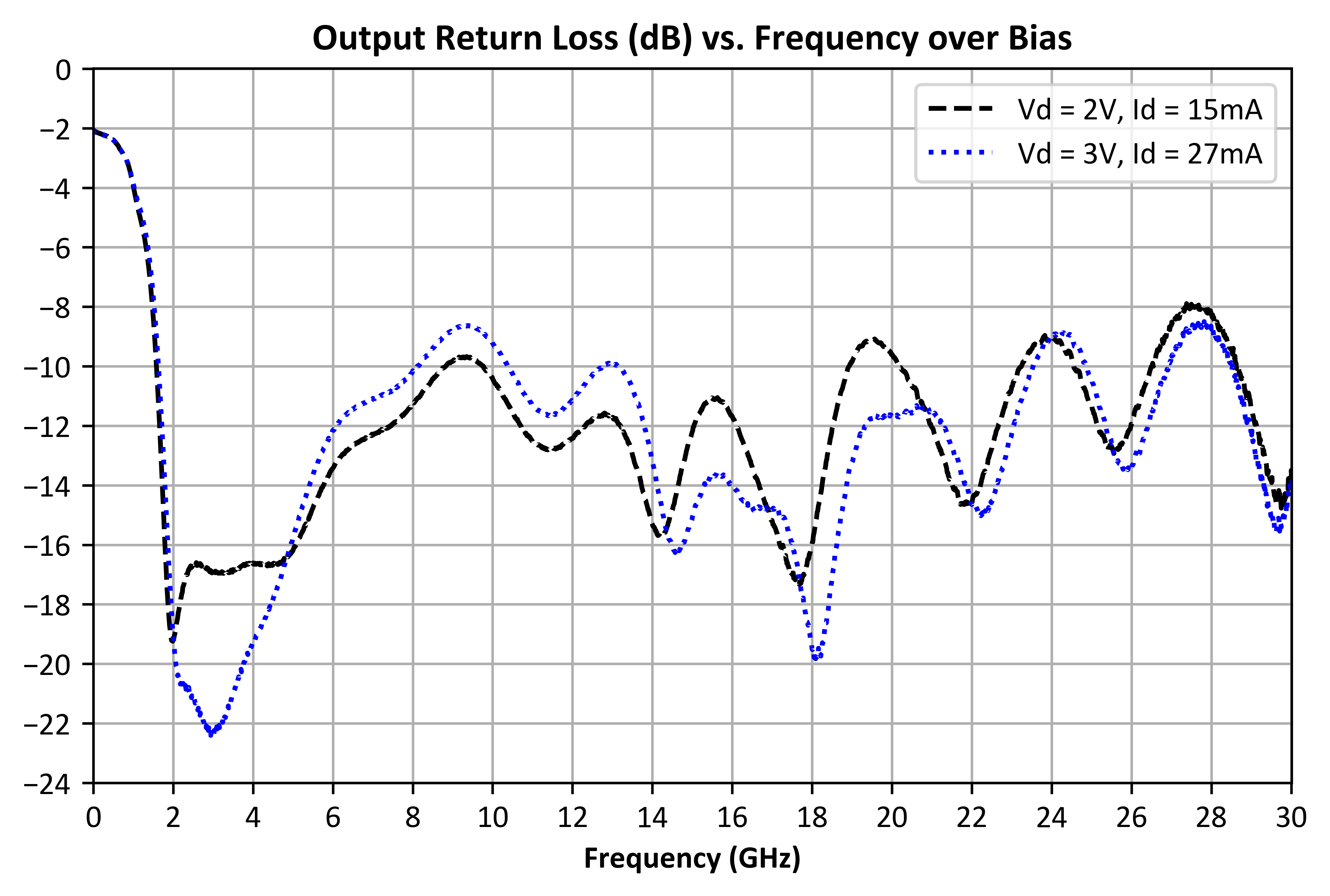

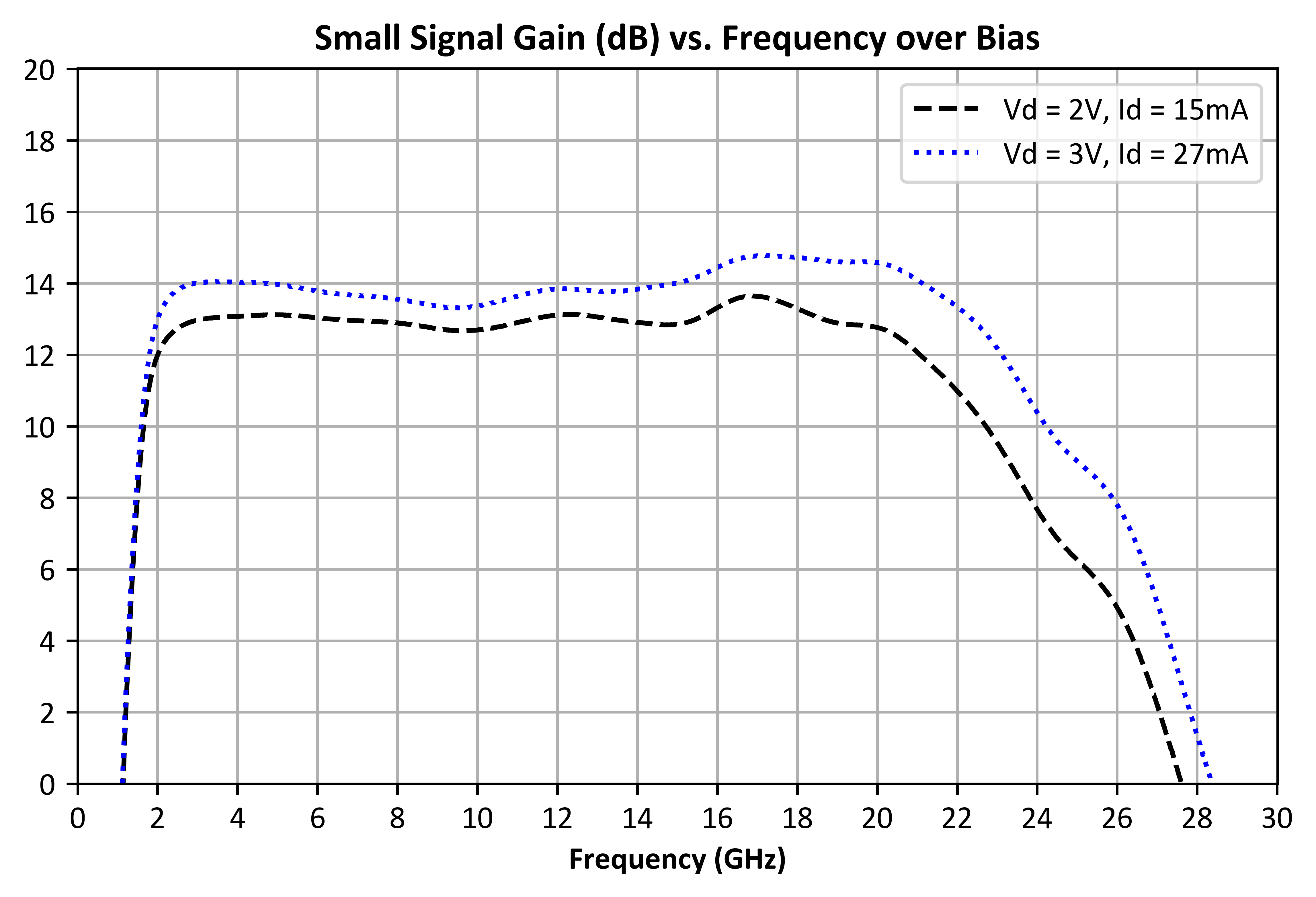

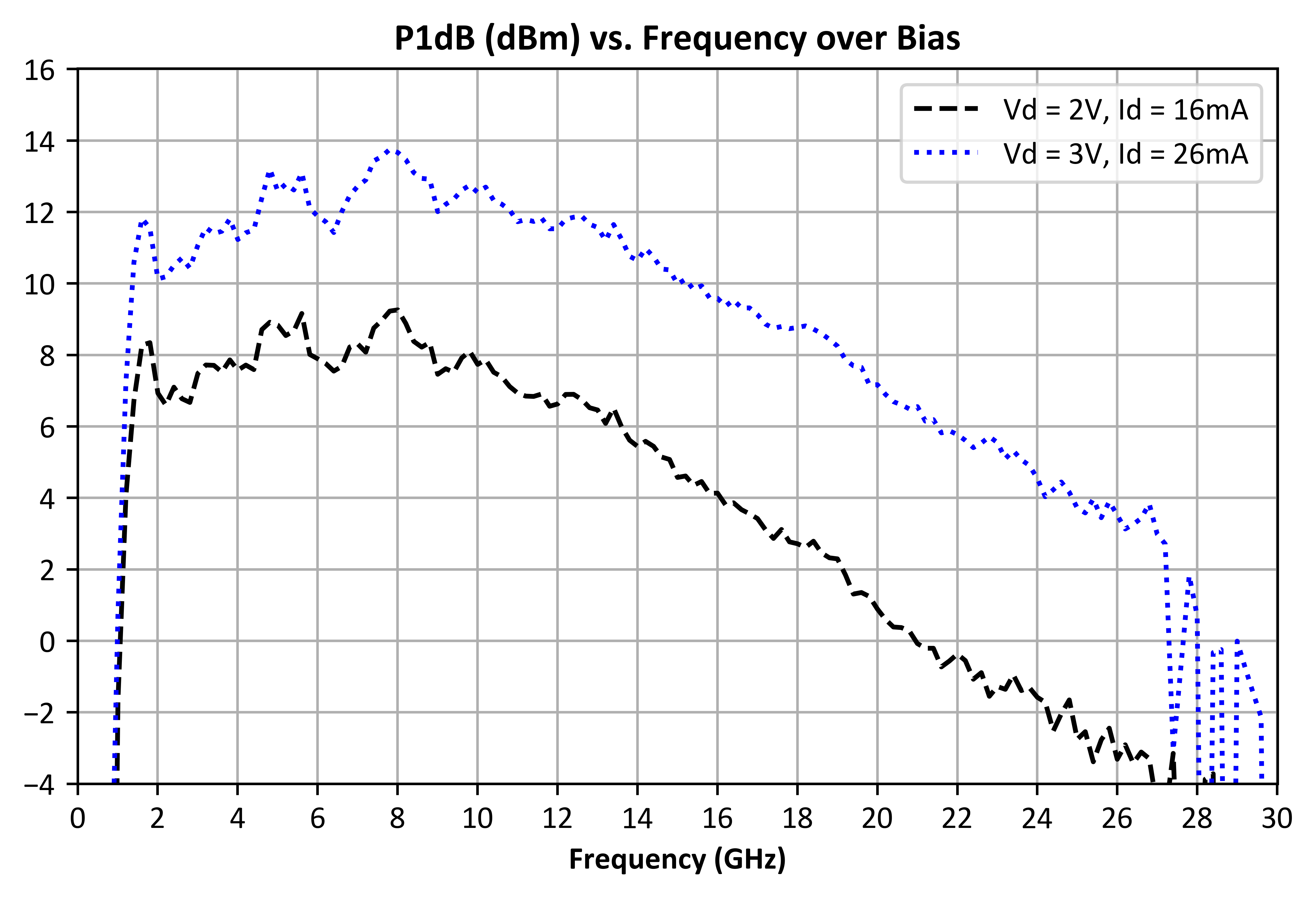

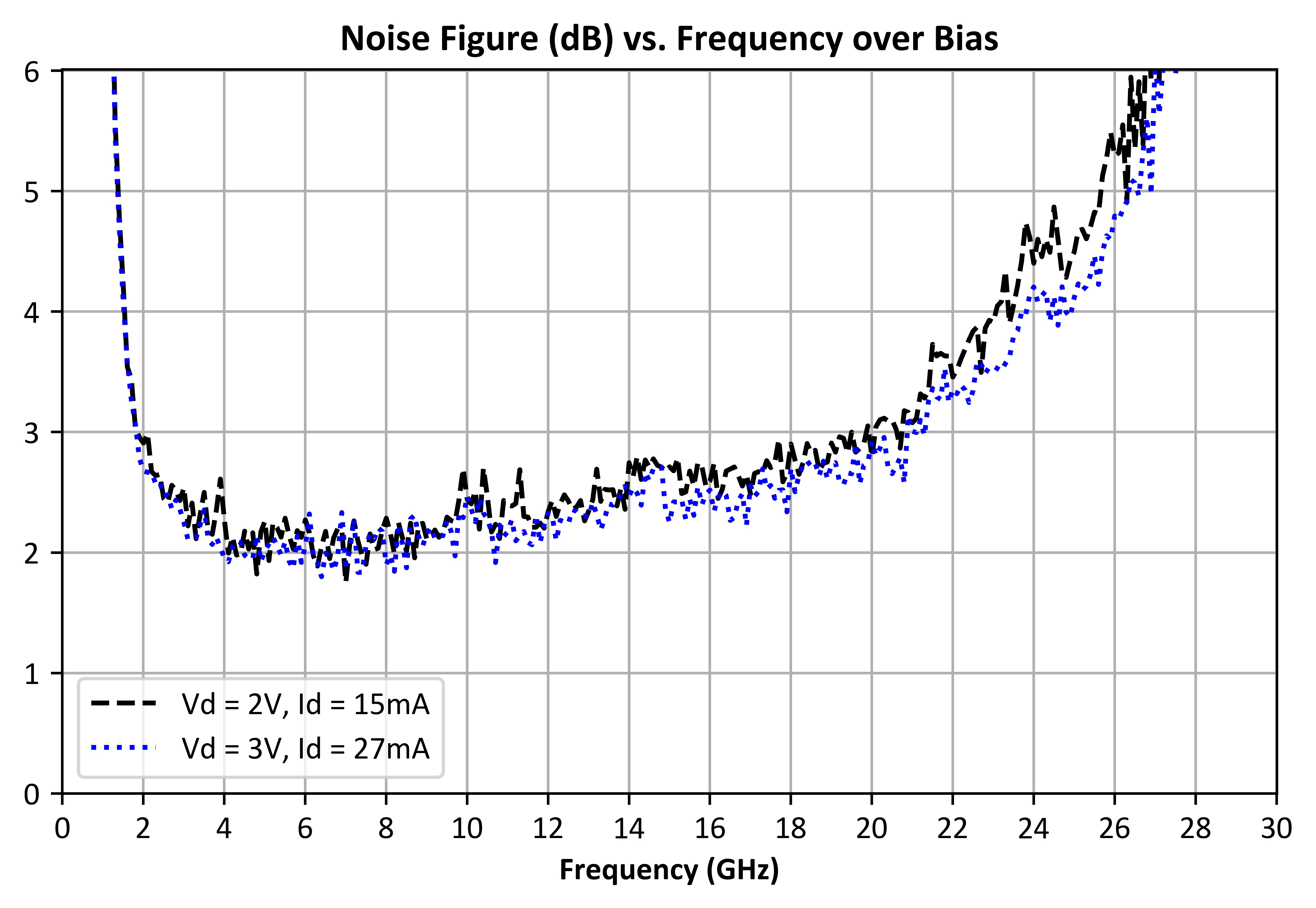

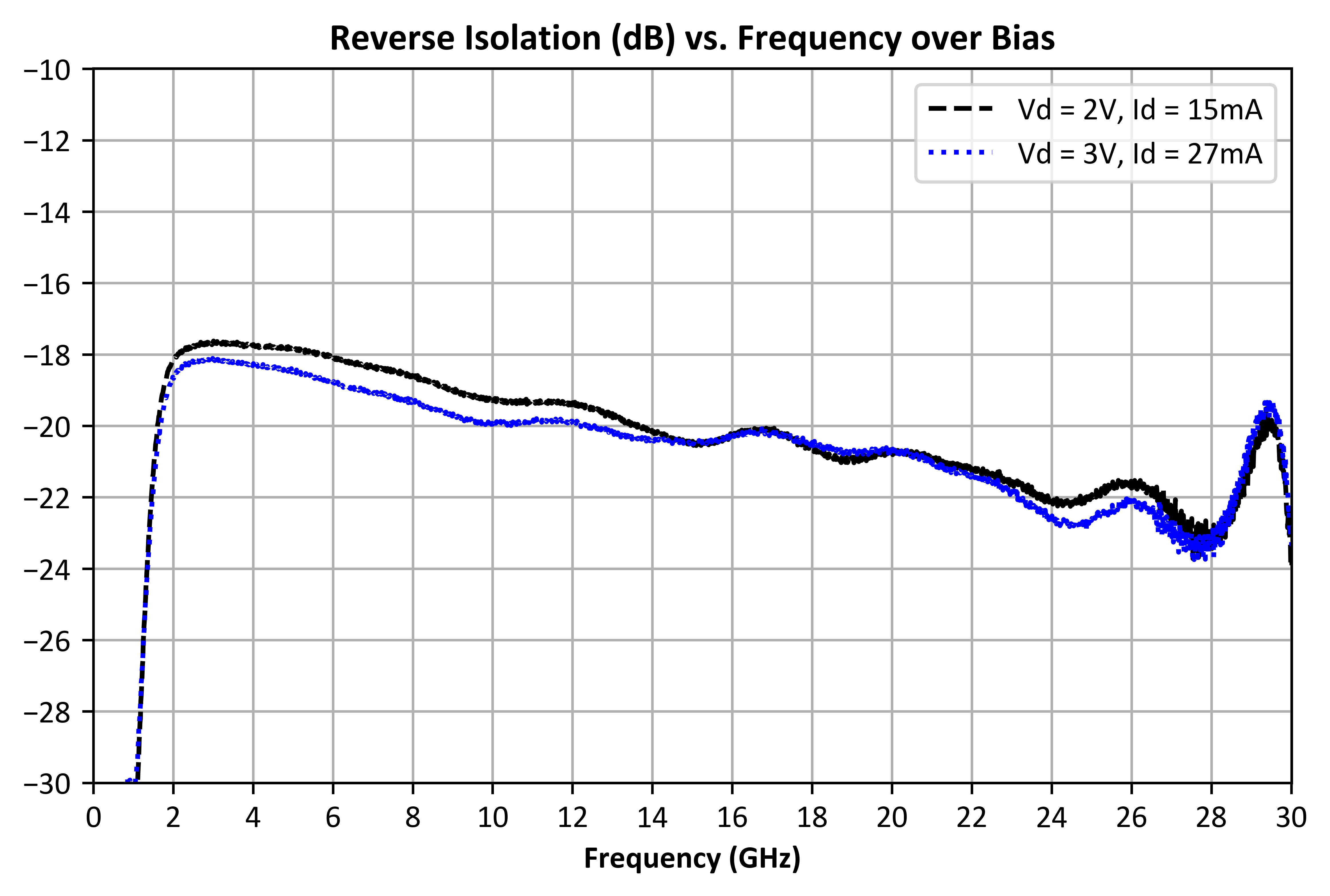

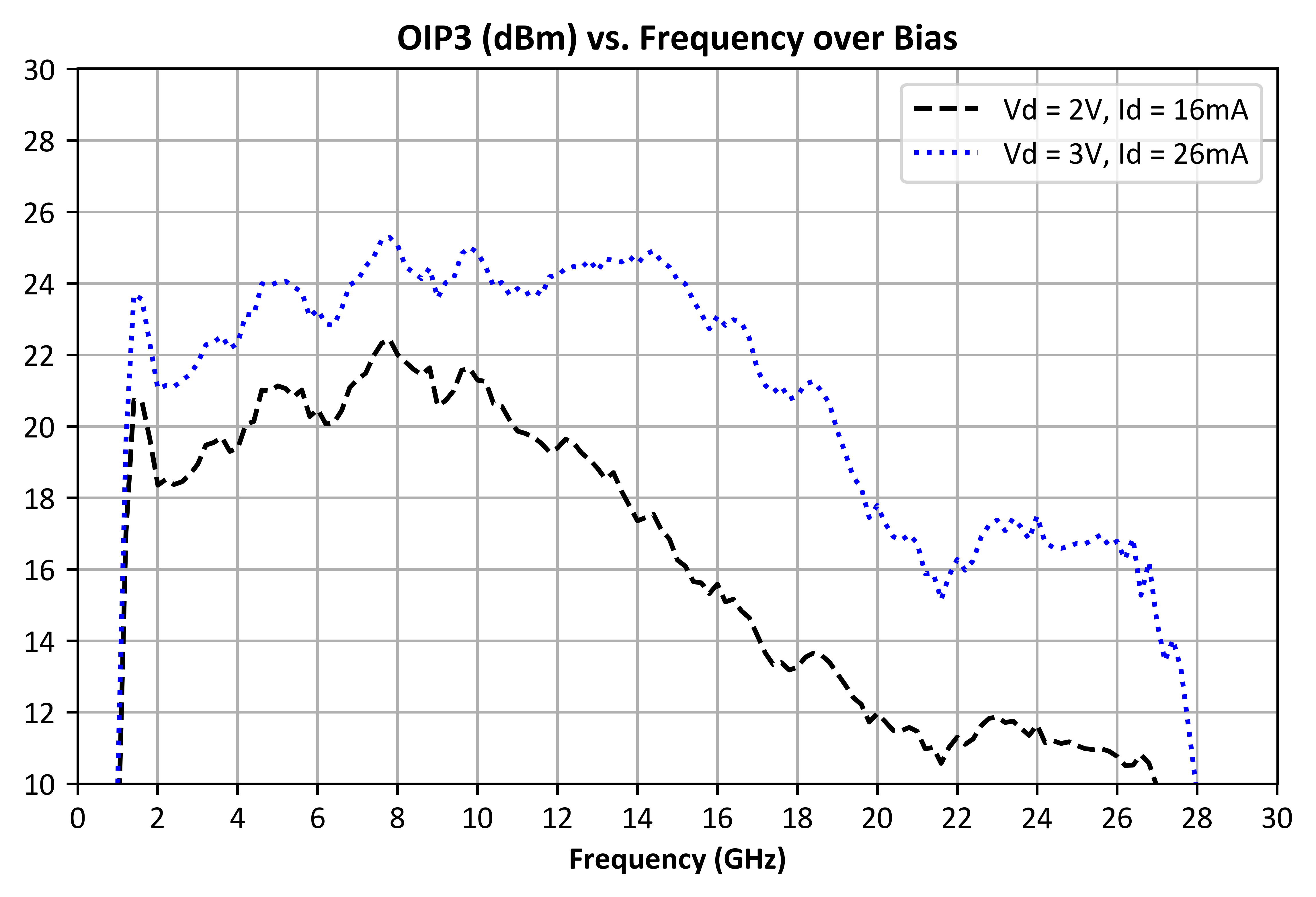

Measurement data de-embedded using standard evaluation board and external wideband test equipment bias tees.
%20vs.%20Frequency%20over%20Bias.png)
%20vs.%20Frequency%20over%20Bias.png)
%20vs.%20Frequency%20over%20Bias.png)
%20vs.%20Frequency%20over%20Bias.png)
%20vs.%20Frequency%20over%20Bias.png)
%20vs.%20Frequency%20over%20Bias.png)
%20vs.%20Frequency%20over%20Bias.png)
%20vs.%20Frequency%20over%20Bias.png)
ADM-10701PSM
2-20 GHz Broadband, Low DC Power, Low Noise Amplifier

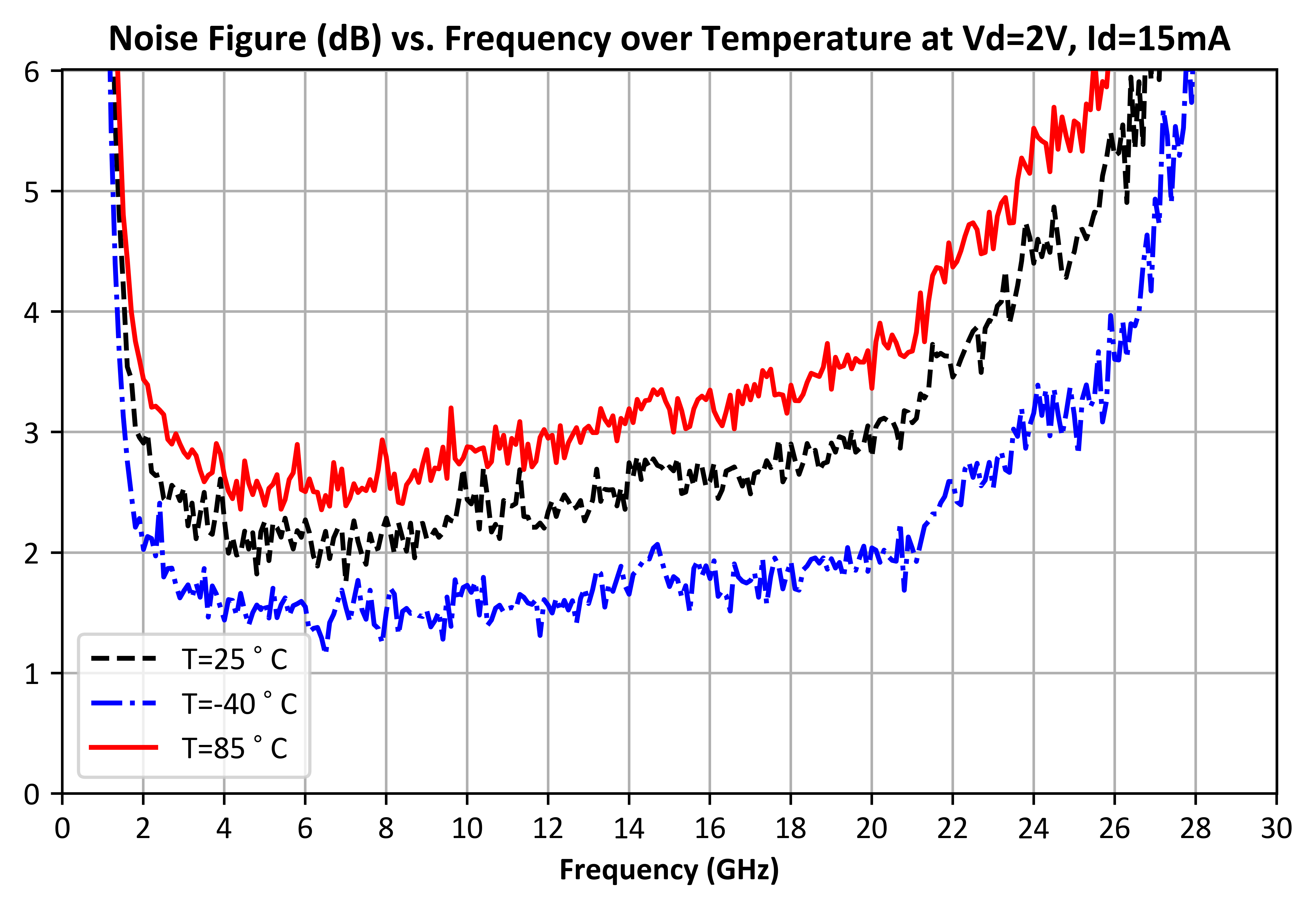

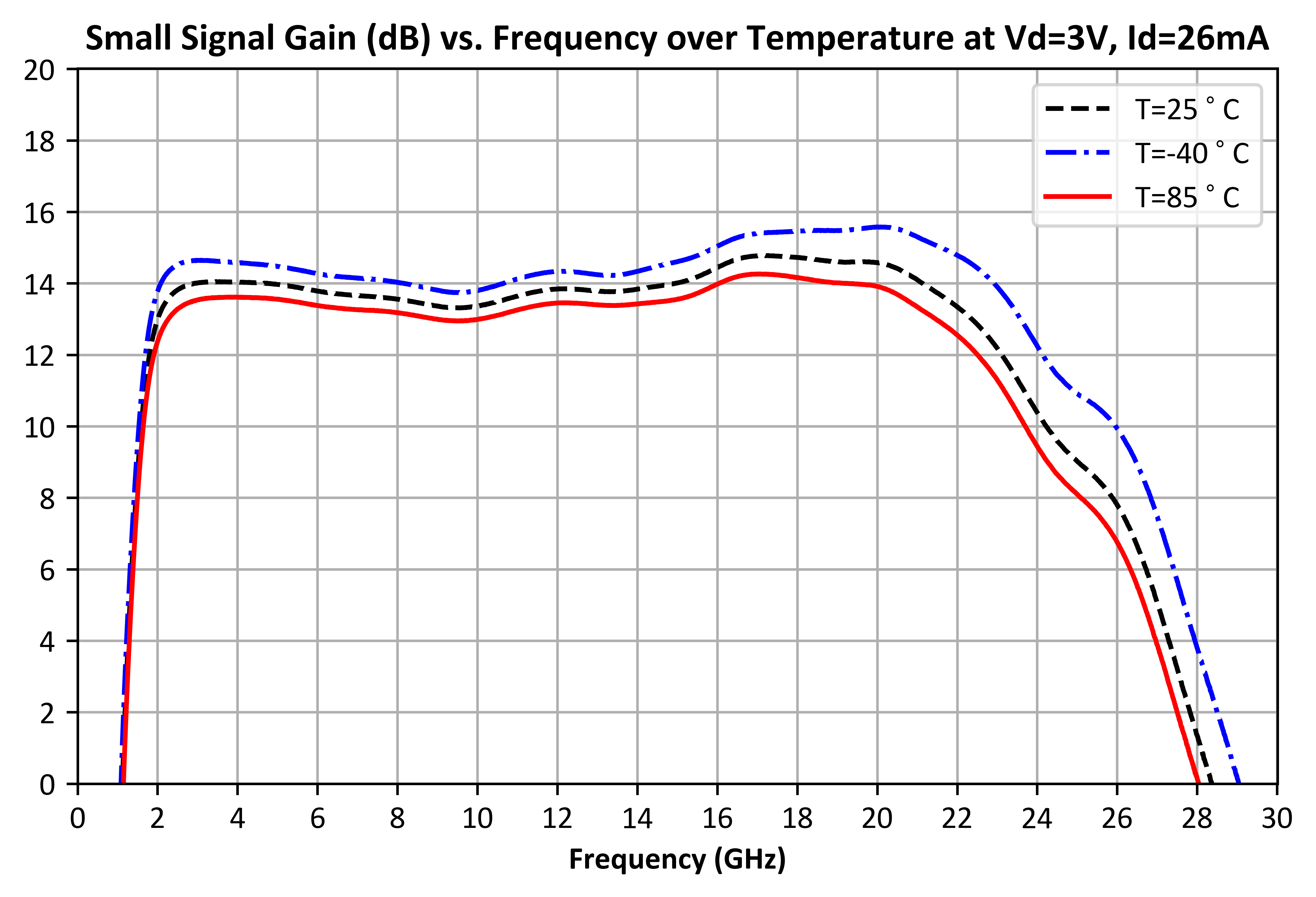

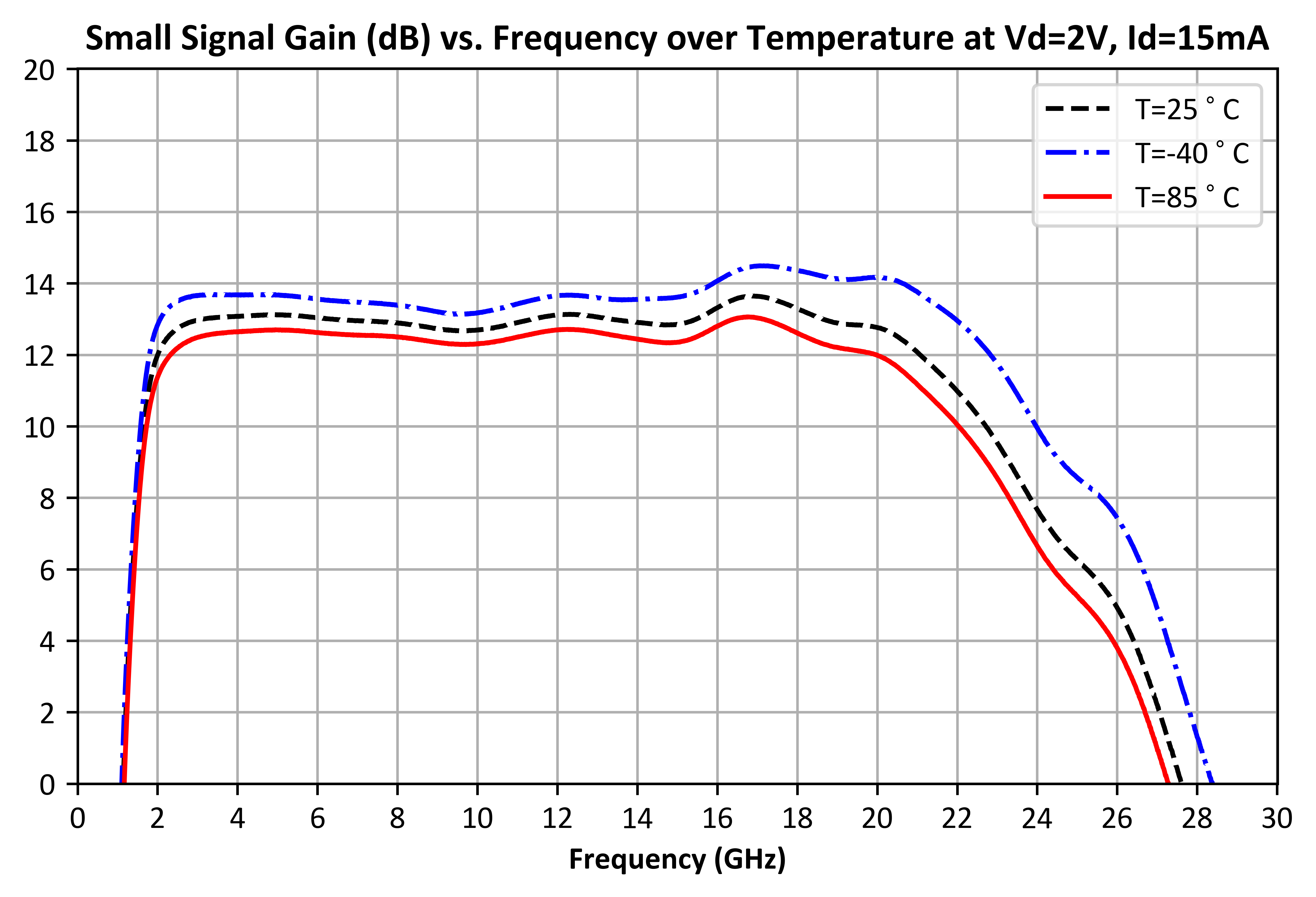

%20vs.%20Frequency%20over%20Temperature%20at%20Vd=2V,%20Id=15mA.png)

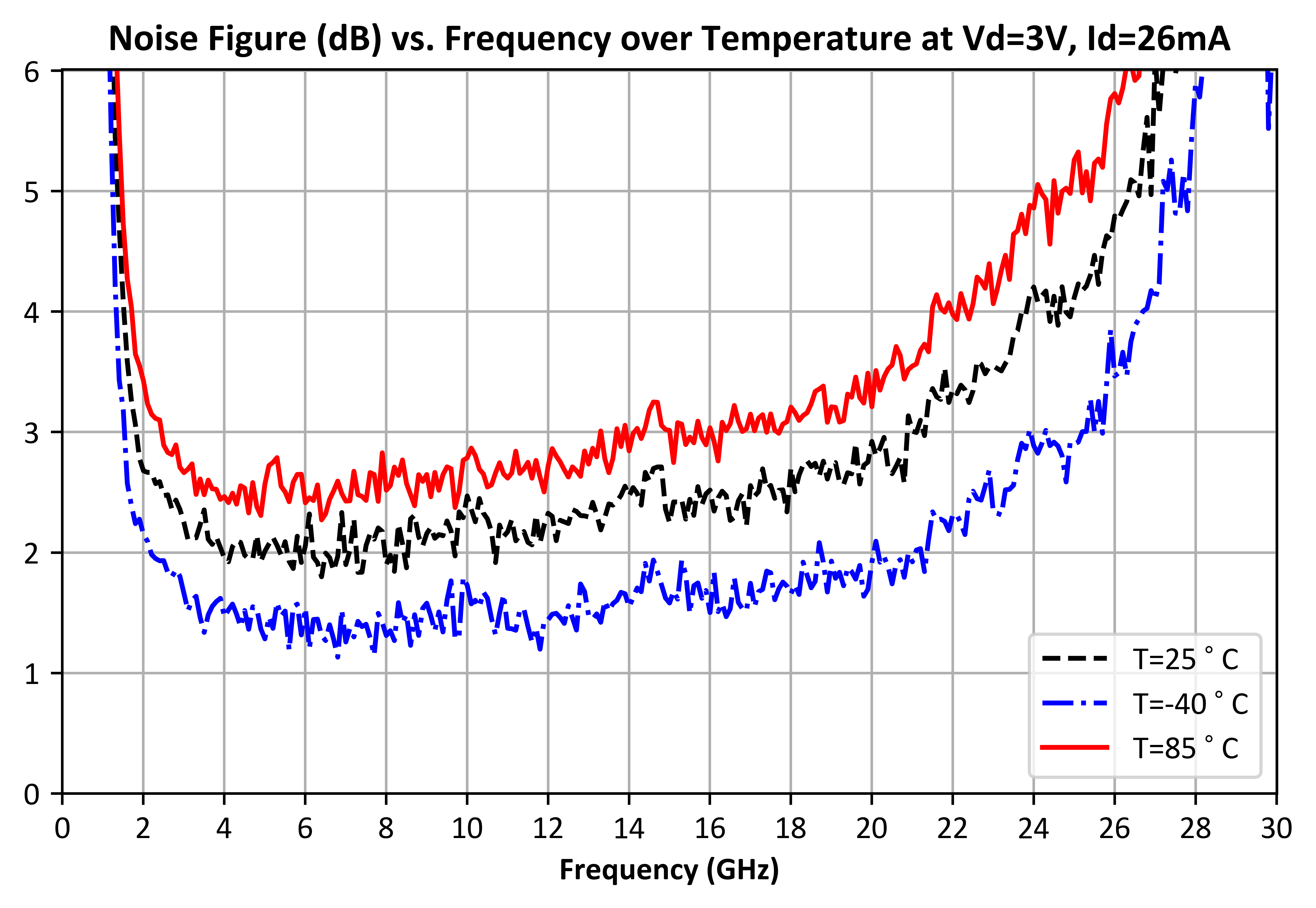

%20vs.%20Frequency%20over%20Temperature%20at%20Vd=3V,%20Id=26mA.png)
%20vs.%20Frequency%20over%20Temperature%20at%20Vd=2V,%20Id=15mA.png)
%20vs.%20Frequency%20over%20Temperature%20at%20Vd=3V,%20Id=26mA.png)
ADM-10701PSM
2-20 GHz Broadband, Low DC Power, Low Noise Amplifier
ADM-10701PSM
2-20 GHz Broadband, Low DC Power, Low Noise Amplifier
ADM-10701PSM
2-20 GHz Broadband, Low DC Power, Low Noise Amplifier

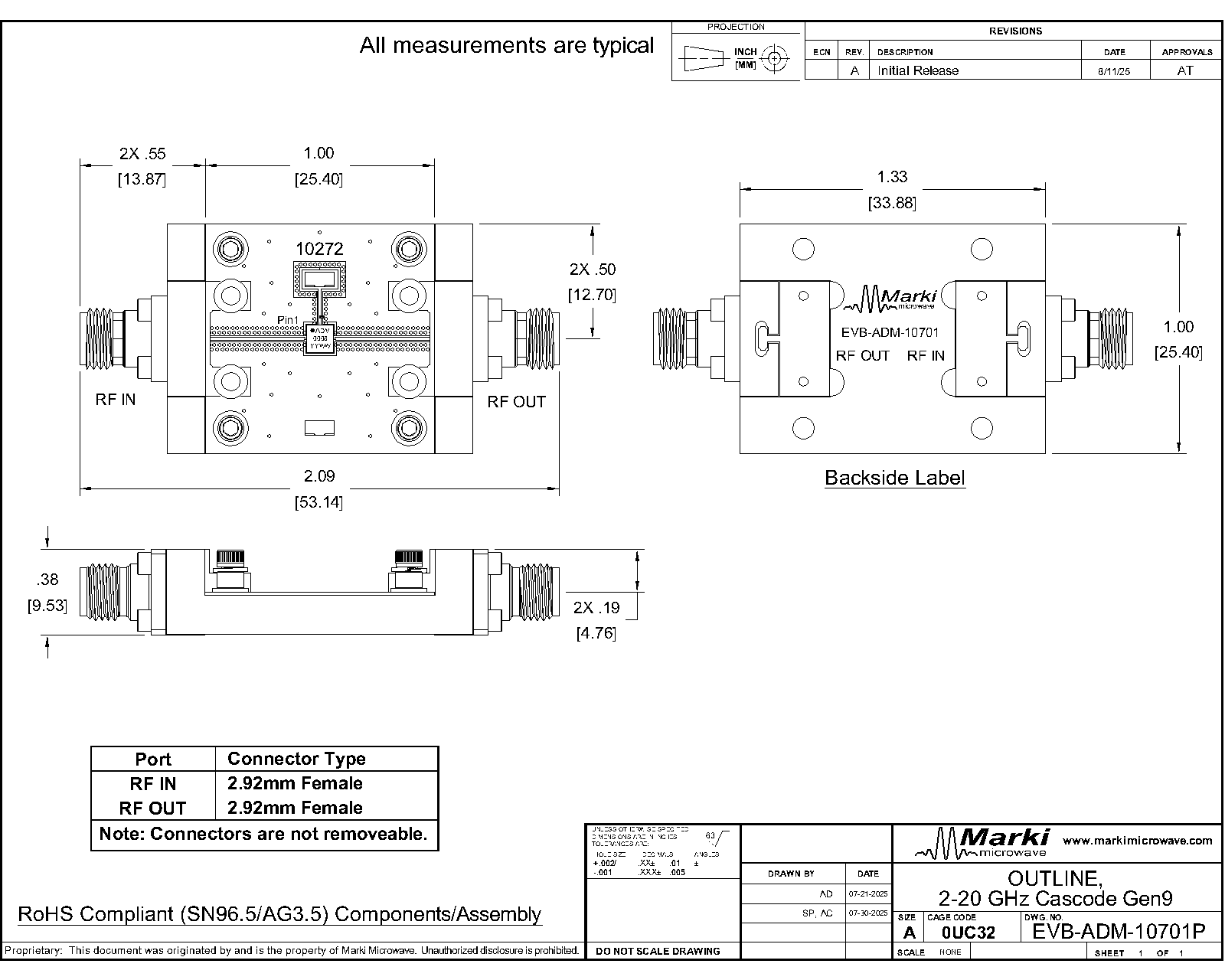

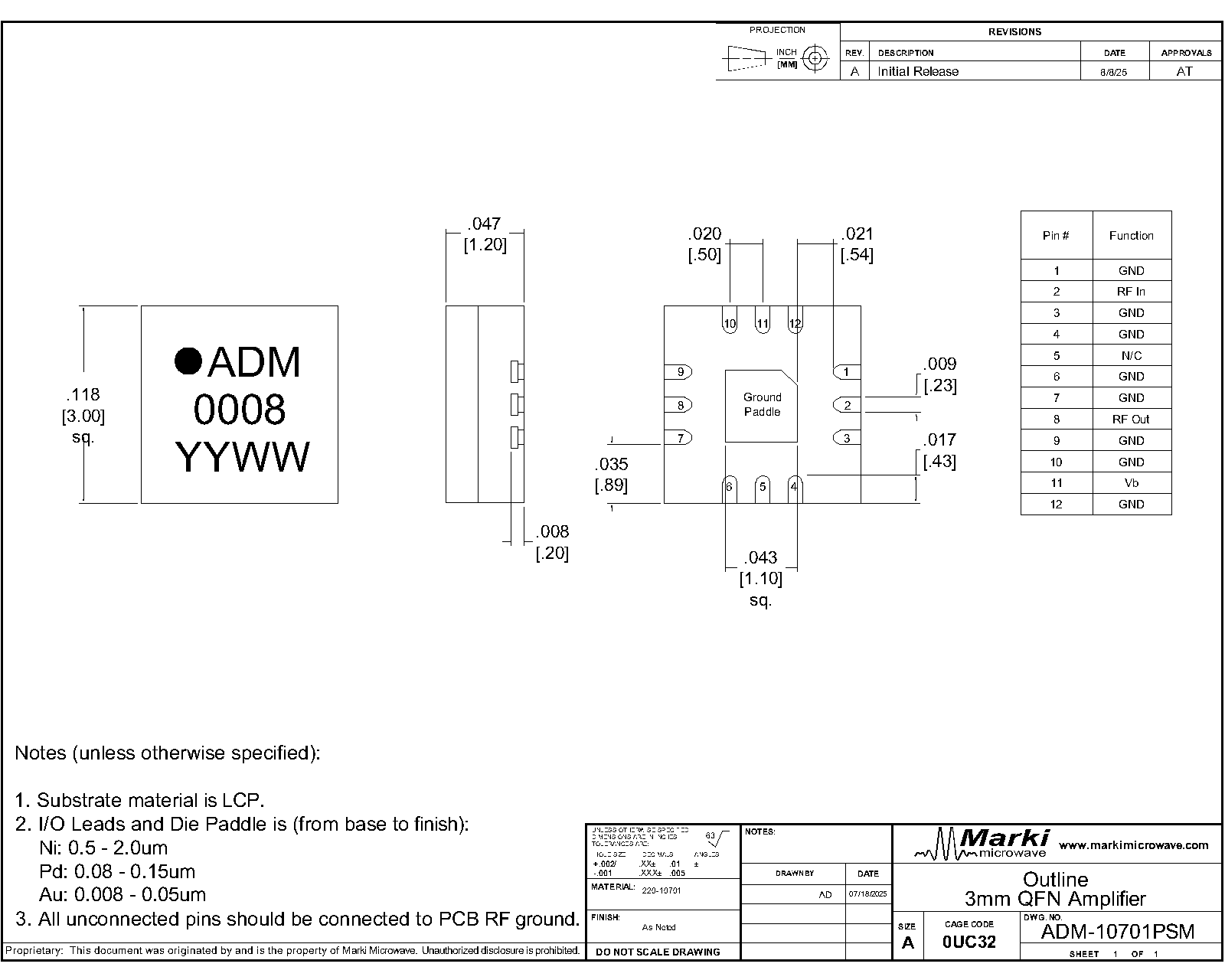

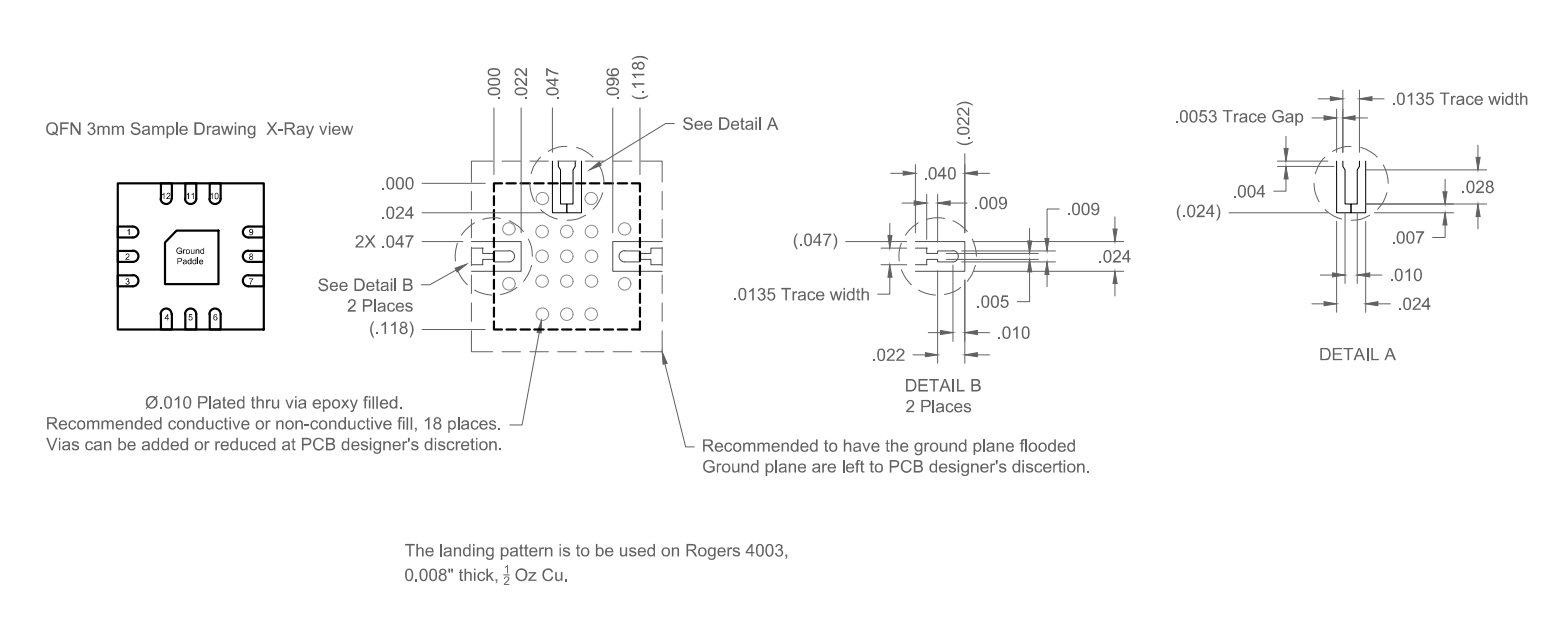

Download : Footprint Drawing
