Device Overview
General Description
The EVB-MQH-1329 is a connectorized evaluation board for the MQH-1329CSP3 MMIC 13 - 29 GHz 90° Hybrid Coupler.
Features
- Designed for Ku/K/Ka-band applications
- Excellent amplitude and phase balance
- High isolation
- Low insertion loss
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MQH-1329CSP3 | MMIC 13 - 29 GHz 90° Hybrid Coupler | CSP3 | RoHS REACH | Released | EAR99 |
| EVB-MQH-1329 | Evaluation Board, 13 - 29 GHz MMIC 90° Hybrid Coupler | EVB | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MQH-1329CSP3 | MMIC 13 - 29 GHz 90° Hybrid Coupler | CSP3 | RoHS REACH | Released | EAR99 |
| EVB-MQH-1329 | Evaluation Board, 13 - 29 GHz MMIC 90° Hybrid Coupler | EVB | RoHS REACH | Released | EAR99 |
EVB-MQH-1329
Evaluation Board, 13 - 29 GHz MMIC 90° Hybrid Coupler
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2026-04-16 | Initial Release |
EVB-MQH-1329
Evaluation Board, 13 - 29 GHz MMIC 90° Hybrid Coupler
Mechanical Data
EVB-MQH-1329
Evaluation Board, 13 - 29 GHz MMIC 90° Hybrid Coupler

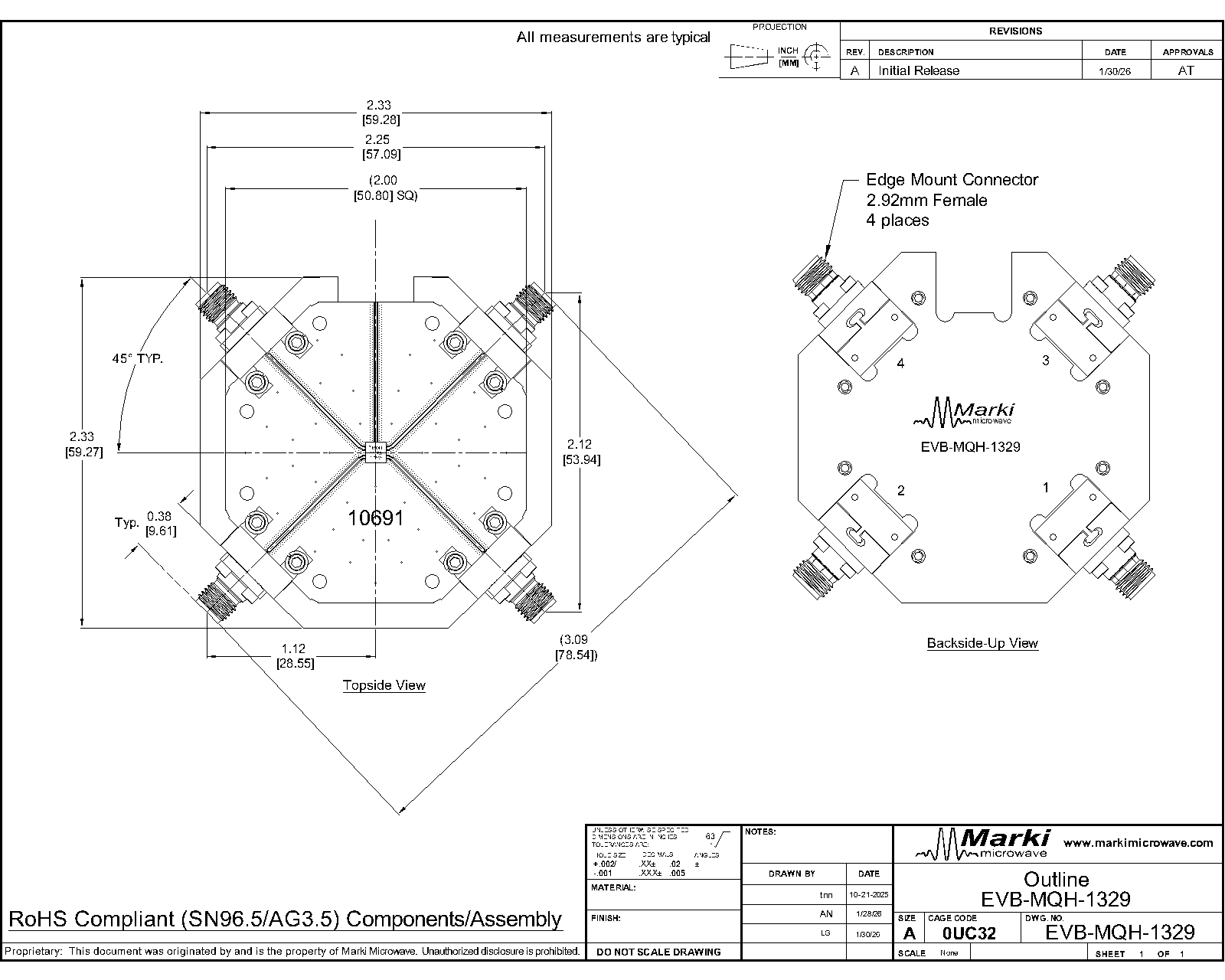

Evaluation Board - Outline Drawing
