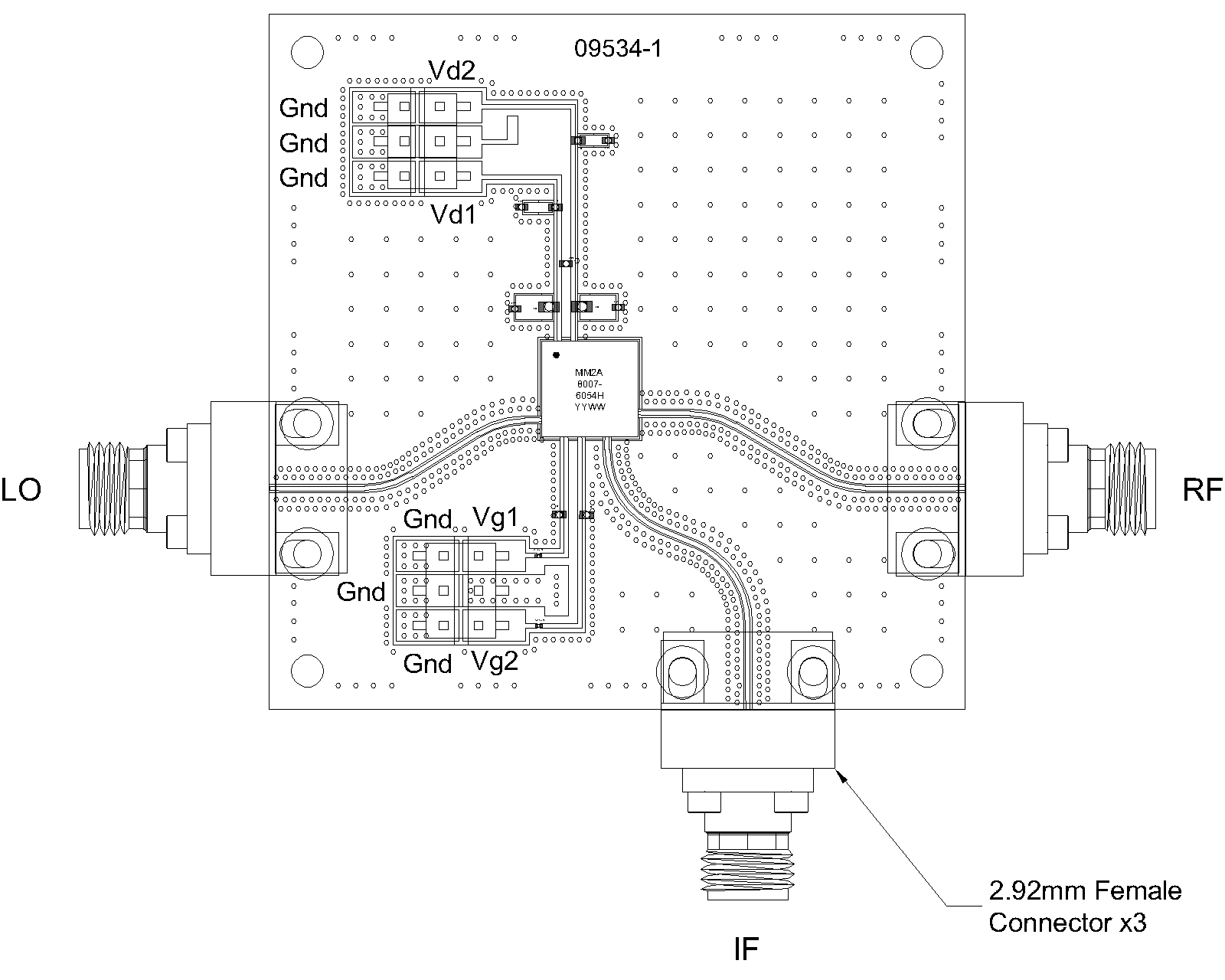

Port Diagram
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
Features
N/A
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM2A-0530HPSM | Integrated Drive GaAs MMIC Mixer | QFN | REACH RoHS | Released | EAR99 |
| EVB-MM2A-0530HP | Evaluation Board, Integrated Drive GaAs MMIC Mixer | EVB | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM2A-0530HPSM | Integrated Drive GaAs MMIC Mixer | QFN | REACH RoHS | Released | EAR99 |
| EVB-MM2A-0530HP | Evaluation Board, Integrated Drive GaAs MMIC Mixer | EVB | RoHS REACH | Released | EAR99 |
EVB-MM2A-0530HP
Evaluation Board, Integrated Drive GaAs MMIC Mixer
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Mechanical Data
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-05-08 | Initial Release |
| A | 2025-08-04 | Updated Port Diagram and Port Function's RF and IF port location. |
EVB-MM2A-0530HP
Evaluation Board, Integrated Drive GaAs MMIC Mixer
Port Configuration and Functions
EVB-MM2A-0530HP
Evaluation Board, Integrated Drive GaAs MMIC Mixer
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Gnd | These header pins provide DC and RF ground connections for the MM2A-0530HPSM. | - |
| IF | IF Input / Output | This 2.92mm female connector is directly connected to the IF pin 21 of the MM2A-0530HPSM. | - |
| LO | LO Input | This 2.92mm female connector is connected directly to the LO pin 11 of the MM2A-0530HPSM. Recommended LO power for nominal operation is +0dBm. | - |
| RF | RF Input / Output | This 2.92mm female connector is connected directly to the RF Input / Output pin 27 on the MM2A-0530HPSM. | - |
| Vd1 | Vd1 | This header pin connects to the Vd1 pin of the MM2A-0530HPSM. Recommended voltage for nominal operation on this pin is 5V. | - |
| Vd2 | Vd2 | This header pin connects to the Vd2 pin of the MM2A-0530HPSM. The recommended voltage for nominal operation on this pin is 5V. | - |
| Vg1 | Vg1 | This header pin connects to the Vg1 pin of the MM2A-0530HPSM through a 270 Ohm resistor installed on the EVB. The recommended voltage for nominal operation on this pin is 5V. | - |
| Vg2 | Vg2 | This header pin is connected to the Vg2 pin of the MM2A-0530HPSM through an 82.5 Ohm resistor installed on the EVB. The recommended voltage for nominal operation on this pin is 5V. | - |
EVB-MM2A-0530HP
Evaluation Board, Integrated Drive GaAs MMIC Mixer
Specifications
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 50.8 x 50.8 mm |
EVB-MM2A-0530HP
Evaluation Board, Integrated Drive GaAs MMIC Mixer
Mechanical Data
EVB-MM2A-0530HP
Evaluation Board, Integrated Drive GaAs MMIC Mixer
Evaluation Board - Outline Drawing
