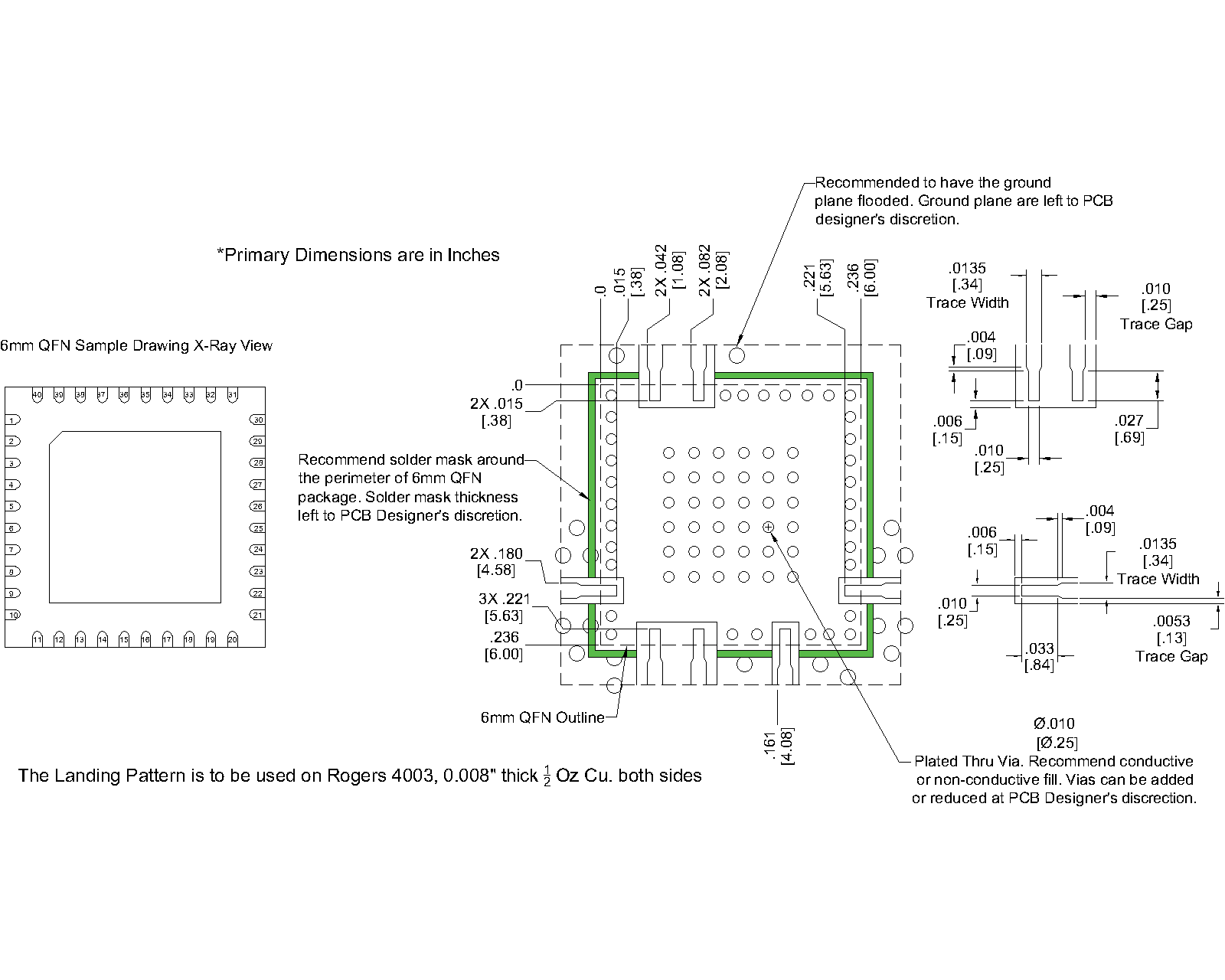

Download : Footprint Drawing
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
This is the evaluation board for the MM1A-0626SPSM integrated drive GaAs MMIC mixer. The MM1A-0626SPSM is a versatile, robust, and broadband double balanced mixer with an integrated broadband LO driver amplifier. The MM1A-0626SPSM is ideal for applications with wide bandwidths and operation through the K band. The integrated LO driver amplifier allows for operation with LO powers as low as -4 dBm while retaining exceptional conversion loss and linearity.
Features
N/A
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM1A-0626SPSM | Double Balanced Mixer/LO Amplifier | QFN | REACH RoHS | Released | EAR99 |
| EVB-MM1A-0626S | Evaluation Board, Integrated Drive GaAs MMIC Mixer | EVB | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM1A-0626SPSM | Double Balanced Mixer/LO Amplifier | QFN | REACH RoHS | Released | EAR99 |
| EVB-MM1A-0626S | Evaluation Board, Integrated Drive GaAs MMIC Mixer | EVB | RoHS REACH | Released | EAR99 |
EVB-MM1A-0626S
Evaluation Board, Integrated Drive GaAs MMIC Mixer
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-12-10 | Initial Release |
EVB-MM1A-0626S
Evaluation Board, Integrated Drive GaAs MMIC Mixer
Mechanical Data
EVB-MM1A-0626S
Evaluation Board, Integrated Drive GaAs MMIC Mixer
EVB-MM1A-0626S
Evaluation Board, Integrated Drive GaAs MMIC Mixer
Evaluation Board - Outline Drawing
