Device Overview
General Description
The EVB-MFBP-00079 is a connectorized evaluation board for the MFBP-00079CSP3 passive MMIC surface mount 7.94-9.88 GHz bandpass filter.
Features
N/A
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFBP-00079CSP3 | Passive GaAs MMIC 7.94 - 9.88 GHz Bandpass Filter | CSP3 | RoHS REACH | Released | EAR99 |
| EVB-MFBP-00079 | Evaluation Board, Passive GaAs 7.94-9.88 GHz MMIC Bandpass Filter | EVB | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFBP-00079CSP3 | Passive GaAs MMIC 7.94 - 9.88 GHz Bandpass Filter | CSP3 | RoHS REACH | Released | EAR99 |
| EVB-MFBP-00079 | Evaluation Board, Passive GaAs 7.94-9.88 GHz MMIC Bandpass Filter | EVB | RoHS REACH | Released | EAR99 |
EVB-MFBP-00079
Evaluation Board, Passive GaAs 7.94-9.88 GHz MMIC Bandpass Filter
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-11-21 | Initial Release |
EVB-MFBP-00079
Evaluation Board, Passive GaAs 7.94-9.88 GHz MMIC Bandpass Filter
Mechanical Data
EVB-MFBP-00079
Evaluation Board, Passive GaAs 7.94-9.88 GHz MMIC Bandpass Filter

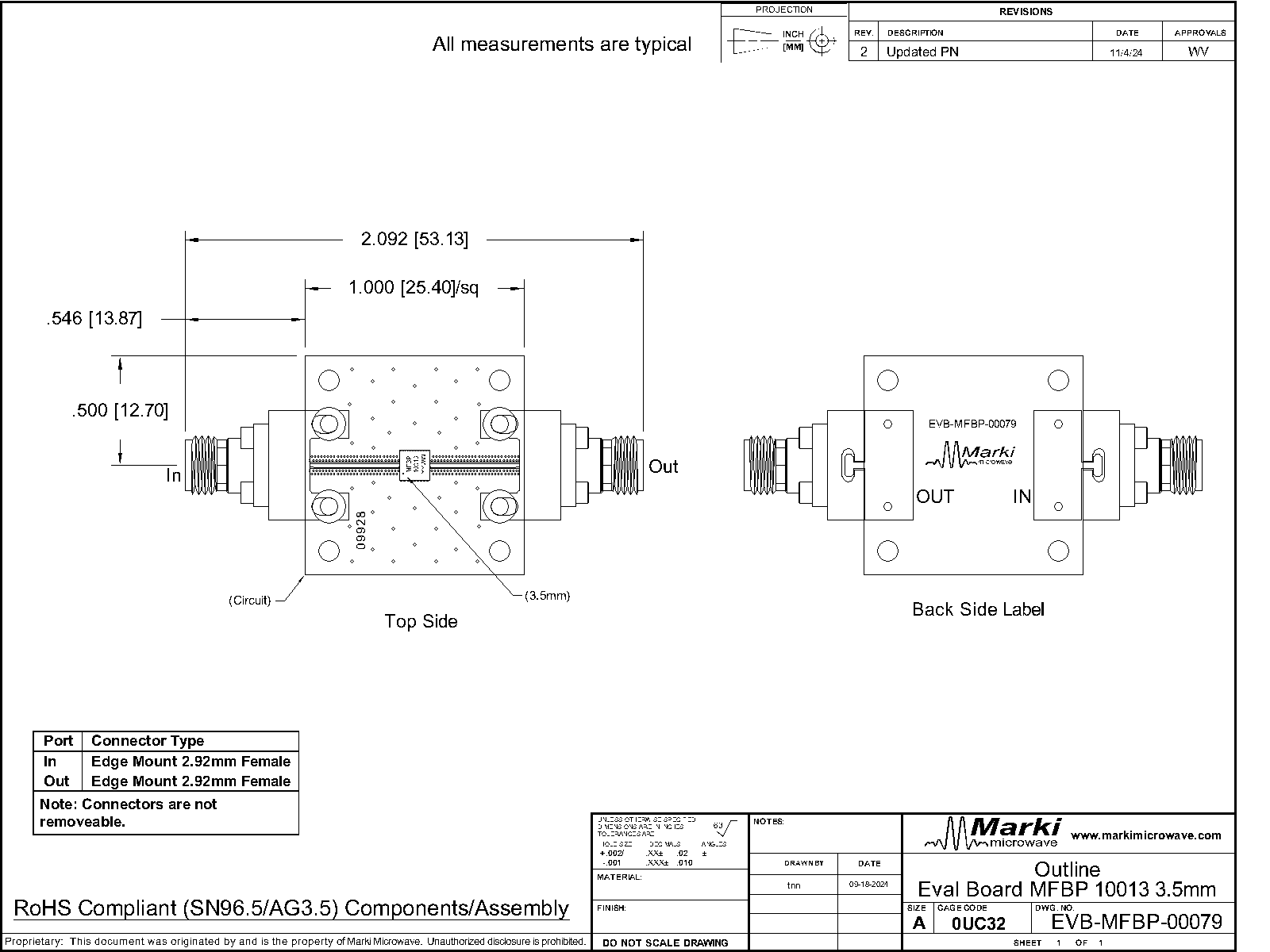

Evaluation Board - Outline Drawing
-Model.png)
