Device Overview
General Description
The EVB-MEQ6-40 is a connectorized evaluation board for the MEQ6-40CSP1 passive MMIC surface mount DC-40 GHz 6 dB equalizer.
Features
N/A
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MEQ6-40CSP1 | Chip Scale Package MMIC DC-40 GHz 6 dB Equalizer | CSP1 | REACH RoHS | Released | EAR99 |
| EVB-MEQ6-40 | Evaluation Board, Chip Scale Package MMIC DC-40 GHz 6 dB Equalizer | EVB | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MEQ6-40CSP1 | Chip Scale Package MMIC DC-40 GHz 6 dB Equalizer | CSP1 | REACH RoHS | Released | EAR99 |
| EVB-MEQ6-40 | Evaluation Board, Chip Scale Package MMIC DC-40 GHz 6 dB Equalizer | EVB | REACH RoHS | Released | EAR99 |
EVB-MEQ6-40
Evaluation Board, Chip Scale Package MMIC DC-40 GHz 6 dB Equalizer
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-08-13 | Initial Release |
EVB-MEQ6-40
Evaluation Board, Chip Scale Package MMIC DC-40 GHz 6 dB Equalizer
Mechanical Data
EVB-MEQ6-40
Evaluation Board, Chip Scale Package MMIC DC-40 GHz 6 dB Equalizer

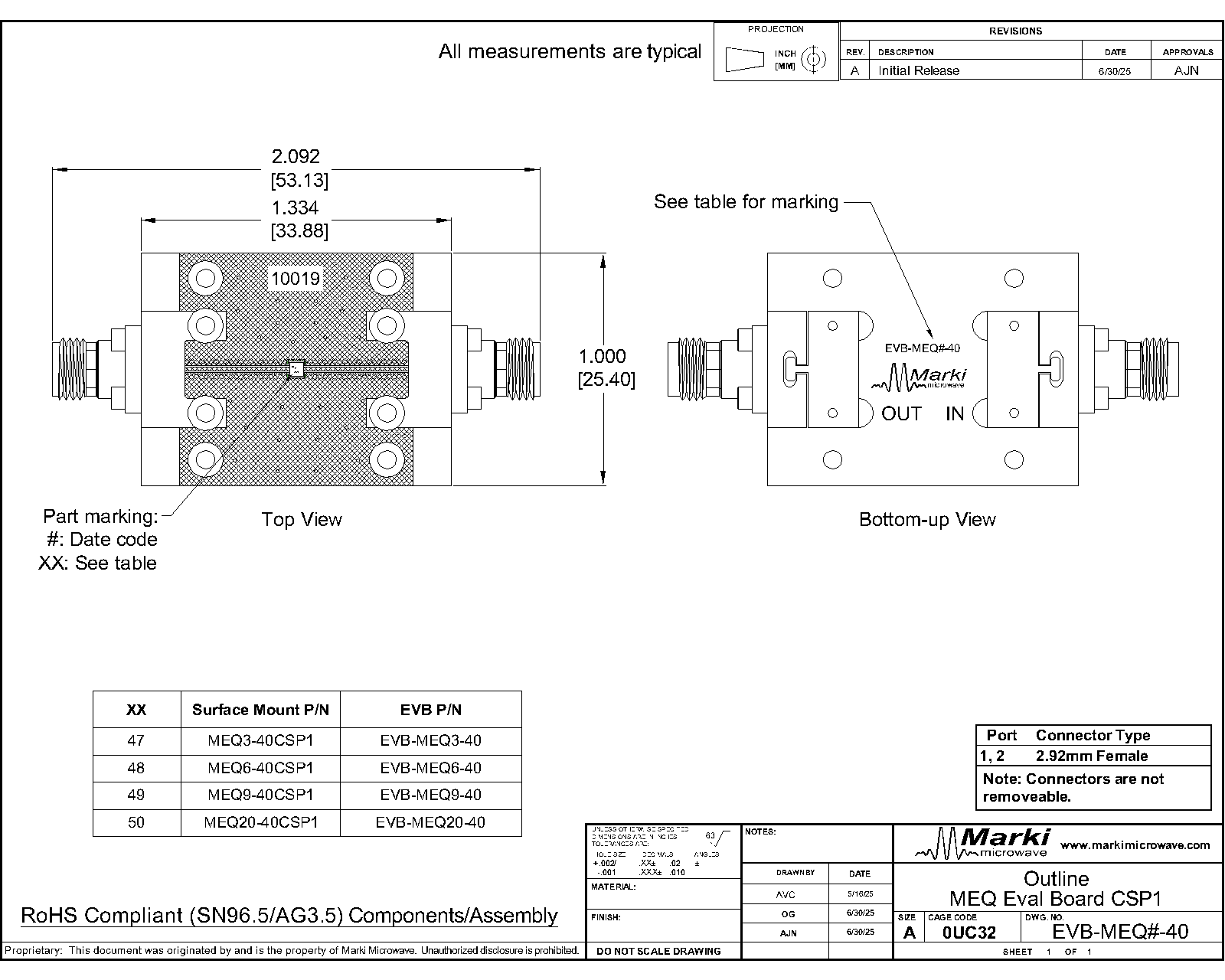

Evaluation Board - Outline Drawing
