Device Overview
General Description
The EVAL-MBAL-0104 is a connectorized evaluation board for the MBAL-0104SM is a GaAs passive MMIC 1-4 GHz balun in a 4mm QFN surface mount package.
Features
N/A
Applications
N/A

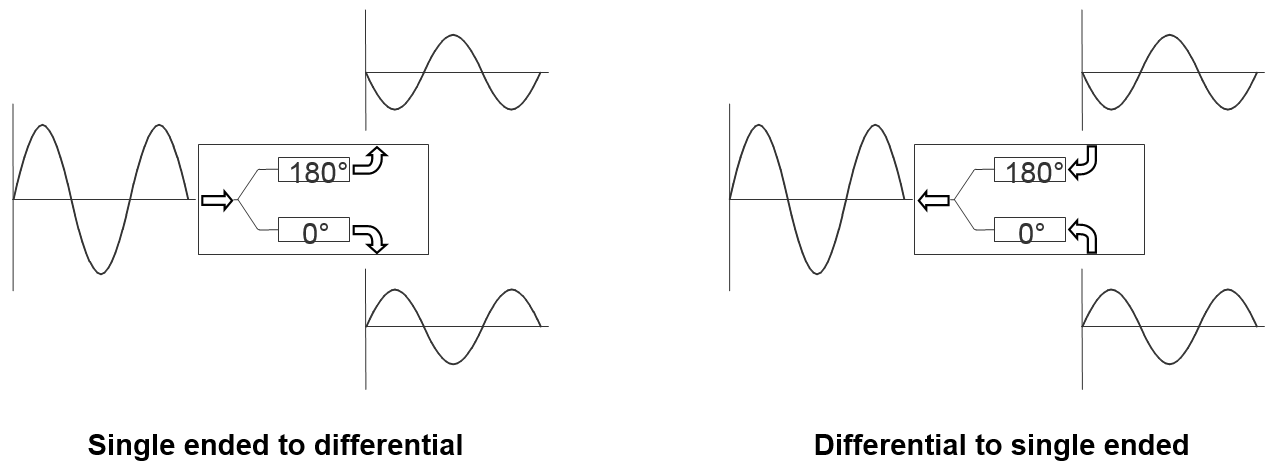

Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MBAL-0104SM | Passive MMIC 1-4GHz Surface Mount Balun | QFN | REACH RoHS | Released | EAR99 |
| EVAL-MBAL-0104 | Evaluation Board, Passive MMIC 1-4GHz Surface Mount Balun | EVAL | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MBAL-0104SM | Passive MMIC 1-4GHz Surface Mount Balun | QFN | REACH RoHS | Released | EAR99 |
| EVAL-MBAL-0104 | Evaluation Board, Passive MMIC 1-4GHz Surface Mount Balun | EVAL | REACH RoHS | Released | EAR99 |
EVAL-MBAL-0104
Evaluation Board, Passive MMIC 1-4GHz Surface Mount Balun
Table Of Contents
EVAL-MBAL-0104
Evaluation Board, Passive MMIC 1-4GHz Surface Mount Balun
Electrical Specifications
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Impedance Ratio | - | - | - | - | 2:1 | - |
EVAL-MBAL-0104
Evaluation Board, Passive MMIC 1-4GHz Surface Mount Balun
Evaluation Board - Performance Data
| Parameter | Test Conditions | Frequency Range (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Impedance Ratio | - | - | - | 2 | - |
