Device Overview
General Description
This is the evaluation board for the AMM-9619PSM. The AMM-9619PSM is a surface-mount amplifier suitable for use as a single tone driver or general-purpose gain block. It can drive an L or H diode mixer from 2 to 26 GHz. This amplifier also has exceptionally low input and output reflections, and excellent gain flatness in-band. The AMM-9619PSM is packaged in a compact 4 mm QFN for surface mount integration onto printed circuit boards.
Features
N/A
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| AMM-9619PSM | 2 - 26 GHz GaAs Surface Mount LO Driver Amplifier | QFN | REACH RoHS | Released | EAR99 |
| EVB-AMM-9619P | Evaluation Board, 2-26GHz Surface Mount LO Driver Amplifier | EVB | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| AMM-9619PSM | 2 - 26 GHz GaAs Surface Mount LO Driver Amplifier | QFN | REACH RoHS | Released | EAR99 |
| EVB-AMM-9619P | Evaluation Board, 2-26GHz Surface Mount LO Driver Amplifier | EVB | REACH RoHS | Released | EAR99 |
EVB-AMM-9619P
Evaluation Board, 2-26GHz Surface Mount LO Driver Amplifier
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-11-13 | Initial Release |
EVB-AMM-9619P
Evaluation Board, 2-26GHz Surface Mount LO Driver Amplifier
Mechanical Data
EVB-AMM-9619P
Evaluation Board, 2-26GHz Surface Mount LO Driver Amplifier

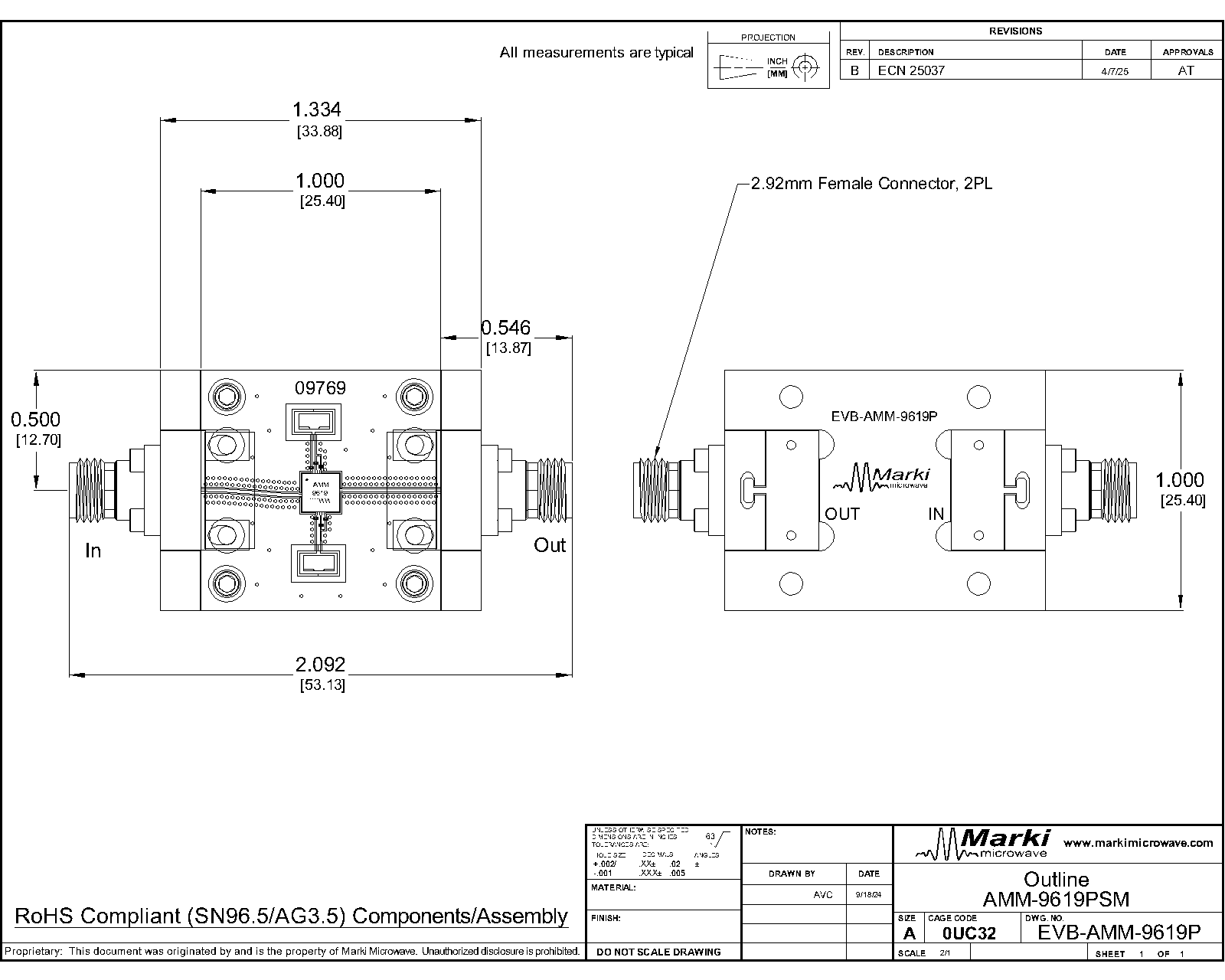

Evaluation Board - Outline Drawing
