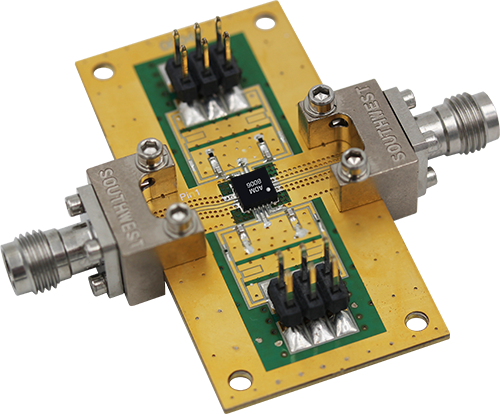

EVB-ADM-8006P

Reference

Manufacturer

Description

Qty

RF In,

RF Out

Southwest

(PN: 1492-04A-5) Connector, Edge Mount, 2.9mm F

2

DC Headers

Various

C-grid Header (6-pin)

2

R1

Various

0201 Res 270Ω

1

R2

Various

0201 Res 82.5Ω

1

R3, R4

Various

0402 Res 10Ω

2

C1, C2,

C4, C5

Various

0402 Cap 4.7uF

4

C3

Various

0201 Cap 0.1uF

2

C6, C7

Various

0402 Cap 10uF

 2

L1

Coilcraft

(PN: 0402AF-421XJL) 0402 Wirewound Inductor 420nH

 1

GND Strap

Various

Copper Ribbon 15 mil Pb/Sn

6

U1

Marki

(PN: ADM-8006PSM) 2-30GHz, 22dBm Amplifier

1
