Device Overview
General Description
The EVB-ADM-10719P is a connectorized evaluation board for the ADM-10719PSM 20-31 GHz surface mount amplifier.
Features
N/A
Applications
N/A

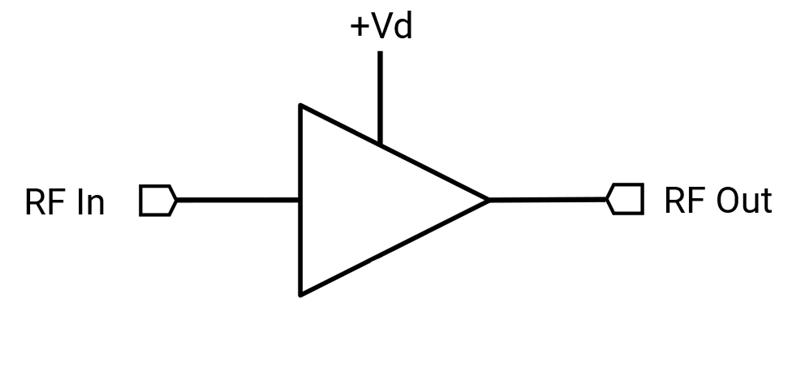

Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ADM-10719PSM | 20-31 GHz Banded Low Noise Amplifier | QFN | REACH RoHS | Released | EAR99 |
| EVB-ADM-10719P | Evaluation Board, 20-31 GHz Banded Low Noise Amplifier | EVB | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ADM-10719PSM | 20-31 GHz Banded Low Noise Amplifier | QFN | REACH RoHS | Released | EAR99 |
| EVB-ADM-10719P | Evaluation Board, 20-31 GHz Banded Low Noise Amplifier | EVB | REACH RoHS | Released | EAR99 |
EVB-ADM-10719P
Evaluation Board, 20-31 GHz Banded Low Noise Amplifier
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-10-20 | Initial Release |
EVB-ADM-10719P
Evaluation Board, 20-31 GHz Banded Low Noise Amplifier
Mechanical Data
EVB-ADM-10719P
Evaluation Board, 20-31 GHz Banded Low Noise Amplifier

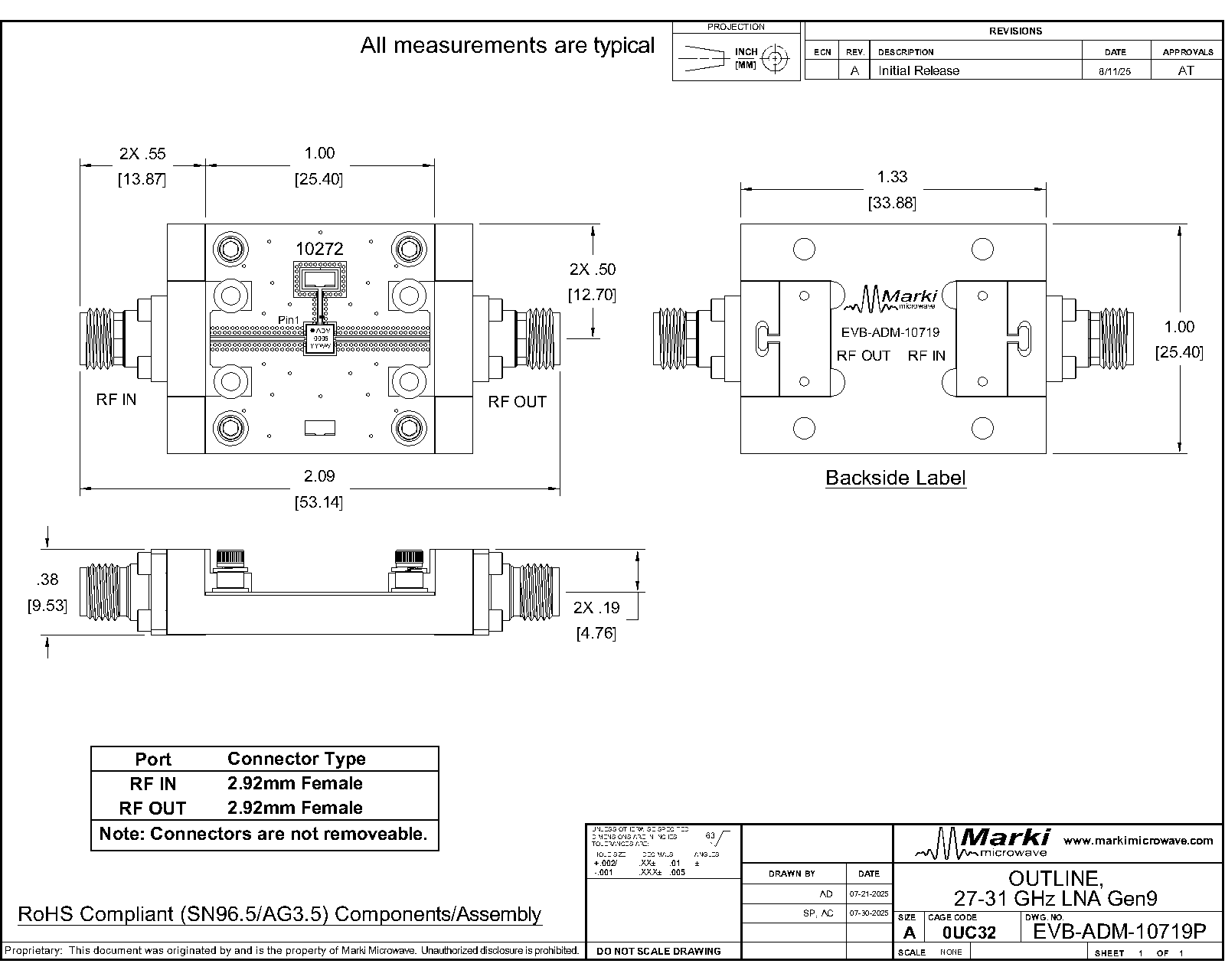

Evaluation Board - Outline Drawing
