MMH-35120HM_GaAs MMIC Balanced mmWave Harmonic Mixer

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MMH-35120HM	GaAs MMIC Balanced mmWave Harmonic Mixer	M	Standard	REACH RoHS	Released	3A001.b.7.c.1

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MMH-35120HM	GaAs MMIC Balanced mmWave Harmonic Mixer	M	Standard	REACH RoHS	Released	3A001.b.7.c.1

Revision History

Revision Code	Revision Date	Comment
-	2023-01-01	Datasheet Initial Release

Port Configuration and Functions

Port Diagram

The MMH-35120H has the input and output ports given in Port Functions. The MMH-35120H can be used in either an up or down conversion. For operation, input the LO into port 2, use port 1 for the RF, and port 3 for the IF.

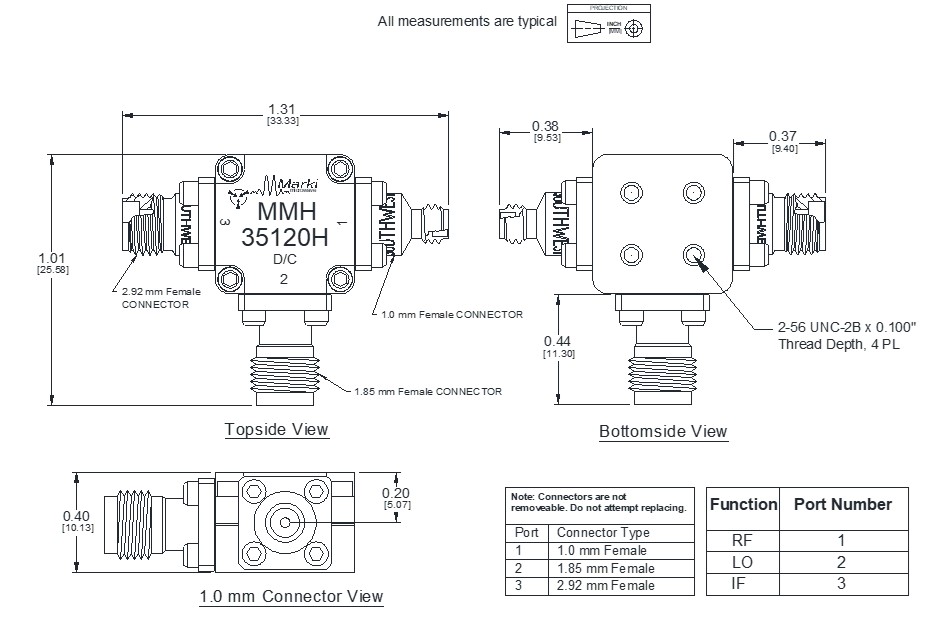

Diagram of the port configuration for MMH-35120HM

Port Functions

Port	Function	Connector Type	Description
GND	Ground	-	M package ground provided through metal housing and outer coax conductor.
Port 1	RF	1.0F	Port 1 is DC open for the CH and M packages.
Port 2	LO	1.85F	Port 2 is diode connected for the CH and M package.
Port 3	IF	2.92F	Port 3 is diode connected for the CH and M package.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
Port 2 DC Current Handling	30	mA
Port 3 DC Current Handling	30	mA

Package Information

Parameter	Details	Rating
ESD	250 to < 500 Volts	HBM Class 1A
Weight	Package name: M	22g
Dimensions	-	33.33 x 25.58 mm

Recommended Operating Conditions

The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.

Parameter	Min	Nominal	Max	Unit
Ambient Temperature	-55	25	100	°C
LO Input Power	13	15	17	dBm

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the connectorized M package mixer used in the forward direction with a +15dBm sine wave LO input. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C. All bare die are 100% DC tested and visually inspected.

Parameter	Test Conditions	Min	Typ	Max	Unit
1x1L Conversion Loss	RF = 35 – 50 GHz LO = 35 – 50 GHz IF = 91 MHz	-	15	-	dB
1x2L Suppression	-	-	22	-	dBc
1x3L Conversion Loss ¹	RF = 35 – 120 GHz LO = 12 – 40 GHz IF = 91 MHz	-	18	-	dB
3LO to RF Isolation	-	-	57	-	dB
IF Frequency Range	-	0	-	14	GHz
Input IP3	-	-	7	-	dBm
Input P1dB	-	-	-5	-	dBm
LO Frequency Range	-	12	-	40	GHz
LO-RF Isolation	-	-	57	-	dB
Noise Figure ²	RF = 35 – 120 GHz LO = 12 – 40 GHz IF = 91 MHz	-	18.5	-	dB
RF Frequency Range	-	35	-	120	GHz
-	-	-	30	-	dBc

Parameter	Test Conditions	Min	Typ	Max	Unit
1x1L Conversion Loss	RF = 35 – 50 GHz LO = 35 – 50 GHz IF = 91 MHz	-	15	-	dB
1x2L Suppression	-	-	22	-	dBc
1x3L Conversion Loss ¹	RF = 35 – 120 GHz LO = 12 – 40 GHz IF = 91 MHz	-	18	-	dB
3LO to RF Isolation	-	-	57	-	dB
IF Frequency Range	-	0	-	14	GHz
Input IP3	-	-	7	-	dBm
Input P1dB	-	-	-5	-	dBm
LO Frequency Range	-	12	-	40	GHz
LO-RF Isolation	-	-	57	-	dB
Noise Figure ²	RF = 35 – 120 GHz LO = 12 – 40 GHz IF = 91 MHz	-	18.5	-	dB
RF Frequency Range	-	35	-	120	GHz
-	-	-	30	-	dBc
