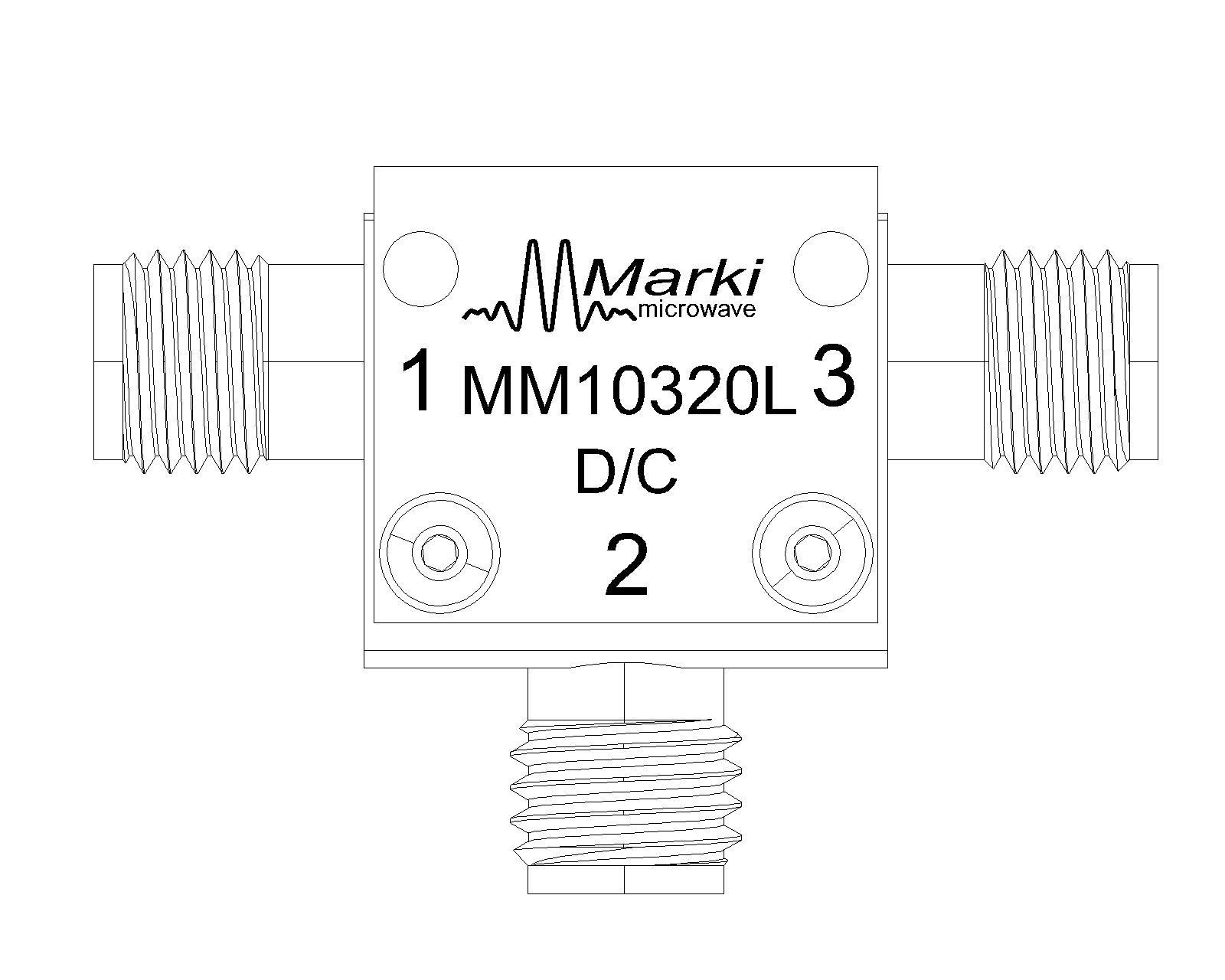

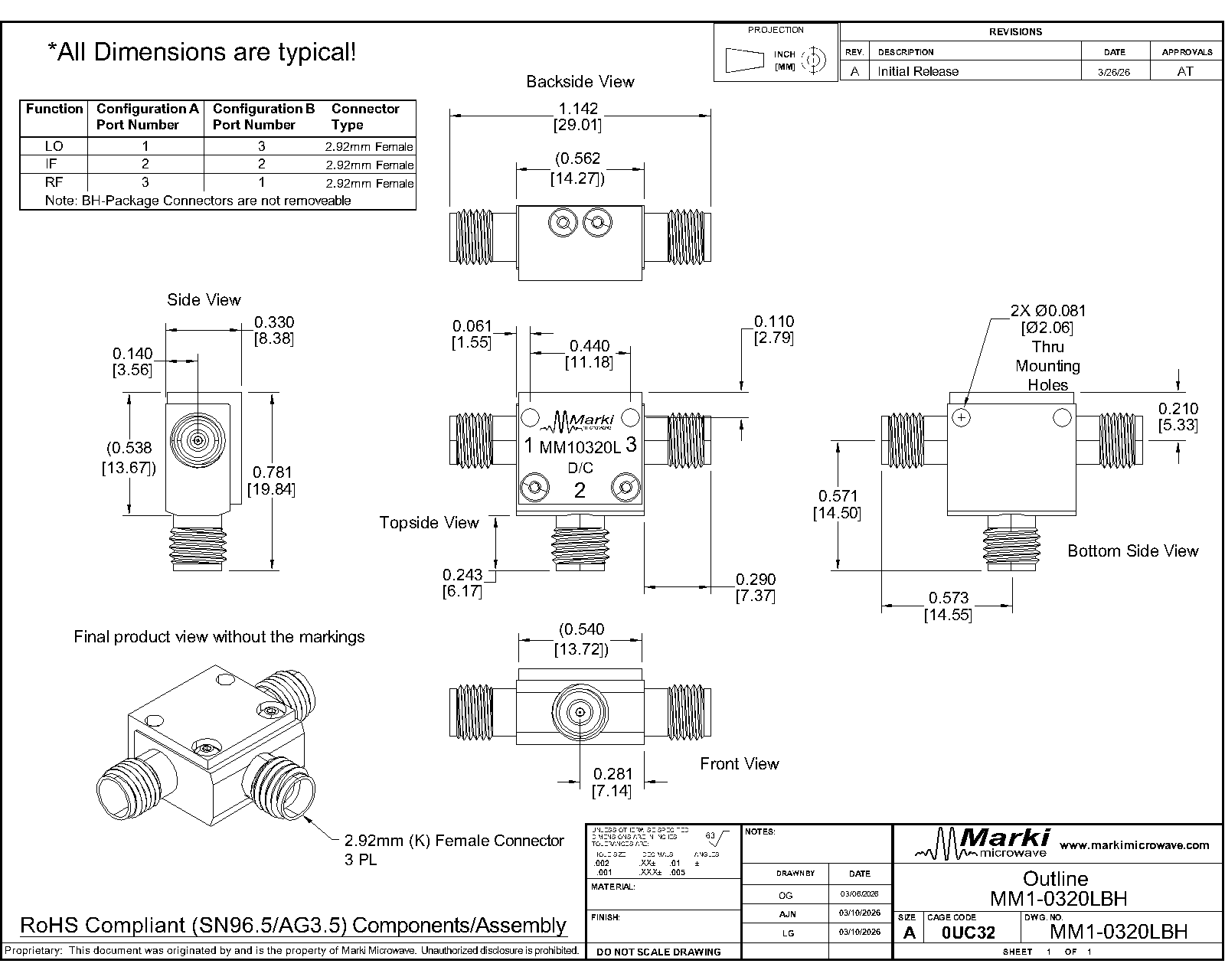

Port Diagram

Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
The MM1-0320L is a passive double balanced MMIC mixer. It delivers excellent 7 dB conversion loss, superior isolations and spurious performance across a broad 3 to 20 GHz RF/LO bandwidth. Low LO drive requirement allows operation at as low as +5 dBm inputs. The MM1-0320L is available both as a wire bondable chip or in a 2.92mm connectorized BH package. The MM1-0320LBH is a superior alternative to Marki Microwave's MM1-0320LS, providing improved conversion loss across band in a smaller form factor. The MM1-0320L is a low barrier diode version of the MM1-0320H. If higher LO power is available, the MM1-0320H is recommended for higher mixer linearity.
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MM1-0320LBH | GaAs MMIC Double Balanced Mixer | BH | - | REACH RoHS | Released | EAR99 |
| MM1-0320LS | GaAs MMIC Double Balanced Mixer | S | Standard | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MM1-0320LBH | GaAs MMIC Double Balanced Mixer | BH | - | REACH RoHS | Released | EAR99 |
| MM1-0320LS | GaAs MMIC Double Balanced Mixer | S | Standard | REACH RoHS | Released | EAR99 |
MM1-0320LBH
GaAs MMIC Double Balanced Mixer
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2026-06-04 | Initial Release |
MM1-0320LBH
GaAs MMIC Double Balanced Mixer

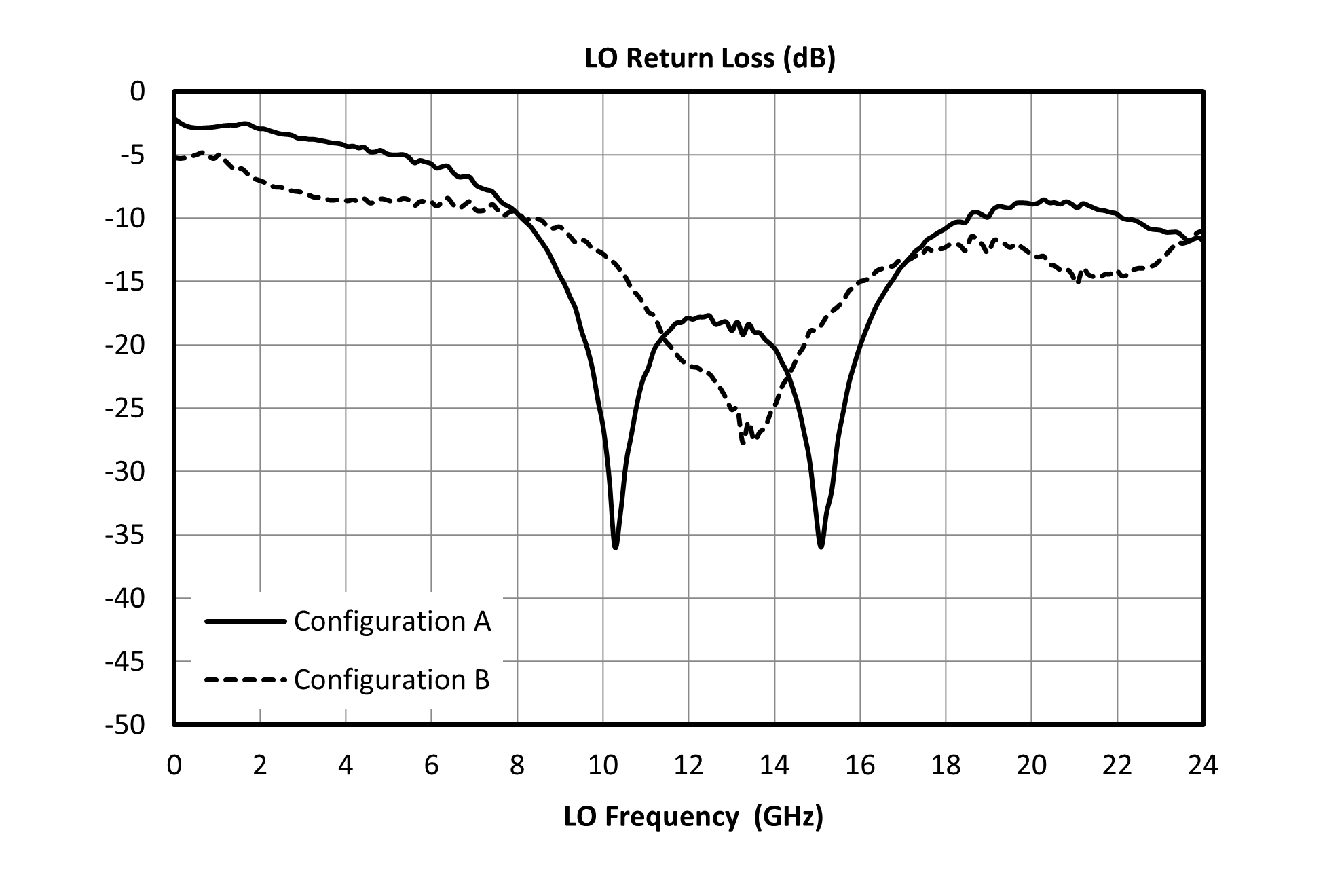

| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | LO | 2.92F | Port 1 is DC short and AC matched to 50 Ω from 3 to 20 GHz. Blocking capacitor is optional. | |
| Port 2 | IF | 2.92F | Port 2 is DC coupled to the diodes. Blocking capacitor is optional. | |
| Port 3 | RF | 2.92F | Port 3 is DC short and AC matched to 50 Ω from 3 to 20 GHz. Blocking capacitor is optional. |
MM1-0320LBH
GaAs MMIC Double Balanced Mixer
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | RF | 2.92F | Port 1 is DC short and AC matched to 50 Ω from 3 to 20 GHz. Blocking capacitor is optional. | |
| Port 2 | IF | 2.92F | Port 2 is DC coupled to the diodes. Blocking capacitor is optional. | |
| Port 3 | LO | 2.92F | Port 3 is DC short and AC matched to 50 Ω from 3 to 20 GHz. Blocking capacitor is optional. |
MM1-0320LBH
GaAs MMIC Double Balanced Mixer
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Port 1 DC Current | 15 | mA |
| Port 2 DC Current | 15 | mA |
| Port 3 DC Current | 30 | mA |
| RF Power Handling (RF+LO), 100°C | 20 | dBm |
| RF Power Handling (RF+LO), 25°C | 25 | dBm |
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| LO Input Power | 5 | - | 9 | - |
MM1-0320LBH
GaAs MMIC Double Balanced Mixer

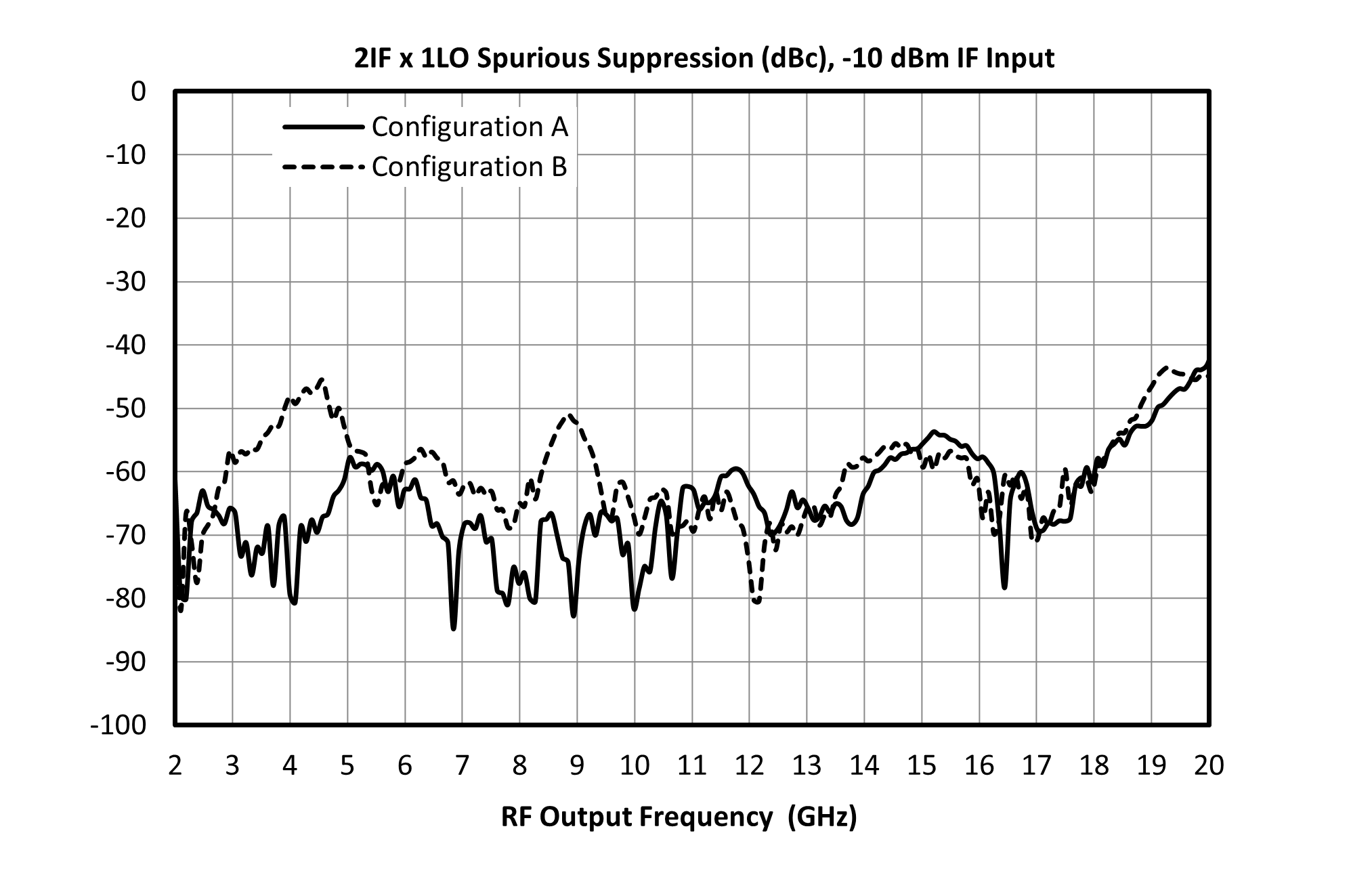

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the connectorized BH package mixer used in the forward direction with a sine wave LO of +9 dBm and RF input power of -10 dBm. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C.
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| RF Frequency Range | - | - | 3 | - | 20 | GHz |
| LO Frequency Range | - | - | 3 | - | 20 | GHz |

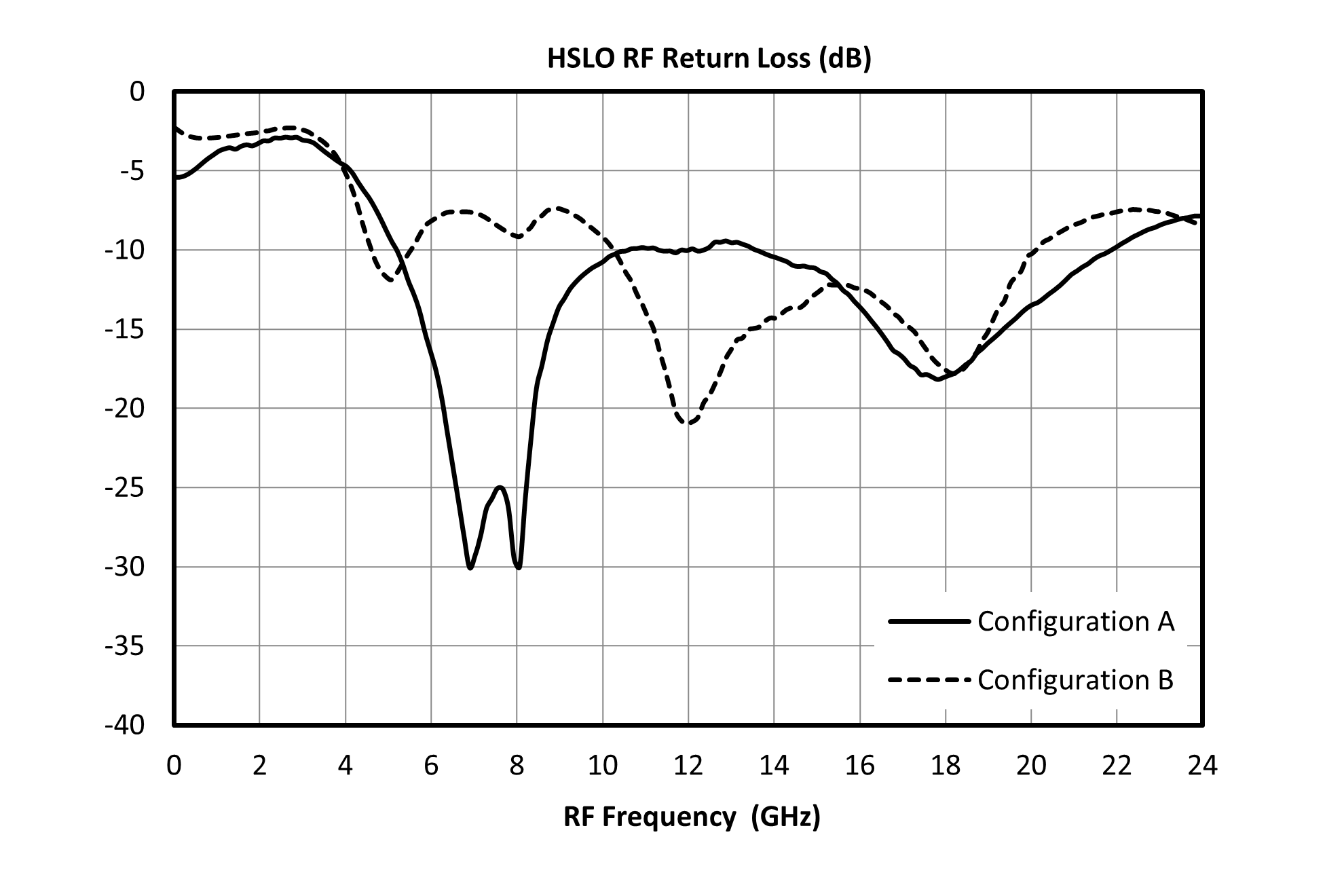

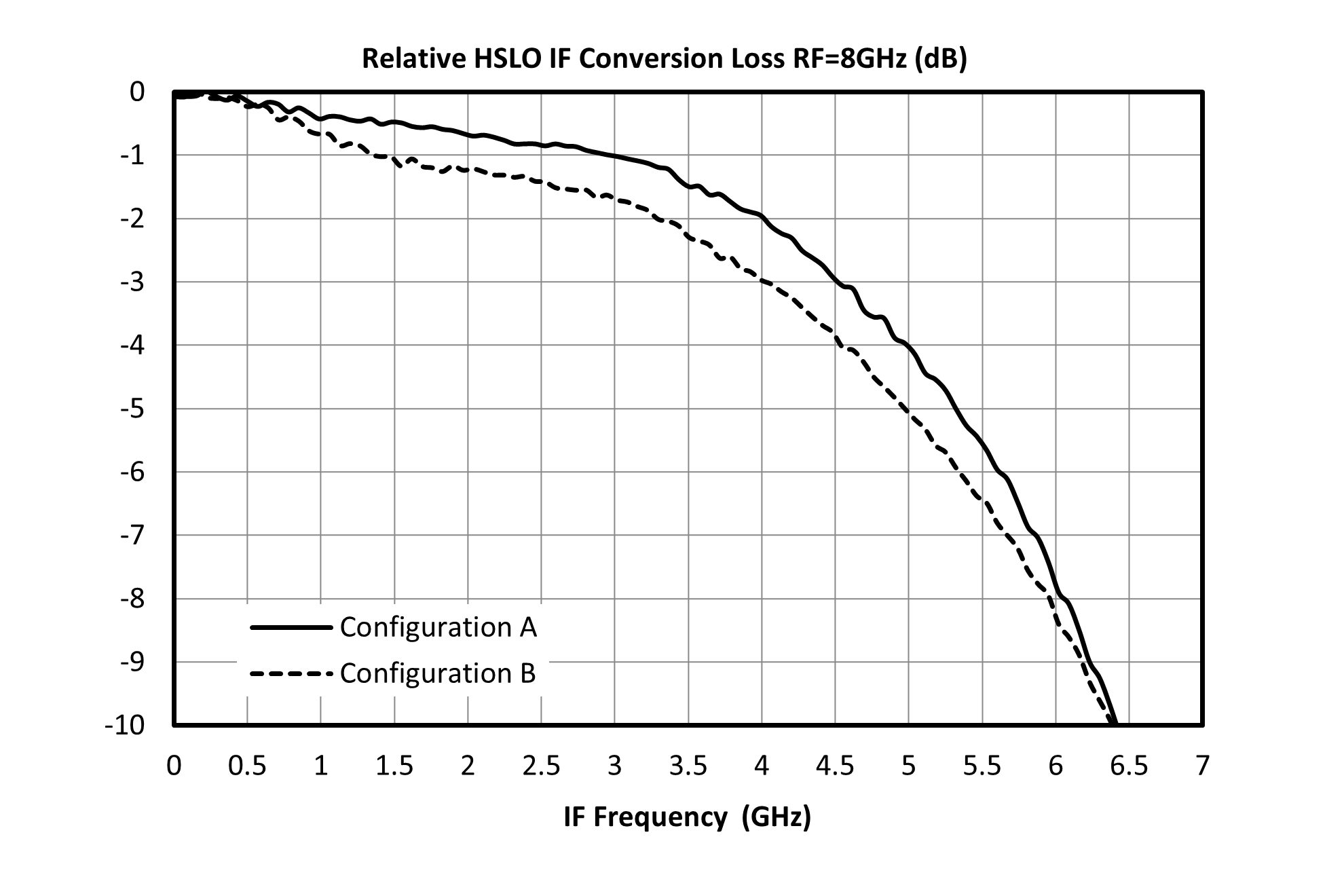

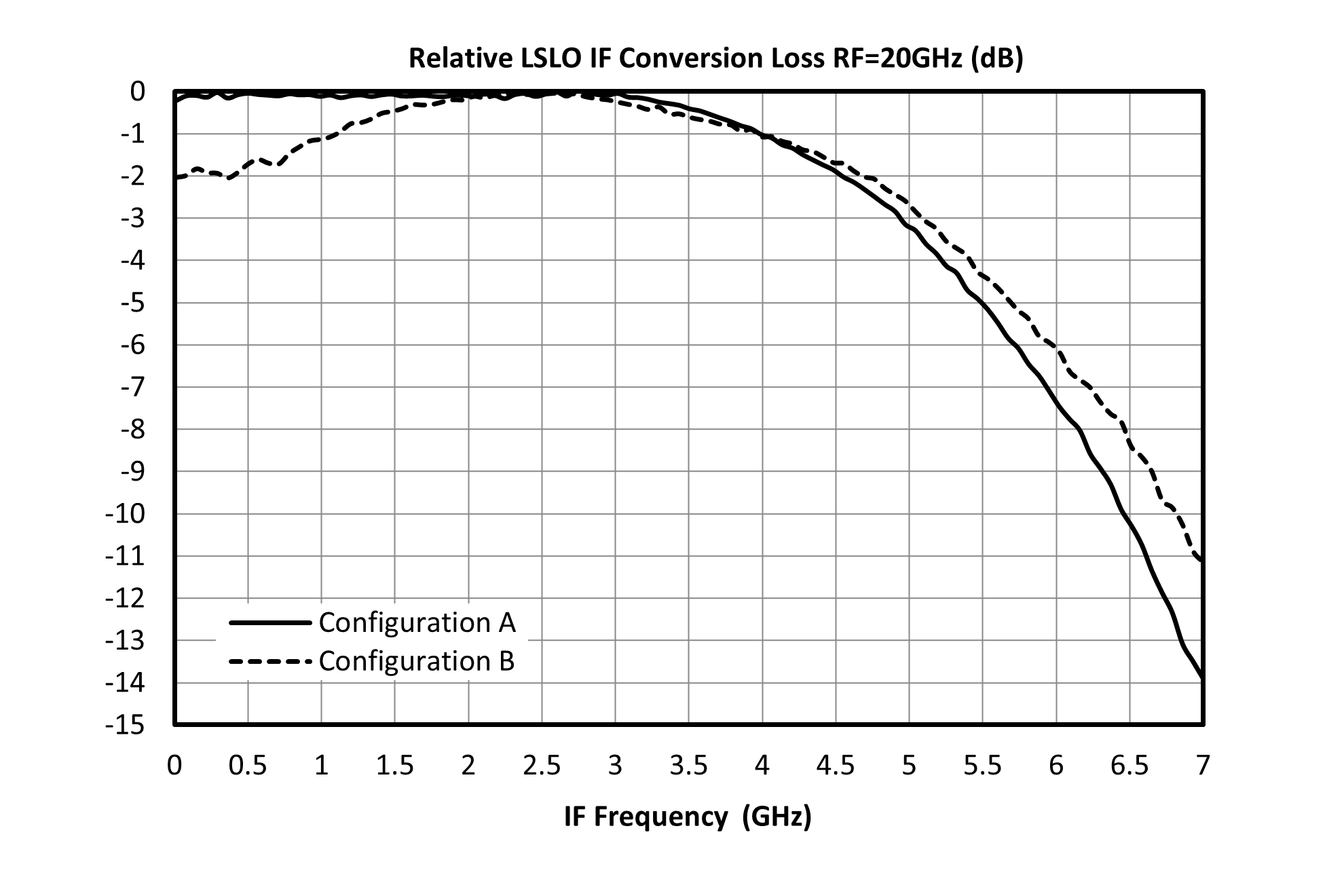

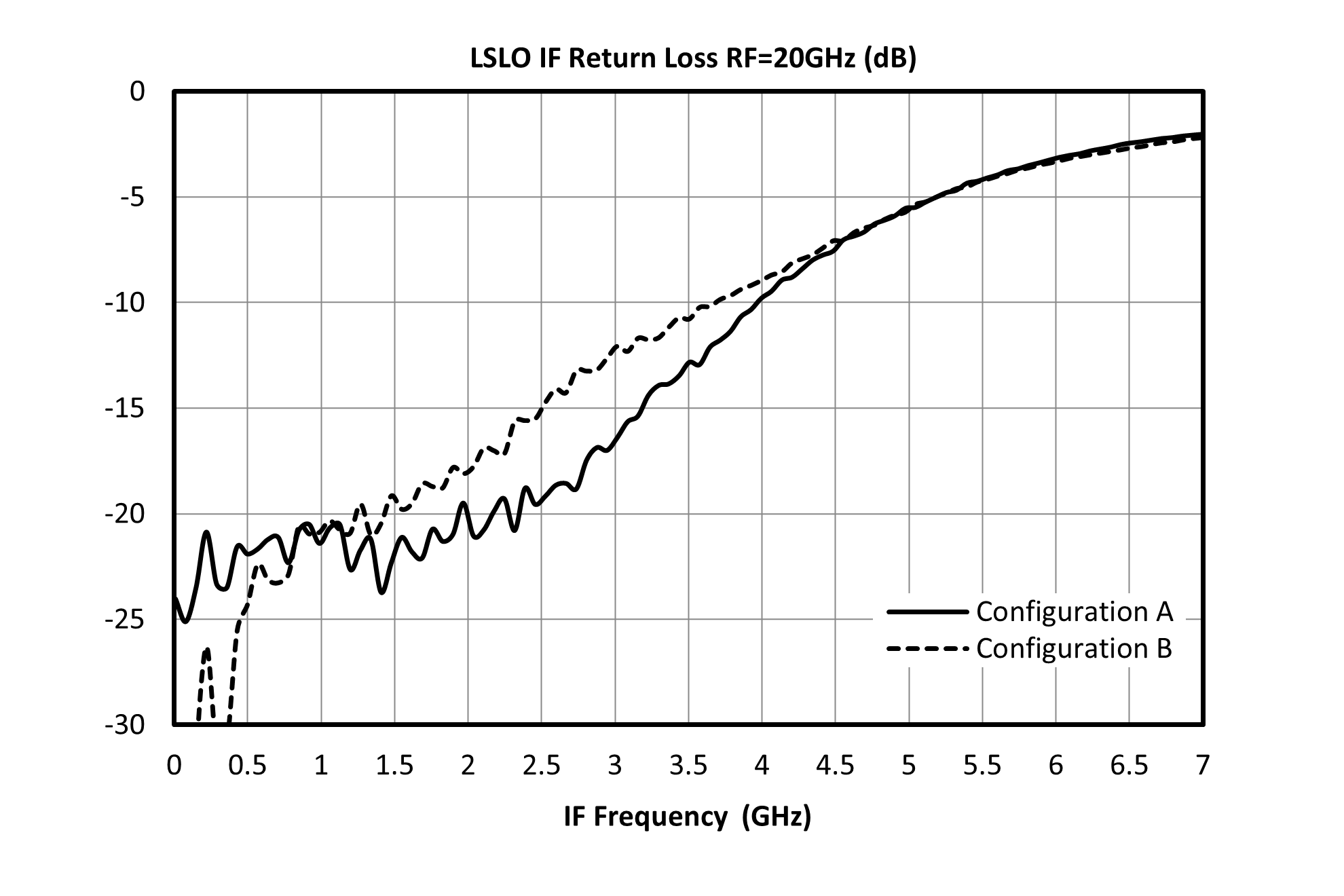

| IF Frequency Range | - | - | 0 | - | 4 | GHz |

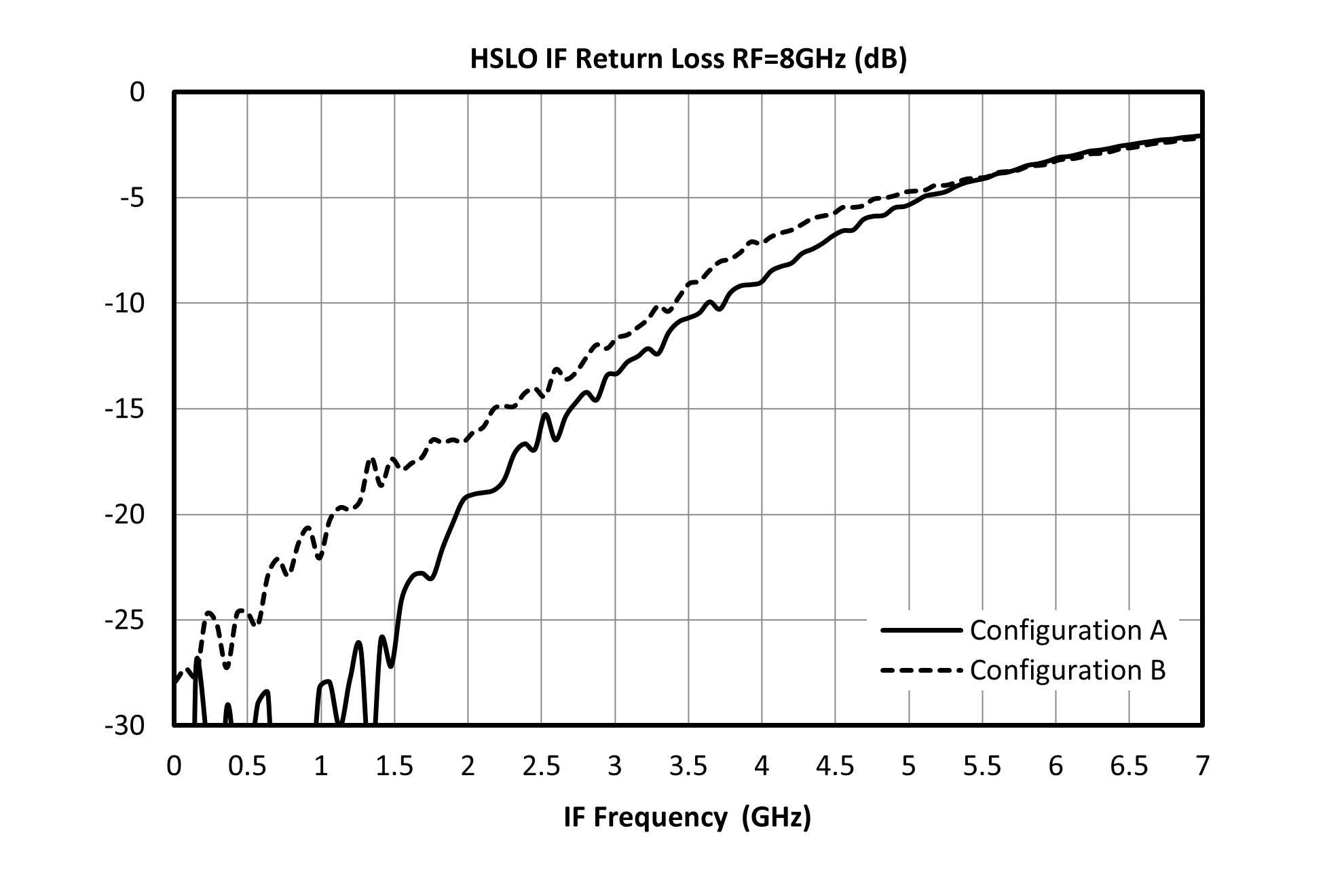

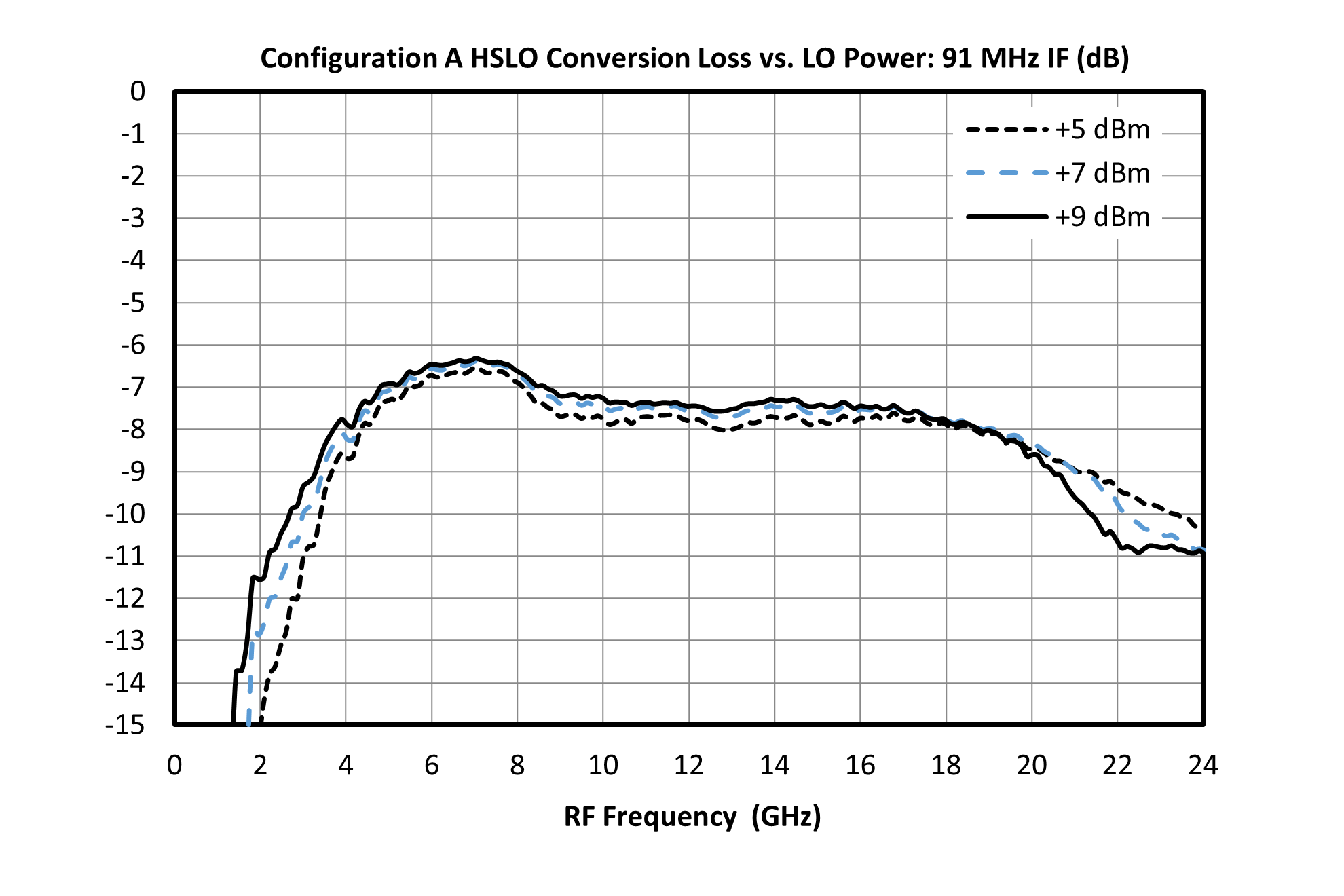

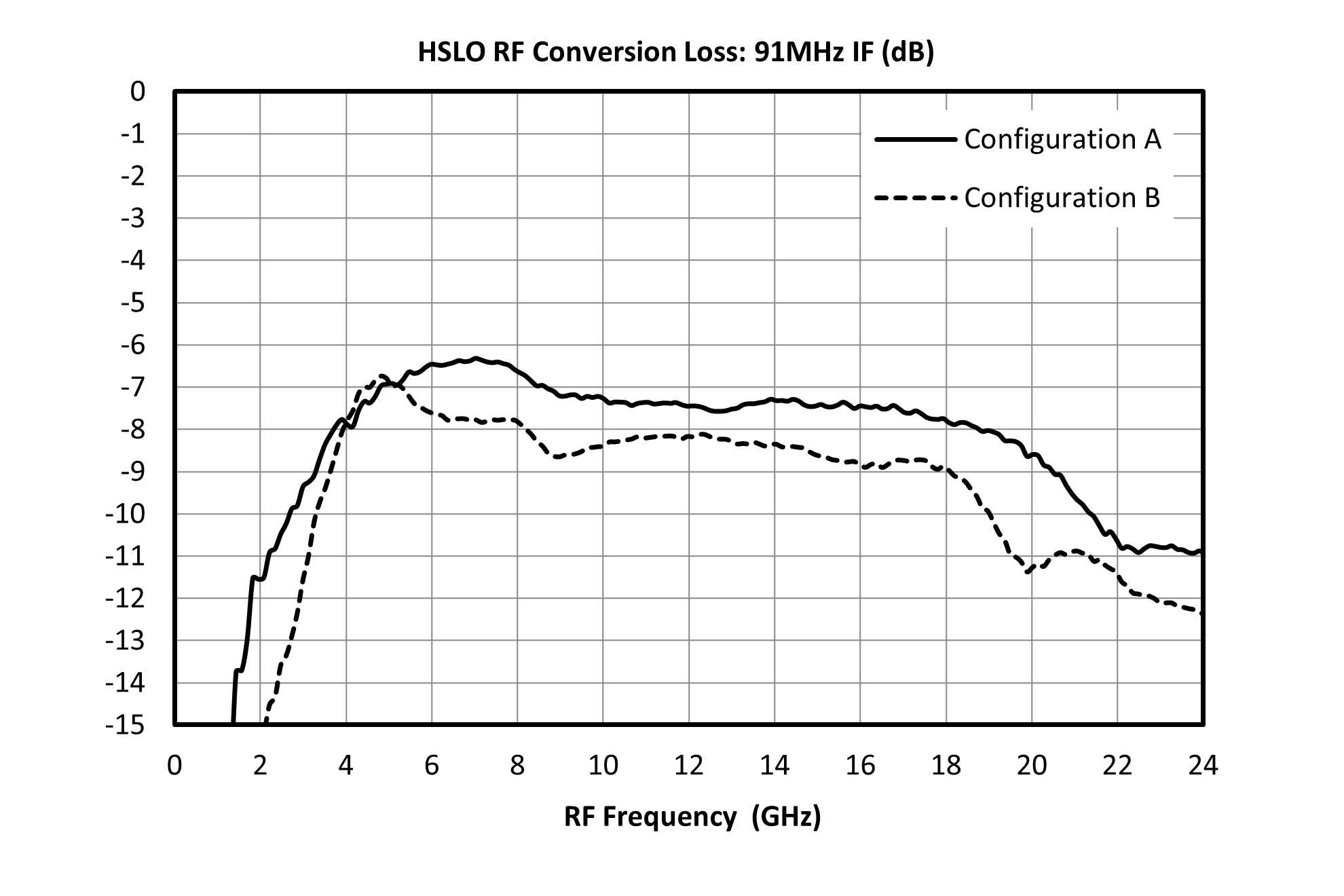

| Conversion Loss | A | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 7 | - | dB |

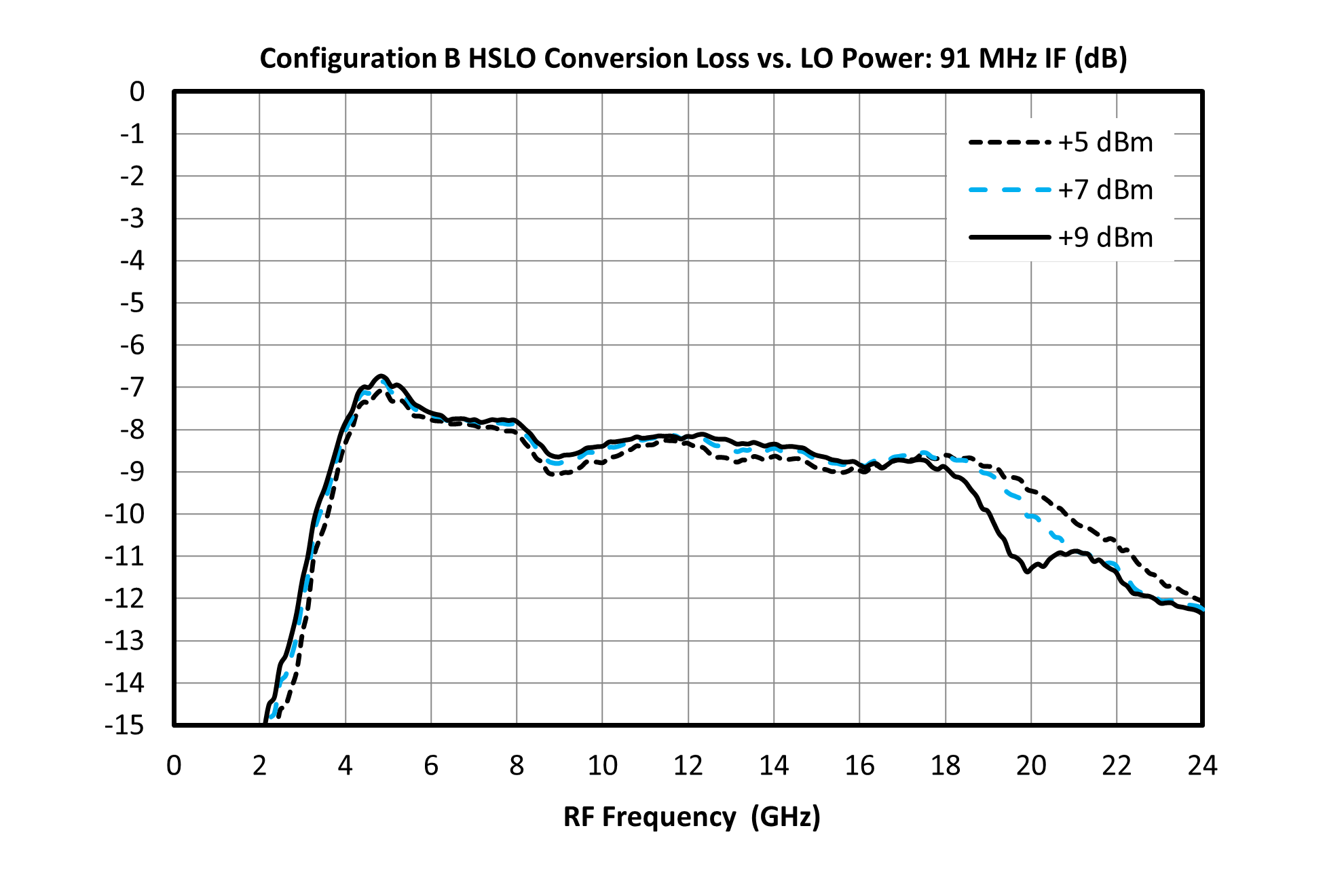

| Conversion Loss | B | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 8.5 | - | dB |

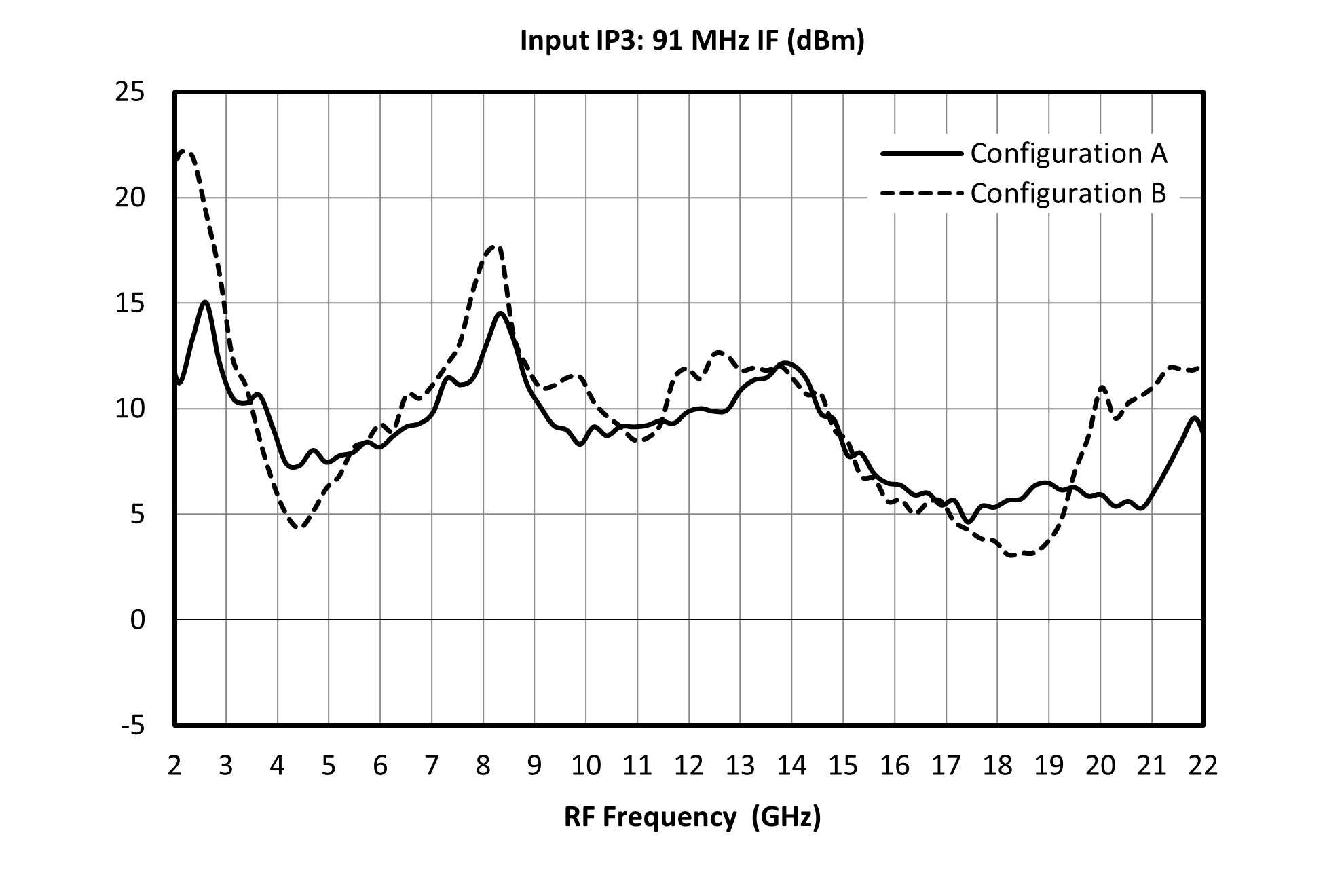

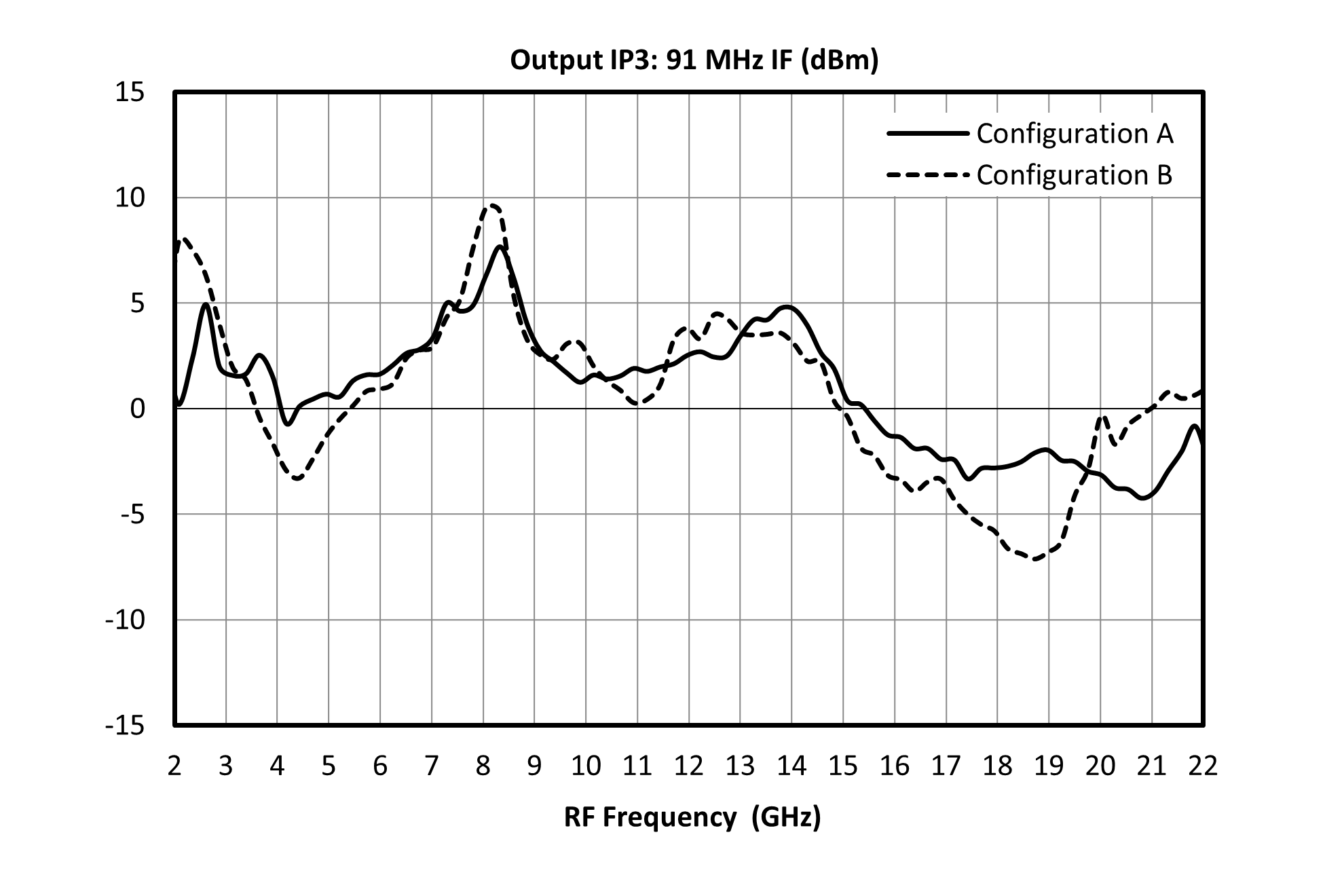

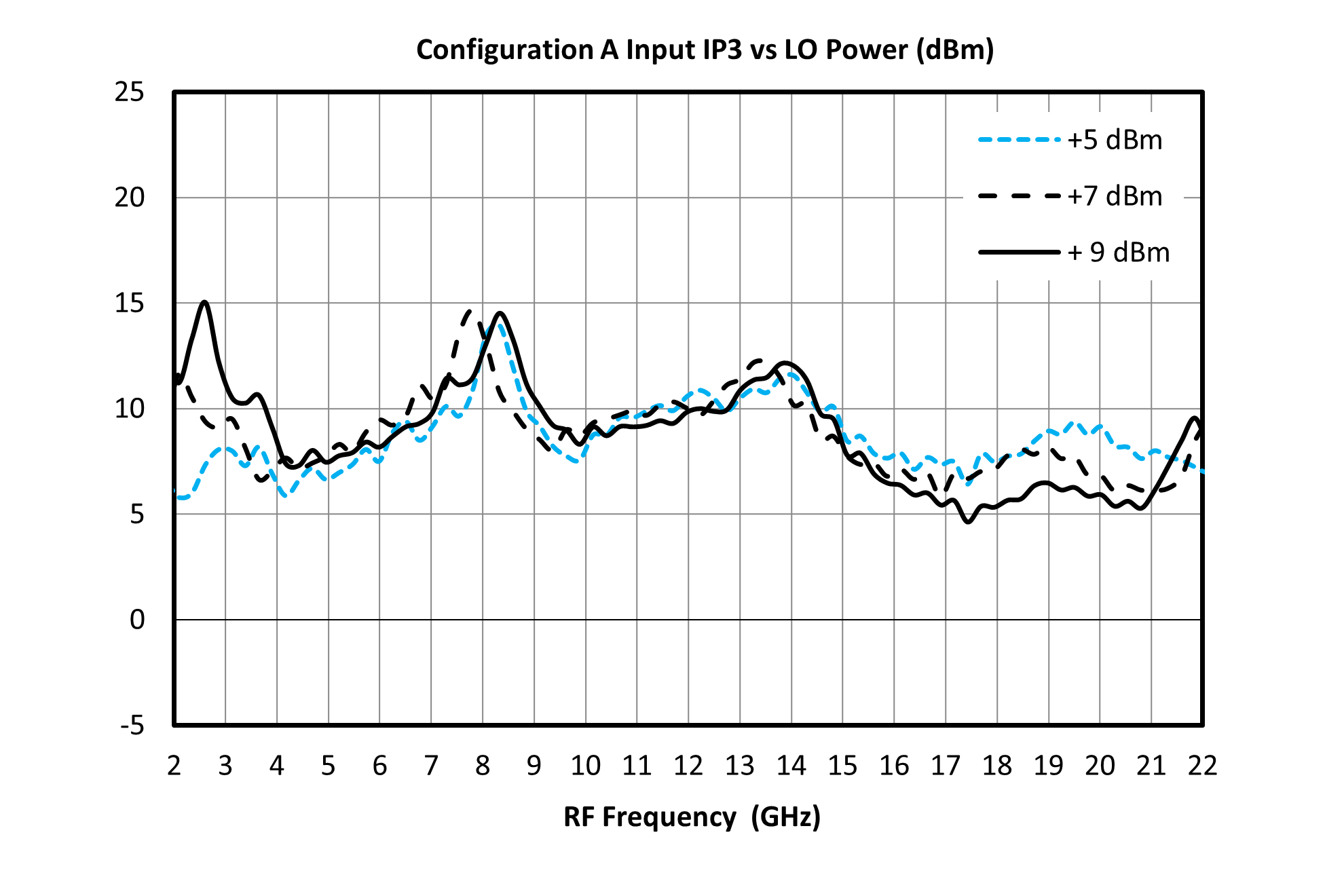

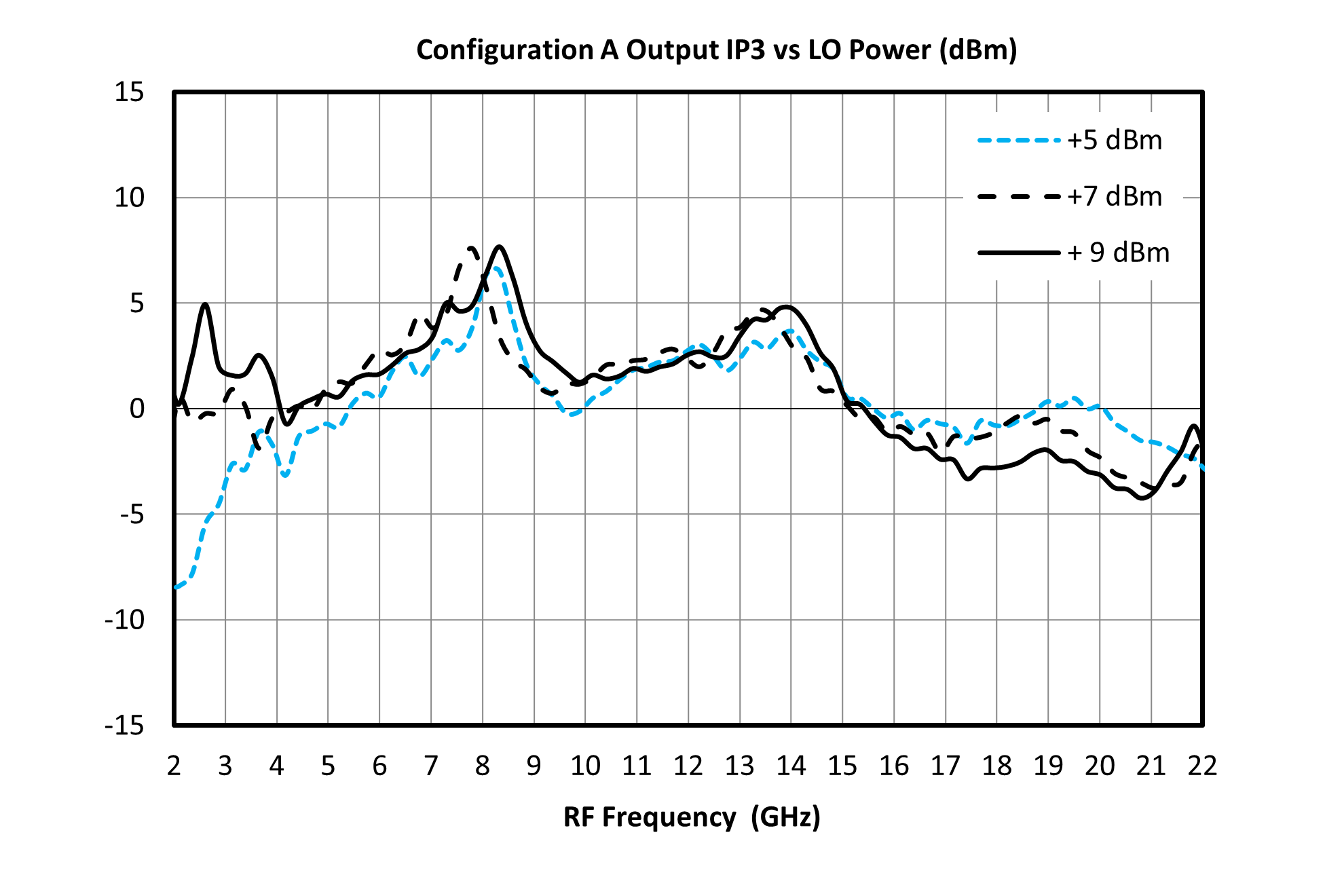

| Input IP3 | A | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 8.5 | - | dBm |

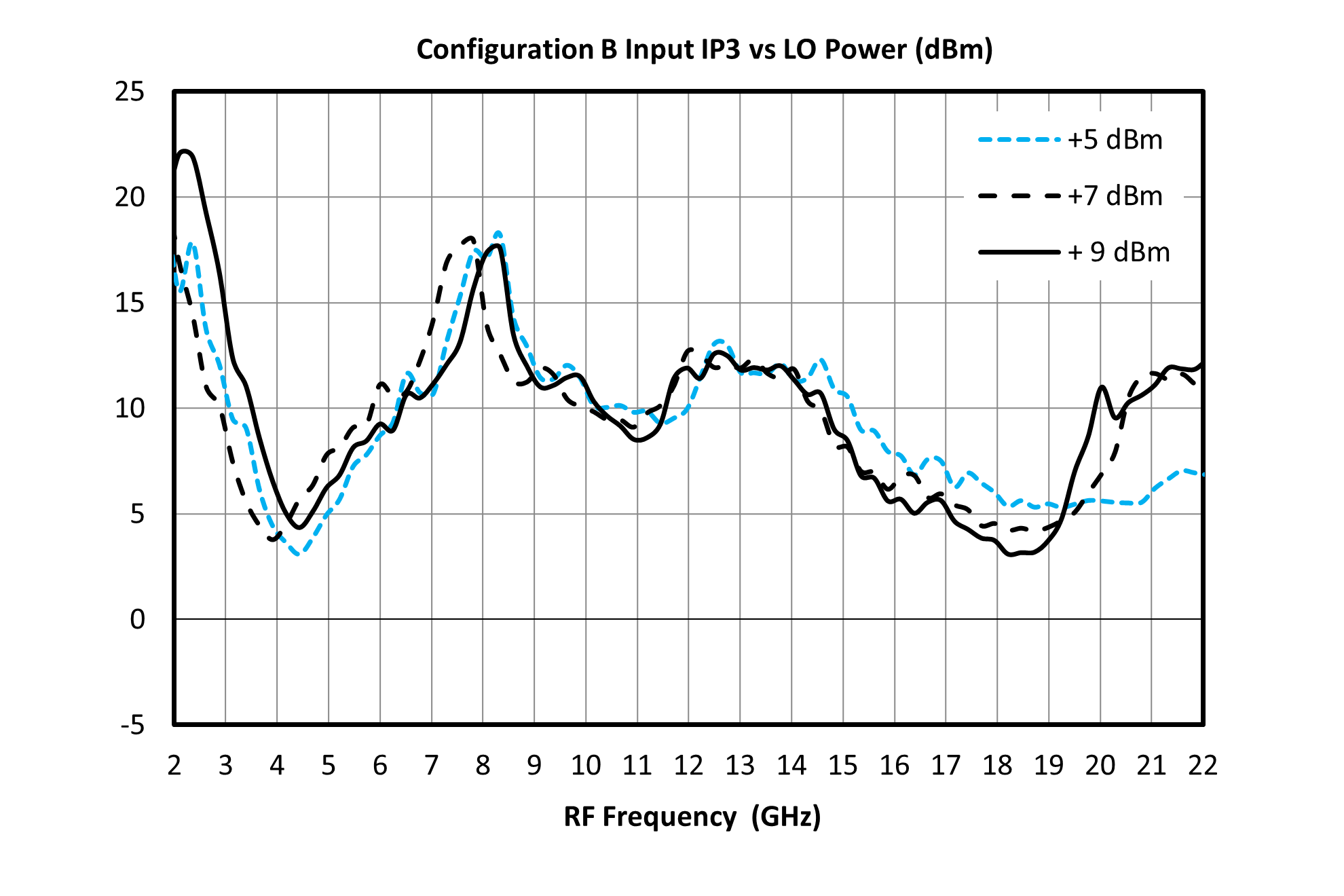

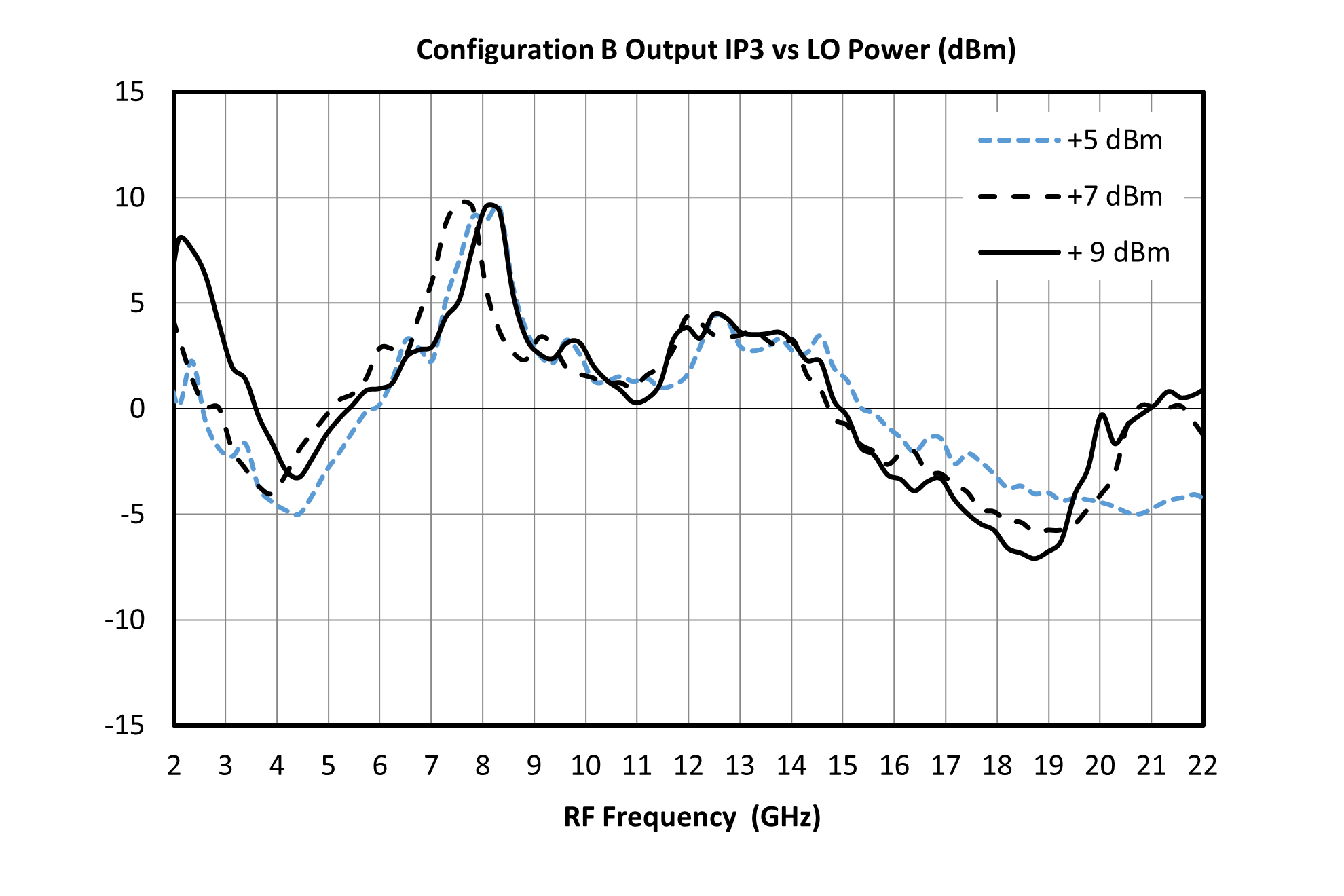

| Input IP3 | B | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 9 | - | dBm |

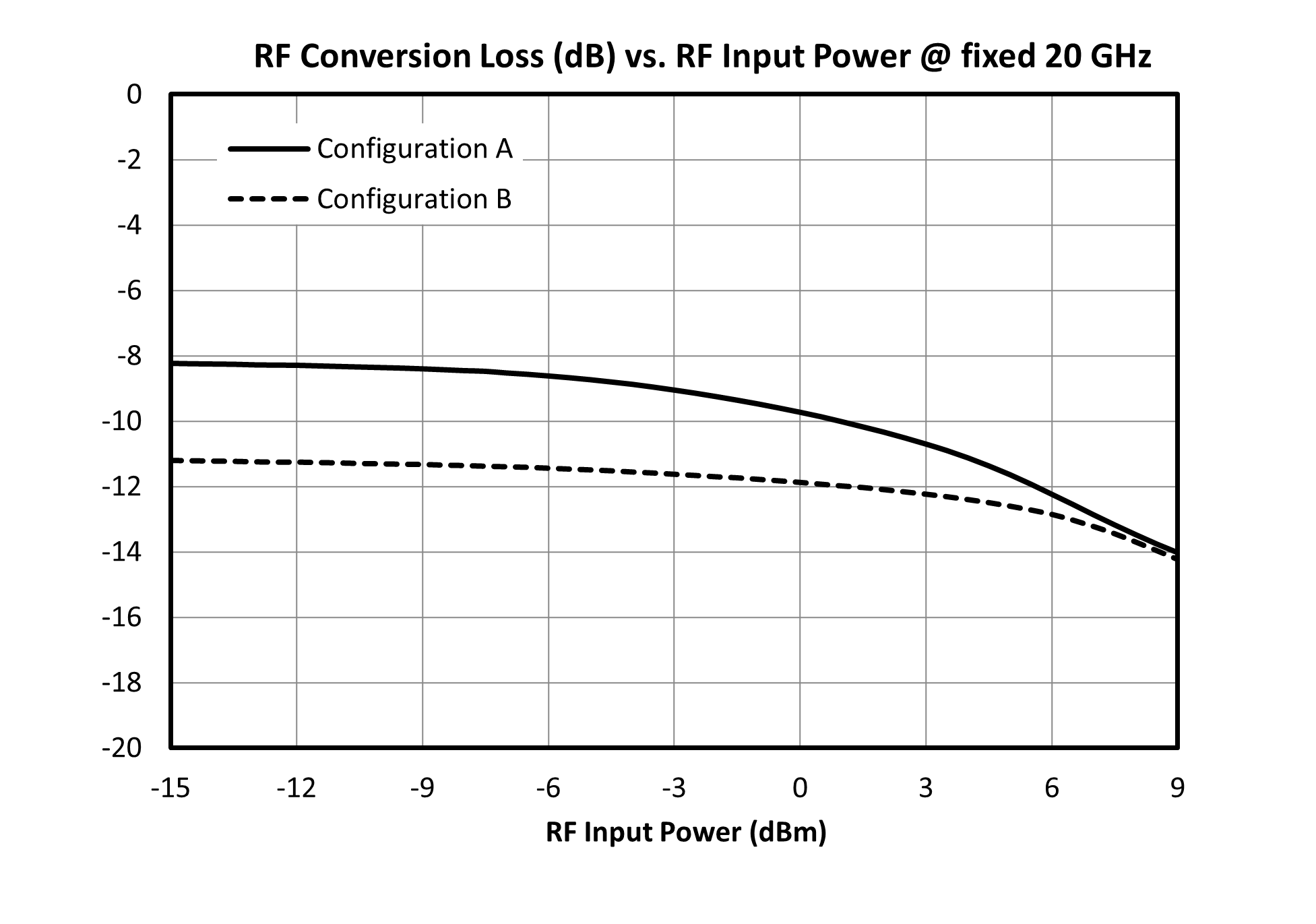

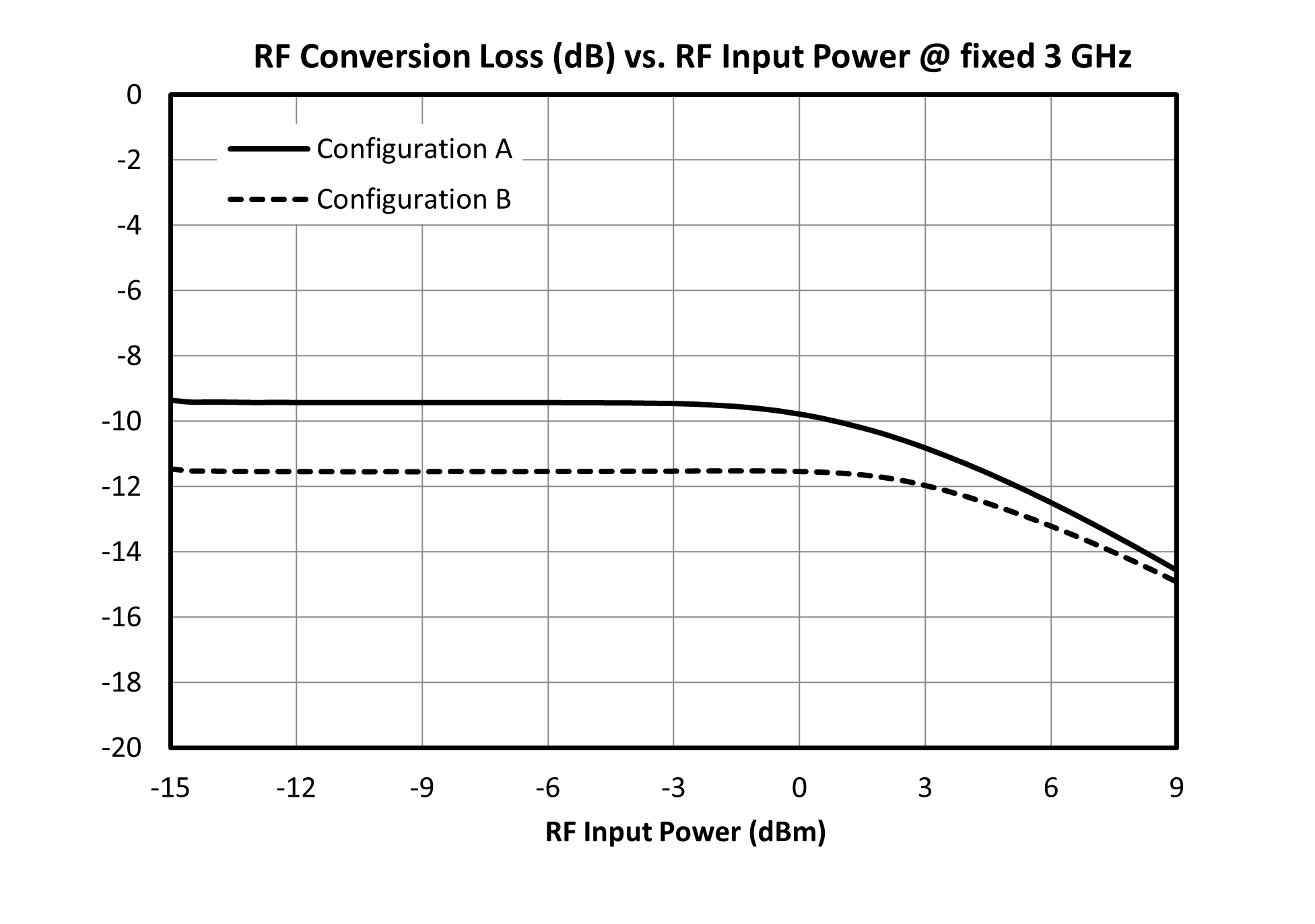

| Input P1dB | A | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 0 | - | dBm |
| Input P1dB | B | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 3 | - | dBm |

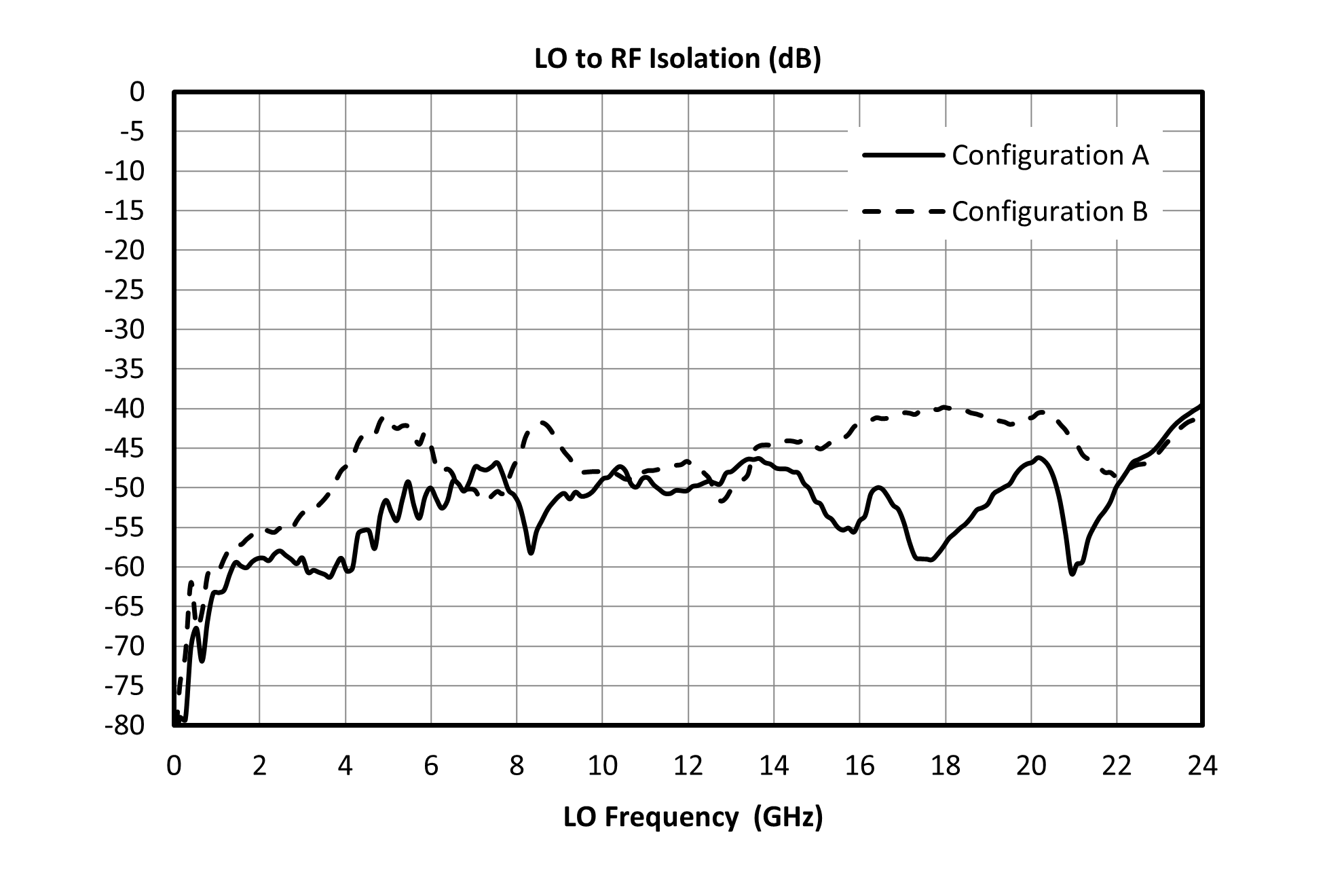

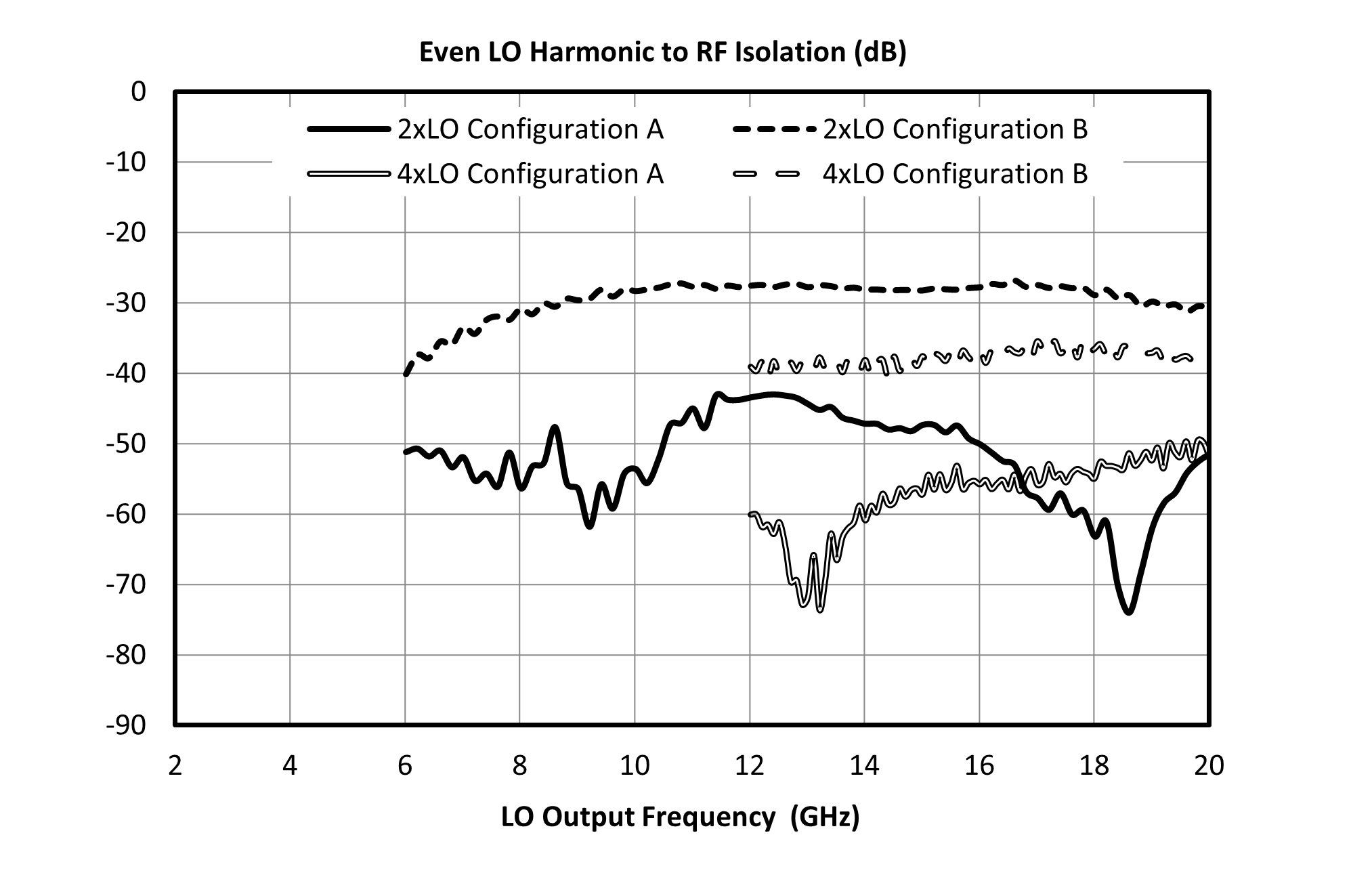

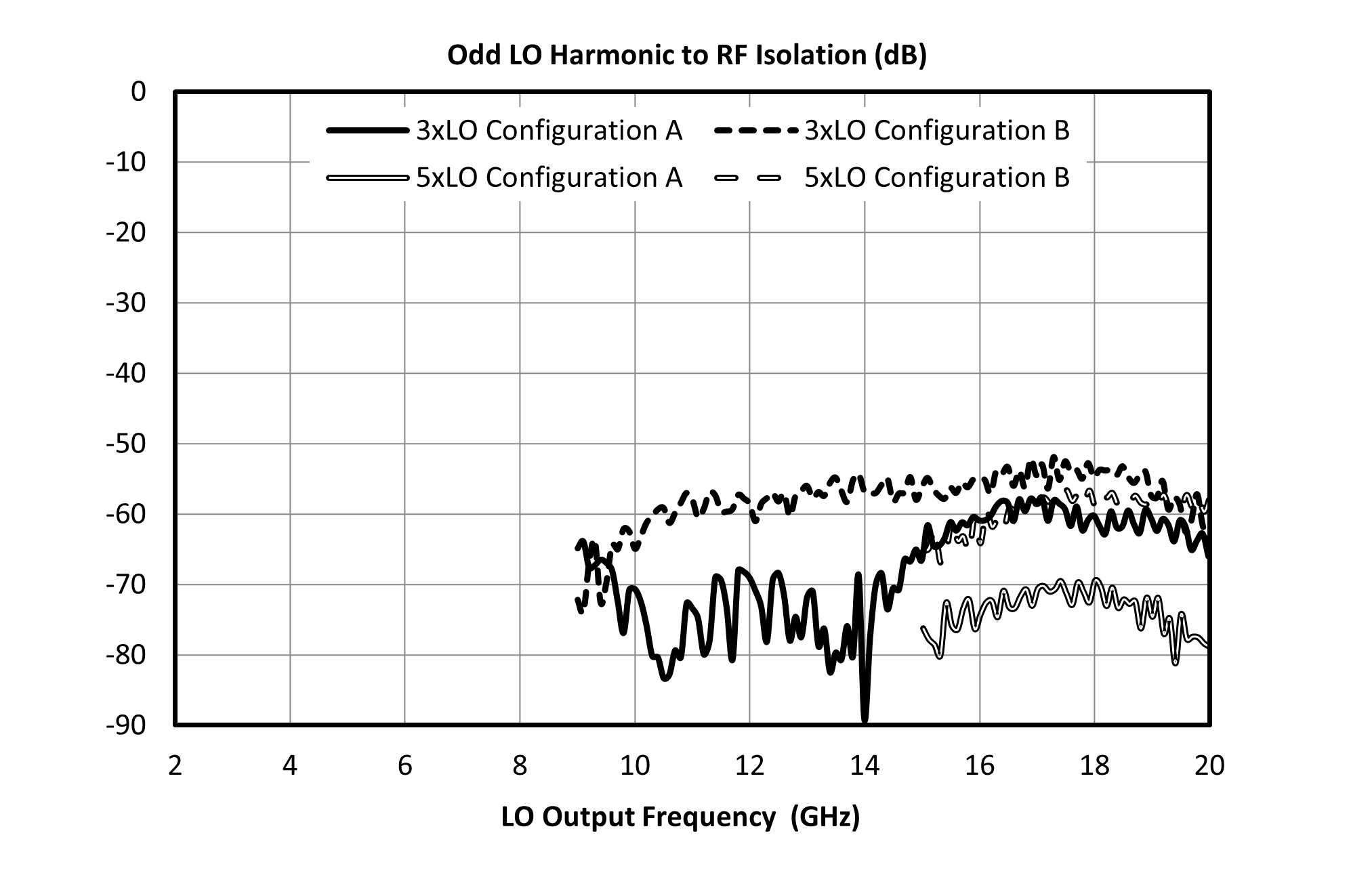

| Isolation, LO to RF | A | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 52 | - | dB |
| Isolation, LO to RF | B | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 45 | - | dB |

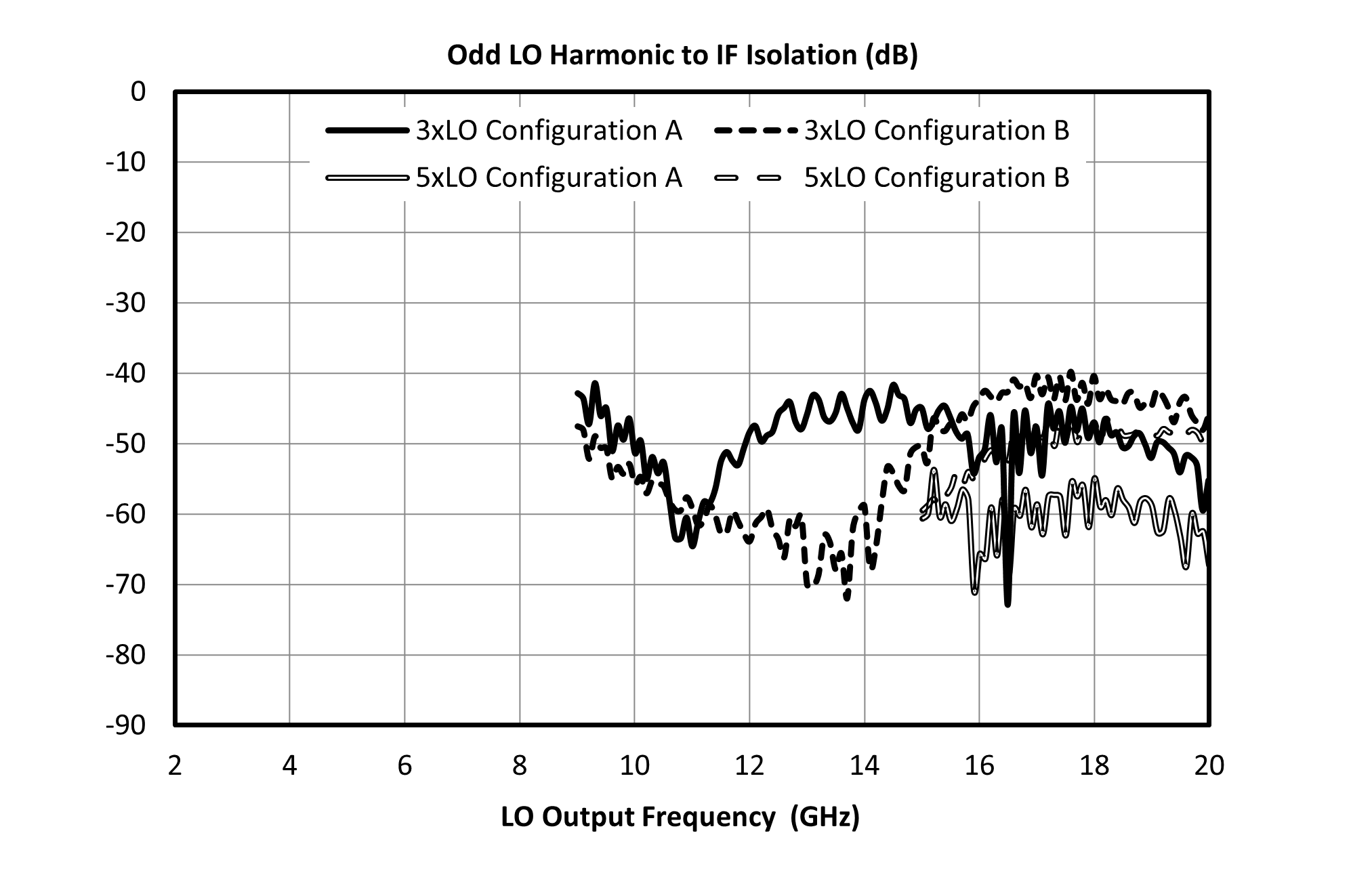

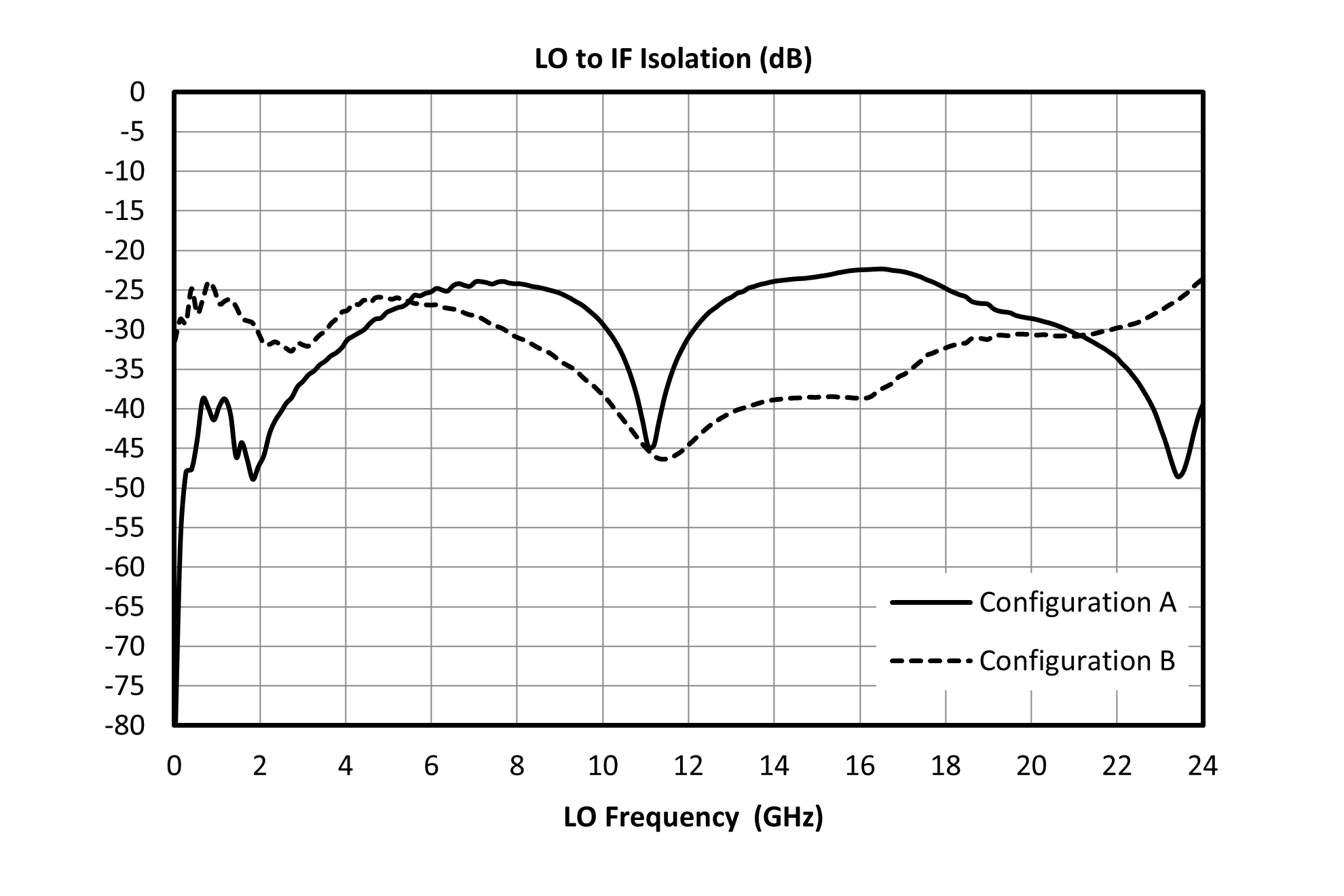

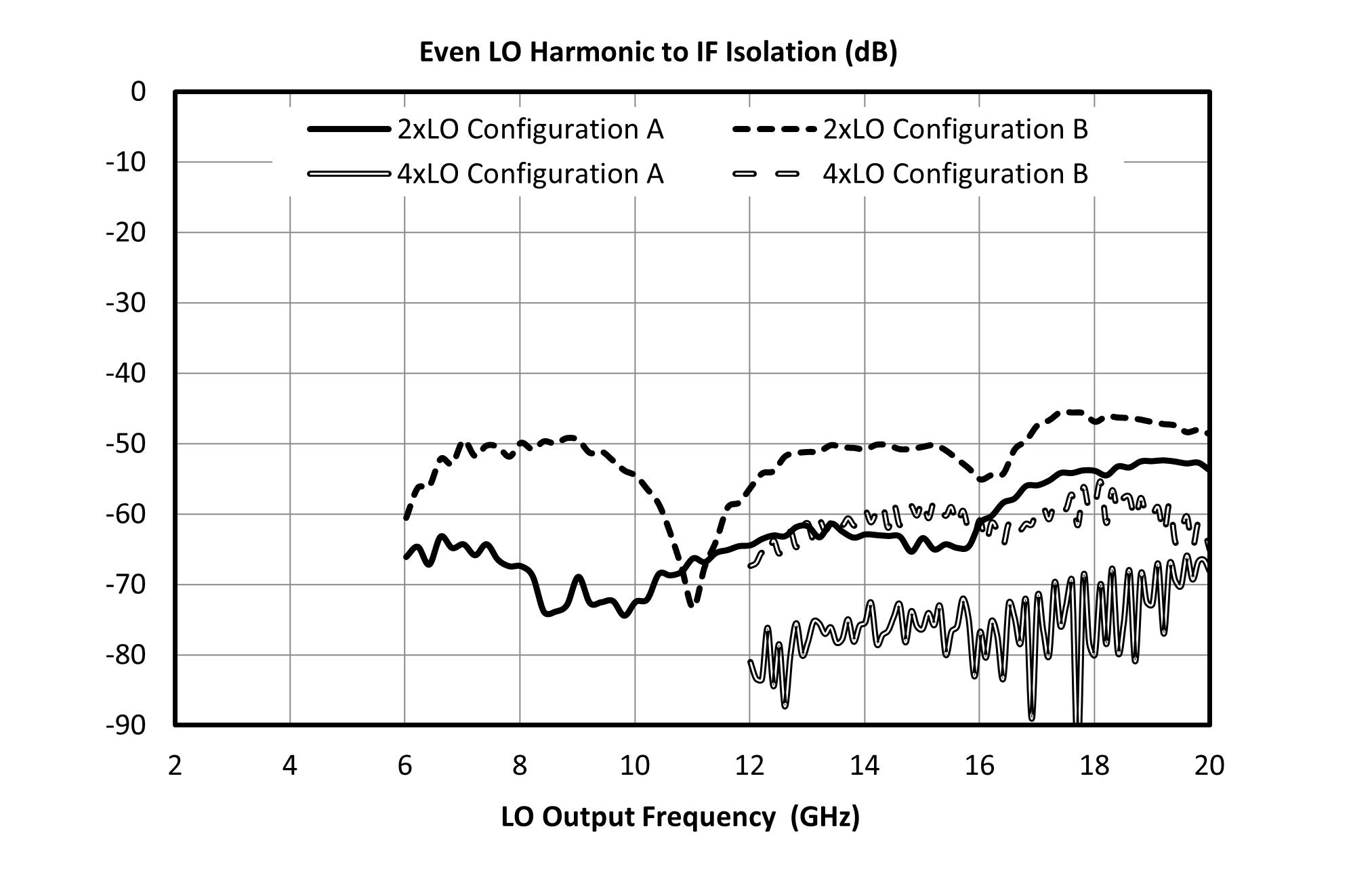

| Isolation, LO to IF | A | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 27 | - | dB |
| Isolation, LO to IF | B | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 34 | - | dB |

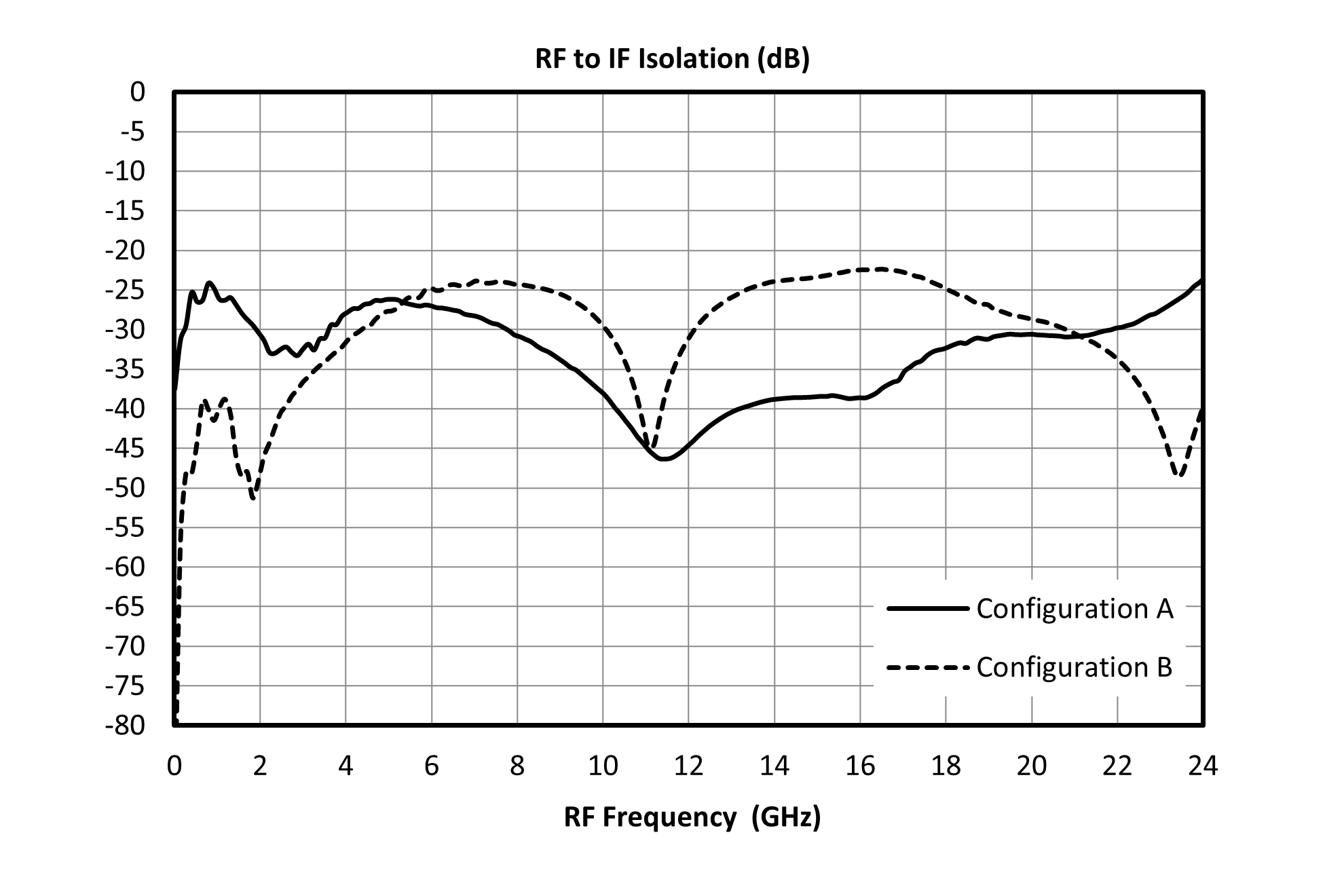

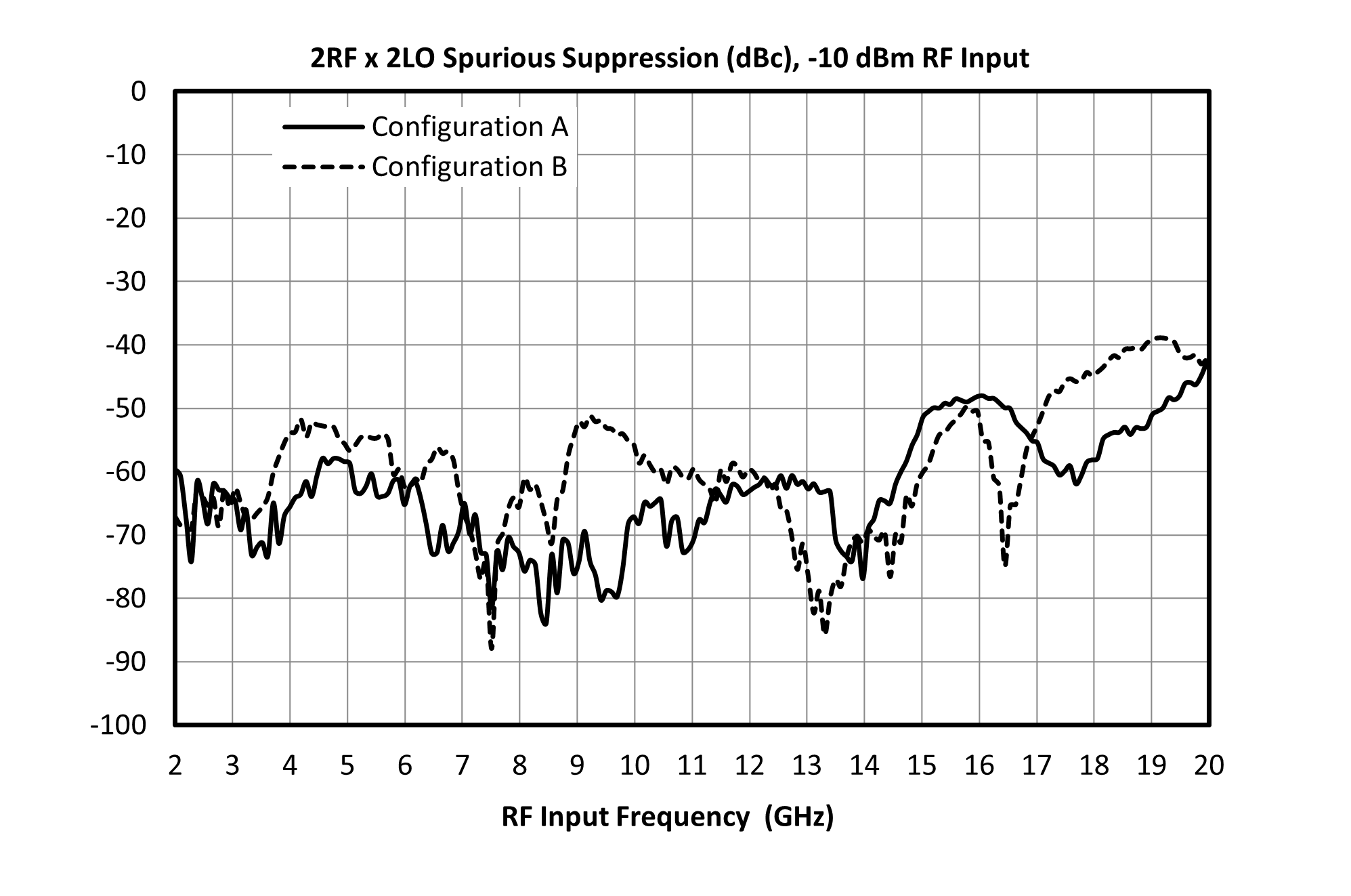

| Isolation | A | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 34 | - | dB |
| Isolation | B | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 27 | - | dB |
| Noise Figure 1 | A | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 7 | - | dB |
| Noise Figure 2 | B | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 8.5 | - | dB |
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| RF Frequency Range | - | - | 3 | - | 20 | GHz |
| LO Frequency Range | - | - | 3 | - | 20 | GHz |
| IF Frequency Range | - | - | 0 | - | 4 | GHz |
| Conversion Loss | A | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 7 | - | dB |
| Conversion Loss | B | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 8.5 | - | dB |
| Input IP3 | A | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 8.5 | - | dBm |
| Input IP3 | B | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 9 | - | dBm |
| Input P1dB | A | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 0 | - | dBm |
| Input P1dB | B | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 3 | - | dBm |
| Isolation, LO to RF | A | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 52 | - | dB |
| Isolation, LO to RF | B | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 45 | - | dB |
| Isolation, LO to IF | A | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 27 | - | dB |
| Isolation, LO to IF | B | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 34 | - | dB |
| Isolation | A | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 34 | - | dB |
| Isolation | B | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 27 | - | dB |
| Noise Figure 1 | A | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 7 | - | dB |
| Noise Figure 2 | B | LO/RF=3-20GHz IF=91MHz LO drive level=9dBm | - | 8.5 | - | dB |
[1][2] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.
