Connectorized Mixers

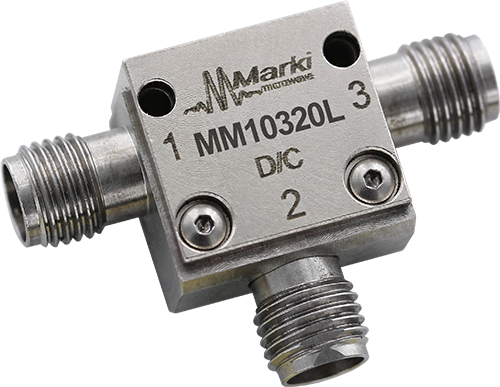

MM1-0320LBH

GaAs MMIC Double Balanced Mixer

The MM1-0320L is a passive double balanced MMIC mixer. It delivers excellent 7 dB conversion loss, superior isolations and spurious performance across a broad 3 to 20 GHz RF/LO bandwidth. Low LO drive requirement allows operation at as low as +5 dBm inputs. The MM1-0320L is available both as a wire bondable chip or in a 2.92mm connectorized BH package. The MM1-0320LBH is a superior alternative to Marki Microwave's MM1-0320LS, providing improved conversion loss across band in a smaller form factor. The MM1-0320L is a low barrier diode version of the MM1-0320H. If higher LO power is available, the MM1-0320H is recommended for higher mixer linearity.
