Device Overview
General Description
M4 diplexed IF mixers are hybrid assemblies that combine a low frequency IF (to DC) with a multi-decade bandwidth RF and LO. M4 mixers are commonly used for single tone analyzers (such as antenna test systems) with ultra-broad frequency ranges.
Features
- LO/RF 1.0 to 40.0 GHz
- IF DC to 500 MHz
- 9.5 dB Typical Conversion Loss
- 30 dB Typical LO to RF Isolation
- Super-Broadband RF and LO
- Available with 2.40 or 2.92 mm Connectors
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| M4-0140HK | Double-Balanced 1 - 40 GHz Mixers | Standard | Consult Factory | End of Life | EAR99 |
| M4-0140LKV | Double-Balanced 1 - 40 GHz Mixers | Standard | Consult Factory | Released | EAR99 |
| M4-0140LK | Double-Balanced 1 - 40 GHz Mixers | Standard | Consult Factory | Released | EAR99 |
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| M4-0140HK | Double-Balanced 1 - 40 GHz Mixers | Standard | Consult Factory | End of Life | EAR99 |
| M4-0140LKV | Double-Balanced 1 - 40 GHz Mixers | Standard | Consult Factory | Released | EAR99 |
| M4-0140LK | Double-Balanced 1 - 40 GHz Mixers | Standard | Consult Factory | Released | EAR99 |
M4-0140LKV
Double-Balanced 1 - 40 GHz Mixers
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Mechanical Data
- Notes
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2023-09-01 | Initial Release on New Format |
| A | 2024-03-20 | Updated with New Plots for Diode Change |
M4-0140LKV
Double-Balanced 1 - 40 GHz Mixers
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | LO | 2.4F | Port 1 is DC short for the KV package. |  |
| Port 2 | IF | 2.4F | Port 2 is diode connected for the KV Package. |  |
| Port 3 | RF | SMAF | Port 3 is DC short for the KV Package. | |
M4-0140LKV
Double-Balanced 1 - 40 GHz Mixers
Specifications
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Weight | - | 25g |

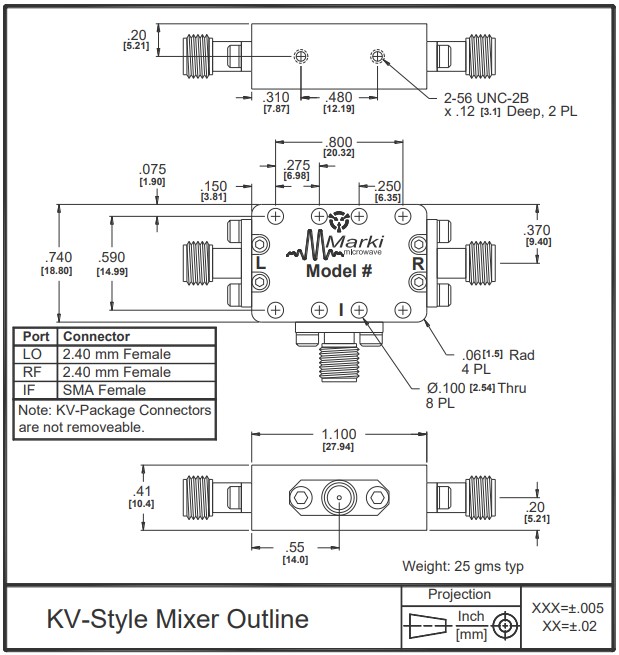

| Dimensions | - | 20.32 x 18.80 mm |
Recommended Operating Conditions
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| LO Input Power | 10 | - | 13 | - |
M4-0140LKV
Double-Balanced 1 - 40 GHz Mixers
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss | LO/RF=1-40 GHz IF=D-0.5 GHz | - | 9.5 | 12 | dB |
| Input IP3 | LO/RF=1-40 GHz L diode level 10-13 dBm | - | 13 | - | dBm |
| Input P1dB | LO/RF=1-40 GHz L diode level 10-13 dBm | - | 3 | - | dBm |
| LO-IF Isolation | LO/RF=1-40 GHz | - | 27 | - | dB |
| LO-RF Isolation | LO/RF=1-40 GHz | 20 | 30 | - | dB |
| RF-IF Isolation | LO/RF=1-40 GHz | - | 25 | - | dB |
| IF Frequency Range | - | 0 | - | 0.5 | GHz |
| RF Frequency Range | - | 1 | - | 40 | GHz |
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss | LO/RF=1-40 GHz IF=D-0.5 GHz | - | 9.5 | 12 | dB |
| Input IP3 | LO/RF=1-40 GHz L diode level 10-13 dBm | - | 13 | - | dBm |
| Input P1dB | LO/RF=1-40 GHz L diode level 10-13 dBm | - | 3 | - | dBm |
| LO-IF Isolation | LO/RF=1-40 GHz | - | 27 | - | dB |
| LO-RF Isolation | LO/RF=1-40 GHz | 20 | 30 | - | dB |
| RF-IF Isolation | LO/RF=1-40 GHz | - | 25 | - | dB |
| IF Frequency Range | - | 0 | - | 0.5 | GHz |
| RF Frequency Range | - | 1 | - | 40 | GHz |
M4-0140LKV
Double-Balanced 1 - 40 GHz Mixers
Typical Performance Plots
M4-0140LKV
Double-Balanced 1 - 40 GHz Mixers
