Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 43.18 x 18.8 mm |
END OF LIFE
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
M4 diplexed IF mixers are hybrid assemblies that combine a low frequency IF (to DC) with a multi-decade bandwidth RF and LO. M4 mixers are commonly used for single tone analyzers (such as antenna test systems) with ultra-broad frequency ranges.
Features
- LO/RF .5 to 50.0 GHz
- IF DC to 300 MHz
- 9.0 dB Typical Conversion Loss
- 27 dB Typical LO to RF Isolation
- Super-Broadband RF and LO
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|---|
| M4-0050HTV | Double-Balanced Mixers | TV | Standard | Consult Factory | End of Life | EAR99 | - |
| M4-0050LTV | Double-Balanced Mixers | TV | Standard | Non-RoHS | Released | EAR99 | - |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|---|
| M4-0050HTV | Double-Balanced Mixers | TV | Standard | Consult Factory | End of Life | EAR99 | - |
| M4-0050LTV | Double-Balanced Mixers | TV | Standard | Non-RoHS | Released | EAR99 | - |

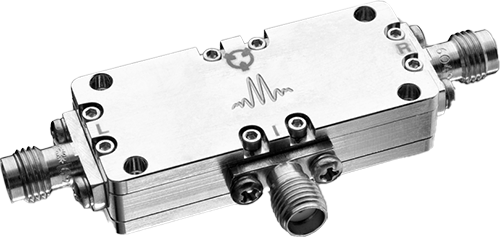

M4-0050HTV
Double-Balanced Mixers
Table Of Contents
M4-0050HTV
Double-Balanced Mixers
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | LO | 2.4F | Port 1 is DC short for the TV package. |  |
| Port 2 | IF | SMAF | Port 2 is diode connected for the TV Package. |  |
| Port 3 | RF | - | Port 3 is DC short for the TV Package. | |
M4-0050HTV
Double-Balanced Mixers
Specifications
Recommended Operating Conditions
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| LO Input Power | 16 | - | 19 | - |
M4-0050HTV
Double-Balanced Mixers
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss | LO/RF=.5-50 GHz IF=DC-.1 GHz | - | 9 | 14 | dB |
| Conversion Loss | LO/RF=.5-50 GHz IF=DC-.3 GHz | - | 10 | 15.5 | dB |
| Input IP3 | LO/RF=.5-50 GHz LO drive level, H Diode Option=16-19 dBm | - | 19 | - | dBm |
| Input P1dB | LO/RF=.5-50 GHz LO drive level, H Diode Option=16-19 dBm | - | 9 | - | dBm |
| LO-IF Isolation | LO/RF=.5-50 GHz | - | 27 | - | dB |
| LO-RF Isolation | LO/RF=.5-50 GHz | - | 27 | - | dB |
| RF-IF Isolation | LO/RF=.5-50 GHz | - | 25 | - | dB |
| IF Frequency Range | - | 0 | - | 0.3 | GHz |
| RF Frequency Range | - | 0.5 | - | 50 | GHz |
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss | LO/RF=.5-50 GHz IF=DC-.1 GHz | - | 9 | 14 | dB |
| Conversion Loss | LO/RF=.5-50 GHz IF=DC-.3 GHz | - | 10 | 15.5 | dB |
| Input IP3 | LO/RF=.5-50 GHz LO drive level, H Diode Option=16-19 dBm | - | 19 | - | dBm |
| Input P1dB | LO/RF=.5-50 GHz LO drive level, H Diode Option=16-19 dBm | - | 9 | - | dBm |
| LO-IF Isolation | LO/RF=.5-50 GHz | - | 27 | - | dB |
| LO-RF Isolation | LO/RF=.5-50 GHz | - | 27 | - | dB |
| RF-IF Isolation | LO/RF=.5-50 GHz | - | 25 | - | dB |
| IF Frequency Range | - | 0 | - | 0.3 | GHz |
| RF Frequency Range | - | 0.5 | - | 50 | GHz |
M4-0050HTV
Double-Balanced Mixers
Mechanical Data
Outline Drawing
