Device Overview

General Description

M2 triple balanced mixers are hybrid assemblies that have been hand-tuned to feature low conversion loss and high isolations. M2 mixers offer ultrabroadband overlapping frequency coverage on all 3 ports. Many M2 mixers have replaced with MM2 mixers with superior performance, repeatability, and availability. M2 mixers suitable for systems where an MM2 mixer is not available.

Photo of M2-0240LPV

Features

  • LO/RF 2.0 to 40.0 GHz
  • IF .001 to 6.0 GHz
  • 9.0 dB Typical Conversion Loss
  • 30 dB Typical LO to RF Isolation
  • Ultra-Broadband RF, LO, and IF
  • Available with 2.92 or 2.40 mm Connectors

Applications

N/A

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionConnectorsGreen StatusProduct LifecycleExport ClassificationRecommended Replacement
M2-0240LPTriple-Balanced 2 - 40 GHz MixersStandard

Non-RoHS

Not Recommended for New DesignEAR99

-

M2-0240LPVTriple-Balanced 2 - 40 GHz MixersStandardConsult FactoryNot Recommended for New DesignEAR99

-

Table Of Contents

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

Diagram of the port configuration for M2-0240LPV

Port Functions

PortFunctionConnector TypeDescriptionDC Equivalent
Circuit
Port 1LO 2.4FPort 1 is DC short for the PV package.Equivalent circuit for the LO
Port 2IF 2.4FPort 2 is diode connected for the PV Package.Equivalent circuit for the IF
Port 3RF 2.92FPort 3 is DC short for the PV Package.Equivalent circuit for the RF

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

3

Specifications

Package Information

ParameterDetailsRating
Weight-18g
Dimensions-20.32 x 14.99 mm
ParameterMinNominalMaxUnit
LO Input Power 15-20-

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

4

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.

ParameterTest ConditionsMinTypMaxUnit
Conversion Loss LO/RF=2-40 GHz
IF=.001-4 GHz
-914dB
Conversion Loss LO/RF=2-40 GHz
IF=4-6 GHz
-1015dB
Input IP3 LO/RF=2-40 GHz
L diode level 15-20 dBm
-15-dBm
Input P1dB LO/RF=2-40 GHz
L diode level 15-20 dBm
-5-dBm
LO-IF Isolation LO/RF=2-40 GHz
-30-dB
LO-RF Isolation LO/RF=2-40 GHz
-30-dB
RF-IF Isolation LO/RF=2-40 GHz
-20-dB
IF Frequency Range -0.001-6GHz
RF Frequency Range -2-40GHz

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

5

Typical Performance Plots

Conversion Loss (dB) graph for M2-0240LPV
Conversion Loss <2 GHz (dB) graph for M2-0240LPV
Relative IF Response (dB) graph for M2-0240LPV
Relative IF Response (dB) graph for M2-0240LPV
LO to RF Isolation (dB) graph for M2-0240LPV
LO to IF Isolation (dB) graph for M2-0240LPV

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

6

Mechanical Data

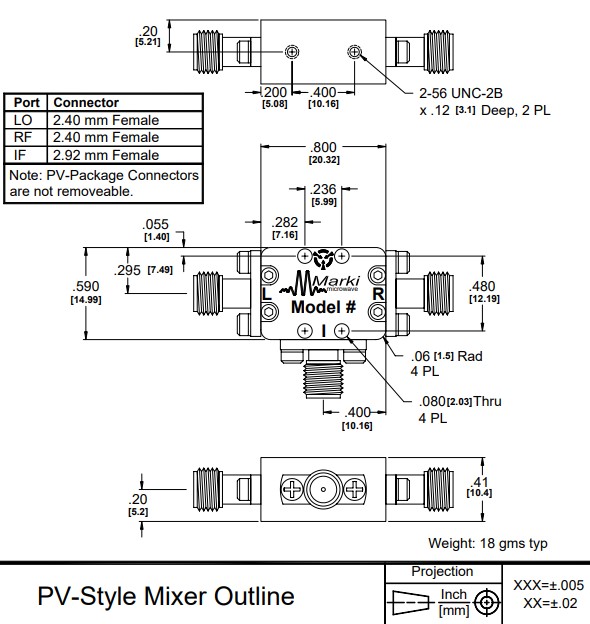

Outline Drawing
