Device Overview
General Description
M2 triple balanced mixers are hybrid assemblies that have been hand-tuned to feature low conversion loss and high isolations. M2 mixers offer ultrabroadband overlapping frequency coverage on all 3 ports. Many M2 mixers have replaced with MM2 mixers with superior performance, repeatability, and availability. M2 mixers suitable for systems where an MM2 mixer is not available.
Features
- LO/RF 2.0 to 40.0 GHz
- IF .001 to 6.0 GHz
- 9.0 dB Typical Conversion Loss
- 30 dB Typical LO to RF Isolation
- Ultra-Broadband RF, LO, and IF
- Available with 2.92 or 2.40 mm Connectors
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|---|
| M2-0240LP | Triple-Balanced 2 - 40 GHz Mixers | P | Standard | Non-RoHS | Not Recommended for New Design | EAR99 | - |
| M2-0240LPV | Triple-Balanced 2 - 40 GHz Mixers | - | Standard | Consult Factory | Not Recommended for New Design | EAR99 | - |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|---|
| M2-0240LP | Triple-Balanced 2 - 40 GHz Mixers | P | Standard | Non-RoHS | Not Recommended for New Design | EAR99 | - |
| M2-0240LPV | Triple-Balanced 2 - 40 GHz Mixers | - | Standard | Consult Factory | Not Recommended for New Design | EAR99 | - |
M2-0240LP
Triple-Balanced 2 - 40 GHz Mixers
Table Of Contents
M2-0240LP
Triple-Balanced 2 - 40 GHz Mixers
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | LO | SMAF | Port 1 is DC short for the P package. |  |
| Port 2 | IF | SMAF | Port 2 is diode connected for the P Package. |  |
| Port 3 | RF | SMAF | Port 3 is DC short for the P Package. | |
M2-0240LP
Triple-Balanced 2 - 40 GHz Mixers
Specifications

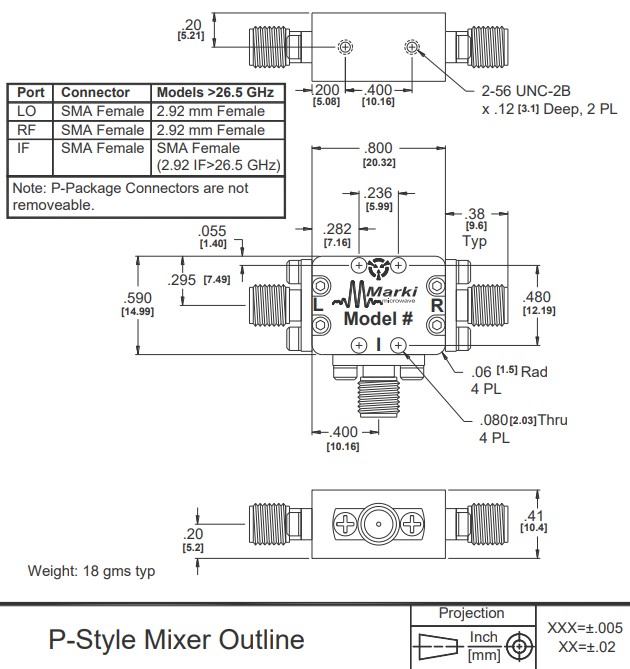

Package Information
| Parameter | Details | Rating |
|---|---|---|
| Weight | Package name: P | 18g |
| Dimensions | - | 20.32 x 14.99 mm |
Recommended Operating Conditions
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| LO Input Power | 15 | - | 20 | - |
M2-0240LP
Triple-Balanced 2 - 40 GHz Mixers
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss | LO/RF=2-40 GHz IF=.001-4 GHz | - | 9 | 14 | dB |
| Conversion Loss | LO/RF=2-40 GHz IF=4-6 GHz | - | 10 | 15 | dB |
| Input IP3 | LO/RF=2-40 GHz L diode level 15-20 dBm | - | 15 | - | dBm |
| Input P1dB | LO/RF=2-40 GHz L diode level 15-20 dBm | - | 5 | - | dBm |
| LO-IF Isolation | LO/RF=2-40 GHz | - | 30 | - | dB |
| LO-RF Isolation | LO/RF=2-40 GHz | - | 30 | - | dB |
| RF-IF Isolation | LO/RF=2-40 GHz | - | 20 | - | dB |
| IF Frequency Range | - | 0.001 | - | 6 | GHz |
| RF Frequency Range | - | 2 | - | 40 | GHz |
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss | LO/RF=2-40 GHz IF=.001-4 GHz | - | 9 | 14 | dB |
| Conversion Loss | LO/RF=2-40 GHz IF=4-6 GHz | - | 10 | 15 | dB |
| Input IP3 | LO/RF=2-40 GHz L diode level 15-20 dBm | - | 15 | - | dBm |
| Input P1dB | LO/RF=2-40 GHz L diode level 15-20 dBm | - | 5 | - | dBm |
| LO-IF Isolation | LO/RF=2-40 GHz | - | 30 | - | dB |
| LO-RF Isolation | LO/RF=2-40 GHz | - | 30 | - | dB |
| RF-IF Isolation | LO/RF=2-40 GHz | - | 20 | - | dB |
| IF Frequency Range | - | 0.001 | - | 6 | GHz |
| RF Frequency Range | - | 2 | - | 40 | GHz |
