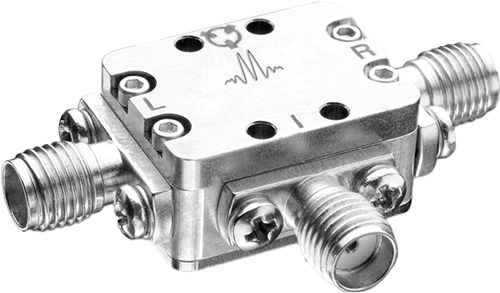

M1-0616HP_Double-Balanced Mixers

END OF LIFE

Device Overview

General Description

M1 double balanced mixers are hybrid assemblies that have been hand-tuned to feature low conversion loss and high isolations and a DC IF response. M1 mixers have generally been replaced with MM1 mixers with superior performance, repeatability, and availability. M1 mixers are still used in legacy systems and are suitable for laboratory use.

Features

LO/RF 6.0 to 16.0 GHz
IF DC to 4.0 GHz
5.5 dB Typical Conversion Loss
35 dB Typical LO to RF Isolation
Broadband RF and LO

Applications

N/A

Functional Block Diagram

Part Ordering Options

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification	Recommended Replacement
M1-0616MA	Double-Balanced Mixer	A	Standard	Consult Factory	Not Recommended for New Design	EAR99	-
M1-0616MP	Double-Balanced Mixers	P	Standard	Consult Factory	Not Recommended for New Design	EAR99	MM1-0320HS MM1-0320LS
M1-0616LP	Double-Balanced Mixers	P	Standard	Non-RoHS	End of Life	EAR99	MM1-0320LS
M1-0616NP	Double-Balanced Mixers	P	Standard	Consult Factory	End of Life	EAR99	MM1-0320HS
M1-0616HP	Double-Balanced Mixers	P	Standard	Consult Factory	End of Life	EAR99	MM1-0320HS

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification	Recommended Replacement
M1-0616MA	Double-Balanced Mixer	A	Standard	Consult Factory	Not Recommended for New Design	EAR99	-
M1-0616MP	Double-Balanced Mixers	P	Standard	Consult Factory	Not Recommended for New Design	EAR99	MM1-0320HS MM1-0320LS
M1-0616LP	Double-Balanced Mixers	P	Standard	Non-RoHS	End of Life	EAR99	MM1-0320LS
M1-0616NP	Double-Balanced Mixers	P	Standard	Consult Factory	End of Life	EAR99	MM1-0320HS
M1-0616HP	Double-Balanced Mixers	P	Standard	Consult Factory	End of Life	EAR99	MM1-0320HS

Device Overview
Port Configuration and Functions
- Port Functions
Specifications
Mechanical Data
- Outline Drawing
Notes

Port Configuration and Functions

Port Functions

Port	Function	Connector Type	Description
Port 1	LO	SMAF	Port 1 is DC short for the P package.
Port 2	IF	SMAF	Port 2 is diode connected for the P Package.
Port 3	RF	SMAF	Port 3 is DC short for the P Package.

Specifications

Package Information

Parameter	Details	Rating
Weight	Package name: P	18g
Dimensions	-	20.32 x 14.99 mm

Recommended Operating Conditions

Parameter	Min	Nominal	Max	Unit
LO Input Power	16	-	19	-

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.

Parameter	Test Conditions	Min	Typ	Max	Unit
Conversion Loss	LO/RF=6-16 GHz IF=2-4 GHz	-	6.5	8	dB
Conversion Loss	LO/RF=6-16 GHz IF=DC-2 GHz	-	5.5	7	dB
Input IP3	LO/RF=6-16 GHz LO drive level, H Diode Option=16-19 dBm	-	21	-	dBm
Input P1dB	LO/RF=6-16 GHz LO drive level, H Diode Option=16-19 dBm	-	11	-	dBm
LO-RF Isolation	LO/RF=6-16 GHz	25	35	-	dB
RF-IF Isolation	LO/RF=6-16 GHz	-	25	-	dB
RF-IF Isolation	LO/RF=6-16 GHz	-	30	-	dB
IF Frequency Range	-	0	-	4	GHz
Input IP3	-	-	21	-	dBm
Input P1dB	-	-	11	-	dBm
RF Frequency Range	-	6	-	16	GHz

Parameter	Test Conditions	Min	Typ	Max	Unit
Conversion Loss	LO/RF=6-16 GHz IF=2-4 GHz	-	6.5	8	dB
Conversion Loss	LO/RF=6-16 GHz IF=DC-2 GHz	-	5.5	7	dB
Input IP3	LO/RF=6-16 GHz LO drive level, H Diode Option=16-19 dBm	-	21	-	dBm
Input P1dB	LO/RF=6-16 GHz LO drive level, H Diode Option=16-19 dBm	-	11	-	dBm
LO-RF Isolation	LO/RF=6-16 GHz	25	35	-	dB
RF-IF Isolation	LO/RF=6-16 GHz	-	25	-	dB
RF-IF Isolation	LO/RF=6-16 GHz	-	30	-	dB
IF Frequency Range	-	0	-	4	GHz
Input IP3	-	-	21	-	dBm
Input P1dB	-	-	11	-	dBm
RF Frequency Range	-	6	-	16	GHz

Mechanical Data

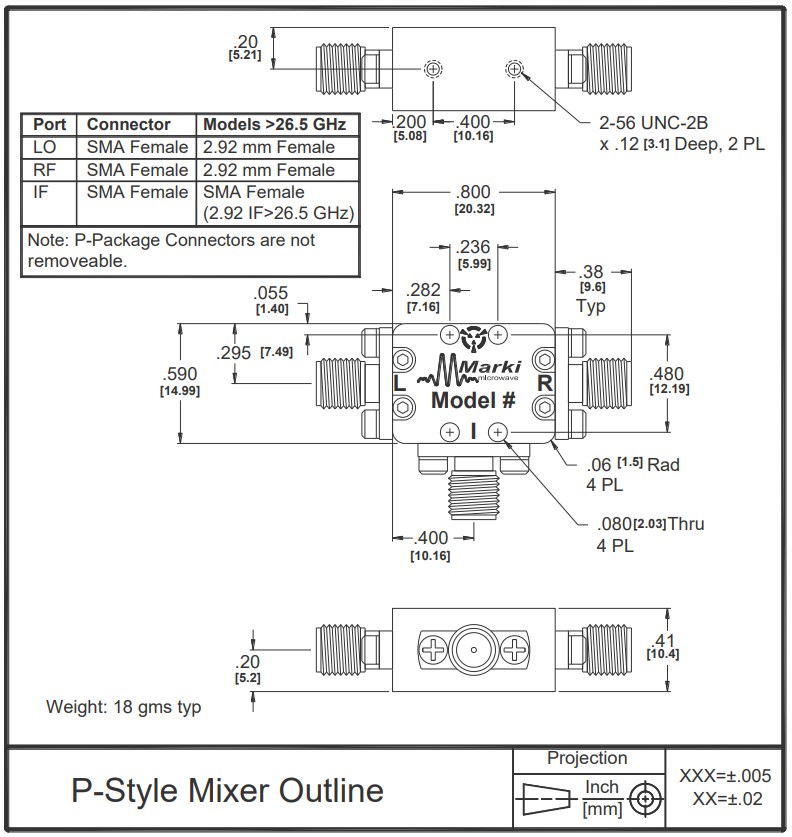

Outline Drawing

Download : Outline 3D Drawing Outline 3D STP

M1-0616HP
