Device Overview

General Description

M1 double balanced mixers are hybrid assemblies that have been hand-tuned to feature low conversion loss and high isolations and a DC IF response. M1 mixers have generally been replaced with MM1 mixers with superior performance, repeatability, and availability. M1 mixers are still used in legacy systems and are suitable for laboratory use.

Photo of M1-0310MP

Features

  • LO/RF 3.0 to 10.0 GHz
  • IF DC to 3.0 GHz
  • 6.0 dB Typical Conversion Loss
  • 50 dB Typical LO to RF Isolation
  • Carrier and Surface Mount Outlines
  • Multi-Octave Band RF and LO

Applications

N/A

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageConnectorsGreen StatusProduct LifecycleExport ClassificationRecommended Replacement
M1-0310MPHigh Isolation Double-Balanced MixersPStandard

Non-RoHS

End of LifeEAR99MM1-0312HSMM1-0212HS
M1-0310HPHigh Isolation Double-Balanced MixersPStandardConsult FactoryEnd of LifeEAR99MM1-0312HS
M1-0310LPHigh Isolation Double-Balanced MixersPStandardConsult FactoryNot Recommended for New DesignEAR99MM1-0312HSMM1-0212LS

Table Of Contents

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

2

Port Configuration and Functions

Port Functions

PortFunctionConnector TypeDescriptionDC Equivalent
Circuit
Port 1LO SMAFPort 1 is DC short for the P package.Equivalent circuit for the LO
Port 2IF SMAFPort 2 is diode connected for the P Package.Equivalent circuit for the IF
Port 3RF SMAFPort 3 is DC short for the P Package.Equivalent circuit for the RF

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

3

Specifications

Package Information

ParameterDetailsRating
WeightPackage name: P18g
Dimensions-20.32 x 14.99 mm
ParameterMinNominalMaxUnit
LO Input Power 10-13-

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

4

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.

ParameterTest ConditionsMinTypMaxUnit
Conversion Loss LO/RF=3-10 GHz
IF=1-3 GHz
-6.59.5dB
Conversion Loss LO/RF=3-10 GHz
IF=DC-1 GHz
-69dB
Input IP3 LO/RF=3-10 GHz
LO drive level, M Diode Option=10-13 dBm
-15-dBm
Input P1dB LO/RF=3-10 GHz
LO drive level, M Diode Option=10-13 dBm
-5-dBm
LO-IF Isolation 1LO/RF=3-10 GHz
-40-dB
LO-RF Isolation 2LO/RF=3-10 GHz
-40-dB
RF-IF Isolation 3LO/RF=3-10 GHz
-25-dB
IF Frequency Range -0-10GHz
Input IP3 --15-dBm
Input P1dB --5-dBm
RF Frequency Range -3-12GHz

[1][2][3] High 2nd/3rd LO Harmonics can mix to produce a higher intermodulation output than the actual isolation output.

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

5

Mechanical Data

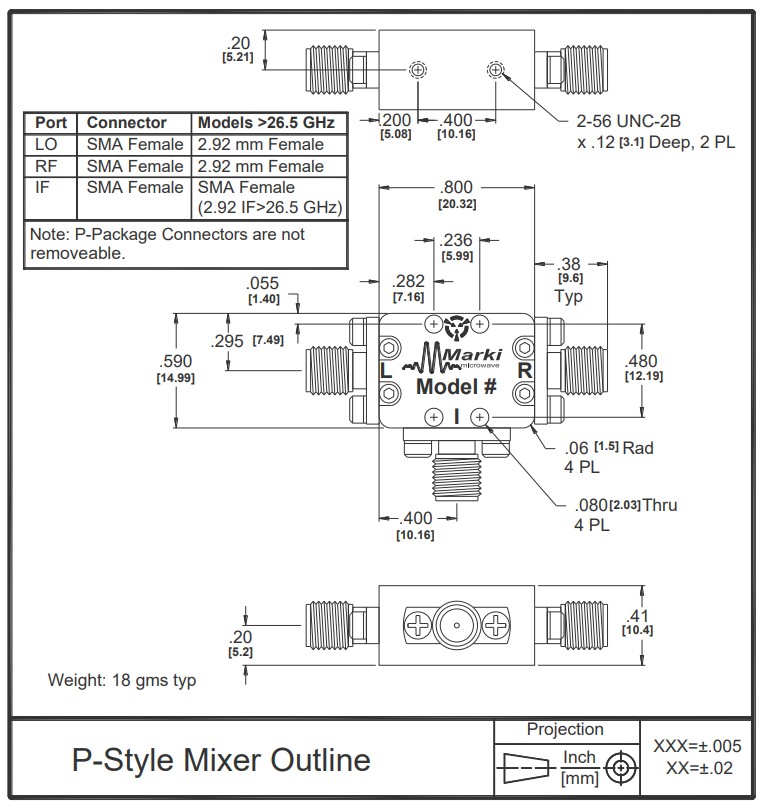

Outline Drawing
