END OF LIFE

Device Overview

General Description

M1 double balanced mixers are hybrid assemblies that have been hand-tuned to feature low conversion loss and high isolations and a DC IF response. M1 mixers have generally been replaced with MM1 mixers with superior performance, repeatability, and availability. M1 mixers are still used in legacy systems and are suitable for laboratory use.

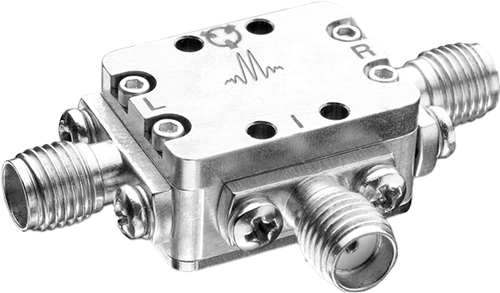

Photo of M1-0212MP

Features

  • LO/RF 2.0 to 12.0 GHz
  • IF DC to 2.0 GHz
  • 6.0 dB Typical Conversion Loss
  • 35 dB Typical LO to RF Isolation
  • Ultra-Broadband LO and RF

Applications

N/A

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageConnectorsGreen StatusProduct LifecycleExport ClassificationRecommended Replacement
M1-0212HPDouble-Balanced MixersPStandardConsult FactoryEnd of LifeEAR99MM1-0212HS
M1-0212LPDouble-Balanced MixersPStandard

Non-RoHS

Not Recommended for New DesignEAR99MM1-0212LS
M1-0212MPDouble-Balanced MixersPStandardConsult FactoryEnd of LifeEAR99MM1-0212LS

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2006-01-01Initial Release
A2020-09-01Electrical Specifications - LO to RF Isolation Min Updated

Rev: A | Copyright © 2006, 2020 Marki Microwave LLC.

2

Port Configuration and Functions

Port Functions

PortFunctionConnector TypeDescriptionDC Equivalent
Circuit
Port 1LO SMAFPort 1 is DC short for the P package.Equivalent circuit for the LO
Port 2IF SMAFPort 2 is diode connected for the P Package.Equivalent circuit for the IF
Port 3RF SMAFPort 3 is DC short for the P Package.Equivalent circuit for the RF

Rev: A | Copyright © 2006, 2020 Marki Microwave LLC.

3

Specifications

Package Information

ParameterDetailsRating
WeightPackage name: P18g
Dimensions-20.32 x 14.99 mm
ParameterMinNominalMaxUnit
LO Input Power 10-13-

Rev: A | Copyright © 2006, 2020 Marki Microwave LLC.

4

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.

ParameterTest ConditionsMinTypMaxUnit
Conversion Loss LO/RF=2-12 GHz
IF=1-2 GHz
-78.5dB
Conversion Loss LO/RF=2-12 GHz
IF=DC-1 GHz
-67.5dB
Input IP3 LO/RF=2-12 GHz
LO drive level, M Diode Option=10-13 dBm
-15-dBm
Input P1dB LO/RF=2-12 GHz
LO drive level, M Diode Option=10-13 dBm
-5-dBm
IF Frequency Range -0-2GHz
Input IP3 --15-dBm
Input P1dB --5-dBm
LO-RF Isolation --35-dB
RF Frequency Range -2-12GHz

Rev: A | Copyright © 2006, 2020 Marki Microwave LLC.

5

Typical Performance Plots

Conversion Loss (dB) graph for M1-0212MP
Relative IF Response (dB) graph for M1-0212MP
LO to RF Isolation (dB) graph for M1-0212MP
LO to IF Isolation (dB) graph for M1-0212MP
RF to IF Isolation (dB) graph for M1-0212MP
IF VSWR graph for M1-0212MP
RF VSWR graph for M1-0212MP
LO VSWR graph for M1-0212MP

Rev: A | Copyright © 2006, 2020 Marki Microwave LLC.

6

Mechanical Data

Outline Drawing

Download : Outline 3D Drawing Outline 3D STP

Outline Drawing

Rev: A | Copyright © 2006, 2020 Marki Microwave LLC.

7
