MMIQ-30120HM_GaAs MMIC mmWave Differential IF IQ Mixer

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MMIQ-30120HM	GaAs MMIC mmWave Differential IF IQ Mixer	M	Standard	REACH RoHS	Released	EAR99

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MMIQ-30120HM	GaAs MMIC mmWave Differential IF IQ Mixer	M	Standard	REACH RoHS	Released	EAR99

Revision History

Revision Code	Revision Date	Comment
-	2023-01-01	Datasheet Pre-Release

Port Configuration and Functions

Port Diagram

The mixer may be operated as either a downconverter or an upconverter. Use of the RF or I/Q as the input or output port will depend on the application.

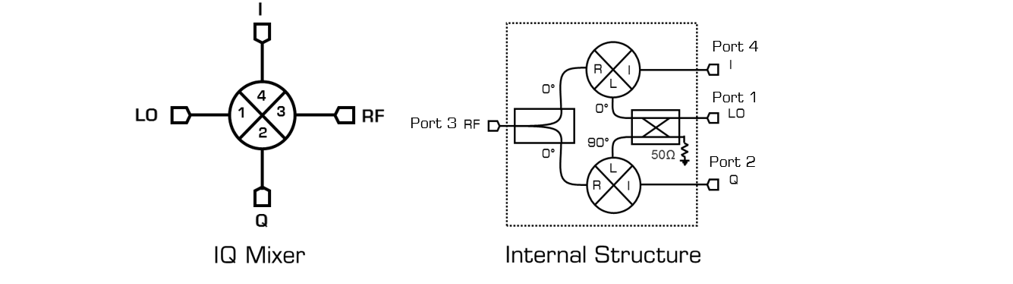

Diagram of the port configuration for MMIQ-30120HM

Port Functions

Port	Function	Connector Type	Description
GND	Ground	-	M package ground taken through metal housing.
Port 1 / RF	RF Input / Output	1.0F	Port 1 is DC open for the CH and M packages.
Port 2 / Q2	Q- Input/Output	1.85F	Port 2 is DC open for the CH and M packages.
Port 3 / Q1	Q+ Input/Output	1.85F	Port 3 is DC open for the CH and M packages.
Port 4 / LO	LO Input/Output	1.0F	Port 4 is DC open for the CH and M packages
Port 5 / I1	I+ Input/Output	1.85F	Port 5 is DC open for the CH and M packages
Port 6 / I2	I- Input/Output	1.85F	Port 6 is DC open for the CH and M packages.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
Power Handling, at any Port	25	dBm

Package Information

Parameter	Details	Rating
ESD	250 to < 500 Volts	HBM Class 1A
Weight	Package name: M	47g

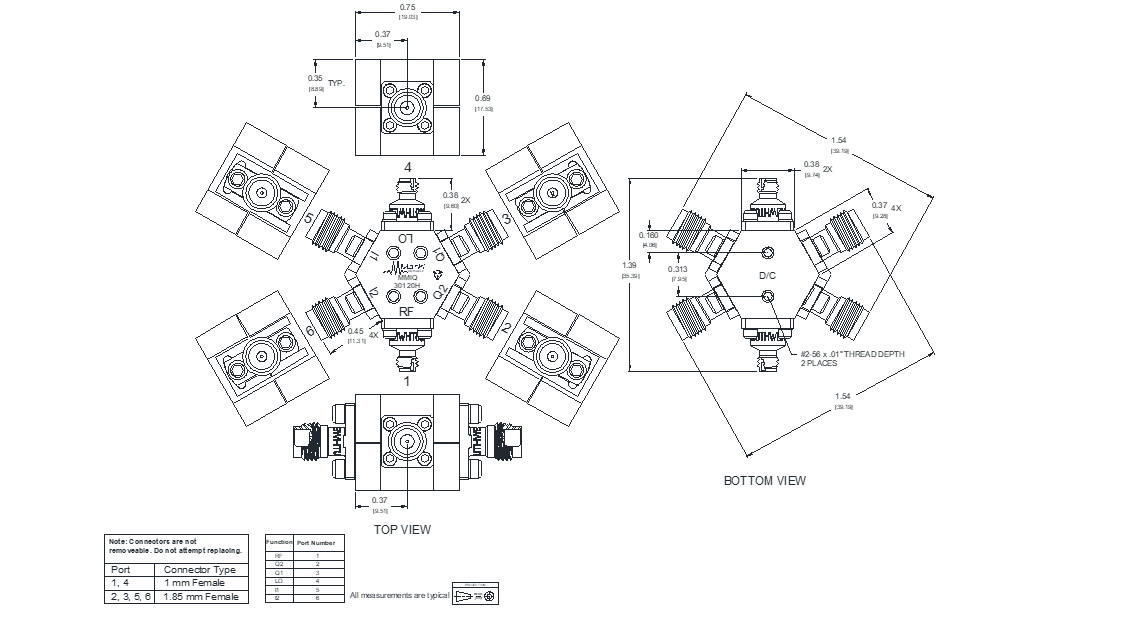

Dimensions	-	19.03 x 17.53 mm

Recommended Operating Conditions

The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications. Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.

Parameter	Min	Nominal	Max	Unit
Ambient Temperature	-55	25	100	°C
LO Input Power	14	17	21	dBm

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for a down conversion application with a sine wave LO input. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C. All bare die are 100% DC tested and visually inspected.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
IF Frequency Range	-	-	-	0	-	30	GHz
Image Rejection ¹	RF/LO = 30 - 120 GHz I+Q = 0.1 GHz	30	120	-	27	-	dBc
Image Reject/Single Sideband Conversion Loss	RF/LO = 30 – 120 GHz I+Q = 0.1 GHz	30	120	-	8.5	-	dB
I/Q Amplitude Balance	RF/LO = 30 - 120 GHz I+Q = 0.1 GHz	30	120	-	1.9	-	dB
LO Frequency Range	-	-	-	30	-	120	GHz
LO-RF Isolation	RF/LO = 30 – 120 GHz	30	120	-	40	-	dB
Phase Balance	RF/LO = 30 - 120 GHz I+Q = 0.1 GHz	30	120	-	2.7	-	°
RF Frequency Range	-	-	-	30	-	120	GHz

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
IF Frequency Range	-	-	-	0	-	30	GHz
Image Rejection ¹	RF/LO = 30 - 120 GHz I+Q = 0.1 GHz	30	120	-	27	-	dBc
Image Reject/Single Sideband Conversion Loss	RF/LO = 30 – 120 GHz I+Q = 0.1 GHz	30	120	-	8.5	-	dB
I/Q Amplitude Balance	RF/LO = 30 - 120 GHz I+Q = 0.1 GHz	30	120	-	1.9	-	dB
LO Frequency Range	-	-	-	30	-	120	GHz
LO-RF Isolation	RF/LO = 30 – 120 GHz	30	120	-	40	-	dB
Phase Balance	RF/LO = 30 - 120 GHz I+Q = 0.1 GHz	30	120	-	2.7	-	°
RF Frequency Range	-	-	-	30	-	120	GHz

^[1] Image Rejection and Single sideband performance plots are defined by the upper sideband (USB) or lower sideband (LSB) with respect to the LO signal. Plots are defined by which sideband is selected by the external IF quadrature hybrid.

LO power used for characterization varies by band. Saturated amplifiers used were A-3567 and a mmWave LO Driver amplifier

Typical Performance Plots

Unless stated otherwise, all measurements were conducted with a single I1/I2 and a single Q1/Q2. Differential IFs were not recombined through a balun.
