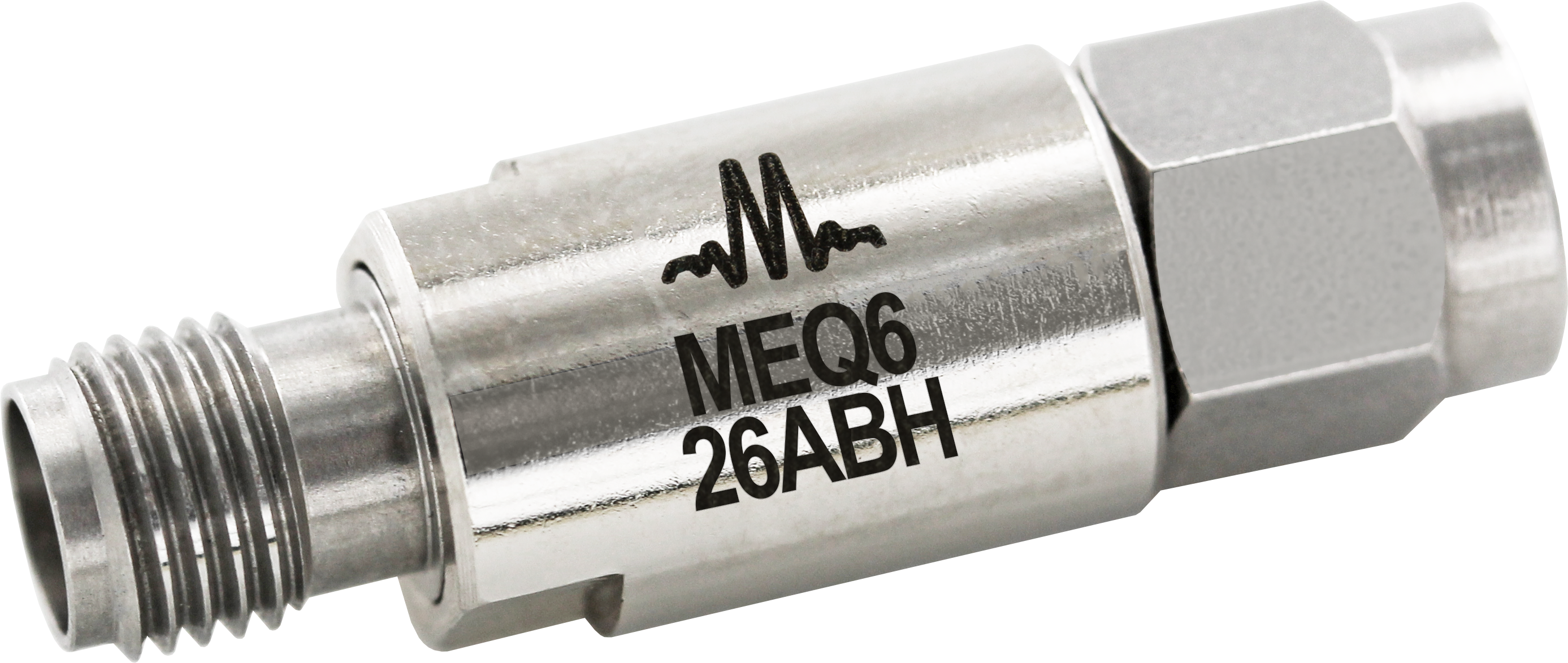

MEQ6-26ABH_Passive GaAs MMIC 6 dB DC to 26.5 GHz Equalizer

Device Overview

General Description

The MEQ6-26ABH passive MMIC equalizer is an ideal solution for compensating for low pass filtering effects in RF/microwave and high speed digital systems. This equalizer provides positive slope from DC to 26.5 GHz with a DC attenuation value of 6 dB and a 50-ohm match maintained over the entire operating range. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low cost form factor. The MEQ6-26ABH is available in a SMA connectorized housing. For wire-bondable die, refer to MEQ6-30ACH.

Download s-parameters here

Features

DC Attenuation, 6 dB Typical
Insertion Loss at 26.5 GHz, 0.9 dB Typical
Return Loss, 26 dB Typical
Bidirectional

Applications

RF Transceivers
High-Speed Data
Telecom
Cable Loss Compensation
Amplifier Compensation

Functional Block Diagram

Part Ordering Options

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MEQ6-26ABH	Passive GaAs MMIC 6 dB DC to 26.5 GHz Equalizer	BH	Standard	REACH RoHS	Released	EAR99

Part Number

Description

Package

Connectors

Green Status

Product Lifecycle

Export Classification

MEQ6-26ABH

Passive GaAs MMIC 6 dB DC to 26.5 GHz Equalizer

Standard

REACH

RoHS

Released

EAR99

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MEQ6-26ABH	Passive GaAs MMIC 6 dB DC to 26.5 GHz Equalizer	BH	Standard	REACH RoHS	Released	EAR99

Device Overview
Port Configuration and Functions
- Port Diagram
- Port Functions
Revision History
Specifications
Mechanical Data

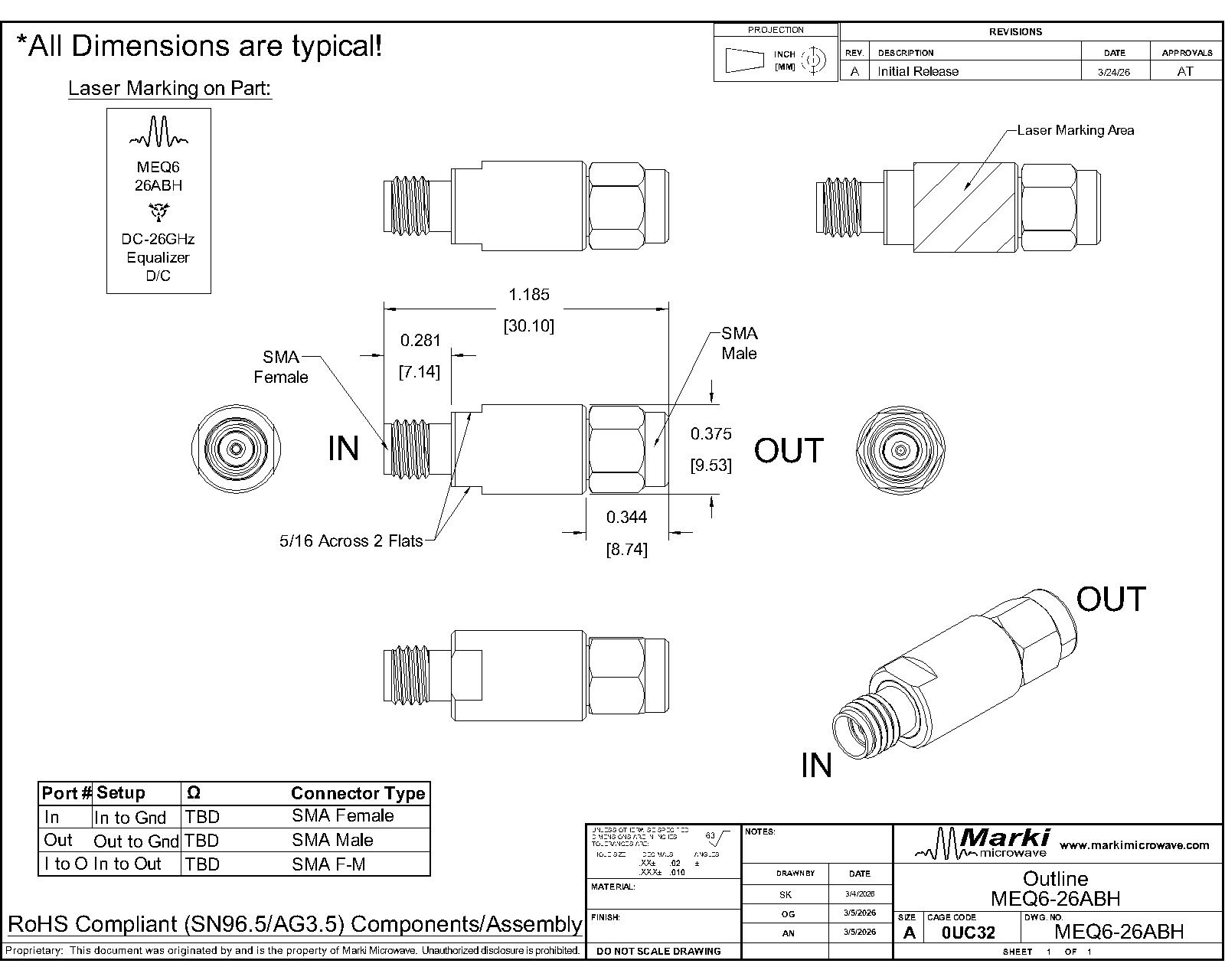

- Outline Drawing

Revision History

Revision Code	Revision Date	Comment
-	2026-06-04	Initial Release

Port Configuration and Functions

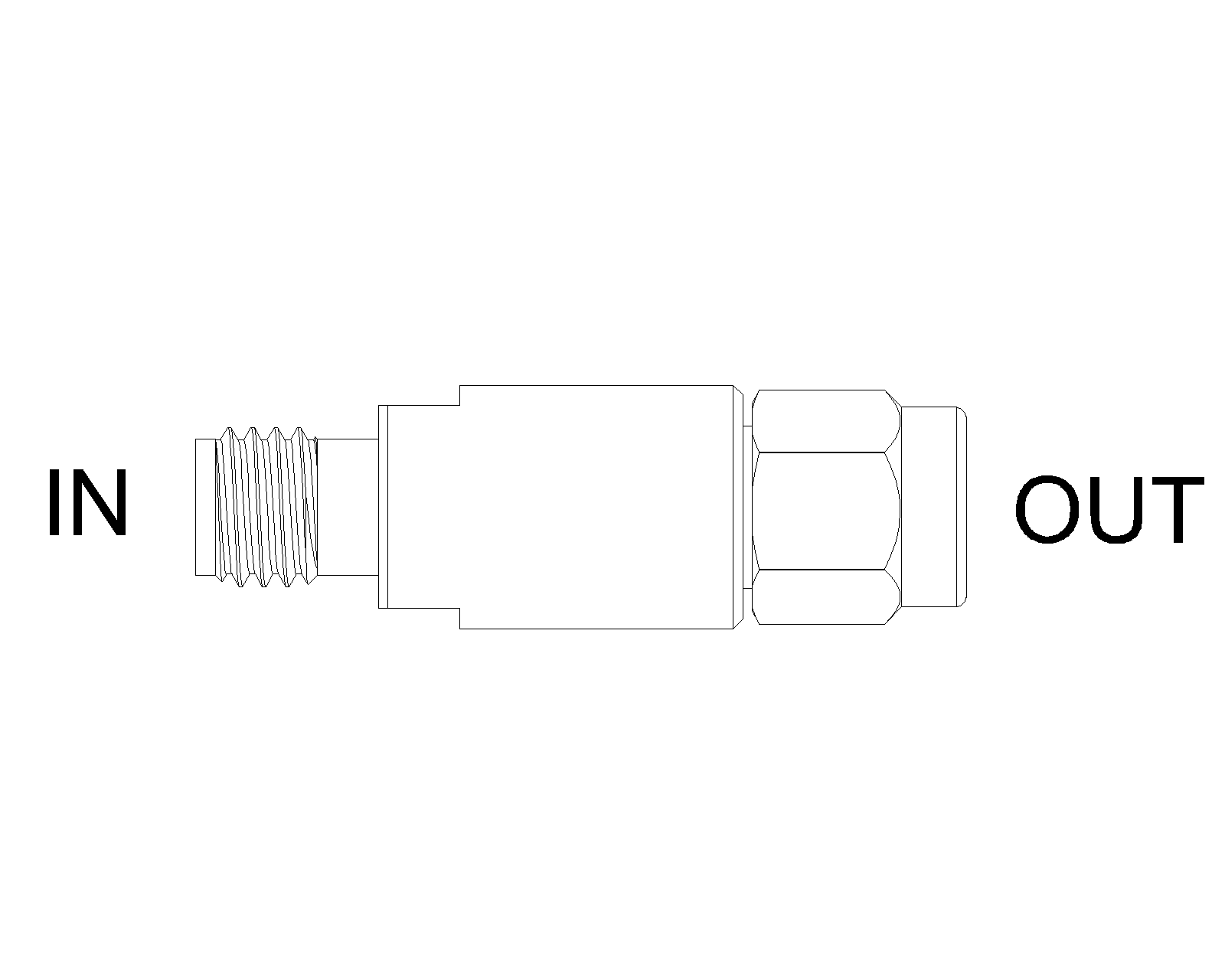

Port Diagram

A top-down view of the MEQ6-26ABH package outline drawing is shown below.

Diagram of the port configuration for MEQ6-26ABH

Port Functions

Port	Function	Connector Type	Description
GND	Ground	-	BH package ground is provided through metal housing and outer coax conductor.
Port 1	Input/Output	SMAF	Port 1 is DC connected to ground through a resistor. DC block is required if voltage present.
Port 2	Input/Output	SMAM	Port 2 is DC connected to ground through a resistor. DC block is required if voltage present.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
Port 1 DC Current	35	mA
Port 2 DC Current	35	mA
Power Handling, at any Port	30	dBm

Package Information

Parameter	Details	Rating
ESD	250 to < 500 Volts	HBM Class 1A
Weight	Package name: BH	9.2g
Dimensions	-	30.1 x 9.5 mm

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the equalizer in a BH package with a sine wave input applied to port 1. Min and Max limits are guaranteed at TA=+25°C.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit

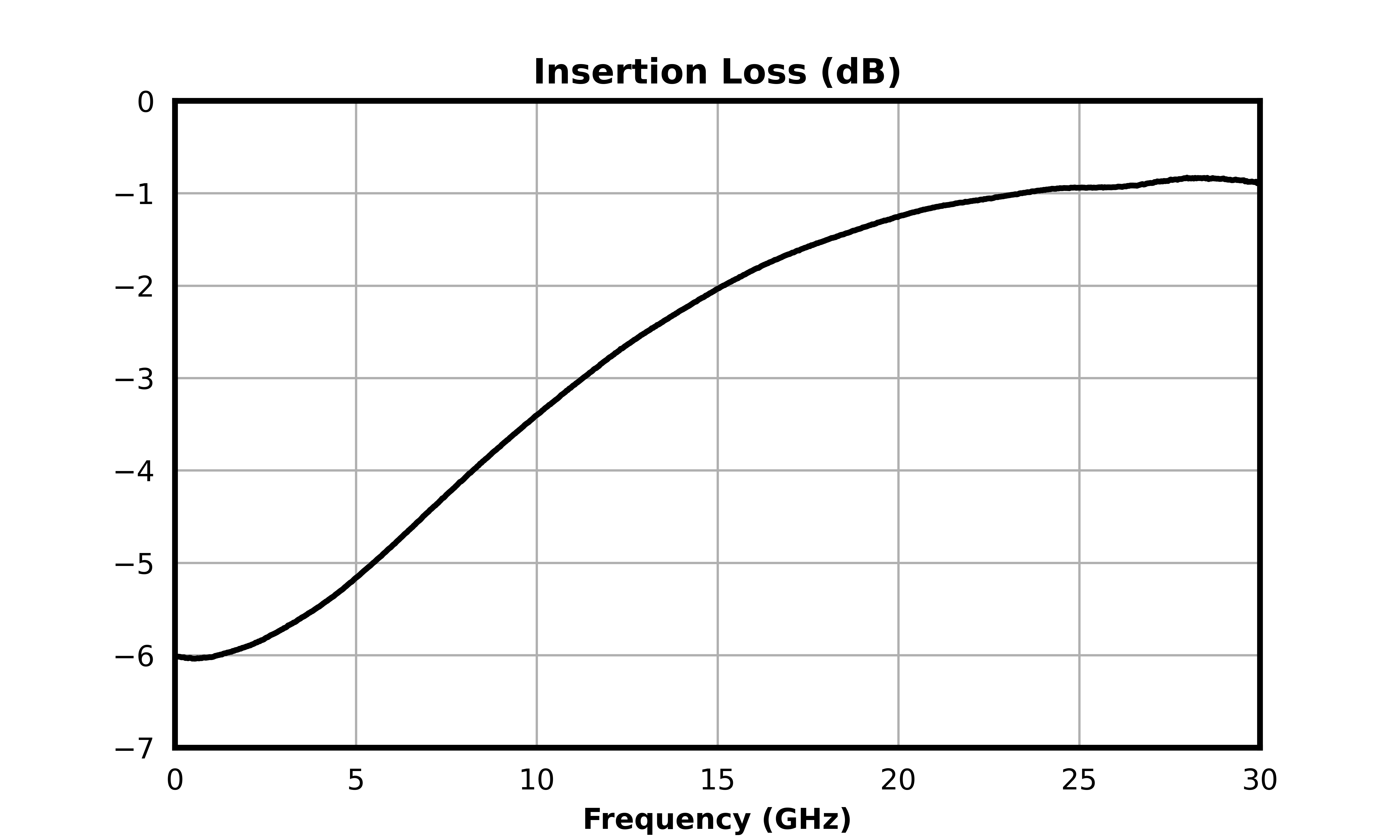

Insertion Loss at DC	Temp = 25°C	0	0	-	6.0	-	dB
Insertion Loss	Temp = 25°C	13.25	13.25	-	2.5	-	dB
Insertion Loss	Temp = 25°C	26.5	26.5	-	0.9	-	dB
Equalization Value	Temp = 25°C	0	26.5	-	5.1	-	dB

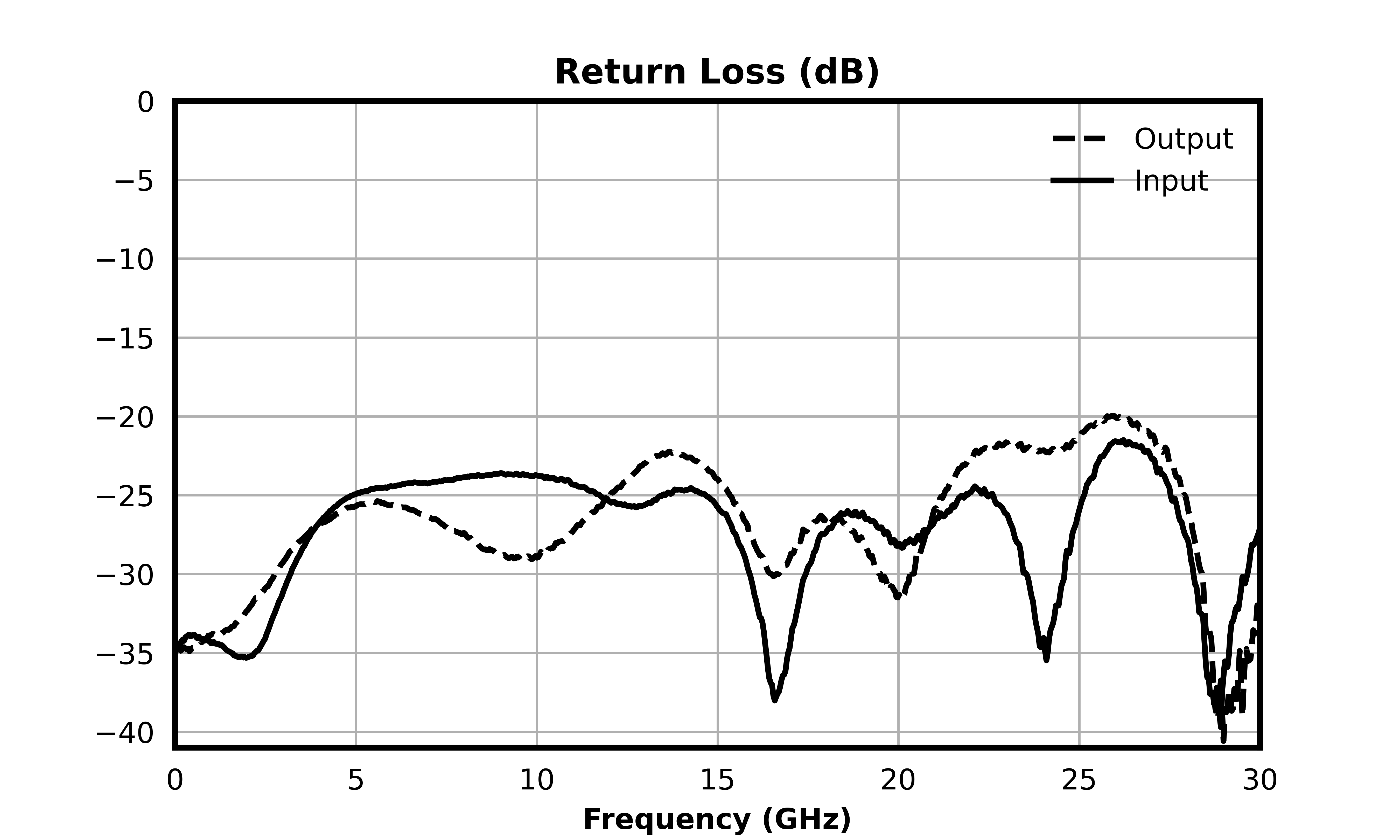

Return Loss	Temp = 25°C	0	26.5	-	26	-	dB
Group Delay	Temp = 25°C	0	26.5	-	120	-	ps

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Insertion Loss at DC	Temp = 25°C	0	0	-	6.0	-	dB
Insertion Loss	Temp = 25°C	13.25	13.25	-	2.5	-	dB
Insertion Loss	Temp = 25°C	26.5	26.5	-	0.9	-	dB
Equalization Value	Temp = 25°C	0	26.5	-	5.1	-	dB
Return Loss	Temp = 25°C	0	26.5	-	26	-	dB
Group Delay	Temp = 25°C	0	26.5	-	120	-	ps
