PT-0030A
RESISTIVE PICK-OFF TEE
The PT-0030A is a DC to 30 GHz pick off tee. A pick off tee is a resistive circuit that provides non-directional coupling of microwave signals. In an extremely well-matched system, the PT-0030A can provide extremely broadband signal monitoring in a very small package. Due to reflections, a directional coupler is typically preferred over a pick off tee for most applications.
| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 0 to 30 | GHz |
| Pick-Off Loss | 16 | dB |
| Insertion Loss | 2 | dB |
| RF Power Handling | 1 | W |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Frequency Range | - | 0 | 30 | - | - | - | GHz |
| Average Power Handling | DC to 30.0 GHz | - | - | - | - | 1 | W |
| Insertion Loss | DC to 30.0 GHz | - | - | - | 2 | 3 | dB |
| Pick-Off Loss | DC to 30.0 GHz | - | - | - | 16 | - | dB |
| Pick-Off Return Loss | DC to 30.0 GHz | - | - | - | 5 | - | dB |
| Through Line Return Loss | DC to 30.0 GHz | - | - | - | 15 | - | dB |
| Parameter | Maximum Rating | Unit |
|---|---|---|
| RF Power Handling | 1 | W |
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 13.0 × 7.87 mm |

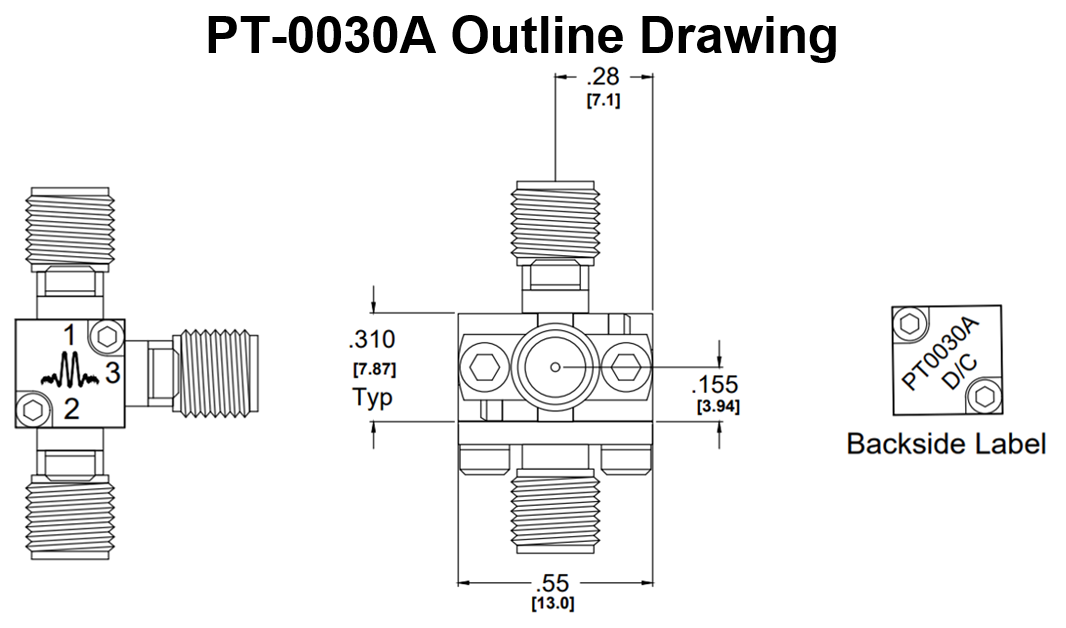

Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP
