PT-0030_RESISTIVE PICK-OFF TEE

Device Overview

General Description

The PT-0030 is a DC to 30 GHz pick off tee. A pick off tee is a resistive circuit that provides non-directional coupling of microwave signals. In an extremely well-matched system, the PT-0030 can provide extremely broadband signal monitoring in a very small package. Due to reflections, a directional coupler is typically preferred over a pick off tee for most applications.

Features

Broadband (DC – 30 GHz)
Flat 16 dB pick-off loss
Excellent pick-off flatness near DC
Small package size

Applications

N/A

Functional Block Diagram

Part Ordering Options

Part Number	Description	Connectors	Green Status	Product Lifecycle	Export Classification
PT-0030	RESISTIVE PICK-OFF TEE	Standard	Non-RoHS	Released	EAR99
PT-0030A	RESISTIVE PICK-OFF TEE	Standard	Non-RoHS	Released	EAR99

Device Overview
Specifications
Mechanical Data

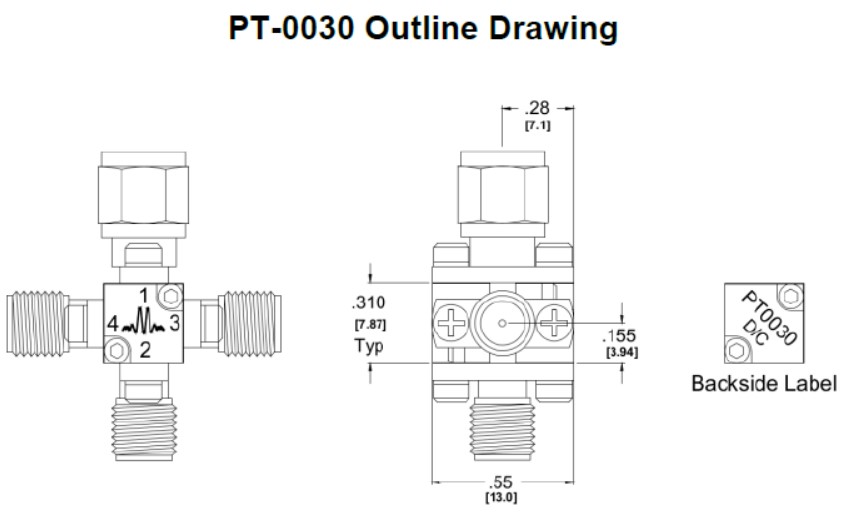

- Outline Drawing

Specifications

Absolute Maximum Ratings

Parameter	Maximum Rating	Unit
RF Power Handling	1	W

Package Information

Parameter	Details	Rating
Dimensions	-	13.0 × 7.87 mm

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Average Power Handling	DC to 30.0 GHz	-	-	-	-	1	W
Insertion Loss	DC to 30.0 GHz	-	-	-	2	3	dB
Pick-Off Loss	DC to 30.0 GHz	-	-	-	16	-	dB
Pick-Off Return Loss	DC to 30.0 GHz	-	-	-	5	-	dB
Through Line Return Loss	DC to 30.0 GHz	-	-	-	15	-	dB

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Average Power Handling	DC to 30.0 GHz	-	-	-	-	1	W
Insertion Loss	DC to 30.0 GHz	-	-	-	2	3	dB
Pick-Off Loss	DC to 30.0 GHz	-	-	-	16	-	dB
Pick-Off Return Loss	DC to 30.0 GHz	-	-	-	5	-	dB
Through Line Return Loss	DC to 30.0 GHz	-	-	-	15	-	dB
