CE13-0240T
Elite 2-40 GHz Directional Coupler
The CE13-0240 is a next generation broadband 2GHz to 40GHz, 13dB directional coupler from the Marki Elite Series. Conductive paint is applied to all Elite Series products to reduce EMI/RFI leakage and susceptibility. The CE13-0240 offers the best directivity, return loss, and coupling accuracy available on the market. Available as both a three port directional coupler and a four port bidirectional coupler, the CE13-0240 is an exceptional choice for broadband return loss measurements, power leveling, and signal monitoring applications. Sophisticated neural network design techniques combined with deep circuit knowledge and triplate stripline construction allow the Marki Elite Series of Couplers to provide superior performance to all other directional couplers available.
| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 2 to 40 | GHz |
| Mean Coupling | 13 | dB |
| IL Corrected Directivity | 27 | dB |
| RF Power Handling | 20 | W |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
The electrical specifications apply at TA=+25°C in a 50Ω system
| Parameter | Port Configuration | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|---|
| Frequency Range | - | - | 2 | 40 | - | - | - | GHz |
| Amplitude Flatness 1 | - | - | 2 | 40 | - | 0.15 | 0.4 | dB |
| Coupling Loss 2 | - | - | 2 | 40 | 0.2 | 0.22 | 0.25 | dB |
| Directivity | - | - | 2 | 40 | 16 | 26 | - | dB |
| Direct Line Insertion Loss | - | DC-40 | - | - | - | 0.75 | 1.45 | dB |
| Excess Insertion Loss (dB) 3 | - | DC-40 | - | - | - | 0.5 | 1.2 | dB |
| IL Corrected Directivity 4 | - | - | 2 | 40 | 17 | 27 | - | dB |
| Impedance | - | - | - | - | - | 50 | - | Ω |
| Maximum Coupling Deviation | - | - | 2 | 40 | - | 0.5 | 1 | dB |
| Mean Coupling | - | - | 2 | 40 | 12.5 | 13 | 13.5 | dB |
| Return Loss | - | DC-40 | - | - | 18 | 28 | - | dB |
| VSWR | - | DC-40 | - | - | - | 1.08 | 1.29 | - |
[1] Amplitude Flatness = Median value of ABS(Measured Coupling Power – Average Coupling Factor).
[2] Coupling loss based on average coupling factor.
[3] Excess Insertion Loss = (Input Port to Output Port Insertion Loss) – Coupling Loss.
[4] IL Corrected Directivity = Directivity + Insertion Loss.
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| RF Power Handling | 20 | W |
| Minimum Operating Temperature | -55 | °C |
| Maximum Operating Temperature | 100 | °C |
| Minimum Storage Temperature | -65 | °C |
| Maximum Storage Temperature | 125 | °C |
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 49.57 × 17.53 mm |

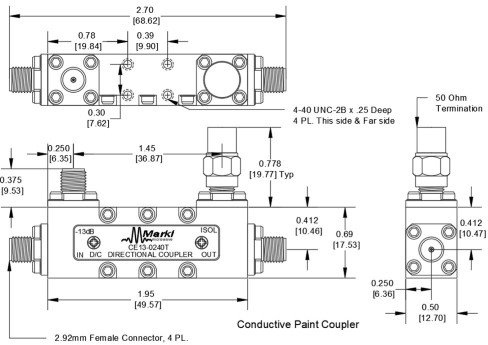

A side view of the CE13-0240 package outline drawing is shown below. The CE13-0240 has input and output ports given in Port Functions. The CE13-0240 can be used in either the forward or reverse direction corresponding to configuration A and B respectively. For configuration A, input signal into port 1, use port 3 for coupled port, and port 4 for output port. For configuration B, input signal into port 4, port 3 for isolated port, and port 1 for output port.
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | Input | 2.92F | The input port is DC short to the output port and open to the isolated and coupled ports. |  |
| Port 3 | Coupled | 2.92F | The coupled port is DC short to the isolated port and open to the input and output ports. | |
| Port 4 | Output | 2.92F | The output port is DC short to the input port and open to the isolated and coupled ports. | |
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | Output | 2.92F | The input port is DC short to the output port and open to the isolated and coupled ports. | |
| Port 3 | Isolated | 2.92F | The coupled port is DC short to the isolated port and open to the input and output ports. | |
| Port 4 | Input | 2.92F | The output port is DC short to the input port and open to the isolated and coupled ports. | |
Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP
