Device Overview

General Description

The MMD-1030H is a passive double balanced MMIC doubler covering 10 to 30 GHz on the output. It features excellent conversion loss, superior isolations and harmonic suppressions across a broad bandwidth, in a highly miniaturized form factor. Accurate, nonlinear simulation models are available for Microwave Office® and ADS through the Marki Microwave PDK. The MMD-1030H is available as a wire bondable chip or a connectorized package. The MMD-1030H is a superior alternative to Marki Microwave carrier and packaged doublers.

Photo of MMD-1030HCH

Features

  • Compact Chip Style Package (0.054” x 0.046”x0.004”)
  • CAD Optimized for Superior Suppressions and Efficiency
  • Broadband Performance
  • Excellent Unit-to-Unit Repeatability
  • Fully nonlinear software models available with Marki PDK for Microwave Office® and ADS
  • RoHS Compliant

Applications

N/A

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageConnectorsGreen StatusProduct LifecycleExport Classification
MMD-1030HSGaAs MMIC DoublerSStandard

REACH

RoHS

ReleasedEAR99
MMD-1030HCHGaAs MMIC DoublerCH-

REACH

RoHS

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
A2019-02-01Die resized from 1.47 x 0.82 mm2 to 1.38 x 1.17 mm2. CH package tolerance added.

Rev: A | Copyright © 2019 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

Diagram of the port configuration for MMD-1030HCH

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
2F2F Output The output port is DC open and AC matched to 50 Ohms from 10 to 30 GHz. Blocking capacitor is optional.Equivalent circuit for the 2F Output
FF input The input port is DC open and AC matched to 50 Ohms from 5 to 15 GHz. Blocking capacitor is optional.Equivalent circuit for the F input

Rev: A | Copyright © 2019 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C
RF Power Handling, 100°C 20dBm
RF Power Handling, 25°C 25dBm

Package Information

ParameterDetailsRating
Dimensions-1.38 x 1.17 mm

Rev: A | Copyright © 2019 Marki Microwave LLC.

4

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50Ω system. All bare die are 100% DC tested and 100% visual inspected. RF testing is performed on a sample basis to verify conformance to datasheet guaranteed specifications. Consult factory for more information.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
Conversion Loss Second Harmonic Output
10 30-11.517dB
Input Frequency Range -- -5-15GHz
Input Power -- -101417dBm
Isolation, 1F -- --53-dB
Isolation, 3F -- --58-dB
Isolation, 4F -- --29-dB
Output Frequency Range -- -10-30GHz
Suppression, 1F -- --41-dBc
Suppression, 1F 1-- --41-dBc
Suppression, 3F -- --47-dBc
Suppression, 4F -- --22-dBc

[1] Suppression is relative to doubled output power. Isolation is defined as relative to the fundamental input power.

Suppression is relative to doubled output power. Isolation is defined as relative to the fundamental input power.

Rev: A | Copyright © 2019 Marki Microwave LLC.

5

Typical Performance

Harmonic Isolations Relative to 1F Input (dB) graph for MMD-1030HCH
2F Output Conversion Loss vs Input Power (dB) graph for MMD-1030HCH
2F Output Conversion Loss (dB) graph for MMD-1030HCH
1F Output Suppression (dBc) graph for MMD-1030HCH
3F Output Suppression (dBc) graph for MMD-1030HCH
4F Output Suppression (dBc) graph for MMD-1030HCH
Input Return Loss (dB) graph for MMD-1030HCH
Output Return Loss (dB) graph for MMD-1030HCH

Rev: A | Copyright © 2019 Marki Microwave LLC.

6

MMD-1030HS - Typical Performance Plots

Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.

Harmonic Isolation (dB) Relative to 1F Input graph for MMD-1030HS
2F Output Conversion Loss vs Input Power (dB) graph for MMD-1030HS
2F Output Conversion Loss (dB) graph for MMD-1030HS
1F Output Suppression (dBc) graph for MMD-1030HS
3F Output Suppression (dBc) graph for MMD-1030HS
4F Output Suppression (dBc) graph for MMD-1030HS
Input Return Loss (dB) graph for MMD-1030HS
Output Return Loss (dB) graph for MMD-1030HS

Rev: A | Copyright © 2019 Marki Microwave LLC.

7

Mechanical Data

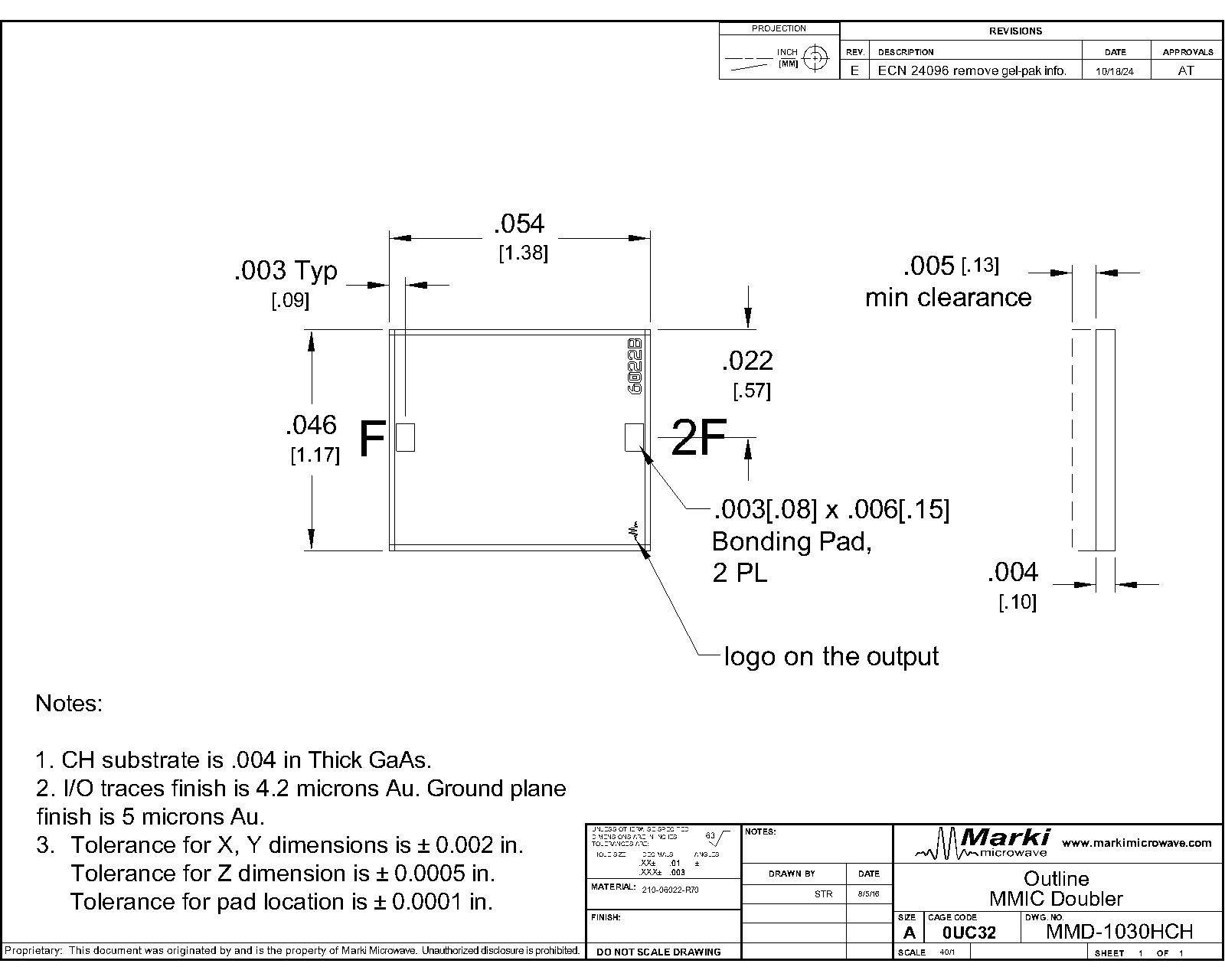

Outline Drawing

Download : Outline 2D Drawing

Outline Drawing

Rev: A | Copyright © 2019 Marki Microwave LLC.
