MT3L-0113H is a GaAs MMIC triple balanced mixer with high dynamic range and low conversion loss. This mixer belongs to the T3 family which offers high IP3, P1dB, and broad operating bandwidths for applications in the S, C and X bands. MT3L-0113H is the monolithic cousin of the MT3-0113HCQG and sister of the MT3H-0113HCH targeted towards lower IF applications in a small footprint. The MT3L-0113H is available as both wire bondable die and a connectorized module.
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MT3L-0113HS | GaAs MMIC High Dynamic Range Mixer | S | Standard | REACH RoHS | Released | EAR99 |
| MT3L-0113HCH-2 | GaAs MMIC High Dynamic Range Mixer | CH | - | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MT3L-0113HS | GaAs MMIC High Dynamic Range Mixer | S | Standard | REACH RoHS | Released | EAR99 |
| MT3L-0113HCH-2 | GaAs MMIC High Dynamic Range Mixer | CH | - | REACH RoHS | Released | EAR99 |
MT3L-0113HCH-2
GaAs MMIC High Dynamic Range Mixer
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2019-01-01 | Datasheet Initial Release |
MT3L-0113HCH-2
GaAs MMIC High Dynamic Range Mixer

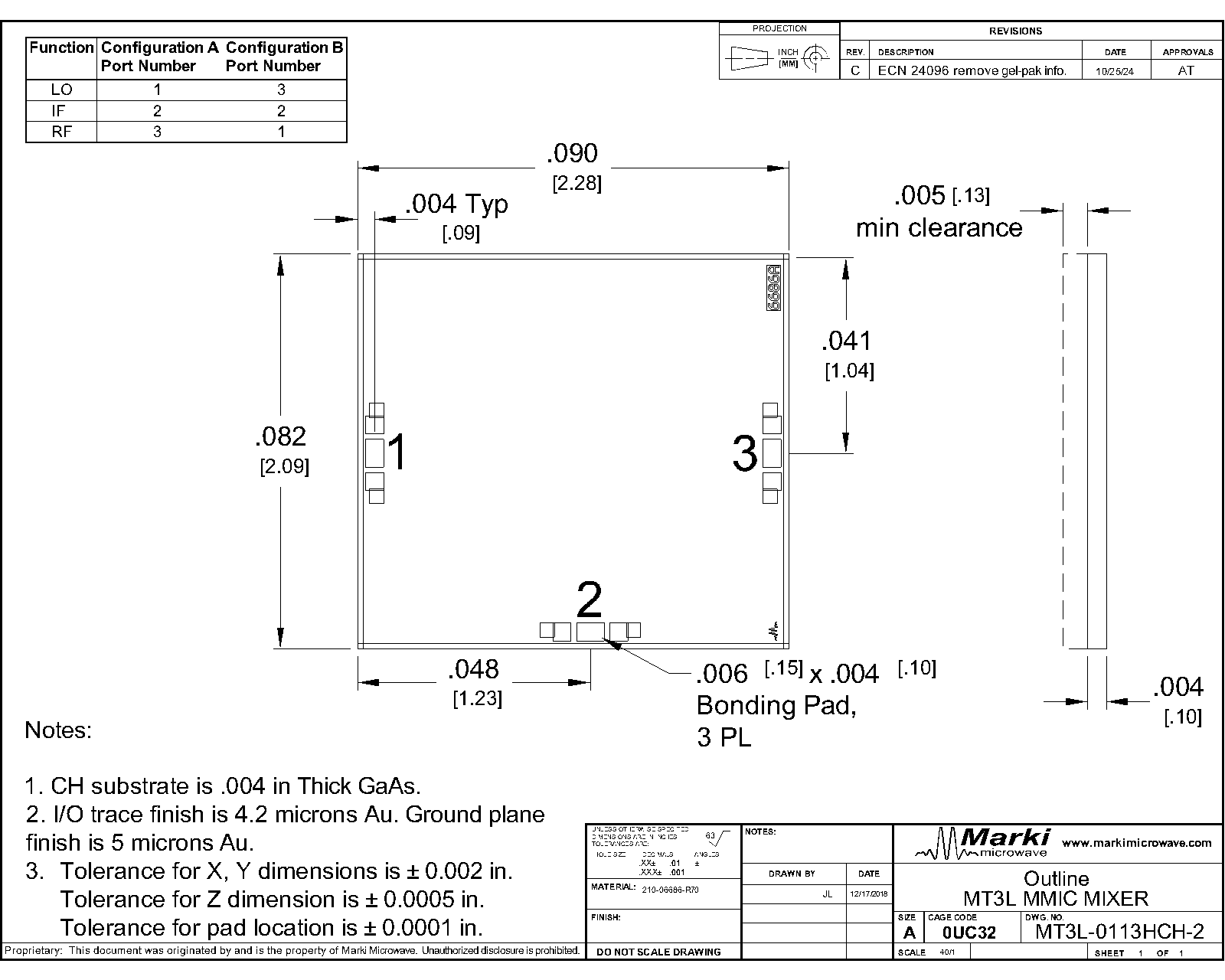

A top-down view of the MT3L-0113H’s CH package outline drawing is shown below. The MT3L-0113H has the input and output ports given in Port Functions. The MT3L-0113H can be used in either an up or down conversion. For configuration A, input the LO into port 1, use port 3 for the RF, and port 2 for the IF. For configuration B, input the LO into port 3, use port 1 for the RF, and port 2 for the IF.
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | CH package ground path is provided through the substrate and ground bond pads. |  |
| Port 1 | LO | Port 1 is DC short for the CH and S packages. |  |
| Port 2 | IF | Port 2 is DC open for the CH and S package. |  |
| Port 3 | RF | Port 3 is DC short for the CH and S packages. | |
MT3L-0113HCH-2
GaAs MMIC High Dynamic Range Mixer
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | CH package ground path is provided through the substrate and ground bond pads. | |
| Port 1 | RF | Port 1 is DC short for the CH and S packages. | |
| Port 2 | IF | Port 2 is DC open for the CH and S package. | |
| Port 3 | LO | Port 3 is DC short for the CH and S packages. | |
MT3L-0113HCH-2
GaAs MMIC High Dynamic Range Mixer
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Port 1 DC Current | 150 | mA |
| Port 2 DC Current | 150 | mA |
| Power Handling, at any Port | 33 | dBm |
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 2.28x2.09mm |
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ambient Temperature | -55 | 25 | 100 | °C |
| LO Input Power | 15 | - | 25 | dBm |
MT3L-0113HCH-2
GaAs MMIC High Dynamic Range Mixer
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the connectorized S package mixer used with a +20 dBm sine wave LO. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C. All bare die are 100% DC tested and visually inspected.
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss 1 | A | RF/LO = 1.5 - 13 GHz I = 0.25- 0.75 GHz | - | 10.5 | - | dB |
| Conversion Loss 2 | A | RF/LO = 1.5 - 13 GHz I = 0.75- 5 GHz | - | 9.5 | - | dB |
| Conversion Loss 3 | A | RF/LO = 1.5 - 13 GHz I = 0.75 GHz | - | 8.5 | 11.5 | dB |
| Input IP3 | A | RF/LO = 1.5 - 13 GHz I = 0.75 GHz | - | 31 | - | dBm |
| Input P1dB 4 | A | - | - | 20 | - | dBm |
| Conversion Loss 5 | B | RF/LO = 1.5 - 13 GHz I = 0.25- 0.75 GHz | - | 11 | - | dB |
| Conversion Loss 6 | B | RF/LO = 1.5 - 13 GHz I = 0.75- 5 GHz | - | 11 | - | dB |
| Conversion Loss 7 | B | RF/LO = 1.5 - 13 GHz I = 0.75 GHz | - | 10 | 13 | dB |
| Input IP3 8 | B | RF/LO = 1.5 - 13 GHz I = 0.75 GHz | - | 31 | - | dBm |
| Input P1dB 9 | B | - | - | 20 | - | dBm |
| IF Frequency Range | - | - | 0.25 | - | 5 | GHz |
| LO Frequency Range | - | - | 1.5 | - | 13 | GHz |
| LO-IF Isolation | - | IF/LO = 1.5 - 13 GHz | - | 41 | - | dB |
| LO-RF Isolation | - | RF/LO = 1.5 - 13 GHz | - | 43 | - | dB |
| Noise Figure 10 | - | RF/LO = 1.5 - 13 GHz I = 0.75 GHz | - | 8.5 | - | dB |
| RF Frequency Range | - | - | 1.5 | - | 13 | GHz |
| RF-IF Isolation | - | RF/IF = 1.5 - 13 GHz | - | 39 | - | dB |
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss 1 | A | RF/LO = 1.5 - 13 GHz I = 0.25- 0.75 GHz | - | 10.5 | - | dB |
| Conversion Loss 2 | A | RF/LO = 1.5 - 13 GHz I = 0.75- 5 GHz | - | 9.5 | - | dB |
| Conversion Loss 3 | A | RF/LO = 1.5 - 13 GHz I = 0.75 GHz | - | 8.5 | 11.5 | dB |
| Input IP3 | A | RF/LO = 1.5 - 13 GHz I = 0.75 GHz | - | 31 | - | dBm |
| Input P1dB 4 | A | - | - | 20 | - | dBm |
| Conversion Loss 5 | B | RF/LO = 1.5 - 13 GHz I = 0.25- 0.75 GHz | - | 11 | - | dB |
| Conversion Loss 6 | B | RF/LO = 1.5 - 13 GHz I = 0.75- 5 GHz | - | 11 | - | dB |
| Conversion Loss 7 | B | RF/LO = 1.5 - 13 GHz I = 0.75 GHz | - | 10 | 13 | dB |
| Input IP3 8 | B | RF/LO = 1.5 - 13 GHz I = 0.75 GHz | - | 31 | - | dBm |
| Input P1dB 9 | B | - | - | 20 | - | dBm |
| IF Frequency Range | - | - | 0.25 | - | 5 | GHz |
| LO Frequency Range | - | - | 1.5 | - | 13 | GHz |
| LO-IF Isolation | - | IF/LO = 1.5 - 13 GHz | - | 41 | - | dB |
| LO-RF Isolation | - | RF/LO = 1.5 - 13 GHz | - | 43 | - | dB |
| Noise Figure 10 | - | RF/LO = 1.5 - 13 GHz I = 0.75 GHz | - | 8.5 | - | dB |
| RF Frequency Range | - | - | 1.5 | - | 13 | GHz |
| RF-IF Isolation | - | RF/IF = 1.5 - 13 GHz | - | 39 | - | dB |
[1][2][3][5][6][7] Measured as a down converter to a fixed 750 MHz IF. Unless otherwise stated, frequency conversion done using a highside LO.
[4][9] P1dB is measured using a +23 dBm square wave LO.
[8] IP3 depends on LO drive condition. Reported table value is measured with a square wave LO formed using 2x ADM1-0026PA in series with +10 dBm input into the first stage. LO Power reported in plots is of the fundamental tone only. Square wave LO power in plots is stepped down using broadband DC-40 GHz attenuators.
[10] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.
MT3L-0113HCH-2
GaAs MMIC High Dynamic Range Mixer
MT3L-0113HCH-2
GaAs MMIC High Dynamic Range Mixer
MT3L-0113HCH-2
GaAs MMIC High Dynamic Range Mixer
MT3L-0113HCH-2
GaAs MMIC High Dynamic Range Mixer
MT3L-0113HCH-2
GaAs MMIC High Dynamic Range Mixer
MT3L-0113HCH-2
GaAs MMIC High Dynamic Range Mixer
Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
MT3L-0113HCH-2
GaAs MMIC High Dynamic Range Mixer
MT3L-0113HCH-2
GaAs MMIC High Dynamic Range Mixer
Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
MT3L-0113HCH-2
GaAs MMIC High Dynamic Range Mixer
Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
MT3L-0113HCH-2
GaAs MMIC High Dynamic Range Mixer
Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
