MT3H-0113LCH-2_GaAs MMIC High Dynamic Range Mixer

Device Overview

General Description

The MT3H-0113L is a triple balanced passive diode mixer offering high dynamic range, low conversion loss, and excellent repeatability. As with all T3 mixers, this mixer offers unparalleled nonlinear performance in terms of IIP3, P1dB, and spurious performance with a flexible LO drive requirement from +7 dBm to +15 dBm. RF, LO, and IF ports are all operated single ended due to integrated baluns. The MT3H-0113L is available as a wire bondable chip or an SMA connectorized package. The MT3H-0113L is a superior alternative to Marki Microwave carrier and packaged T3 mixers. If >+16dBm LO power is available, the higher barrier MT3H-0113H is recommended.

Features

Broadband, Overlapping RF, LO and IF
RoHS Compliant
Square-Wave LO delivers Industry-Leading Spurious, IP3, and P1dB Performance

Applications

N/A

Functional Block Diagram

Part Ordering Options

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MT3H-0113LS	GaAs MMIC High Dynamic Range Mixer	S	Standard	REACH RoHS	Released	EAR99
MT3H-0113LCH-2	GaAs MMIC High Dynamic Range Mixer	CH	-	REACH RoHS	Released	EAR99

Part Number

Description

Package

Connectors

Green Status

Product Lifecycle

Export Classification

MT3H-0113LS

GaAs MMIC High Dynamic Range Mixer

Standard

REACH

RoHS

Released

EAR99

MT3H-0113LCH-2

GaAs MMIC High Dynamic Range Mixer

REACH

RoHS

Released

EAR99

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MT3H-0113LS	GaAs MMIC High Dynamic Range Mixer	S	Standard	REACH RoHS	Released	EAR99
MT3H-0113LCH-2	GaAs MMIC High Dynamic Range Mixer	CH	-	REACH RoHS	Released	EAR99

Part Number

Description

Package

Connectors

Green Status

Product Lifecycle

Export Classification

MT3H-0113LS

GaAs MMIC High Dynamic Range Mixer

Standard

REACH

RoHS

Released

EAR99

MT3H-0113LCH-2

GaAs MMIC High Dynamic Range Mixer

REACH

RoHS

Released

EAR99

Device Overview
Port Configuration and Functions
- Port Diagram
- Port Functions
Revision History
Specifications
Die Mounting Recommendations
- Mounting and Bonding Recommendations
Operation
- Application Information
Mechanical Data

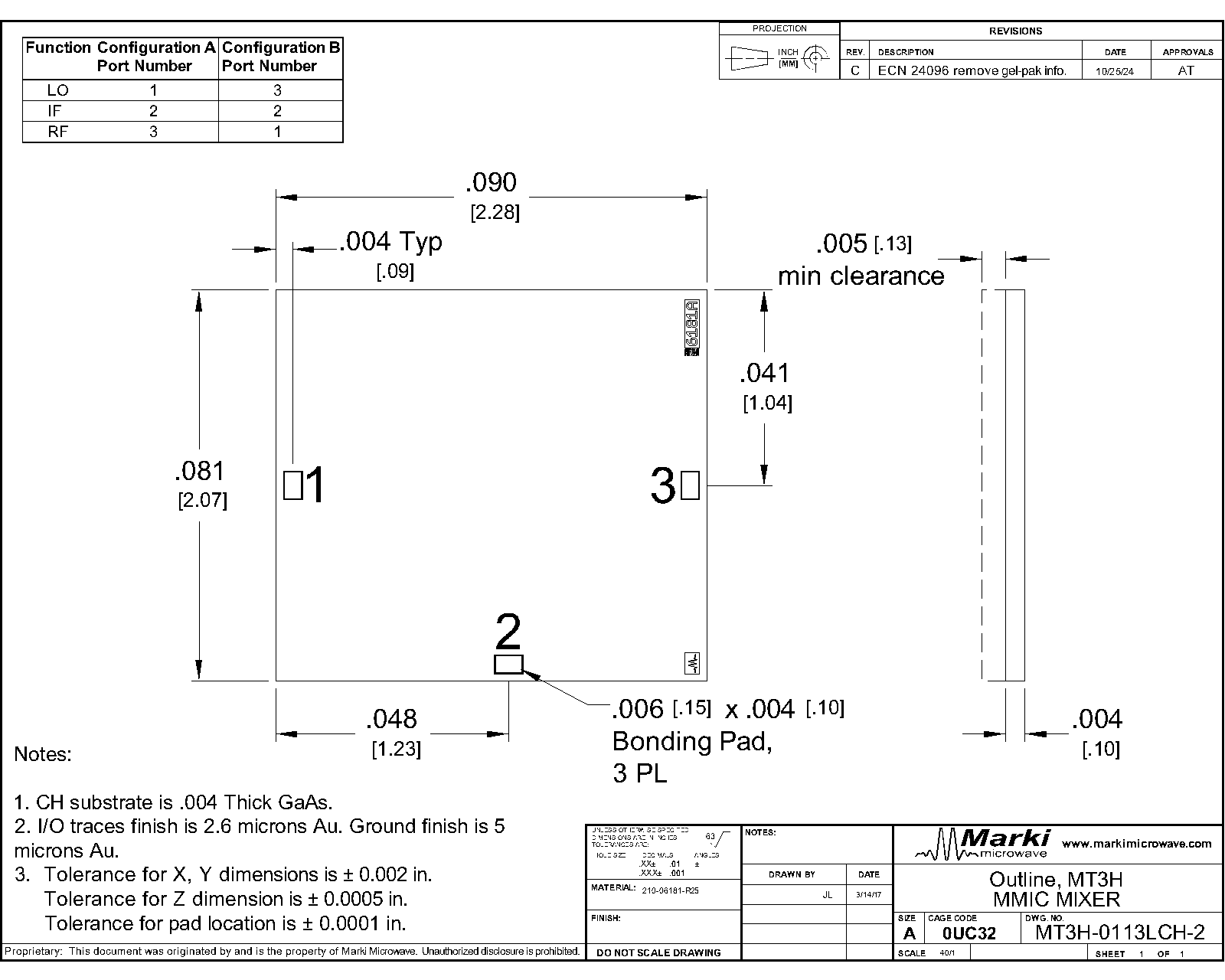

- Outline Drawing
Notes

Revision History

Revision Code	Revision Date	Comment
-	2017-01-01	Initial Release
A	2019-01-01	Revised square wave LO IP3 plots. End note 5 updated to reflect new test condition.

Port Configuration and Functions

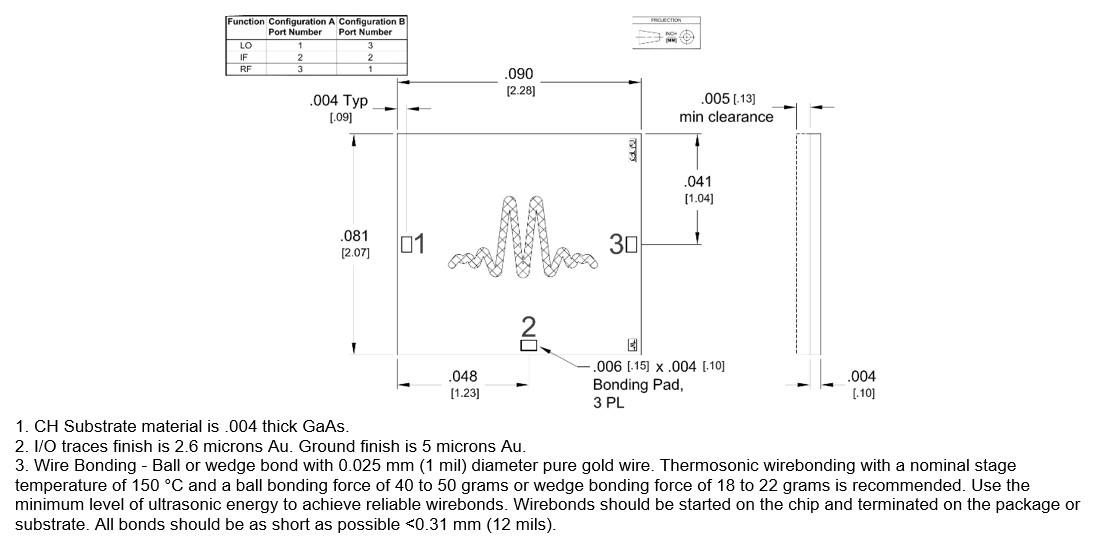

Port Diagram

Diagram of the port configuration for MT3H-0113LCH-2

Port Functions

Configuration A

Port	Function	Description
Port 1	LO	Port 1 is DC short and AC matched to 50 Ω from 0.8 to 13 GHz. Blocking capacitor is optional.
Port 2	IF	Port 2 is DC open. Blocking capacitor is optional.
Port 3	RF	Port 3 is DC short and AC matched to 50 Ω from 0.8 to 13 GHz. Blocking capacitor is optional.

Configuration B

Port	Function	Description
Port 1	RF	Port 1 is DC short and AC matched to 50 Ω from 0.8 to 13 GHz. Blocking capacitor is optional.
Port 2	IF	Port 2 is DC open. Blocking capacitor is optional.
Port 3	LO	Port 3 is DC short and AC matched to 50 Ω from 0.8 to 13 GHz. Blocking capacitor is optional.

Specifications

Absolute Maximum Ratings

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
RF Power Handling (RF+LO)	30	dBm

Package Information

Parameter	Details	Rating
Dimensions	-	2.28x2.07 mm

Recommended Operating Conditions

Parameter	Min	Nominal	Max	Unit
LO Input Power	7	-	15	-

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50Ω system. All bare die are 100% DC tested and 100% visually inspected. RF testing is performed on a sample basis to verify conformance to datasheet guaranteed specifications. Consult factory for more information.

Parameter	Port Configuration	Test Conditions	Min	Typ	Max	Unit
Input IP3 ¹	A	LO/RF=1.5-13 GHz IF=0.8-8.5 GHz LO drive level=7-15 dBm	-	20	-	dBm
Input IP3 ²	B	LO/RF=1.5-13 GHz IF=0.8-8.5 GHz LO drive level=7-15 dBm	-	22	-	dBm
Conversion Loss ³	-	LO/RF=1.5-13 GHz IF=0.8-1 GHz LO drive level=15 dBm	-	8	11	dB
Conversion Loss ⁴	-	LO/RF=1.5-13 GHz IF=1-8.5 GHz LO drive level=15 dBm	-	11.5	-	dB
IF Frequency Range	-	-	0.8	-	8.5	GHz
LO Frequency Range	-	-	1.5	-	13	GHz
LO-RF Isolation	-	-	-	43	-	dB
RF Frequency Range	-	-	1.5	-	13	GHz

Parameter	Port Configuration	Test Conditions	Min	Typ	Max	Unit
Input IP3 ¹	A	LO/RF=1.5-13 GHz IF=0.8-8.5 GHz LO drive level=7-15 dBm	-	20	-	dBm
Input IP3 ²	B	LO/RF=1.5-13 GHz IF=0.8-8.5 GHz LO drive level=7-15 dBm	-	22	-	dBm
Conversion Loss ³	-	LO/RF=1.5-13 GHz IF=0.8-1 GHz LO drive level=15 dBm	-	8	11	dB
Conversion Loss ⁴	-	LO/RF=1.5-13 GHz IF=1-8.5 GHz LO drive level=15 dBm	-	11.5	-	dB
IF Frequency Range	-	-	0.8	-	8.5	GHz
LO Frequency Range	-	-	1.5	-	13	GHz
LO-RF Isolation	-	-	-	43	-	dB
RF Frequency Range	-	-	1.5	-	13	GHz

^[1]^[2] IP3 depends on LO drive conditions, see plots for more details.

^[3]^[4] Measured Conversion Loss measured at 1 GHz fixed IF.

Typical Performance Plots

Conversion Loss: 1 GHz IF, Highside LO (dB) graph for MT3H-0113LCH-2

Conversion Loss: 1 GHz IF, Highside Square Wave LO (dB) graph for MT3H-0113LCH-2

Configuration A Conversion Loss vs. LO Power (dB) graph for MT3H-0113LCH-2

Configuration B Conversion Loss vs. LO Power (dB) graph for MT3H-0113LCH-2

Relative IF Response (dB) graph for MT3H-0113LCH-2

Conversion Loss: 4 GHz IF, Highside Sine Wave LO (dB) graph for MT3H-0113LCH-2

Conversion Loss: 4 GHz IF, Highside Square Wave LO (dB) graph for MT3H-0113LCH-2

Configuration A Conversion Loss vs. LO Power: 4GHz IF (dB) graph for MT3H-0113LCH-2

Configuration B Conversion Loss vs. LO Power: 4 GHz IF (dB) graph for MT3H-0113LCH-2

LO to RF Isolation (dB) graph for MT3H-0113LCH-2

LO to IF Isolation (dB) graph for MT3H-0113LCH-2

RF to IF Isolation (dB) graph for MT3H-0113LCH-2

RF Return Loss (dB) graph for MT3H-0113LCH-2

IF Return Loss (dB) graph for MT3H-0113LCH-2

LO Return Loss (dB) graph for MT3H-0113LCH-2

Input IP3: +15dBm Sine Wave LO (dBm) graph for MT3H-0113LCH-2

Input IP3: +17dBm Square Wave LO (dBm) graph for MT3H-0113LCH-2

Configuration A Input IP3 vs LO Power: Sine Wave LO (dBm) graph for MT3H-0113LCH-2

Configuration A Input IP3 vs LO Power: Square Wave LO (dBm) graph for MT3H-0113LCH-2

Configuration B Input IP3 vs LO Power: Sine Wave LO (dBm) graph for MT3H-0113LCH-2

Configuration B Input IP3 vs LO Power: Square Wave LO (dBm) graph for MT3H-0113LCH-2

Output IP3: +15dBm Sine Wave LO (dBm) graph for MT3H-0113LCH-2

Output IP3: +17dBm Square Wave LO (dBm) graph for MT3H-0113LCH-2

Configuration A Output IP3 vs LO Power: Sine Wave LO (dBm) graph for MT3H-0113LCH-2

Configuration A Output IP3 vs LO Power: Square Wave LO (dBm) graph for MT3H-0113LCH-2

Configuration B Output IP3 vs LO Power: Sine Wave LO (dBm) graph for MT3H-0113LCH-2

Configuration B Output IP3 vs LO Power: Square Wave LO (dBm) graph for MT3H-0113LCH-2

Input 1 dB Compression Point: 1 GHz IF, 5 GHz LO (dB) graph for MT3H-0113LCH-2

Output 1 dB Compression Point: 1 GHz IF, 5 GHz LO (dB) graph for MT3H-0113LCH-2

Even LO Harmonic to RF Isolation (dB) graph for MT3H-0113LCH-2

Even LO Harmonic to IF Isolation (dB) graph for MT3H-0113LCH-2

Odd LO Harmonic to RF Isolation (dB) graph for MT3H-0113LCH-2

Odd LO Harmonic to IF Isolation (dB) graph for MT3H-0113LCH-2

2RF x 2LO Spurious Suppression (dBc) -10 dBm RF Input graph for MT3H-0113LCH-2

2IF x 1LO Spurious Suppression (dBc) -10 dBm IF input graph for MT3H-0113LCH-2

MT3H-0113LS - Typical Performance Plots

Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
