MMH-35120H is a GaAs MMIC balanced harmonic mixer that features excellent conversion loss, superior isolations, and spurious performance across an incredibly broad bandwidth utilizing the 3rd harmonic of the LO. The MMH-35120H works well as both an up and down converter from the Ka band through mmWave/G band. The MMH-35120H is recommended for mmWave frequency conversion applications where a mmWave LO source may not be available. It is available as both wire bondable die and as a connectorized module.
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MMH-35120HM | GaAs MMIC Balanced mmWave Harmonic Mixer | M | Standard | REACH RoHS | Released | 3A001.b.7.c.1 |
| MMH-35120HCH-2 | GaAs MMIC Balanced mmWave Harmonic Mixer | CH | - | REACH RoHS | Released | 3A001.b.7.c.1 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MMH-35120HM | GaAs MMIC Balanced mmWave Harmonic Mixer | M | Standard | REACH RoHS | Released | 3A001.b.7.c.1 |
| MMH-35120HCH-2 | GaAs MMIC Balanced mmWave Harmonic Mixer | CH | - | REACH RoHS | Released | 3A001.b.7.c.1 |
MMH-35120HCH-2
GaAs MMIC Balanced mmWave Harmonic Mixer
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2023-01-01 | Datasheet Initial Release |
MMH-35120HCH-2
GaAs MMIC Balanced mmWave Harmonic Mixer

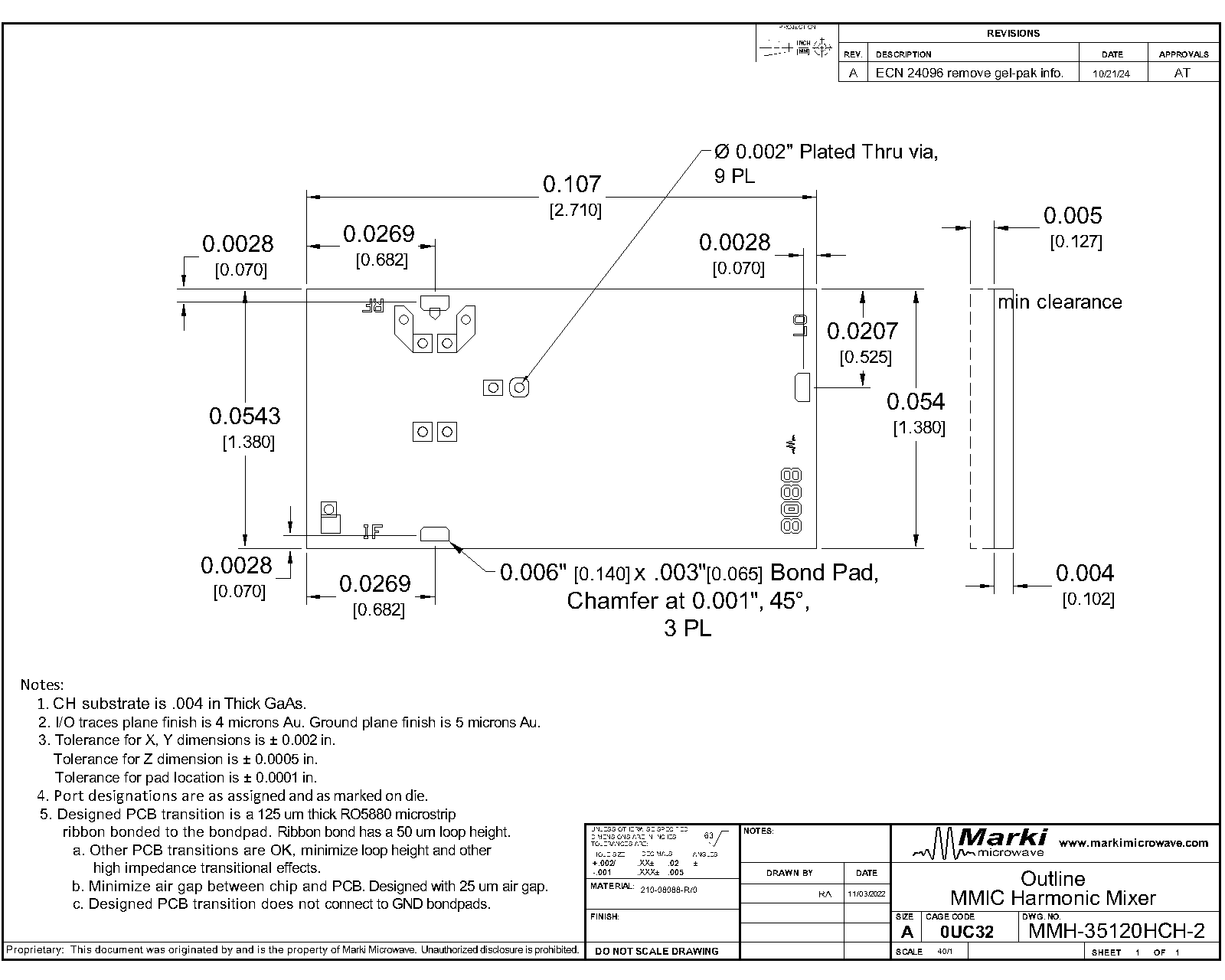

A top-down view of the MMH-35120H’s CH package outline drawing is shown below. The MMH-35120H has the input and output ports given in Port Functions. The MMH-35120H can be used in either an up or down conversion. For operation, input the LO into port 2, use port 1 for the RF, and port 3 for the IF.
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | CH package ground path is provided through the substrate and ground bond pads. |  |
| Port 1 | RF | Port 1 is DC open for the CH and M packages. |  |
| Port 2 | LO | Port 2 is diode connected for the CH and M package. |  |
| Port 3 | IF | Port 3 is diode connected for the CH and M package. |  |
MMH-35120HCH-2
GaAs MMIC Balanced mmWave Harmonic Mixer
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Port 2 DC Current Handling | 30 | mA |
| Port 3 DC Current Handling | 30 | mA |
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 2.71 x 1.38 mm |
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ambient Temperature | -55 | 25 | 100 | °C |
| LO Input Power | 13 | 15 | 17 | dBm |
MMH-35120HCH-2
GaAs MMIC Balanced mmWave Harmonic Mixer
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the connectorized M package mixer used in the forward direction with a +15dBm sine wave LO input. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C. All bare die are 100% DC tested and visually inspected.
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| 1x1L Conversion Loss | RF = 35 – 50 GHz LO = 35 – 50 GHz IF = 91 MHz | - | 15 | - | dB |
| 1x2L Suppression | - | - | 22 | - | dBc |
| 1x3L Conversion Loss 1 | RF = 35 – 120 GHz LO = 12 – 40 GHz IF = 91 MHz | - | 18 | - | dB |
| 3LO to RF Isolation | - | - | 57 | - | dB |
| IF Frequency Range | - | 0 | - | 14 | GHz |
| Input IP3 | - | - | 7 | - | dBm |
| Input P1dB | - | - | -5 | - | dBm |
| LO Frequency Range | - | 12 | - | 40 | GHz |
| LO-RF Isolation | - | - | 57 | - | dB |
| Noise Figure 2 | RF = 35 – 120 GHz LO = 12 – 40 GHz IF = 91 MHz | - | 18.5 | - | dB |
| RF Frequency Range | - | 35 | - | 120 | GHz |
| - | - | - | 30 | - | dBc |
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| 1x1L Conversion Loss | RF = 35 – 50 GHz LO = 35 – 50 GHz IF = 91 MHz | - | 15 | - | dB |
| 1x2L Suppression | - | - | 22 | - | dBc |
| 1x3L Conversion Loss 1 | RF = 35 – 120 GHz LO = 12 – 40 GHz IF = 91 MHz | - | 18 | - | dB |
| 3LO to RF Isolation | - | - | 57 | - | dB |
| IF Frequency Range | - | 0 | - | 14 | GHz |
| Input IP3 | - | - | 7 | - | dBm |
| Input P1dB | - | - | -5 | - | dBm |
| LO Frequency Range | - | 12 | - | 40 | GHz |
| LO-RF Isolation | - | - | 57 | - | dB |
| Noise Figure 2 | RF = 35 – 120 GHz LO = 12 – 40 GHz IF = 91 MHz | - | 18.5 | - | dB |
| RF Frequency Range | - | 35 | - | 120 | GHz |
| - | - | - | 30 | - | dBc |
[1] Measured as a down converter to a fixed 91MHz IF.
[2] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.
MMH-35120HCH-2
GaAs MMIC Balanced mmWave Harmonic Mixer
MMH-35120HCH-2
GaAs MMIC Balanced mmWave Harmonic Mixer
MMH-35120HCH-2
GaAs MMIC Balanced mmWave Harmonic Mixer
Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
MMH-35120HCH-2
GaAs MMIC Balanced mmWave Harmonic Mixer
MMH-35120HCH-2
GaAs MMIC Balanced mmWave Harmonic Mixer
