MM2-0530HCH-2_GaAs MMIC Triple Balanced Mixer

Device Overview

General Description

The MM2-0530H is a passive MMIC triple balanced mixer. It features a broadband IF port that spans from 2 to 20 GHz, and has excellent spurious suppression. GaAs MMIC technology improves upon the previous generation of hand assembled, hybrid M2 triple balanced mixers with improved isolations, unit-to-unit repeatability and reliability. The MM2-0530H is available as a wire bondable chip or connectorized SMA package.

Features

Broadband IF Port
Typical Input 1 dB Compression of +15 dBm
High Input IP3 of +21 dBm
Excellent LO to IF Isolation
Unit-to-Unit Repeatability
RoHS Compliant

Applications

N/A

Functional Block Diagram

Part Ordering Options

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MM2-0530HS	GaAs MMIC Triple Balanced Mixer	S	Standard	REACH RoHS	Released	EAR99
MM2-0530HCH-2	GaAs MMIC Triple Balanced Mixer	CH	-	REACH RoHS	Released	EAR99

Part Number

Description

Package

Connectors

Green Status

Product Lifecycle

Export Classification

MM2-0530HS

GaAs MMIC Triple Balanced Mixer

Standard

REACH

RoHS

Released

EAR99

MM2-0530HCH-2

GaAs MMIC Triple Balanced Mixer

REACH

RoHS

Released

EAR99

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MM2-0530HS	GaAs MMIC Triple Balanced Mixer	S	Standard	REACH RoHS	Released	EAR99
MM2-0530HCH-2	GaAs MMIC Triple Balanced Mixer	CH	-	REACH RoHS	Released	EAR99

Part Number

Description

Package

Connectors

Green Status

Product Lifecycle

Export Classification

MM2-0530HS

GaAs MMIC Triple Balanced Mixer

Standard

REACH

RoHS

Released

EAR99

MM2-0530HCH-2

GaAs MMIC Triple Balanced Mixer

REACH

RoHS

Released

EAR99

Device Overview
Port Configuration and Functions
- Port Diagram
- Port Functions
Revision History
Specifications
Die Mounting Recommendations
- Mounting and Bonding Recommendations
Operation
- Application Circuit
- Application Circuit Description
Mechanical Data

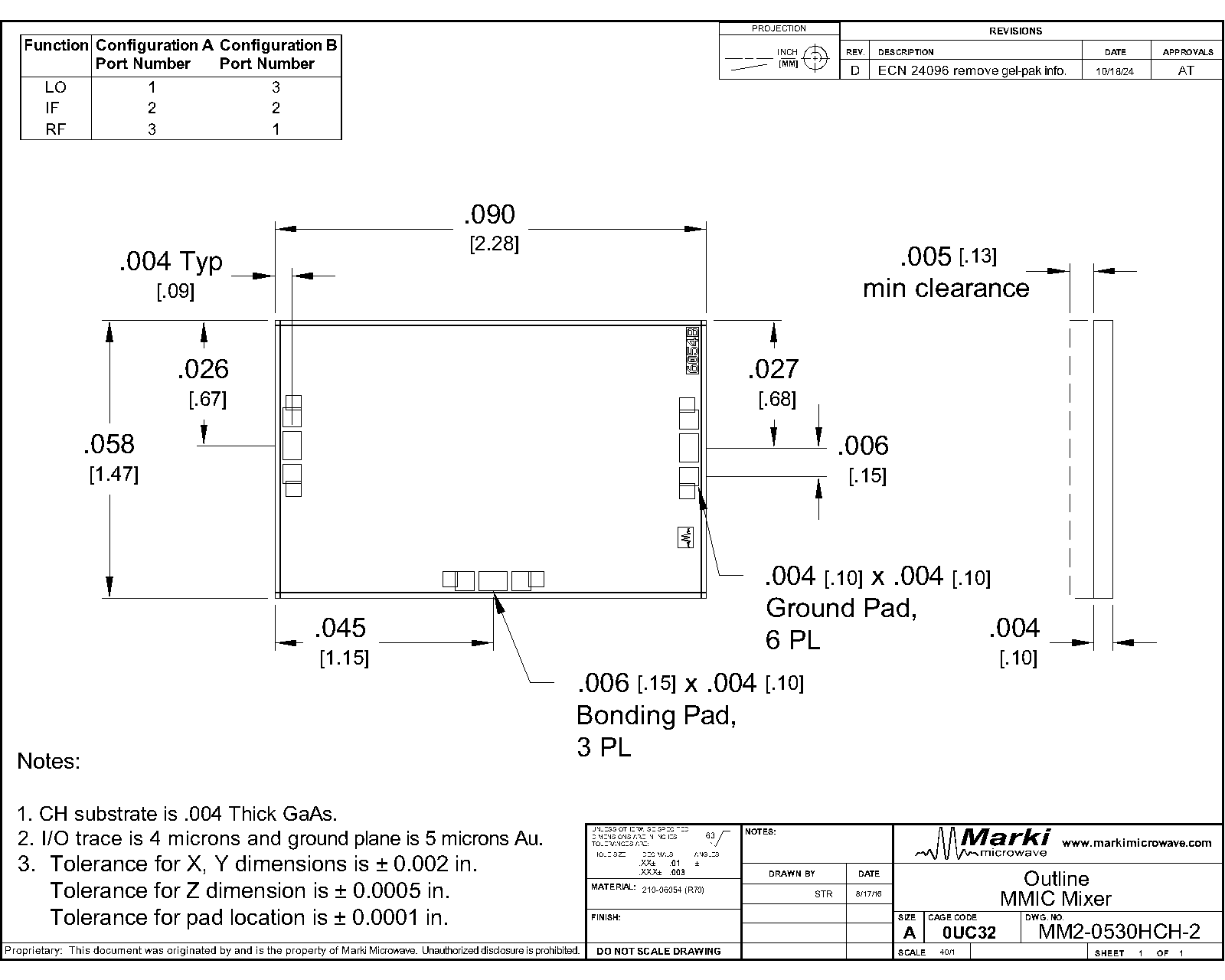

- Outline Drawing

Revision History

Revision Code	Revision Date	Comment
-	2016-01-01	Initial Release
A	2018-11-01	Correction to Port Designation Description
B	2019-08-01	Added ground pad dimensions on die

Port Configuration and Functions

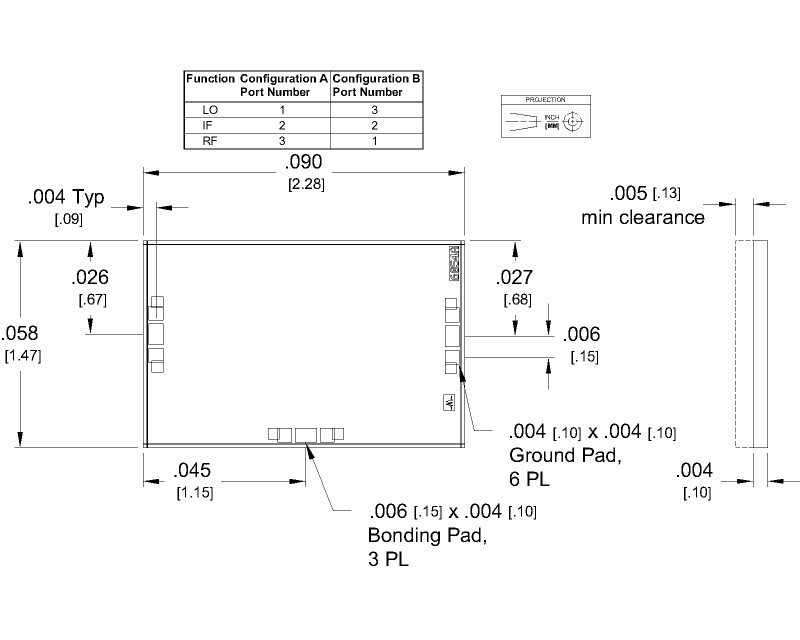

Port Diagram

Diagram of the port configuration for MM2-0530HCH-2

Port Functions

Configuration A

Port	Function	Description
Port 1	LO	Port 1 is DC short and AC matched to 50 Ω from 5 to 30 GHz. Blocking capacitor is optional.
Port 2	IF	Port 2 is DC coupled to the diodes. Blocking capacitor is optional.
Port 3	RF	Port 3 is DC short and AC matched to 50 Ω from 5 to 30 GHz. Blocking capacitor is optional.

Configuration B

Port	Function	Description
Port 1	RF	Port 1 is DC short and AC matched to 50 Ω from 5 to 30 GHz. Blocking capacitor is optional.
Port 2	IF	Port 2 is DC coupled to the diodes. Blocking capacitor is optional.
Port 3	LO	Port 3 is DC short and AC matched to 50 Ω from 5 to 30 GHz. Blocking capacitor is optional.

Specifications

Absolute Maximum Ratings

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
Port 1 DC Current	21	mA
Port 2 DC Current	15	mA
Port 3 DC Current	24	mA
RF Power Handling (RF+LO), 100°C	20	dBm
RF Power Handling (RF+LO), 25°C	28	dBm

Package Information

Parameter	Details	Rating
Dimensions	-	2.28 x 1.47 mm

Recommended Operating Conditions

Parameter	Min	Nominal	Max	Unit
LO Input Power	14	-	20	-

Electrical Specifications

Parameter	Port Configuration	Test Conditions	Min	Typ	Max	Unit
Conversion Loss ¹	A	LO/RF=5-30 GHz IF=2-20GHz LO Drive Level= 20	-	8	-	dB
Input IP3 ²	A	LO/RF=5-30 GHz IF=2-20GHz LO Drive Level= 15-20	-	21	-	dBm
Input P1dB	A	LO/RF=5-30 GHz IF=2-20GHz LO Drive Level= 15-20	-	15	-	dBm
LO-RF Isolation	A	-	-	40	-	dB
Input P1dB	B	LO/RF=5-30 GHz IF=2-20GHz LO Drive Level= 14-20	-	20	-	dBm
Conversion Loss ³	-	LO/RF=5-30 GHz IF=2-20GHz LO Drive Level= 20	-	9	-	dB
IF Frequency Range	-	-	2	-	20	GHz
Input IP3	-	LO/RF=5-30 GHz IF=2-20GHz LO Drive Level= 14-20	-	28	-	dBm
LO Frequency Range	-	-	5	-	30	GHz
RF Frequency Range	-	-	5	-	30	GHz

Parameter	Port Configuration	Test Conditions	Min	Typ	Max	Unit
Conversion Loss ¹	A	LO/RF=5-30 GHz IF=2-20GHz LO Drive Level= 20	-	8	-	dB
Input IP3 ²	A	LO/RF=5-30 GHz IF=2-20GHz LO Drive Level= 15-20	-	21	-	dBm
Input P1dB	A	LO/RF=5-30 GHz IF=2-20GHz LO Drive Level= 15-20	-	15	-	dBm
LO-RF Isolation	A	-	-	40	-	dB
Input P1dB	B	LO/RF=5-30 GHz IF=2-20GHz LO Drive Level= 14-20	-	20	-	dBm
Conversion Loss ³	-	LO/RF=5-30 GHz IF=2-20GHz LO Drive Level= 20	-	9	-	dB
IF Frequency Range	-	-	2	-	20	GHz
Input IP3	-	LO/RF=5-30 GHz IF=2-20GHz LO Drive Level= 14-20	-	28	-	dBm
LO Frequency Range	-	-	5	-	30	GHz
RF Frequency Range	-	-	5	-	30	GHz

^[1]^[3] Measured Conversion Loss measured at 3 GHz fixed IF

^[2] IP3 depends on LO drive conditions, see plots for more details

Typical Performance

Conversion Loss: 3 GHz IF, Lowside LO (dB) graph for MM2-0530HCH-2

Conversion Loss: 15 GHz IF, Highside LO (dB) graph for MM2-0530HCH-2

Configuration A Conversion Loss vs. LO Power: 3 GHz IF, Lowside LO (db) graph for MM2-0530HCH-2

Configuration B Conversion Loss vs. LO Power: 3 GHz IF, Lowside LO (db) graph for MM2-0530HCH-2

Configuration A Conversion Loss vs. LO Power: 15 GHz IF, Highside LO (db) graph for MM2-0530HCH-2

Configuration B Conversion Loss vs. LO Power: 15 GHz IF, Highside LO (db) graph for MM2-0530HCH-2

Relative IF Response (dB) graph for MM2-0530HCH-2

LO to RF Isolation (dB) graph for MM2-0530HCH-2

LO to IF Isolation (dB) graph for MM2-0530HCH-2

RF to IF Isolation (dB) graph for MM2-0530HCH-2

RF Return Loss (dB) graph for MM2-0530HCH-2

IF Return Loss (dB) graph for MM2-0530HCH-2

LO Return Loss (dB) graph for MM2-0530HCH-2

Input IP3: 3GHz IF, +20 dBm LO Power, Sine Wave LSLO (dBm) graph for MM2-0530HCH-2

Output IP3: 3GHz IF, +20 dBm LO Power, Sine Wave LSLO (dBm) graph for MM2-0530HCH-2

Configuration A Input IP3 vs LO Power: 3 GHz IF, Sine Wave LSLO graph for MM2-0530HCH-2

Configuration B Input IP3 vs LO Power: 3 GHz IF, Sine Wave LSLO graph for MM2-0530HCH-2

Configuration A Output IP3: 3GHz IF, +20 dBm LO Power, Sine Wave LSLO (dBm) graph for MM2-0530HCH-2

Configuration B Output IP3 vs LO Power: 3 GHz IF, Sine Wave LSLO graph for MM2-0530HCH-2

Even LO Harmonic to RF Isolation (dB) graph for MM2-0530HCH-2

Even LO Harmonic to IF Isolation (dB) graph for MM2-0530HCH-2

Odd LO Harmonic to RF Isolation (dB) graph for MM2-0530HCH-2

Odd LO Harmonic to IF Isolation (dB) graph for MM2-0530HCH-2

2RF x 2LO Spurious Suppression (dBc) -10 dBm RF Input graph for MM2-0530HCH-2

2IF x 1LO Spurious Suppression (dBc) -10 dBm IF input graph for MM2-0530HCH-2

MM2-0530HS - Typical Performance

Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
