Device Overview

General Description

The MM1-0424S is a high linearity passive double balanced MMIC mixer. The S diode offers superior 1 dB compression, two tone intermodulation performance, and spurious suppression to other GaAs MMIC mixers. It features excellent conversion loss, superior isolations and spurious performance across a broad bandwidth, in a miniature form factor. The MM1-0424S is available as a wire bondable chip or an SMA connectorized package. The MM1-0424S is a superior alternative to Marki Microwave carrier and packaged M1 and M3 mixers

Photo of MM1-0424SCH-2

Features

  • Compact Chip Style Package (0.058” x 0.046”x0.004”
  • CAD Optimized for Superior Isolation and Spurious Respons
  • Broadband Performance
  • Excellent Unit-to-Unit Repeatability
  • Fully nonlinear software models available with Marki PDK for Microwave Office
  • RoHS Compliant

Applications

N/A

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageConnectorsGreen StatusProduct LifecycleExport Classification
MM1-0424SSGaAs Double-Balanced MixerSStandard

REACH

RoHS

ReleasedEAR99
MM1-0424SCH-2GaAs Double-Balanced MixerCH-

REACH

RoHS

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2020-05-05Datasheet Initial Release

Rev: - | Copyright © 2020 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

Diagram of the port configuration for MM1-0424SCH-2

Port Functions

Configuration A

PortFunctionDescriptionDC Equivalent
Circuit
Port 1LO Port 1 is DC short to ground and AC matched to 50 Ohms from 4.5 to 24 GHz. Blocking capacitor is optional.Equivalent circuit for the LO
Port 2IF Port 2 is DC coupled to the diodes. Blocking capacitor is optional.Equivalent circuit for the IF
Port 3RF Port 3 is DC short to ground and AC matched to 50 Ohms from 4.5 to 24 GHz. Blocking capacitor is optional.Equivalent circuit for the RF

Rev: - | Copyright © 2020 Marki Microwave LLC.

3

Configuration B

PortFunctionDescriptionDC Equivalent
Circuit
Port 1RF Port 1 is DC short to ground and AC matched to 50 Ohms from 4.5 to 24 GHz. Blocking capacitor is optional.Equivalent circuit for the RF
Port 2IF Port 2 is DC coupled to the diodes. Blocking capacitor is optional.Equivalent circuit for the IF
Port 3LO Port 3 is DC short to ground and AC matched to 50 Ohms from 4.5 to 24 GHz. Blocking capacitor is optional.Equivalent circuit for the LO

Rev: - | Copyright © 2020 Marki Microwave LLC.

4

Specifications

Absolute Maximum Ratings

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C
Port 1 DC Current 15mA
Port 2 DC Current 30mA
Port 3 DC Current 15mA
RF Power Handling (RF+LO), 100°C 24dBm
RF Power Handling (RF+LO), 25°C 28dBm

Package Information

ParameterDetailsRating
Dimensions-1.48 x 1.18 mm
ParameterMinNominalMaxUnit
LO Input Power 17-23-

Rev: - | Copyright © 2020 Marki Microwave LLC.

5

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50Ω system. All bare die are 100% DC tested and 100% visual inspected. RF testing is performed on a sample basis to verify conformance to datasheet guaranteed specifications. Consult factory for more information.

ParameterPort ConfigurationTest ConditionsMinTypMaxUnit
Conversion Loss ALO/RF=4.5-24 GHz
IF=DC-4 GHz
-813dB
Input IP3 ALO/RF=4.5-24 GHz
IF=DC-4 GHz
LO Drive Level=18-23dBm
-25-dBm
Input P1dB ALO/RF=4.5-24 GHz
IF=DC-4 GHz
LO Drive Level=18-23dBm
-14-dBm
LO-RF Isolation A--49-dB
Conversion Loss BLO/RF=4.5-24 GHz
IF=DC-4 GHz
LO Drive Level=18-23dBm
-916dB
Input IP3 BLO/RF=4.5-24 GHz
IF=DC-4 GHz
LO Drive Level=17-23dBm
-23-dBm
Input P1dB BLO/RF=4.5-24 GHz
IF=DC-4 GHz
LO Drive Level=17-23dBm
-14-dBm
IF Frequency Range --0-4GHz
LO Frequency Range --4.5-24GHz
RF Frequency Range --4.5-24GHz

Rev: - | Copyright © 2020 Marki Microwave LLC.

6

Typical Performance

Conversion Loss (dB) graph for MM1-0424SCH-2
Relative IF Response (dB) graph for MM1-0424SCH-2
Configuration A Conversion Loss vs. LO Power (dB) graph for MM1-0424SCH-2
Configuration B Conversion Loss vs. LO Power (dB) graph for MM1-0424SCH-2
LO to RF Isolation (dB) graph for MM1-0424SCH-2
LO to IF Isolation (dB) graph for MM1-0424SCH-2
RF to IF Isolation (dB) graph for MM1-0424SCH-2
IF Return Loss (dB) graph for MM1-0424SCH-2

Rev: - | Copyright © 2020 Marki Microwave LLC.

7

RF Return Loss (dB) graph for MM1-0424SCH-2
LO Return Loss (dB) graph for MM1-0424SCH-2
Input IP3 (dBm) graph for MM1-0424SCH-2
Output IP3 (dBm) graph for MM1-0424SCH-2
Even LO Harmonic to RF Isolation (dB) graph for MM1-0424SCH-2
Even LO Harmonic to IF Isolation (dB) graph for MM1-0424SCH-2
Odd LO Harmonic to RF Isolation (dB) graph for MM1-0424SCH-2
Odd LO Harmonic to IF Isolation (dB) graph for MM1-0424SCH-2

Rev: - | Copyright © 2020 Marki Microwave LLC.

8

2RF x 2LO Spurious Suppression (dBc) -10 dBm RF Input graph for MM1-0424SCH-2
2IF x 1LO Spurious Suppression (dBc) -10 dBm IF input graph for MM1-0424SCH-2

Rev: - | Copyright © 2020 Marki Microwave LLC.

9

MM1-0424SS - Typical Performance Plots

Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.

Conversion Loss (dB) graph for MM1-0424SS
Relative IF Response (dB) graph for MM1-0424SS
Configuration A Conversion Loss vs. LO Power (dB) graph for MM1-0424SS
Configuration B Conversion Loss vs. LO Power (dB) graph for MM1-0424SS
LO to RF Isolation (dB) graph for MM1-0424SS
LO to IF Isolation (dB) graph for MM1-0424SS
RF to IF Isolation (dB) graph for MM1-0424SS
IF Return Loss (dB) graph for MM1-0424SS

Rev: - | Copyright © 2020 Marki Microwave LLC.

10

RF Return Loss (dB) graph for MM1-0424SS
LO Return Loss (dB) graph for MM1-0424SS
Input IP3 (dBm) graph for MM1-0424SS
Output IP3 (dBm) graph for MM1-0424SS
Even LO Harmonic to RF Isolation (dB) graph for MM1-0424SS
Even LO Harmonic to IF Isolation (dB) graph for MM1-0424SS
Odd LO Harmonic to RF Isolation (dB) graph for MM1-0424SS
Odd LO Harmonic to IF Isolation (dB) graph for MM1-0424SS

Rev: - | Copyright © 2020 Marki Microwave LLC.

11

2RF x 2LO Spurious Suppression (dBc) -10 dBm IF Input graph for MM1-0424SS
2IF x 1LO Spurious Suppression (dBc) -10 dBm IF input graph for MM1-0424SS

Rev: - | Copyright © 2020 Marki Microwave LLC.

12

Mechanical Data

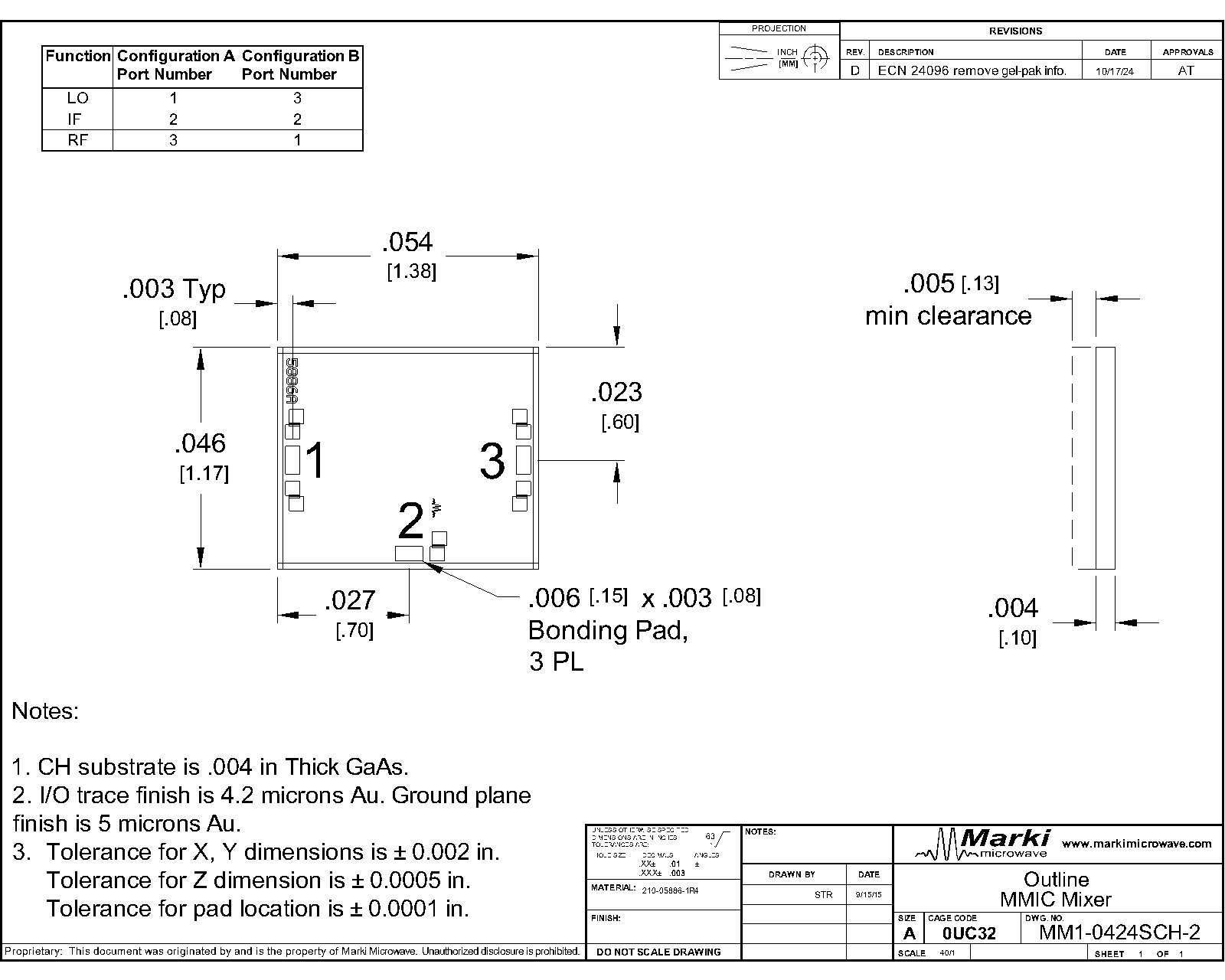

Outline Drawing

Download : Outline 2D Drawing

Outline Drawing
