The MM1-0424S is a high linearity passive double balanced MMIC mixer. The S diode offers superior 1 dB compression, two tone intermodulation performance, and spurious suppression to other GaAs MMIC mixers. It features excellent conversion loss, superior isolations and spurious performance across a broad bandwidth, in a miniature form factor. The MM1-0424S is available as a wire bondable chip or an SMA connectorized package. The MM1-0424S is a superior alternative to Marki Microwave carrier and packaged M1 and M3 mixers.

Photo of MM1-0424SS

Features

  • CAD Optimized for Superior Isolation and Spurious Response
  • Broadband Performance
  • Excellent Unit-to-Unit Repeatability
  • Fully nonlinear software models available with Marki PDK for Microwave Office®
  • RoHS Compliant

Applications

  • Test and Measurement Equipment
  • SATCOM
  • Radar

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageConnectorsGreen StatusProduct LifecycleExport Classification
MM1-0424SSGaAs Double-Balanced MixerSStandard

REACH

RoHS

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2020-05-05Datasheet Initial Release

Rev: - | Copyright © 2020 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

Diagram of the port configuration for MM1-0424SS

Port Functions

Configuration A

PortFunctionConnector TypeDescriptionDC Equivalent
Circuit
Port 1LO SMAFPort 1 is DC short to ground and AC matched to 50 Ohms from 4.5 to 24 GHz. Blocking capacitor is optional.Equivalent circuit for the LO
Port 2IF SMAFPort 2 is DC coupled to the diodes. Blocking capacitor is optional.Equivalent circuit for the IF
Port 3RF SMAFPort 3 is DC short to ground and AC matched to 50 Ohms from 4.5 to 24 GHz. Blocking capacitor is optional.Equivalent circuit for the RF

Rev: - | Copyright © 2020 Marki Microwave LLC.

3

Configuration B

PortFunctionConnector TypeDescriptionDC Equivalent
Circuit
Port 1RF SMAFPort 1 is DC short to ground and AC matched to 50 Ohms from 4.5 to 24 GHz. Blocking capacitor is optional.Equivalent circuit for the RF
Port 2IF SMAFPort 2 is DC coupled to the diodes. Blocking capacitor is optional.Equivalent circuit for the IF
Port 3LO SMAFPort 3 is DC short to ground and AC matched to 50 Ohms from 4.5 to 24 GHz. Blocking capacitor is optional.Equivalent circuit for the LO

Rev: - | Copyright © 2020 Marki Microwave LLC.

4

Specifications

Absolute Maximum Ratings

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C
Port 1 DC Current 15mA
Port 2 DC Current 30mA
Port 3 DC Current 15mA
RF Power Handling (RF+LO), 100°C 24dBm
RF Power Handling (RF+LO), 25°C 28dBm

Package Information

ParameterDetailsRating
Dimensions-14.22 x 13.21mm
ParameterMinNominalMaxUnit
LO Input Power 17-23-

Rev: - | Copyright © 2020 Marki Microwave LLC.

5

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50Ω system. All bare die are 100% DC tested and 100% visually inspected. RF testing is performed on a sample basis to verify conformance to datasheet guaranteed specifications. Consult factory for more information.

ParameterPort ConfigurationTest ConditionsMinTypMaxUnit
Conversion Loss ALO/RF=4.5-24 GHz
IF=DC-4 GHz
-813dB
Input IP3 ALO/RF=4.5-24 GHz
IF=DC-4 GHz
LO Drive Level=18-23dBm
-25-dBm
Input P1dB ALO/RF=4.5-24 GHz
IF=DC-4 GHz
LO Drive Level=18-23dBm
-14-dBm
LO-RF Isolation A--49-dB
Conversion Loss BLO/RF=4.5-24 GHz
IF=DC-4 GHz
-916dB
Input IP3 BLO/RF=4.5-24 GHz
IF=DC-4 GHz
LO Drive Level=17-23dBm
-23-dBm
Input P1dB BLO/RF=4.5-24 GHz
IF=DC-4 GHz
LO Drive Level=17-23dBm
-14-dBm
IF Frequency Range --0-4GHz
LO Frequency Range --4.5-24GHz
RF Frequency Range --4.5-24GHz

Rev: - | Copyright © 2020 Marki Microwave LLC.

6

Typical Performance Plots

Conversion Loss (dB) graph for MM1-0424SS
Relative IF Response (dB) graph for MM1-0424SS
Configuration A Conversion Loss vs. LO Power (dB) graph for MM1-0424SS
Configuration B Conversion Loss vs. LO Power (dB) graph for MM1-0424SS
LO to RF Isolation (dB) graph for MM1-0424SS
LO to IF Isolation (dB) graph for MM1-0424SS
RF to IF Isolation (dB) graph for MM1-0424SS
IF Return Loss (dB) graph for MM1-0424SS

Rev: - | Copyright © 2020 Marki Microwave LLC.

7

RF Return Loss (dB) graph for MM1-0424SS
LO Return Loss (dB) graph for MM1-0424SS
Input IP3 (dBm) graph for MM1-0424SS
Output IP3 (dBm) graph for MM1-0424SS
Even LO Harmonic to RF Isolation (dB) graph for MM1-0424SS
Even LO Harmonic to IF Isolation (dB) graph for MM1-0424SS
Odd LO Harmonic to RF Isolation (dB) graph for MM1-0424SS
Odd LO Harmonic to IF Isolation (dB) graph for MM1-0424SS

Rev: - | Copyright © 2020 Marki Microwave LLC.

8

2RF x 2LO Spurious Suppression (dBc) -10 dBm IF Input graph for MM1-0424SS
2IF x 1LO Spurious Suppression (dBc) -10 dBm IF input graph for MM1-0424SS

Rev: - | Copyright © 2020 Marki Microwave LLC.

9

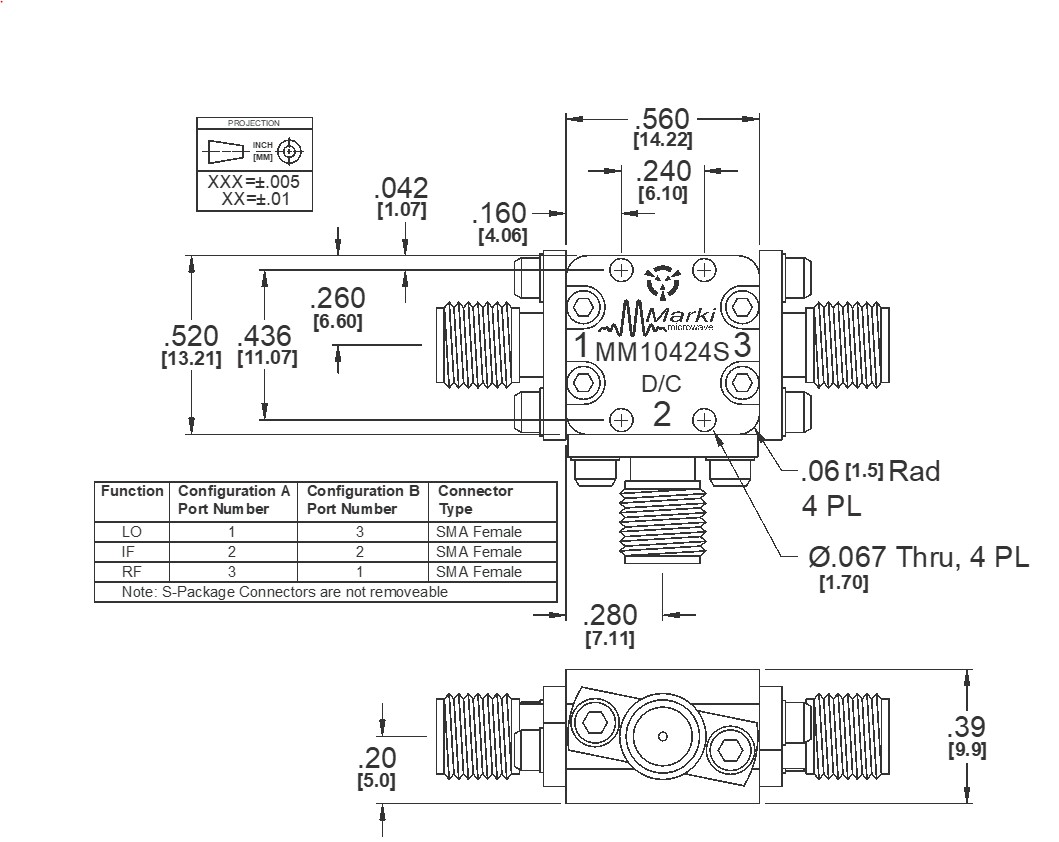

Mechanical Data
