MM1-0320LCH-2_GaAs MMIC Double Balanced Mixer

Device Overview

General Description

The MM1-0320L is a passive double balanced MMIC mixer. It features excellent conversion loss, superior isolations and spurious performance across a broad bandwidth, in a highly miniaturized form factor. Low LO drive requirement allows operation at as low as +5dBm inputs. The MM1-0320L is available as a wire bondable chip or an SMA connectorized package. The MM1-0320L is a superior alternative to Marki Microwave carrier and packaged M1 and M3 mixers. The MM1-0320L is the low barrier version of the MM1-0320H. If higher LO power is available, the MM1-0320H is recommended for higher mixer linearity.

Features

Compact Chip Style Package (0.058” x 0.046”x0.004”)
CAD Optimized for Superior Isolation and Spurious Response
Broadband Performance
Low LO Drive Requirement
Excellent Unit-to-Unit Repeatability
RoHS Compliant

Applications

N/A

Functional Block Diagram

Part Ordering Options

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MM1-0320LS	GaAs MMIC Double Balanced Mixer	S	Standard	REACH RoHS	Released	EAR99
MM1-0320LCH-2	GaAs MMIC Double Balanced Mixer	CH	-	REACH RoHS	Released	EAR99

Part Number

Description

Package

Connectors

Green Status

Product Lifecycle

Export Classification

MM1-0320LS

GaAs MMIC Double Balanced Mixer

Standard

REACH

RoHS

Released

EAR99

MM1-0320LCH-2

GaAs MMIC Double Balanced Mixer

REACH

RoHS

Released

EAR99

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MM1-0320LS	GaAs MMIC Double Balanced Mixer	S	Standard	REACH RoHS	Released	EAR99
MM1-0320LCH-2	GaAs MMIC Double Balanced Mixer	CH	-	REACH RoHS	Released	EAR99

Part Number

Description

Package

Connectors

Green Status

Product Lifecycle

Export Classification

MM1-0320LS

GaAs MMIC Double Balanced Mixer

Standard

REACH

RoHS

Released

EAR99

MM1-0320LCH-2

GaAs MMIC Double Balanced Mixer

REACH

RoHS

Released

EAR99

Port Configuration and Functions

Port Diagram

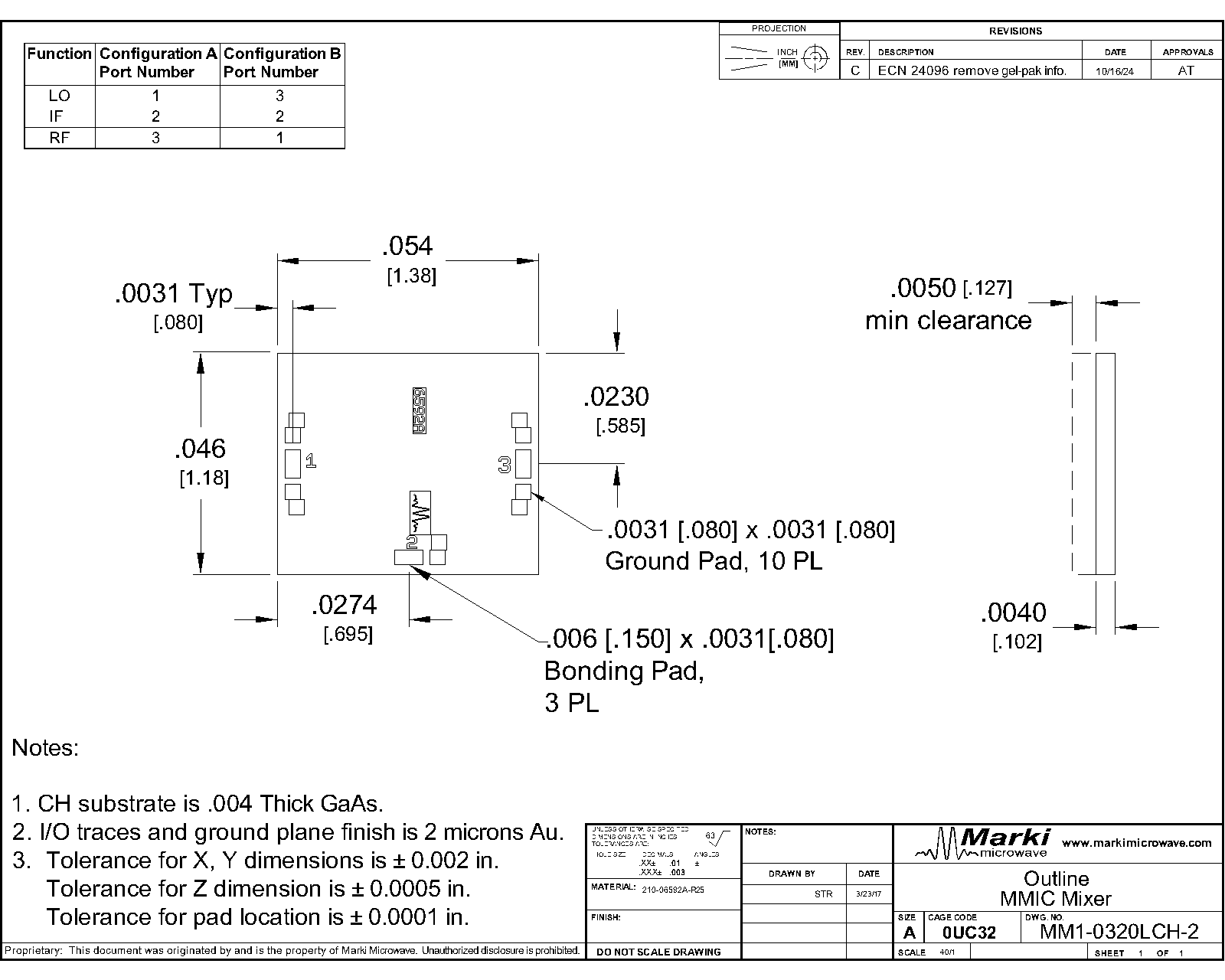

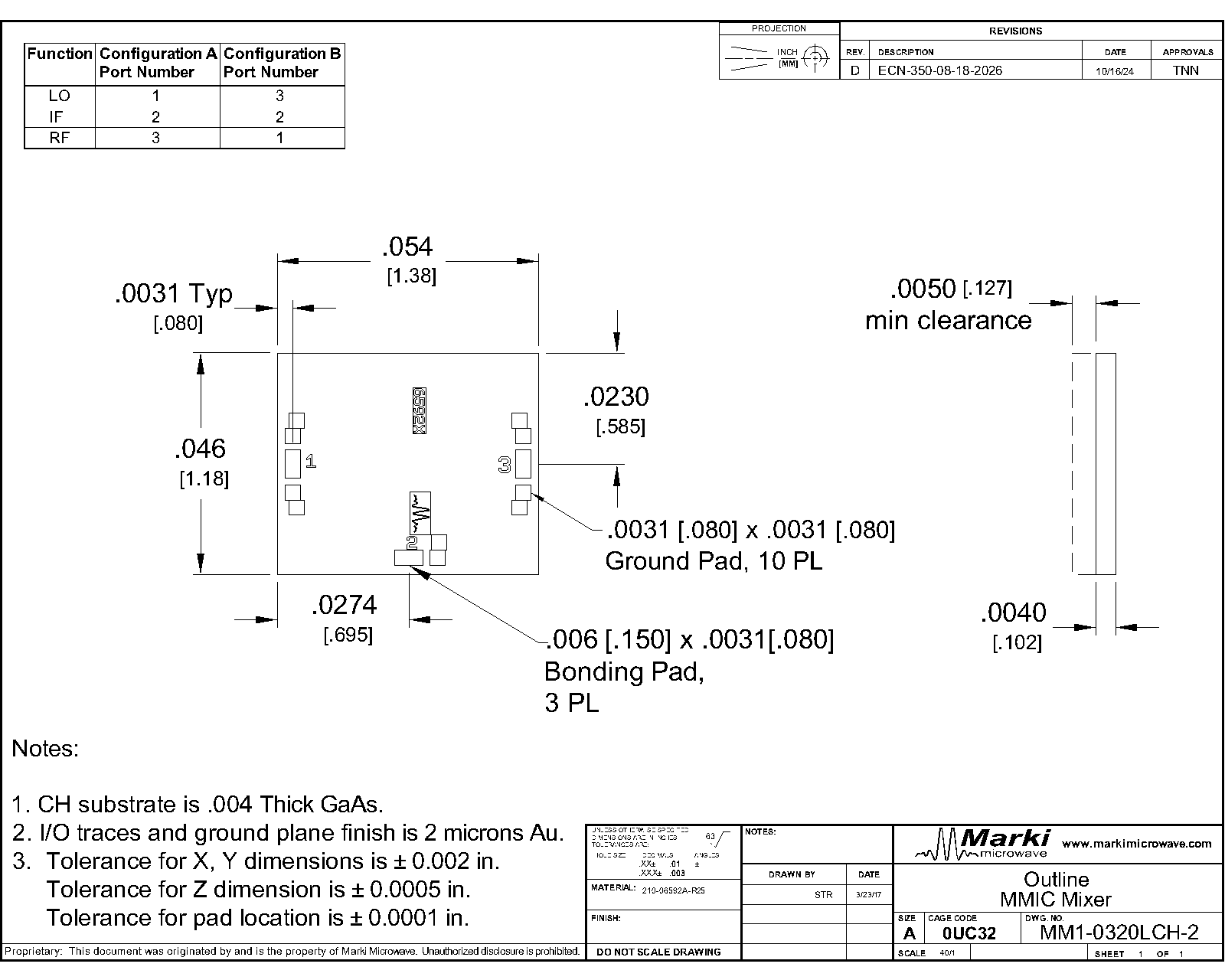

Diagram of the port configuration for MM1-0320LCH-2

Port Functions

Configuration A

Port	Function	Description
Port 1	LO	Port 1 is DC short and AC matched to 50 Ω from 3 to 20 GHz. Blocking capacitor is optional.
Port 2	IF	Port 2 is DC coupled to the diodes. Blocking capacitor is optional.
Port 3	RF	Port 3 is DC short and AC matched to 50 Ω from 3 to 20 GHz. Blocking capacitor is optional.

Configuration B

Port	Function	Description
Port 1	RF	Port 1 is DC short and AC matched to 50 Ω from 3 to 20 GHz. Blocking capacitor is optional.
Port 2	IF	Port 2 is DC coupled to the diodes. Blocking capacitor is optional.
Port 3	LO	Port 3 is DC short and AC matched to 50 Ω from 3 to 20 GHz. Blocking capacitor is optional.

Specifications

Absolute Maximum Ratings

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
Port 1 DC Current	15	mA
Port 2 DC Current	15	mA
Port 3 DC Current	30	mA
RF Power Handling (RF+LO), 100°C	20	dBm
RF Power Handling (RF+LO), 25°C	25	dBm

Package Information

Parameter	Details	Rating
Dimensions	-	1.48 x 1.18 mm

Recommended Operating Conditions

Parameter	Min	Nominal	Max	Unit
LO Input Power	5	-	9	-

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50Ω system. All bare die are 100% DC tested and 100% visually inspected. RF testing is performed on a sample basis to verify conformance to datasheet guaranteed specifications.

Parameter	Port Configuration	Test Conditions	Min	Typ	Max	Unit
Conversion Loss	A	LO/RF=3-20GHz IF=0.2-4GHz LO drive level=7dBm	-	10.5	-	dB
Conversion Loss	A	LO/RF=3-20GHz IF=DC-0.2GHz LO drive level=7dBm	-	8	11.5	dB
IF Frequency Range	A	-	0	-	4	GHz
Input IP3	A	LO/RF=3-20GHz IF=DC-4GHz LO drive level=5-9dBm	-	10	-	dBm
Input P1dB	A	LO/RF=3-20GHz IF=DC-4GHz LO drive level=5-9dBm	-	0	-	dBm
LO Frequency Range	A	-	3	-	20	GHz
LO-RF Isolation	A	-	-	54	-	dB
RF Frequency Range	A	-	3	-	20	GHz
Conversion Loss	B	LO/RF=3-20GHz IF=0.2-4GHz LO drive level=7dBm	-	12	-	dB
Conversion Loss	B	LO/RF=3-20GHz IF=DC-0.2GHz LO drive level=7dBm	-	9	13	dB
Input IP3	B	LO/RF=3-20GHz IF=DC-4GHz LO drive level=5-9dBm	-	11	-	dBm
Input P1dB	B	LO/RF=3-20GHz IF=DC-4GHz LO drive level=5-9dBm	-	0	-	dBm

Parameter	Port Configuration	Test Conditions	Min	Typ	Max	Unit
Conversion Loss	A	LO/RF=3-20GHz IF=0.2-4GHz LO drive level=7dBm	-	10.5	-	dB
Conversion Loss	A	LO/RF=3-20GHz IF=DC-0.2GHz LO drive level=7dBm	-	8	11.5	dB
IF Frequency Range	A	-	0	-	4	GHz
Input IP3	A	LO/RF=3-20GHz IF=DC-4GHz LO drive level=5-9dBm	-	10	-	dBm
Input P1dB	A	LO/RF=3-20GHz IF=DC-4GHz LO drive level=5-9dBm	-	0	-	dBm
LO Frequency Range	A	-	3	-	20	GHz
LO-RF Isolation	A	-	-	54	-	dB
RF Frequency Range	A	-	3	-	20	GHz
Conversion Loss	B	LO/RF=3-20GHz IF=0.2-4GHz LO drive level=7dBm	-	12	-	dB
Conversion Loss	B	LO/RF=3-20GHz IF=DC-0.2GHz LO drive level=7dBm	-	9	13	dB
Input IP3	B	LO/RF=3-20GHz IF=DC-4GHz LO drive level=5-9dBm	-	11	-	dBm
Input P1dB	B	LO/RF=3-20GHz IF=DC-4GHz LO drive level=5-9dBm	-	0	-	dBm

Typical Performance Plots

Conversion Loss (dB) graph for MM1-0320LCH-2

Relative IF Response (dB) graph for MM1-0320LCH-2

Configuration A Conversion Loss vs. LO Power (dB) graph for MM1-0320LCH-2

Configuration B Conversion Loss vs. LO Power (dB) graph for MM1-0320LCH-2

LO to RF Isolation (dB) graph for MM1-0320LCH-2

LO to IF Isolation (dB) graph for MM1-0320LCH-2

RF to IF Isolation (dB) graph for MM1-0320LCH-2

IF Return Loss (dB) graph for MM1-0320LCH-2

RF Return Loss (dB) graph for MM1-0320LCH-2

LO Return Loss (dB) graph for MM1-0320LCH-2

Output IP3 (dBm) graph for MM1-0320LCH-2

Configuration A Input IP3 vs LO Power (dBm) graph for MM1-0320LCH-2

Configuration A Output IP3 vs LO Power (dBm) graph for MM1-0320LCH-2

Configuration B Input IP3 vs LO Power (dBm) graph for MM1-0320LCH-2

Configuration B Output IP3 vs LO Power (dBm) graph for MM1-0320LCH-2

Even LO Harmonic to RF Isolation (dB) graph for MM1-0320LCH-2

Even LO Harmonic to IF Isolation (dB) graph for MM1-0320LCH-2

Odd LO Harmonic to RF Isolation (dB) graph for MM1-0320LCH-2

Odd LO Harmonic to IF Isolation (dB) graph for MM1-0320LCH-2

2RF x 2LO Spurious Suppression (dBc) -10 dBm RF Input graph for MM1-0320LCH-2

2IF x 1LO Spurious Suppression (dBc) -10 dBm IF input graph for MM1-0320LCH-2

MM1-0320LS - Typical Performance Plots

Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
