MM1-0312SCH-2_GaAs MMIC Double Balanced Mixer

Device Overview

General Description

The MM1-0312S is a passive double balanced MMIC mixer. It features excellent conversion loss, superior isolations and spurious performance across a broad bandwidth, in a highly miniaturized form factor. Accurate, nonlinear simulation models are available for Microwave Office® through the Marki Microwave PDK. The MM1-0312S is available as a wire bondable chip or an SMA connectorized package. The MM1-0312S is a superior alternative to Marki Microwave carrier and packaged M1 and M3 mixers.

Features

Compact Chip Style Package (0.054” x 0.046”x0.004”)
CAD Optimized for Superior Isolation and Spurious Response
Broadband Performance
Excellent Unit-to-Unit Repeatability
Fully nonlinear software models available with Marki PDK for Microwave Office®
RoHS Compliant

Applications

N/A

Functional Block Diagram

Part Ordering Options

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MM1-0312SS	GaAs MMIC Double Balanced Mixer	S	Standard	REACH RoHS	Released	EAR99
MM1-0312SCH-2	GaAs MMIC Double Balanced Mixer	CH	-	REACH RoHS	Released	EAR99

Part Number

Description

Package

Connectors

Green Status

Product Lifecycle

Export Classification

MM1-0312SS

GaAs MMIC Double Balanced Mixer

Standard

REACH

RoHS

Released

EAR99

MM1-0312SCH-2

GaAs MMIC Double Balanced Mixer

REACH

RoHS

Released

EAR99

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MM1-0312SS	GaAs MMIC Double Balanced Mixer	S	Standard	REACH RoHS	Released	EAR99
MM1-0312SCH-2	GaAs MMIC Double Balanced Mixer	CH	-	REACH RoHS	Released	EAR99

Part Number

Description

Package

Connectors

Green Status

Product Lifecycle

Export Classification

MM1-0312SS

GaAs MMIC Double Balanced Mixer

Standard

REACH

RoHS

Released

EAR99

MM1-0312SCH-2

GaAs MMIC Double Balanced Mixer

REACH

RoHS

Released

EAR99

Device Overview
Port Configuration and Functions
- Port Diagram
- Port Functions
Revision History
Specifications
Die Mounting Recommendations
- Mounting and Bonding Recommendations

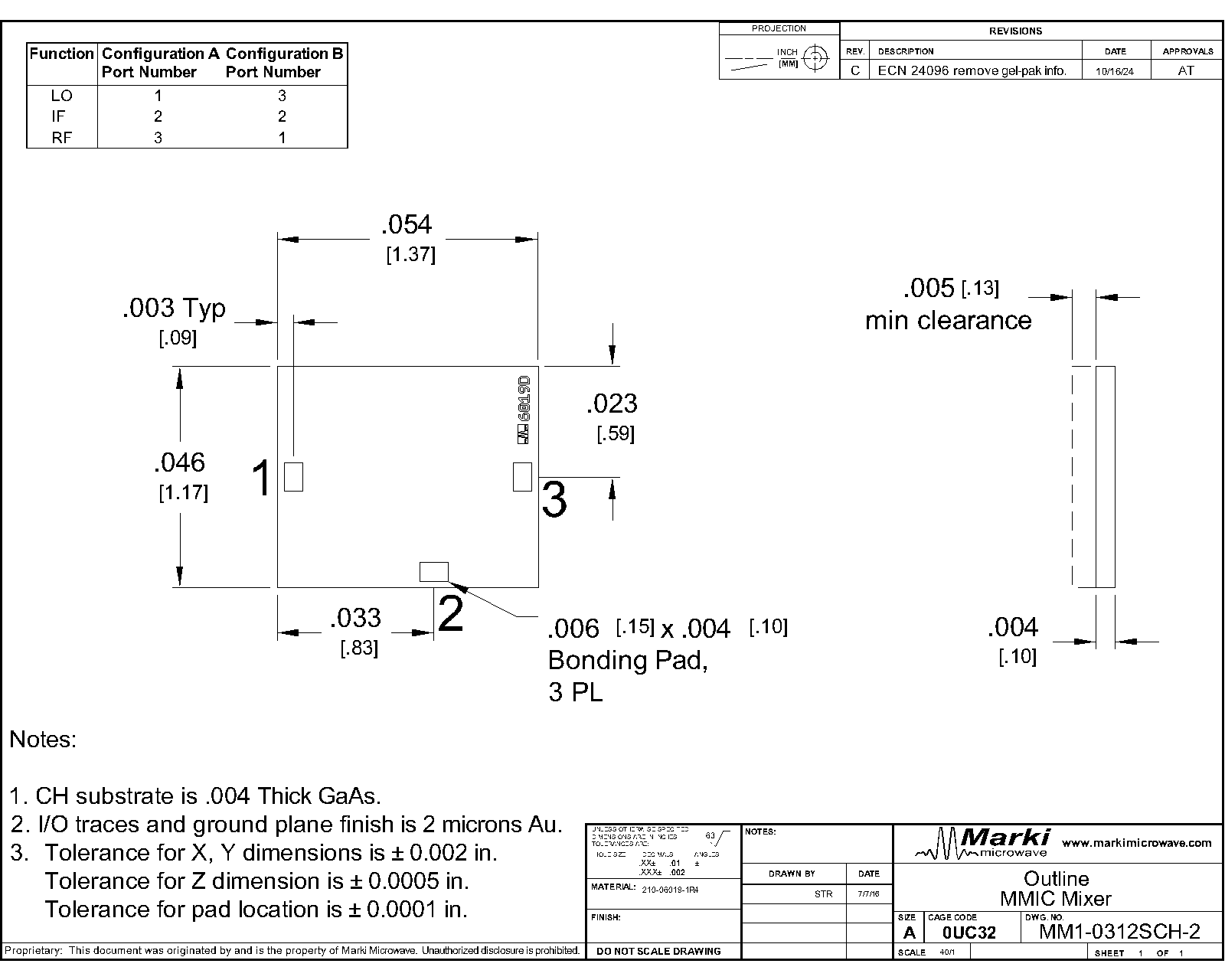

Mechanical Data
- Outline Drawing
Notes

Revision History

Revision Code	Revision Date	Comment
A	2017-08-01	Die shrunk from 1.48 x 1.18 mm2 to 1.37 x 1.17 mm2. CH package tolerance added.
B	2020-01-01	Updated CH package Outline Dimensions

Port Configuration and Functions

Port Diagram

Diagram of the port configuration for MM1-0312SCH-2

Port Functions

Configuration A

Port	Function	Description
Port 1	LO	Port 1 is DC short and AC matched to 50 Ω from 3 to 12 GHz. Blocking capacitor is optional.
Port 2	IF	Port 2 is DC coupled to the diodes. Blocking capacitor is optional.
Port 3	RF	Port 3 is DC short and AC matched to 50 Ω from 3 to 12 GHz. Blocking capacitor is optional.

Configuration B

Port	Function	Description
Port 1	RF	Port 1 is DC short and AC matched to 50 Ω from 3 to 12 GHz. Blocking capacitor is optional.
Port 2	IF	Port 2 is DC coupled to the diodes. Blocking capacitor is optional.
Port 3	LO	Port 3 is DC short and AC matched to 50 Ω from 3 to 12 GHz. Blocking capacitor is optional.

Specifications

Absolute Maximum Ratings

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
Port 2 DC Current	50	mA
RF Power Handling (RF+LO), 100°C	20	dBm
RF Power Handling (RF+LO), 25°C	25	dBm

Package Information

Parameter	Details	Rating
Dimensions	-	1.37 x 1.17 mm

Recommended Operating Conditions

Parameter	Min	Nominal	Max	Unit
LO Input Power	17	-	23	-

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50Ω system. All bare die are 100% DC tested and 100% visually inspected. RF testing is performed on a sample basis to verify conformance to datasheet guaranteed specifications. Consult factory for more information.

Parameter	Port Configuration	Test Conditions	Min	Typ	Max	Unit
Conversion Loss	A	LO/RF=3-12 GHz IF=DC-4.5 GHz LO Drive Level=20dBm	-	7.5	-	dB
Input IP3	A	LO/RF=3-12 GHz IF=DC-4.5 GHz LO Drive Level=18-23dBm	-	24	-	dBm
Input P1dB	A	LO/RF=3-12 GHz IF=DC-4.5 GHz LO Drive Level=18-23dBm	-	14	-	dBm
Conversion Loss	B	LO/RF=3-12 GHz IF=DC-4.5 GHz LO Drive Level=20dBm	-	9	-	dB
Input IP3	B	LO/RF=3-12 GHz IF=DC-4.5 GHz LO Drive Level=18-23dBm	-	26	-	dBm
Input P1dB	B	LO/RF=3-12 GHz IF=DC-4.5 GHz LO Drive Level=18-23dBm	-	14	-	dBm
IF Frequency Range	-	-	0	-	4.5	GHz
LO Frequency Range	-	-	3	-	12	GHz
LO-IF Isolation	-	LO/RF=3-12 GHz IF=DC-4.5 GHz LO Drive Level=18-23dBm	-	31	-	dB
LO-RF Isolation	-	LO/RF=3-12 GHz IF=DC-4.5 GHz LO Drive Level=18-23dBm	-	47	-	dB
RF Frequency Range	-	-	3	-	12	GHz
RF-IF Isolation	-	LO/RF=3-12 GHz IF=DC-4.5 GHz LO Drive Level=18-23dBm	-	36	-	dB

Parameter	Port Configuration	Test Conditions	Min	Typ	Max	Unit
Conversion Loss	A	LO/RF=3-12 GHz IF=DC-4.5 GHz LO Drive Level=20dBm	-	7.5	-	dB
Input IP3	A	LO/RF=3-12 GHz IF=DC-4.5 GHz LO Drive Level=18-23dBm	-	24	-	dBm
Input P1dB	A	LO/RF=3-12 GHz IF=DC-4.5 GHz LO Drive Level=18-23dBm	-	14	-	dBm
Conversion Loss	B	LO/RF=3-12 GHz IF=DC-4.5 GHz LO Drive Level=20dBm	-	9	-	dB
Input IP3	B	LO/RF=3-12 GHz IF=DC-4.5 GHz LO Drive Level=18-23dBm	-	26	-	dBm
Input P1dB	B	LO/RF=3-12 GHz IF=DC-4.5 GHz LO Drive Level=18-23dBm	-	14	-	dBm
IF Frequency Range	-	-	0	-	4.5	GHz
LO Frequency Range	-	-	3	-	12	GHz
LO-IF Isolation	-	LO/RF=3-12 GHz IF=DC-4.5 GHz LO Drive Level=18-23dBm	-	31	-	dB
LO-RF Isolation	-	LO/RF=3-12 GHz IF=DC-4.5 GHz LO Drive Level=18-23dBm	-	47	-	dB
RF Frequency Range	-	-	3	-	12	GHz
RF-IF Isolation	-	LO/RF=3-12 GHz IF=DC-4.5 GHz LO Drive Level=18-23dBm	-	36	-	dB

Typical Performance

Conversion Loss (dB) graph for MM1-0312SCH-2

Relative IF Response (dB) graph for MM1-0312SCH-2

Configuration A Conversion Loss vs. LO Power (dB) graph for MM1-0312SCH-2

Configuration B Conversion Loss vs. LO Power (dB) graph for MM1-0312SCH-2

LO to RF Isolation (dB) graph for MM1-0312SCH-2

LO to IF Isolation (dB) graph for MM1-0312SCH-2

RF to IF Isolation (dB) graph for MM1-0312SCH-2

RF Return Loss (dB) graph for MM1-0312SCH-2

LO Return Loss (dB) graph for MM1-0312SCH-2

IF Return Loss (dB) graph for MM1-0312SCH-2

Output IP3 (dBm) graph for MM1-0312SCH-2

Even LO Harmonic to RF Isolation (dB) graph for MM1-0312SCH-2

Even LO Harmonic to IF Isolation (dB) graph for MM1-0312SCH-2

Odd LO Harmonic to RF Isolation (dB) graph for MM1-0312SCH-2

Odd LO Harmonic to IF Isolation (dB) graph for MM1-0312SCH-2

2RF x 2LO Spurious Suppression (dBc) -10 dBm RF Input graph for MM1-0312SCH-2

2IF x 1LO Spurious Suppression (dBc) -10 dBm IF input graph for MM1-0312SCH-2

MM1-0312SS - Typical Performance

Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
