MMIQ-0218LCH-1_Low LO Drive Passive GaAs MMIC IQ Mixer

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MMIQ-0218LXPC	Low LO Drive Passive GaAs MMIC IQ Mixer	XPC	Standard	REACH RoHS	Released	EAR99
MMIQ-0218LCH-1	Low LO Drive Passive GaAs MMIC IQ Mixer	CH	-	REACH RoHS	Released	EAR99
MMIQ-0218LCH-2	Low LO Drive Passive GaAs MMIC IQ Mixer	CH	-	REACH RoHS	Released	EAR99

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MMIQ-0218LXPC	Low LO Drive Passive GaAs MMIC IQ Mixer	XPC	Standard	REACH RoHS	Released	EAR99
MMIQ-0218LCH-1	Low LO Drive Passive GaAs MMIC IQ Mixer	CH	-	REACH RoHS	Released	EAR99
MMIQ-0218LCH-2	Low LO Drive Passive GaAs MMIC IQ Mixer	CH	-	REACH RoHS	Released	EAR99

Revision History

Revision Code	Revision Date	Comment
-	2019-09-01	Datasheet Initial Release
A	2019-10-01	Updated Max Power Handling

Port Configuration and Functions

Port Diagram

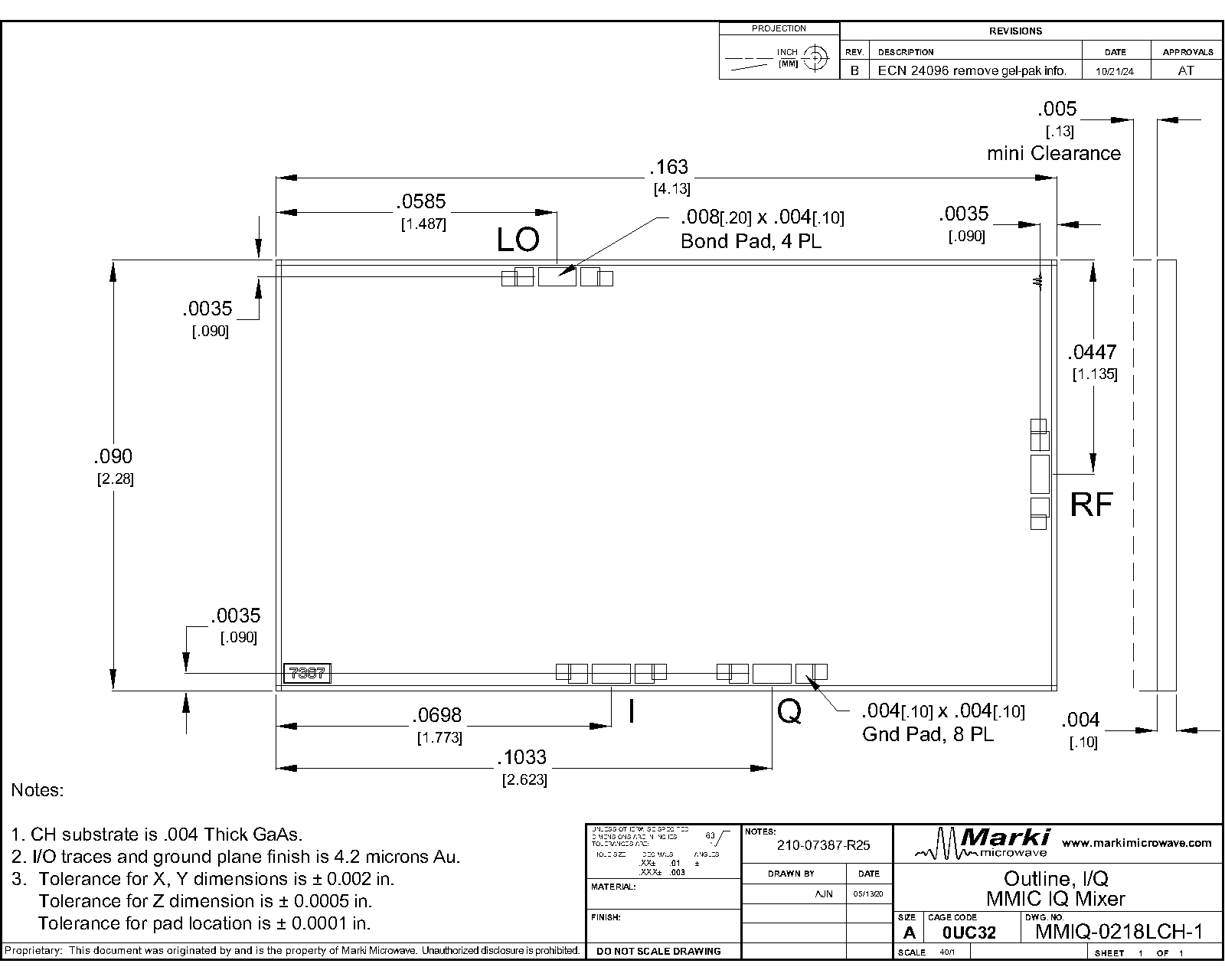

A top-down view of the MMIQ-0218L’s CH-1 package outline drawing is shown below. The mixer may be operated as either a downconverter or an upconverter. Use of the RF or IF as the input or output port will depend on the application. See Application Information for input and output port configuration for common applications.

Diagram of the port configuration for MMIQ-0218LCH-1

Port Functions

Port	Function	Description
GND	Ground	CH package ground path is taken through the substrate.
I	I Input / Output	I port is diode coupled and AC matched to 50Ω over the specified I port frequency range.
LO	LO Input	LO port is DC short and AC matched to 50Ω over the specified LO frequency range.
Q	Q Input / Output	Q port is diode coupled and AC matched to 50Ω over the specified Q port frequency range.
RF	RF Input / Output	RF port is DC short and AC matched to 50Ω over the specified RF frequency range.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
Port 3 DC Current	30	mA
Port 4 DC Current	30	mA
Power Handling, at any Port	26	dBm

Package Information

Parameter	Details	Rating
ESD	250 to < 500 Volts	HBM Class 1A
Dimensions	-	4.13 x 2.28 mm

Recommended Operating Conditions

Parameter	Min	Nominal	Max	Unit
RF/IF Input Power	-	-	5	dBm
LO Input Power	13	15	20	dBm

The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications. Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for a down conversion application with a +17 dBm sine wave LO input. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C. All bare die are 100% DC tested and visually inspected.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Amplitude Balance	RF/LO = 2 - 18 GHz I/Q = 0.091 GHz	2	18	-	0.5	-	dB
Conversion Loss	RF/LO = 2 - 18 GHz I/Q = 0.2 - 3 GHz	2	18	-	11.5	15	dB
Conversion Loss	RF/LO = 2 - 18 GHz I/Q = DC - 0.2 GHz	2	18	-	11	13	dB
IF Frequency Range	-	-	-	0	-	3	GHz
Image Rejection ¹	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	27	-	dBc
Image Reject/Single Sideband Conversion Loss	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	8	11	dB
Input 1 dB Gain Compression Point, Combined Upconversion	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	5	-	dBm
Input 1dB Gain Compression Point, Downconversion	RF/LO = 2 - 18 GHz I/Q/IF = 0.091 GHz	2	18	-	5	-	dBm
Input 1 dB Gain Compression Point, I/Q Upconversion	RF/LO = 2 - 18 GHz I/Q = 0.091 GHz	2	18	-	2	-	dBm
Input IP3	RF/LO = 2 - 18 GHz I = 0.091 GHz	2	18	-	16	-	dBm
Input IP3	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	17	-	dBm
Input IP3	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	18	-	dBm
Input IP3	RF/LO = 2 - 18 GHz I/Q = 0.091 GHz	2	18	-	16	-	dBm
LO Frequency Range	-	-	-	2	-	18	GHz
LO-IF Isolation	IF/LO = 2 - 18 GHz	2	18	-	28	-	dB
LO-RF Isolation	RF/LO = 2 - 18 GHz	2	18	-	58	-	dB
Noise Figure ²	RF/LO = 2 - 18 GHz I/Q = DC – 0.2 GHz	2	18	-	12	-	dB
Phase Balance	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	5	-	°
Q Port Frequency Range	-	-	-	0	-	3	GHz
RF Frequency Range	-	-	-	2	-	18	GHz
RF-IF Isolation	RF/IF = 2 - 18 GHz	2	18	-	36	-	dB

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Amplitude Balance	RF/LO = 2 - 18 GHz I/Q = 0.091 GHz	2	18	-	0.5	-	dB
Conversion Loss	RF/LO = 2 - 18 GHz I/Q = 0.2 - 3 GHz	2	18	-	11.5	15	dB
Conversion Loss	RF/LO = 2 - 18 GHz I/Q = DC - 0.2 GHz	2	18	-	11	13	dB
IF Frequency Range	-	-	-	0	-	3	GHz
Image Rejection ¹	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	27	-	dBc
Image Reject/Single Sideband Conversion Loss	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	8	11	dB
Input 1 dB Gain Compression Point, Combined Upconversion	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	5	-	dBm
Input 1dB Gain Compression Point, Downconversion	RF/LO = 2 - 18 GHz I/Q/IF = 0.091 GHz	2	18	-	5	-	dBm
Input 1 dB Gain Compression Point, I/Q Upconversion	RF/LO = 2 - 18 GHz I/Q = 0.091 GHz	2	18	-	2	-	dBm
Input IP3	RF/LO = 2 - 18 GHz I = 0.091 GHz	2	18	-	16	-	dBm
Input IP3	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	17	-	dBm
Input IP3	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	18	-	dBm
Input IP3	RF/LO = 2 - 18 GHz I/Q = 0.091 GHz	2	18	-	16	-	dBm
LO Frequency Range	-	-	-	2	-	18	GHz
LO-IF Isolation	IF/LO = 2 - 18 GHz	2	18	-	28	-	dB
LO-RF Isolation	RF/LO = 2 - 18 GHz	2	18	-	58	-	dB
Noise Figure ²	RF/LO = 2 - 18 GHz I/Q = DC – 0.2 GHz	2	18	-	12	-	dB
Phase Balance	RF/LO = 2 - 18 GHz IF = 0.091 GHz	2	18	-	5	-	°
Q Port Frequency Range	-	-	-	0	-	3	GHz
RF Frequency Range	-	-	-	2	-	18	GHz
RF-IF Isolation	RF/IF = 2 - 18 GHz	2	18	-	36	-	dB

^[1] Image Rejection and Single sideband performance plots are defined by the upper sideband (USB) or lower sideband (LSB) with respect to the LO signal. Plots are defined by which sideband is selected by the external IF quadrature hybrid.

^[2] Mixer Noise Figure given for single sided I/Q conversion typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz. Image reject downconversion will show noise figure improvements in the presence of image noise.

Typical Performance Plots

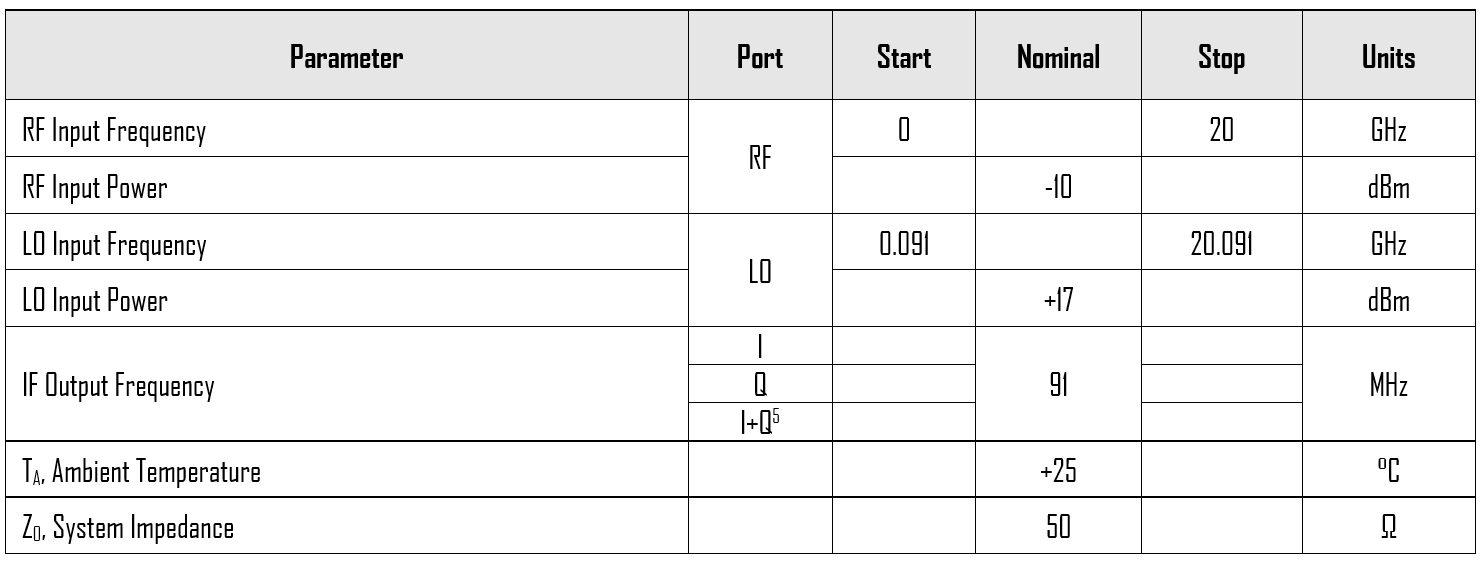

The test conditions and frequency plan below applies to all following sections, unless otherwise specified.

Mmiq 0218 Lch 2 Typical Performance Plot Copy

I output means that the IF output signal is measured at the I port of the mixer and the Q port is loaded. Q output means the IF output signal is measured at the Q port of the mixer while the I port is loaded. SSB in phase input means that a low frequency quad hybrid is used to split the input, and the in-phase component is applied to the I port and the 90-degree component is applied to the Q port. SSB out of phase input means that a low frequency quad hybrid is used to split the input, and the in-phase component is applied to the Q port and the 90-degree component is applied to the I port.

⁵ I+Q measurements taken with an external quadrature hybrid attached to the I and Q ports of the mixer. Orientation depends on up conversion or down conversion measurement.

I/Q Conversion Loss (dB) graph for MMIQ-0218LCH-1

LO to RF Isolation (dB) graph for MMIQ-0218LCH-1

LO to IF Isolation (dB) graph for MMIQ-0218LCH-1

RF to IF Isolation (dB) graph for MMIQ-0218LCH-1

Relative IF Response (dB) graph for MMIQ-0218LCH-1

I/Q Amplitude Balance vs. LO Power (dB) graph for MMIQ-0218LCH-1

I/Q Quadrature Phase Balance vs. LO Power(°) graph for MMIQ-0218LCH-1

LO Return Loss (dB) graph for MMIQ-0218LCH-1

RF Return Loss (dB) graph for MMIQ-0218LCH-1

IF Return Loss (dB) graph for MMIQ-0218LCH-1

LSB I+Q Downconversion Loss vs. LO Power (dB) graph for MMIQ-0218LCH-1

LSB I+Q Upconversion Sideband Suppression vs. LO Power (dBc) graph for MMIQ-0218LCH-1

LSB I+Q Downconversion Image Rejection vs. LO Power (dBc) graph for MMIQ-0218LCH-1

USB I+Q Downconversion Image Rejection vs. LO Power (dBc) graph for MMIQ-0218LCH-1

USB I+Q Upconversion Sideband Suppression vs. LO Power (dBc) graph for MMIQ-0218LCH-1

Image Reject Downconversion Input IP3 vs. LO Power (dBm) graph for MMIQ-0218LCH-1

Image Rejection DownConversion Output IP3 vs. LO Power (dBm) graph for MMIQ-0218LCH-1

I/Q Downconversion Input IP3 (dBm) graph for MMIQ-0218LCH-1

Single Sideband Upconversion Input IP3 vs. LO Power (dBm) graph for MMIQ-0218LCH-1

Single Sideband Upconversion Output IP3 vs. LO Power (dBm) graph for MMIQ-0218LCH-1

I/Q Upconversion Input IP3 (dBm) graph for MMIQ-0218LCH-1

I/Q Upconversion Output IP3 (dBm) graph for MMIQ-0218LCH-1

Downconversion Conversion Loss Compression (dB) 17 dBm LO Power graph for MMIQ-0218LCH-1

Combined Conversion Loss Compression (dB) 17 dBm LO Power, 5 dBm Input Power graph for MMIQ-0218LCH-1

Downconversion Conversion Loss Compression (dB) 17 dBm LO Power, 5 dBm RF Power graph for MMIQ-0218LCH-1

Upconversion Conversion Loss Compression (dB) 17 dBm LO Power, 2 dBm IF Power graph for MMIQ-0218LCH-1

Vector Modulator Insertion Loss (dB) graph for MMIQ-0218LCH-1

Amplitude Balance Variation (dB) 20 Units graph for MMIQ-0218LCH-1

Phase Balance Variation (dB) 20 Units graph for MMIQ-0218LCH-1

L-R Isolation Variation (dB) 20 Units graph for MMIQ-0218LCH-1

Typical Harmonic Performance

LO harmonics are measured at IF/RF ports with non-operational port terminated with a 50 Ω load. RF/IF harmonics are measured with a fixed LO of 6.337 GHz at 17 dBm. Note that LO/IF/RF Harmonics are measured across more than the operating band of the mixer.

Even LO Harmonic to RF Isolation (dB) graph for MMIQ-0218LCH-1

Even LO Harmonic to IF Isolation (dB) graph for MMIQ-0218LCH-1

Odd LO Harmonic to RF Isolation (dB) graph for MMIQ-0218LCH-1

Odd LO Harmonic to IF Isolation (dB) graph for MMIQ-0218LCH-1

Even R-I Harmonic Isolation (dB) graph for MMIQ-0218LCH-1

Odd R-I Harmonics Isolation (dB) graph for MMIQ-0218LCH-1

Even I-R Harmonic Isolation (dB) graph for MMIQ-0218LCH-1

MMIQ-0218LXPC - Typical Performance Plots

The test conditions and frequency plan below applies to all following sections, unless otherwise specified.

Mmiq 0218 Lxpc Typical Performance Plot

I output means that the IF output signal is measured at the I port of the mixer and the Q port is loaded. Q output means the IF output signal is measured at the Q port of the mixer while the I port is loaded. SSB in phase input means that a low frequency quad hybrid is used to split the input, and the in-phase component is applied to the I port and the 90-degree component is applied to the Q port. SSB out of phase input means that a low frequency quad hybrid is used to split the input, and the in-phase component is applied to the Q port and the 90-degree component is applied to the I port.

⁵ I+Q measurements taken with an external quadrature hybrid attached to the I and Q ports of the mixer. Orientation depends on up conversion or down conversion measurement.

Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.

I/Q Conversion Loss (dB) graph for MMIQ-0218LXPC

LO to RF Isolation (dB) graph for MMIQ-0218LXPC

LO to IF Isolation (dB) graph for MMIQ-0218LXPC

RF to IF Isolation (dB) graph for MMIQ-0218LXPC

Relative IF Response (dB) graph for MMIQ-0218LXPC

I/Q Amplitude Balance vs. LO Power (dB) graph for MMIQ-0218LXPC

I/Q Quadrature Phase Balance vs. LO Power (°) graph for MMIQ-0218LXPC

LO Return Loss (dB) graph for MMIQ-0218LXPC

RF Return Loss (dB) graph for MMIQ-0218LXPC

IF Return Loss (dB) graph for MMIQ-0218LXPC

LSB I+Q Downconversion Loss vs. LO Power (dB) graph for MMIQ-0218LXPC

LSB I+Q Upconversion Loss vs. LO Power (dB) graph for MMIQ-0218LXPC

LSB I+Q Downconversion Image Rejection vs. LO Power (dBc) graph for MMIQ-0218LXPC

LSB I+Q Upconversion Sideband Suppression vs. LO Power (dBc) graph for MMIQ-0218LXPC

USB I+Q Downconversion Image Rejection vs. LO Power (dBc) graph for MMIQ-0218LXPC

USB I+Q Upconversion Sideband Suppression vs. LO Power (dBc) graph for MMIQ-0218LXPC

Image Rejection Downconversion Input IP3 vs. LO Power (dBm) graph for MMIQ-0218LXPC

Image Rejection DownConversion Output IP3 vs. LO Power (dBm) graph for MMIQ-0218LXPC

I/Q Downconversion Input IP3 (dBm) graph for MMIQ-0218LXPC

I/Q Downconversion Output IP3 (dBm) graph for MMIQ-0218LXPC

Single Sideband Upconversion Input IP3 vs. LO Power (dBm) graph for MMIQ-0218LXPC

Single Sideband Upconversion Output IP3 vs. LO Power (dBm) graph for MMIQ-0218LXPC

I/Q Upconversion Input IP3 (dBm) graph for MMIQ-0218LXPC

I/Q Upconversion Output IP3 (dBm) graph for MMIQ-0218LXPC

Downconversion Conversion Loss Compression (dB) 17 dBm LO Power graph for MMIQ-0218LXPC

Combined Conversion Loss Compression (dB) 17 dBm LO Power, 5 dBm Input Power graph for MMIQ-0218LXPC

Downconversion Conversion Loss Compression (dB) 17 dBm LO Power, 5 dBm RF Power graph for MMIQ-0218LXPC

Upconversion Conversion Loss Compression (dB) 17 dBm LO Power, 2 dBm IF Power graph for MMIQ-0218LXPC

Vector Modulator Insertion Loss (dB) graph for MMIQ-0218LXPC

Amplitude Balance Variation (dB) 20 Units graph for MMIQ-0218LXPC

Phase Balance Variation (dB) 20 Units graph for MMIQ-0218LXPC

L-R Isolation Variation (dB) 20 Units graph for MMIQ-0218LXPC

MMIQ-0218LXPC - Typical Harmonic Performance

LO harmonics are measured at IF/RF ports with non-operational port terminated with a 50 Ω load. RF/IF harmonics are measured with a fixed LO of 6.337 GHz at 17 dBm. Note that LO/IF/RF Harmonics are measured across more than the operating band of the mixer.

Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
