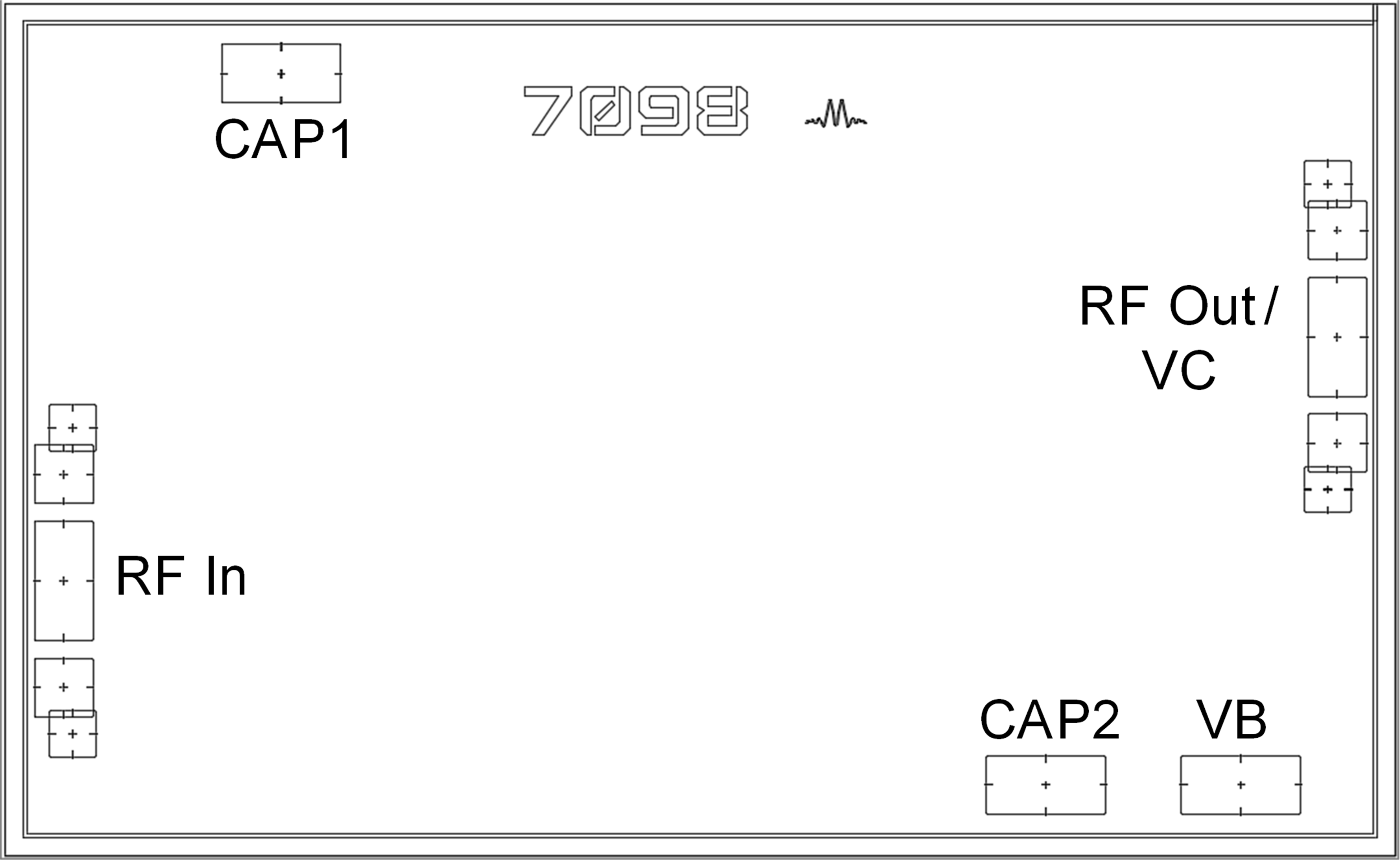

Port Diagram
A port diagram of the APM-7098CH is shown below.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The APM-7098 is a broadband distributed, low phase noise LO driver amplifier designed to provide a saturated +23 dBm output power with low DC power consumption. This amplifier uses GaAs HBT technology for low phase noise, and is optimized to provide enough power to drive the LO port of an S-diode mixer from 100 MHz to 18 GHz or of an H or L diode mixer from 100 MHz to 22 GHz. This amplifier can be operated with a variety of bias conditions for both low power and high-power applications.
Features
- -165 dBc/Hz phase noise at 10 kHz offset frequency
- +23 dBm output power
- Low DC power consumption
- Positive-only biasing
- No sequencing required
- Unconditionally stable
Applications
- Mobile test and measurement equipment
- Radar and satellite communications
- 5G transceivers
- Driver amplifier L,H,S – diode mixers
- NLTL Driver
- Suitable as a T3 drive
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| APM-7098PA | 0.1GHz – 22GHz Low Phase Noise Amplifier | PA | Standard | REACH RoHS | Released | EAR99 |
| APM-7098CH | 0.1GHz – 22GHz Low Phase Noise Amplifier | CH | - | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| APM-7098PA | 0.1GHz – 22GHz Low Phase Noise Amplifier | PA | Standard | REACH RoHS | Released | EAR99 |
| APM-7098CH | 0.1GHz – 22GHz Low Phase Noise Amplifier | CH | - | REACH RoHS | Released | EAR99 |
APM-7098CH
0.1GHz – 22GHz Low Phase Noise Amplifier
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Operation
- Mechanical Data
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2020-08-01 | Datasheet Initial Release |
| A | 2020-09-01 | Updated Maximum Thermal Specifications, Recommended Operating Conditions, Performance Plots, and Application Information |
APM-7098CH
0.1GHz – 22GHz Low Phase Noise Amplifier
Port Configuration and Functions
APM-7098CH
0.1GHz – 22GHz Low Phase Noise Amplifier
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| CAP1 | Off-Chip Cap Port 1 | CAP1 is a pad that allows the user to attach additional off chip bypass capacitance to the VC supply line. A 0.1µF capacitor is recommended |  |
| CAP2 | Off-Chip Cap Port 2 | CAP2 is a pad that allows the user to attach additional off chip bypass capacitance to provide adequate AC grounding termination. A 0.1µF capacitor is recommended |  |
| GND | Ground | Backside of the IC must be connected to a DC/RF ground with high thermal and electrical conductivity. |  |
| RF In | RF Input | This is the RF Input port of the amplifier die. It is RF matched to 50 Ω, and is DC coupled. RF input pad is GSG with 175 µm pitch. |  |
| RF Out/VC | RF Output and Collector Supply Port | This is the amplifier die’s RF Output and positive VC supply voltage port. It is RF matched to 50 Ω and is DC coupled. RF output pad is GSG with 175 µm pitch. Must have less than 7:1 VSWR when operating with voltage larger 8V on VC |  |
| VB | Current Mirror Bias Port | Port VB is the DC voltage bias pad for the current mirror that control the collector current supplied to the amplifier. Larger voltages result in a higher current draw through port RF Out/VC, effectively functioning as a gain control pin of the amplifier. See section 3.6 for performance at different bias conditions. |  |
APM-7098CH
0.1GHz – 22GHz Low Phase Noise Amplifier
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may become inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Collector Positive Bias Voltage (Vc) | 9 | V |
| Maximum Operating Temperature | 85 | °C |
| Maximum Storage Temperature | 150 | °C |
| Max Junction Temperature for MTTF > 1E6 Hours | 125 | °C |
| Max Power Dissipation for MTTF of 1E6 hours at 85˚C Baseplate Temperature | 630 | mW |
| Minimum Operating Temperature | -40 | °C |
| Minimum Storage Temperature | -65 | °C |
| Output Load VSWR | 7 | - |
| Positive Bias Current (Ic) | 150 | mA |
| Positive DC Current Mirror Voltage (Vb) | 9 | V |
| RF Input Power | 20 | dBm |
| θJC, Junction to Case Thermal Resistance | 63 | ºC/W |

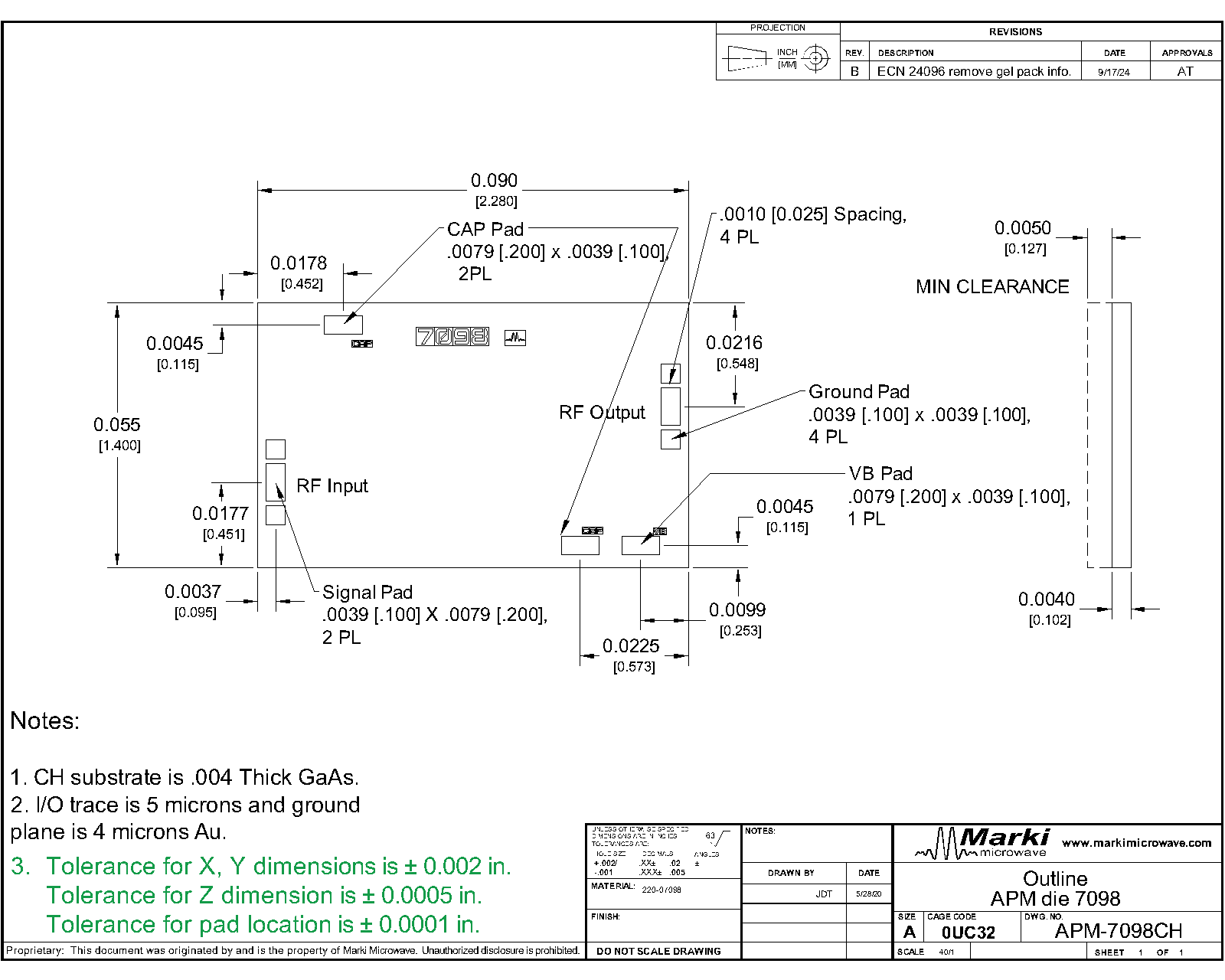

Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 2.28 x 1.40 mm |
Recommended Operating Conditions
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ambient Temperature | -40 | 25 | 85 | °C |
| Power Supply DC Voltage (VC) | 5 | 8 | 9 | V |
| Power Supply DC Current (with RF Input) 1 | - | - | 120 | mA |
| Power Supply DC Current (Ic) (No RF Input) 2 | 26 | 44 | 65 | mA |
[1] Operation above recommended max power supply DC current will result in reduced MTTF.
[2] Ic should be modified by changing bias voltage VB to maintain junction temperature within MTTF target for given operating conditions. Recommended operating current conditions without RF input applied. Please see typical performance plots on page 12 for relationship between RF input power and DC current draw.
APM-7098CH
0.1GHz – 22GHz Low Phase Noise Amplifier
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C. Die are 100% DC tested and RF tested on a per lot basis
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Current Consumption | 8V/6V | - | - | - | 35 | - | mA |
| Current Consumption | 8V/7V | - | - | - | 44 | - | mA |
| Current Consumption | 8V/8V | - | - | - | 54 | - | mA |
| Current Mirror, Ib | 8V/6V | - | - | - | 3.6 | - | mA |
| Current Mirror, Ib | 8V/7V | - | - | - | 4.4 | - | mA |
| Current Mirror, Ib | 8V/8V | - | - | - | 5.1 | - | mA |
| Input IP3 | 8V/7V bias, -20 dBm Input Power | 0.1 | 22 | - | 10 | - | dBm |
| Input Power for Saturation | 8V/7V bias | 0.1 | 22 | - | 10 | - | dBm |
| Input Return Loss | 8V/7V bias, -25 dBm Input Power | 0.1 | 22 | - | 19 | - | dB |
| Noise Figure | - | 0.1 | 21 | - | 4.6 | - | dB |
| Output IP3 | 8V/7V bias, -20 dBm Input Power | 0.1 | 22 | - | 24 | - | dBm |
| Output P1dB | 8V/7V bias | 0.5 | 22 | - | 18 | - | dBm |
| Output Return Loss | 8V/7V bias, -25 dBm Input Power | 0.1 | 22 | - | 13 | - | dB |
| Phase Noise @ 10 kHz Offset | +10 dBm Input power | 1 | - | - | -165 | - | dBc/Hz |
| Reverse Isolation | 8V/7V bias, -25 dBm Input Power | 0.1 | 22 | - | 38 | - | dB |
| Saturated Output Power | 8V/7V bias | 0.5 | 22 | 19 | 23 | - | dBm |
| Small Signal Gain | 8V/7V bias, -25 dBm Input Power | 0.1 | 22 | 7 | 14 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Current Consumption | 8V/6V | - | - | - | 35 | - | mA |
| Current Consumption | 8V/7V | - | - | - | 44 | - | mA |
| Current Consumption | 8V/8V | - | - | - | 54 | - | mA |
| Current Mirror, Ib | 8V/6V | - | - | - | 3.6 | - | mA |
| Current Mirror, Ib | 8V/7V | - | - | - | 4.4 | - | mA |
| Current Mirror, Ib | 8V/8V | - | - | - | 5.1 | - | mA |
| Input IP3 | 8V/7V bias, -20 dBm Input Power | 0.1 | 22 | - | 10 | - | dBm |
| Input Power for Saturation | 8V/7V bias | 0.1 | 22 | - | 10 | - | dBm |
| Input Return Loss | 8V/7V bias, -25 dBm Input Power | 0.1 | 22 | - | 19 | - | dB |
| Noise Figure | - | 0.1 | 21 | - | 4.6 | - | dB |
| Output IP3 | 8V/7V bias, -20 dBm Input Power | 0.1 | 22 | - | 24 | - | dBm |
| Output P1dB | 8V/7V bias | 0.5 | 22 | - | 18 | - | dBm |
| Output Return Loss | 8V/7V bias, -25 dBm Input Power | 0.1 | 22 | - | 13 | - | dB |
| Phase Noise @ 10 kHz Offset | +10 dBm Input power | 1 | - | - | -165 | - | dBc/Hz |
| Reverse Isolation | 8V/7V bias, -25 dBm Input Power | 0.1 | 22 | - | 38 | - | dB |
| Saturated Output Power | 8V/7V bias | 0.5 | 22 | 19 | 23 | - | dBm |
| Small Signal Gain | 8V/7V bias, -25 dBm Input Power | 0.1 | 22 | 7 | 14 | - | dB |
APM-7098CH
0.1GHz – 22GHz Low Phase Noise Amplifier
Typical Performance Plots
APM-7098CH
0.1GHz – 22GHz Low Phase Noise Amplifier
APM-7098PA - Typical Performance Plots
Operation above Max Ic = 120mA will result in reduced MTTF.
Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
APM-7098CH
0.1GHz – 22GHz Low Phase Noise Amplifier
APM-7098CH
0.1GHz – 22GHz Low Phase Noise Amplifier
APM-7098CH
0.1GHz – 22GHz Low Phase Noise Amplifier
APM-7098PA - Typical Performance Plots of Marki MT3H-0113H Driven With APM-7098PA
Specified LO input power is defined as the input to the APM-7098PA LO driver.
Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
APM-7098CH
0.1GHz – 22GHz Low Phase Noise Amplifier
APM-7098PA - 9 Time Domain Plots
Fast rise time is desirable for linear T3 mixer operation.
Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
APM-7098CH
0.1GHz – 22GHz Low Phase Noise Amplifier
Application Circuit
APM-7098CH
0.1GHz – 22GHz Low Phase Noise Amplifier
