APM-7098PA_0.1GHz – 22GHz Low Phase Noise Amplifier

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
APM-7098PA	0.1GHz – 22GHz Low Phase Noise Amplifier	PA	Standard	REACH RoHS	Released	EAR99

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
APM-7098PA	0.1GHz – 22GHz Low Phase Noise Amplifier	PA	Standard	REACH RoHS	Released	EAR99

Revision History

Revision Code	Revision Date	Comment
-	2020-08-01	Datasheet Initial Release
A	2020-09-01	Updated maximum thermal specifications, recommended operating conditions, performance plots and application information.
B	2020-10-01	Updated min output power and small signal gain specs.
C	2021-01-01	Updated thermal resistance and max input power specs.
D	2021-08-01	Updated thermal resistance.
E	2023-02-01	Added IP2 plots.

Port Configuration and Functions

Port Diagram

A port diagram of the APM-7098PA is shown below.

Diagram of the port configuration for APM-7098PA

Port Functions

Port	Function	Connector Type	Description
RF In	RF Input	2.92F	This is the RF Input port of the amplifier die. It is RF matched to 50 Ω, and has built-in DC blocking capacitors.
RF Out	RF Output	2.92M	Housing or outside of the coaxial cables must be connected to a DC/RF ground potential with high thermal and electrical conductivity.
VB	Base Current Mirror Bias Port	-	Port VB is the DC voltage bias for the current mirror that controls collector current supplied to the amplifier. Larger voltages result in a higher current draw through port VC, effectively functioning as a gain control pin of the amplifier. See section 3.6 for performance at different bias conditions.
VC	Collector DC Supply Port	-	Port VC is the DC voltage supply for that supplies the amplifier’s collector current. It is connected internally through the amplifier die’s RF output port.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may become inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
Collector Positive Bias Voltage (Vc)	9	V
Maximum Operating Temperature	85	°C
Maximum Storage Temperature	150	°C
Max Junction Temperature for MTTF > 1E6 Hours	125	°C
Max Power Dissipation for MTTF of 1E6 hours at 85˚C Baseplate Temperature	630	mW
Minimum Operating Temperature	-40	°C
Minimum Storage Temperature	-65	°C
Positive Bias Current (Ic)	150	mA
Positive DC Current Mirror Voltage (Vb)	9	V
RF Input Power	20	dBm
θJC, Junction to Case Thermal Resistance	63	ºC/W

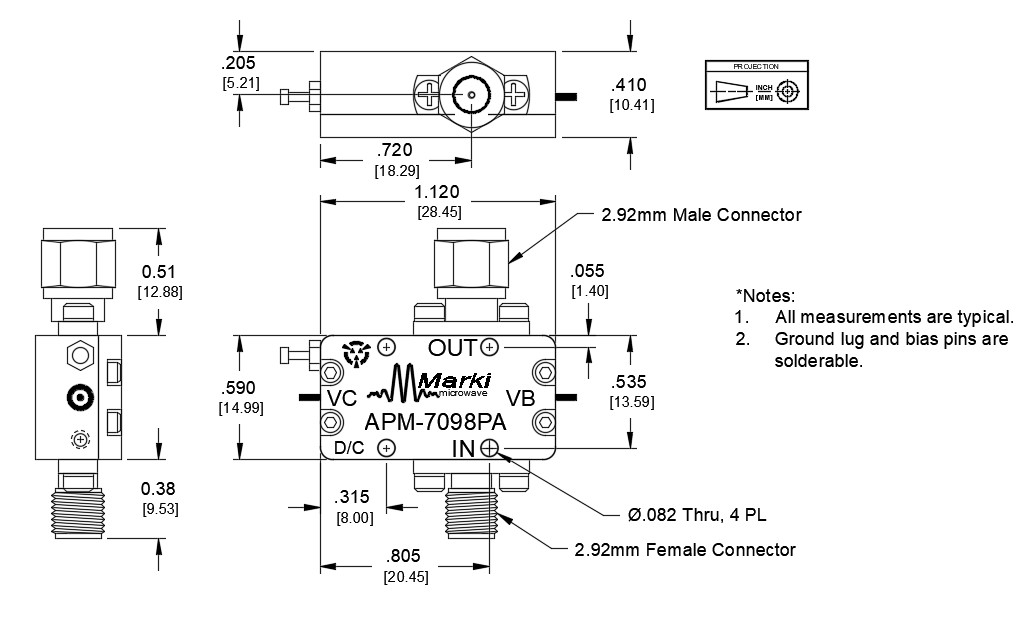

Package Information

Parameter	Details	Rating
Weight	Package name: PA	14.6g
Dimensions	-	28.45 x 14.99 mm

Recommended Operating Conditions

The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.

Parameter	Min	Nominal	Max	Unit
Ambient Temperature	-40	25	40	°C
Power Supply DC Voltage (VC)	5	8	9	V
Input Power for Saturation	7	10	16	dBm
Power Supply DC Current (with RF Input) ¹	-	-	150	mA
Power Supply DC Current (Ic) (No RF Input) ²	26	44	65	mA
Bias Voltage (VB)	5	7	9	V

^[1] Operation above recommended max power supply DC current will result in reduced MTTF.

^[2] Ic should be modified by changing bias voltage VB to maintain junction temperature within MTTF target for given operating conditions. Recommended operating current conditions without RF input applied. Please see typical performance plots on page 12 for relationship between RF input power and DC current draw.

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C. Die are 100% DC tested and RF tested on a per lot basis

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Current Consumption	8V/6V	-	-	-	35	-	mA
Current Consumption	8V/7V	-	-	-	44	-	mA
Current Consumption	-	-	-	-	54	-	mA
Current Mirror, Ib	8V/6V	-	-	-	3.6	-	mA
Current Mirror, Ib	8V/7V	-	-	-	4.4	-	mA
Current Mirror, Ib	8V/8V	-	-	-	5.1	-	mA
Input IP3	8V/7V bias, -20 dBm Input Power	0.1	22	-	10	-	dBm
Input Return Loss	8V/7V bias, -25 dBm Input Power	0.1	22	-	19	-	dB
Noise Figure	-	0.1	22	-	4.6	-	dB
Output IP3	8V/7V bias, -20 dBm Input Power	0.1	22	-	24	-	dBm
Output P1dB	8V/7V bias	0.5	22	-	18	-	dBm
Output Return Loss	8V/7V bias, -25 dBm Input Power	0.1	22	-	13	-	dB
Phase Noise @ 10 kHz Offset	+10 dBm Input power	-	1	-	-165	-	dBc/Hz
Reverse Isolation	8V/7V bias, -25 dBm Input Power	0.01	22	-	5	-	dB
Saturated Output Power ¹	8V/7V bias	0.5	22	19	23	-	dBm
Small Signal Gain	8V/7V bias, -25 dBm Input Power	0.1	22	-	14	-	dB

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Current Consumption	8V/6V	-	-	-	35	-	mA
Current Consumption	8V/7V	-	-	-	44	-	mA
Current Consumption	-	-	-	-	54	-	mA
Current Mirror, Ib	8V/6V	-	-	-	3.6	-	mA
Current Mirror, Ib	8V/7V	-	-	-	4.4	-	mA
Current Mirror, Ib	8V/8V	-	-	-	5.1	-	mA
Input IP3	8V/7V bias, -20 dBm Input Power	0.1	22	-	10	-	dBm
Input Return Loss	8V/7V bias, -25 dBm Input Power	0.1	22	-	19	-	dB
Noise Figure	-	0.1	22	-	4.6	-	dB
Output IP3	8V/7V bias, -20 dBm Input Power	0.1	22	-	24	-	dBm
Output P1dB	8V/7V bias	0.5	22	-	18	-	dBm
Output Return Loss	8V/7V bias, -25 dBm Input Power	0.1	22	-	13	-	dB
Phase Noise @ 10 kHz Offset	+10 dBm Input power	-	1	-	-165	-	dBc/Hz
Reverse Isolation	8V/7V bias, -25 dBm Input Power	0.01	22	-	5	-	dB
Saturated Output Power ¹	8V/7V bias	0.5	22	19	23	-	dBm
Small Signal Gain	8V/7V bias, -25 dBm Input Power	0.1	22	-	14	-	dB
