AMM-11561CH_0.01 – 30 GHz High Frequency Distributed Driver Amplifier

Device Overview

General Description

The AMM-11561CH is a wideband GaAs distributed amplifier covering 0.01 to 30 GHz, delivering 15.7 dB of small-signal gain, high output power, and linearity. It provides up to +27 dBm saturated output power, with output IP3 up to +33 dBm. Operating from a +12V supply at 220 mA typical current, the amplifier is internally matched to 50 Ω at both the RF input and output ports. These features make it well-suited for wideband driver stages in RF/mmWave front ends, test and measurement instrumentation, electronic warfare, and general-purpose broadband gain block applications.

Download s-parameters here

Photo of AMM-11561CH

Features

High Frequency Wideband Operation, 0.01 to 30 GHz
High Saturated Output Power, +27 dBm Typical
Minimal Application Circuit

Applications

SATCOM
5G Transceivers
Test and Measurement Equipment

Functional Block Diagram

Block Diagram

Part Ordering Options

Part Number

Description

Package

Green Status

Product Lifecycle

Export Classification

AMM-11561CH

0.01 – 30 GHz High Frequency Distributed Driver Amplifier

CH

REACH

RoHS

Released

EAR99

Table Of Contents

Device Overview

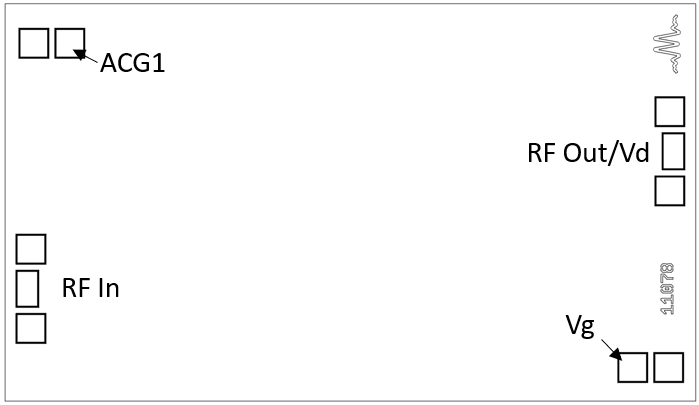

Port Configuration and Functions
- Port Diagram
Revision History
Specifications
Die Mounting Recommendations
- Mounting and Bonding Recommendations
Operation
Mechanical Data
- Outline Drawing

Revision History

Revision Code	Revision Date	Comment
-	2026-06-04	Initial Release

Specifications

Package Information

Parameter	Details	Rating
ESD	< 250 Volts	HBM Class 0
Dimensions	-	1.38mm x 2.40mm

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C. Die are 100% DC tested and RF tested on a per lot basis

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Small Signal Gain	Vd = +12V, Id = 220mA, Vg = -0.25V, Pin = -20dBm	0.01	30	-	15.7	-	dB
Input Return Loss	Vd = +12V, Id = 220mA, Vg = -0.25V, Pin = -20dBm	0.01	30	-	19	-	dB
Output Return Loss	Vd = +12V, Id = 220mA, Vg = -0.25V, Pin = -20dBm	0.01	30	-	20	-	dB
Reverse Isolation	Vd = +12V, Id = 220mA, Vg = -0.25V, Pin = -20dBm	0.01	30	-	54	-	dB
Psat	Vd = +12V, Id = 220mA, Vg = -0.25V,	0.01	30	-	27	-	dBm
Input P1dB	Vd = +12V, Id = 220mA, Vg = -0.25V	0.01	30	-	9	-	dBm
Output P1dB	Vd = +12V, Id = 220mA, Vg = -0.25V	0.01	30	-	23	-	dBm
Input IP3	Vd = +12V, Id = 220mA, Vg = -0.25V, Pin = -18dBm, 1MHz Spacing	0.01	30	-	18	-	dBm
Output IP3	Vd = +12V, Id = 220mA, Vg = -0.25V, Pin = -18dBm, 1MHz Spacing	0.01	30	-	33	-	dBm
Input IP2	Vd = +12V, Id = 220mA, Vg = -0.25V, Pin = -18dBm, 1MHz Spacing	0.01	30	-	23.5	-	dBm
Output IP2	Vd = +12V, Id = 220mA, Vg = -0.25V, Pin = -18dBm, 1MHz Spacing	0.01	30	-	38.5	-	dBm
Noise Figure	Vd = +12V, Id = 220mA, Vg = -0.25V	0.01	30	-	4.4	-	dB
Current Consumption	Vd= +12V, Vg = -0.25V	-	-	-	220	-	mA

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Small Signal Gain	Vd = +12V, Id = 220mA, Vg = -0.25V, Pin = -20dBm	0.01	30	-	15.7	-	dB
Input Return Loss	Vd = +12V, Id = 220mA, Vg = -0.25V, Pin = -20dBm	0.01	30	-	19	-	dB
Output Return Loss	Vd = +12V, Id = 220mA, Vg = -0.25V, Pin = -20dBm	0.01	30	-	20	-	dB
Reverse Isolation	Vd = +12V, Id = 220mA, Vg = -0.25V, Pin = -20dBm	0.01	30	-	54	-	dB
Psat	Vd = +12V, Id = 220mA, Vg = -0.25V,	0.01	30	-	27	-	dBm
Input P1dB	Vd = +12V, Id = 220mA, Vg = -0.25V	0.01	30	-	9	-	dBm
Output P1dB	Vd = +12V, Id = 220mA, Vg = -0.25V	0.01	30	-	23	-	dBm
Input IP3	Vd = +12V, Id = 220mA, Vg = -0.25V, Pin = -18dBm, 1MHz Spacing	0.01	30	-	18	-	dBm
Output IP3	Vd = +12V, Id = 220mA, Vg = -0.25V, Pin = -18dBm, 1MHz Spacing	0.01	30	-	33	-	dBm
Input IP2	Vd = +12V, Id = 220mA, Vg = -0.25V, Pin = -18dBm, 1MHz Spacing	0.01	30	-	23.5	-	dBm
Output IP2	Vd = +12V, Id = 220mA, Vg = -0.25V, Pin = -18dBm, 1MHz Spacing	0.01	30	-	38.5	-	dBm
Noise Figure	Vd = +12V, Id = 220mA, Vg = -0.25V	0.01	30	-	4.4	-	dB
Current Consumption	Vd= +12V, Vg = -0.25V	-	-	-	220	-	mA

Low frequency performance dependent on application circuit. For operation under 10MHz see application circuit notes.

Typical Performance Plots

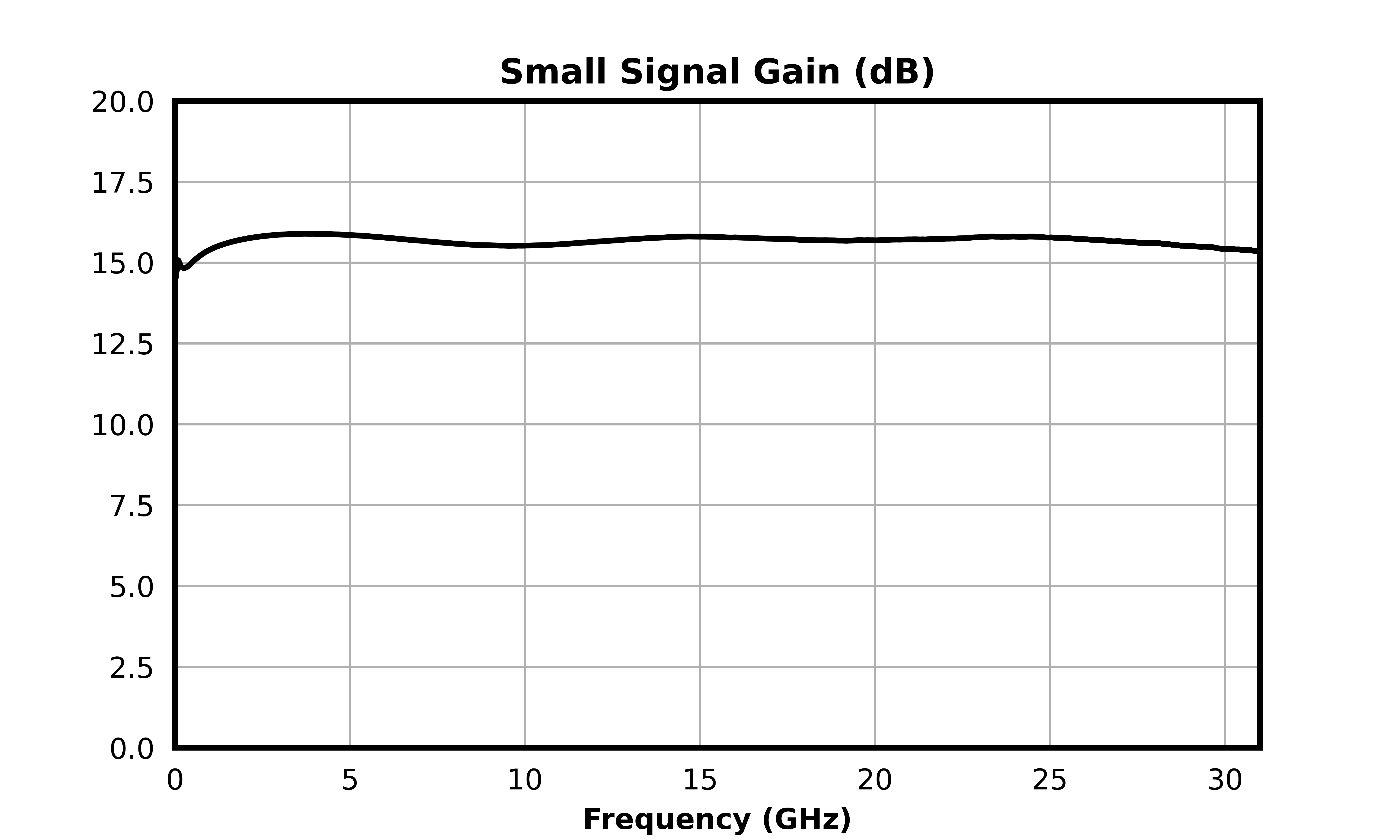

Small Signal Gain (dB) graph for AMM-11561CH

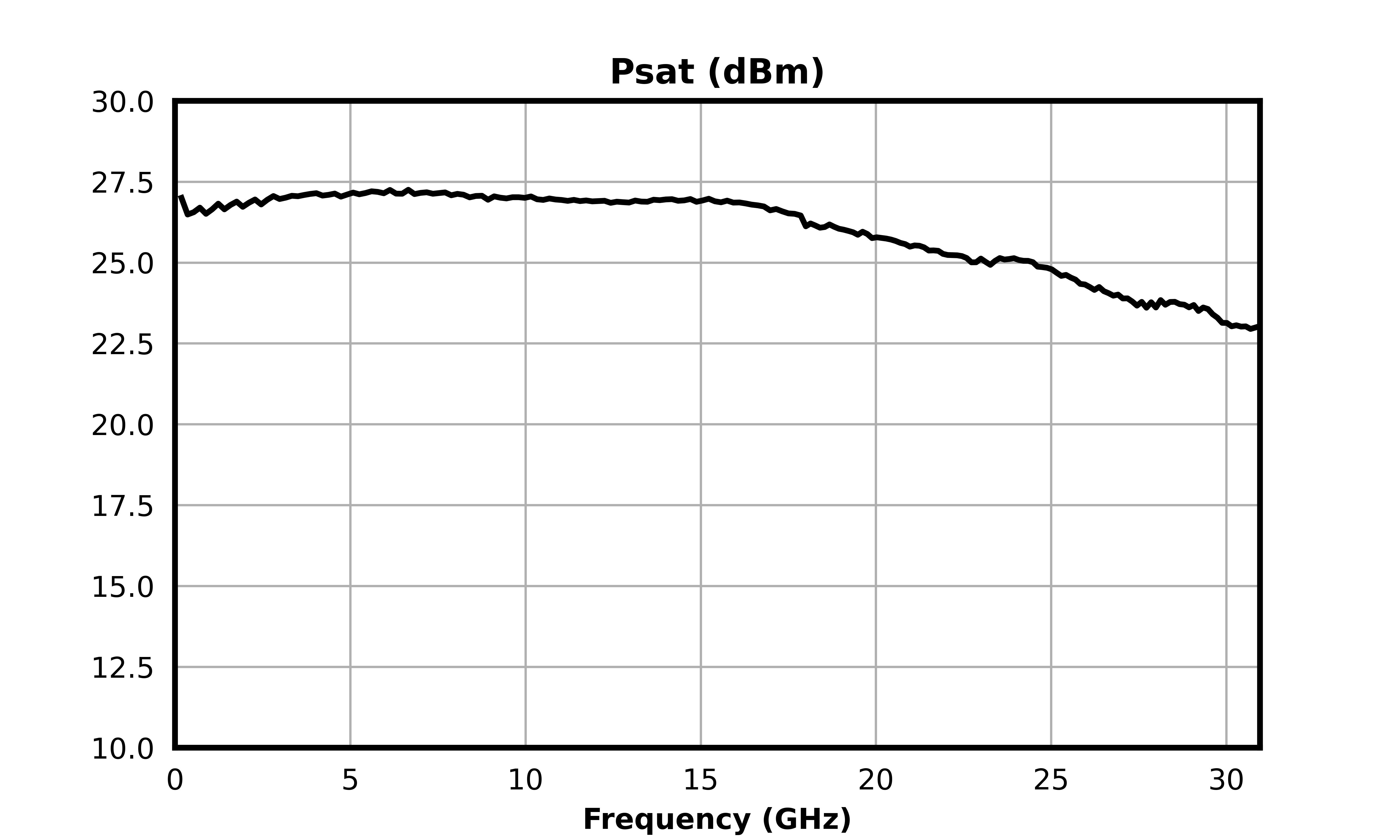

Psat (dBm) graph for AMM-11561CH

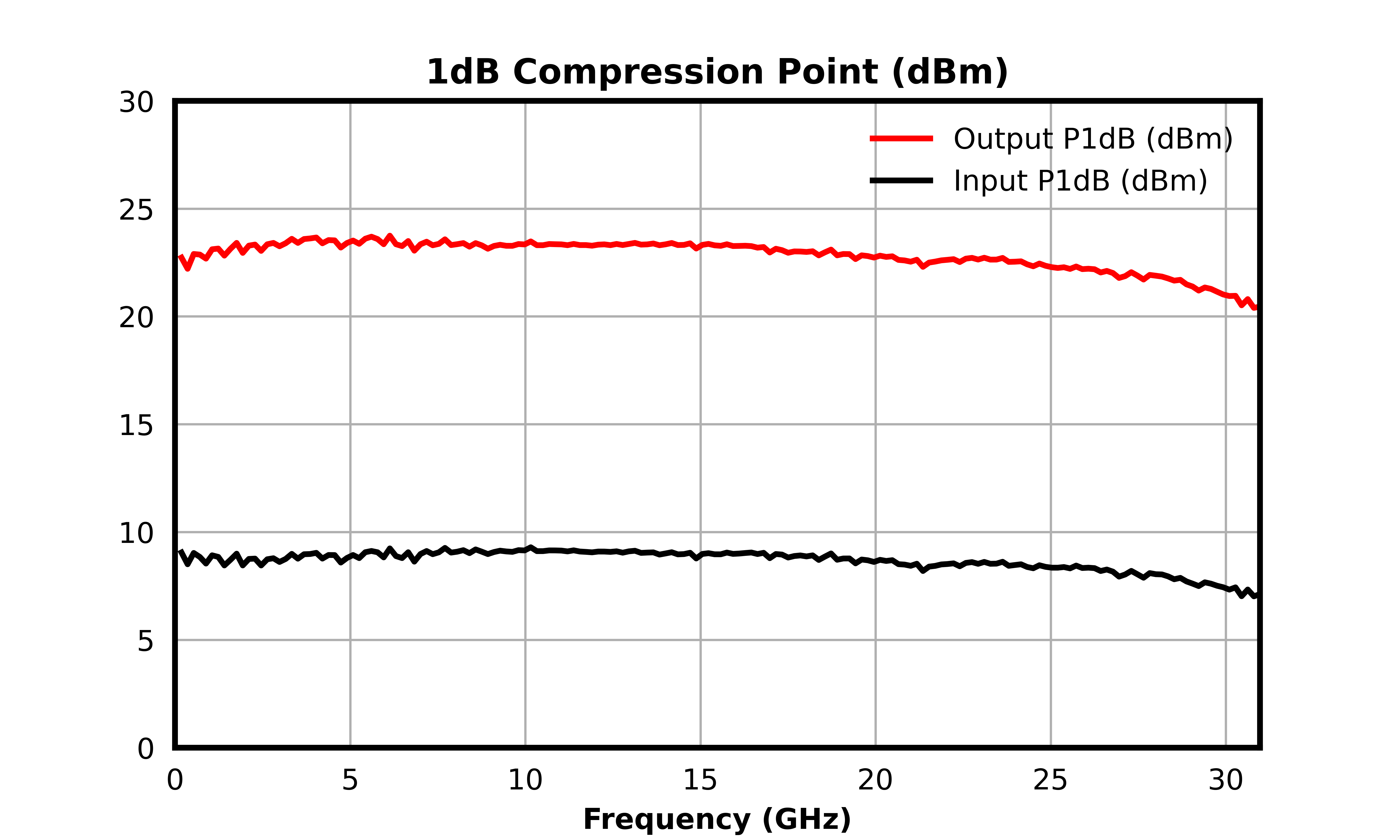

1dB Compression Point (dBm) graph for AMM-11561CH

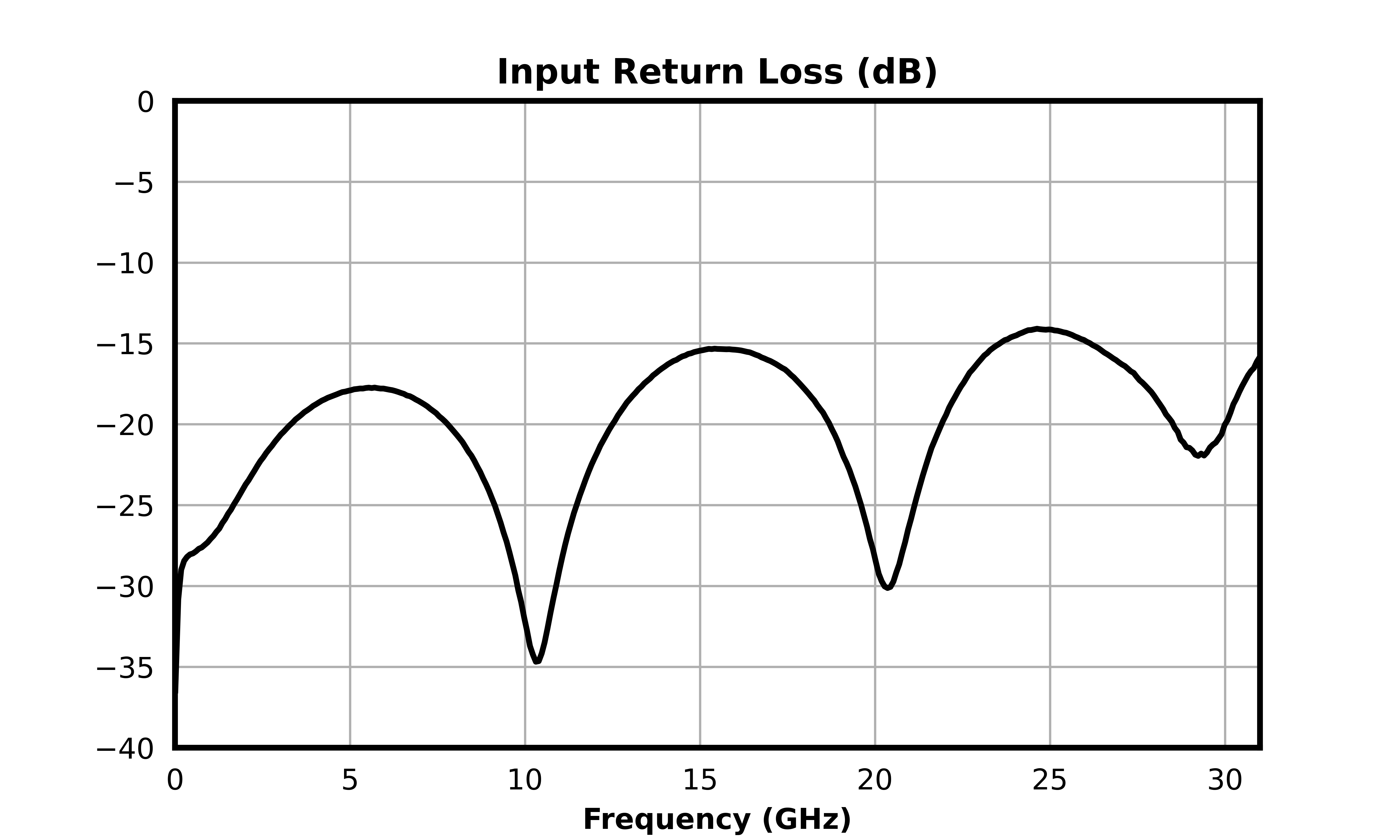

Input Return Loss (dB) graph for AMM-11561CH

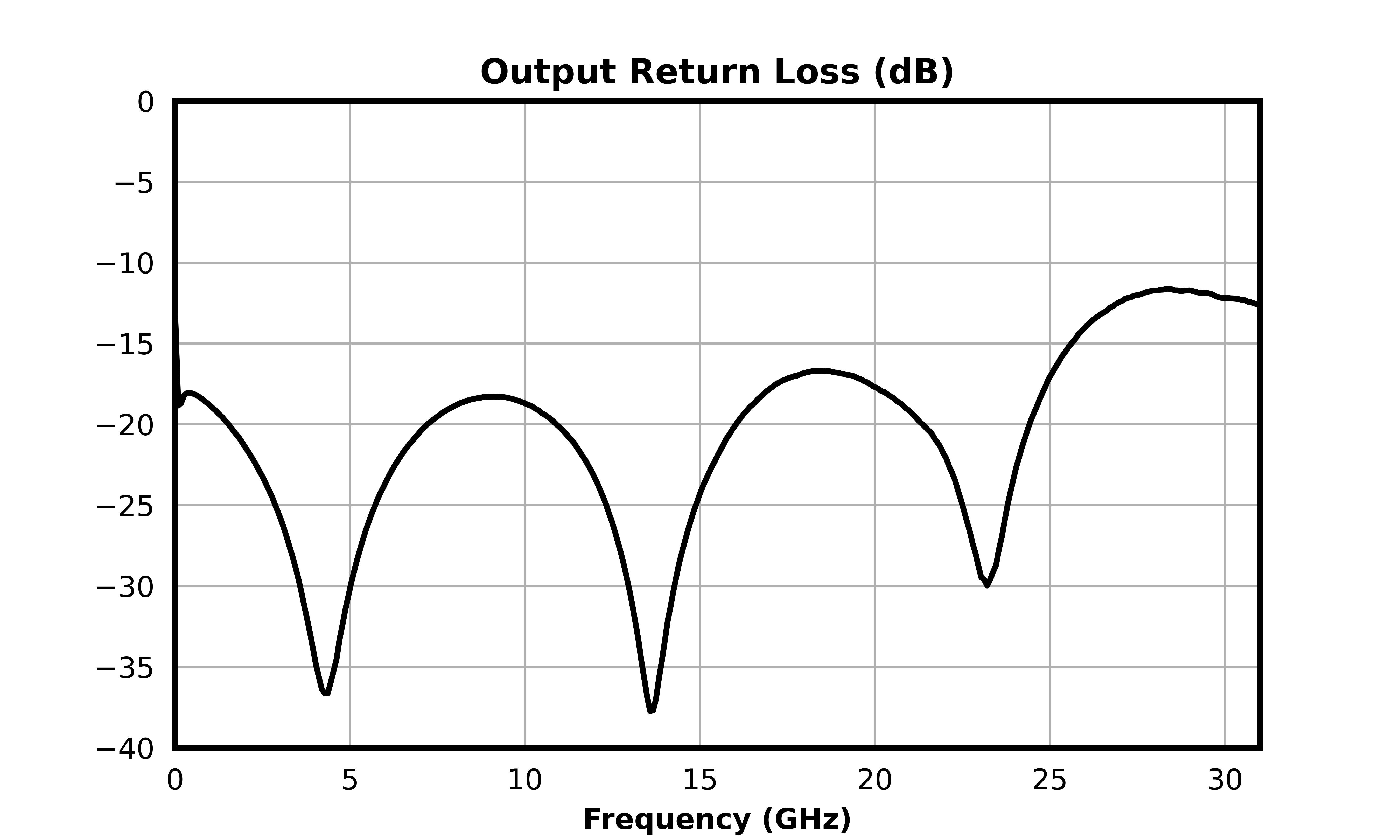

Output Return Loss (dB) graph for AMM-11561CH

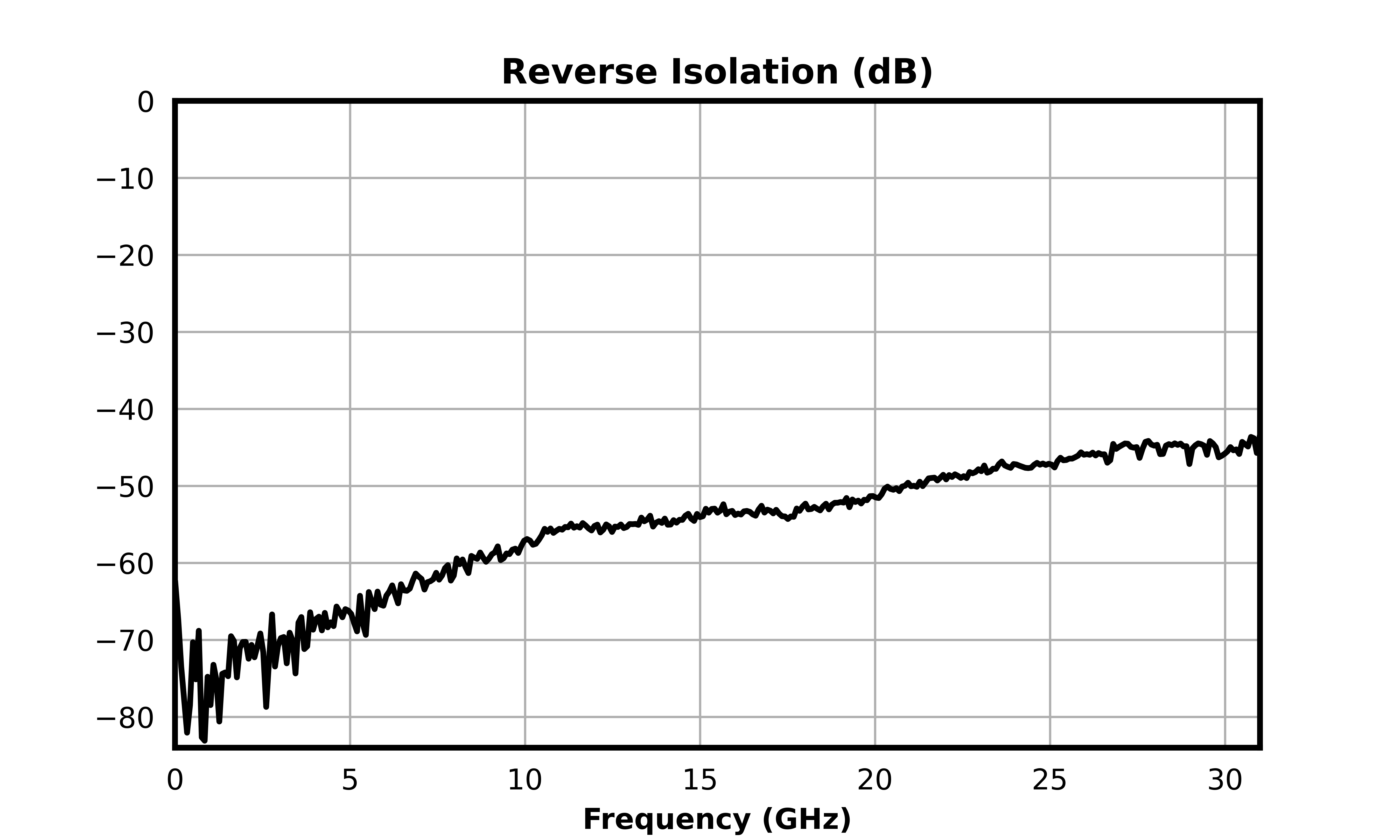

Reverse Isolation (dB) graph for AMM-11561CH

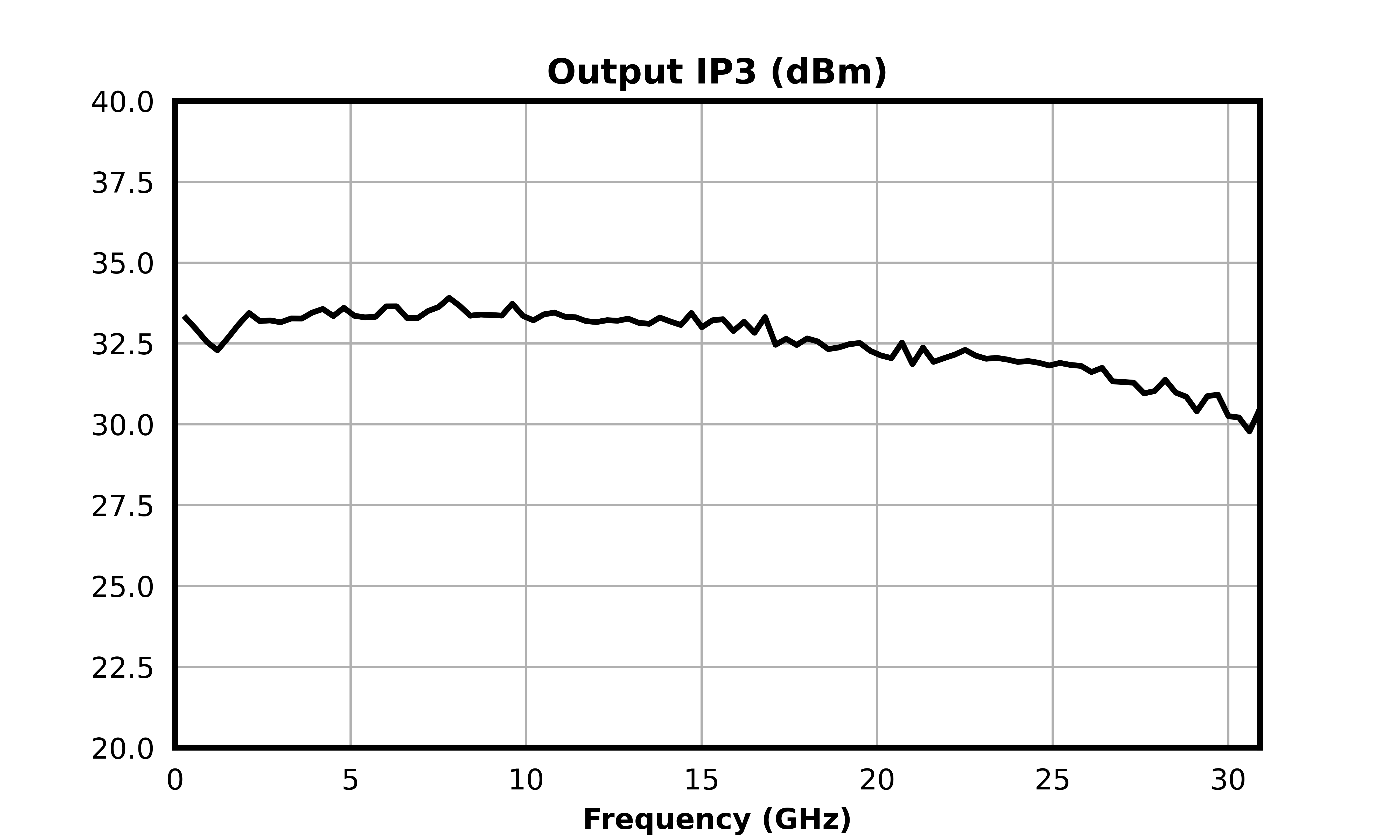

Output IP3 (dBm) graph for AMM-11561CH

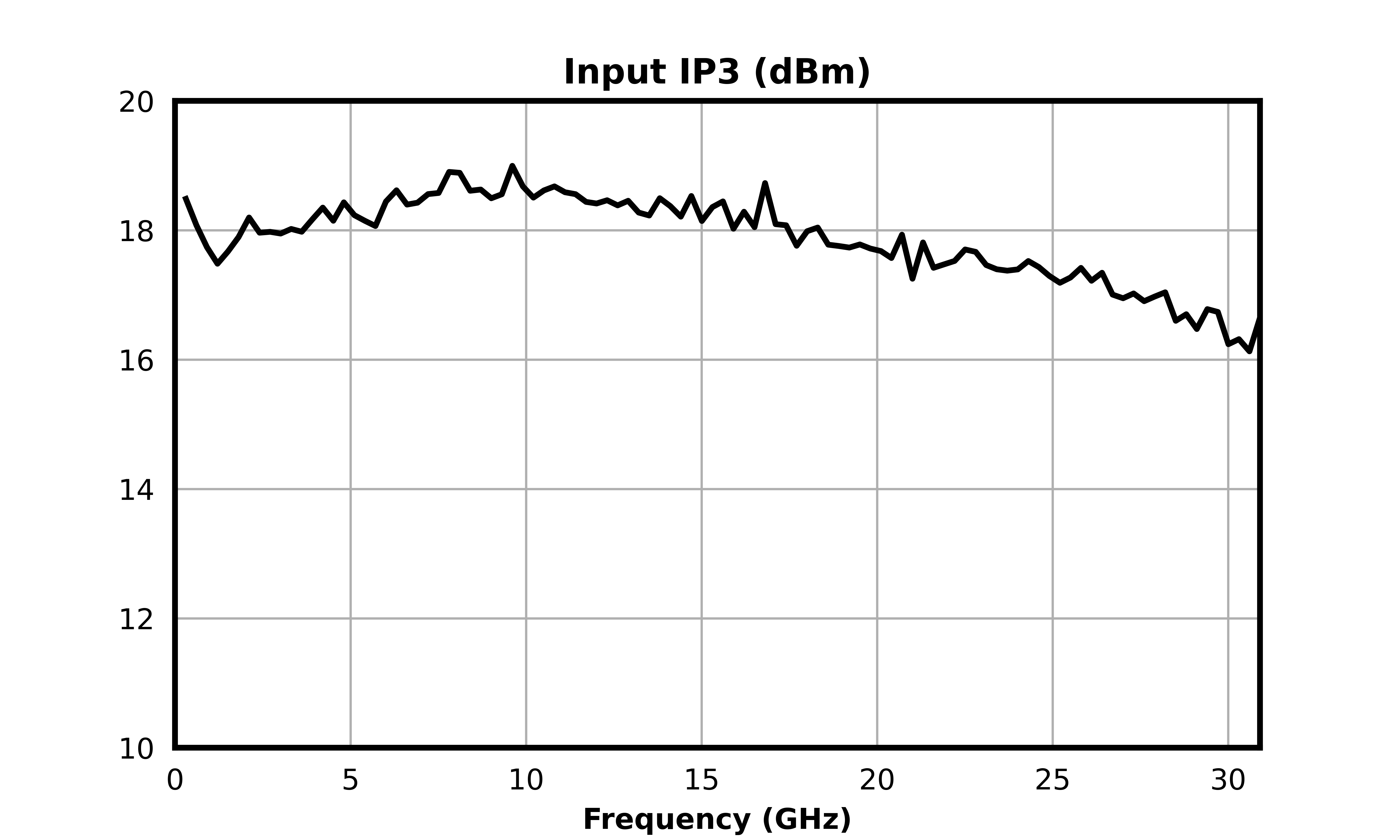

Input IP3 (dBm) graph for AMM-11561CH

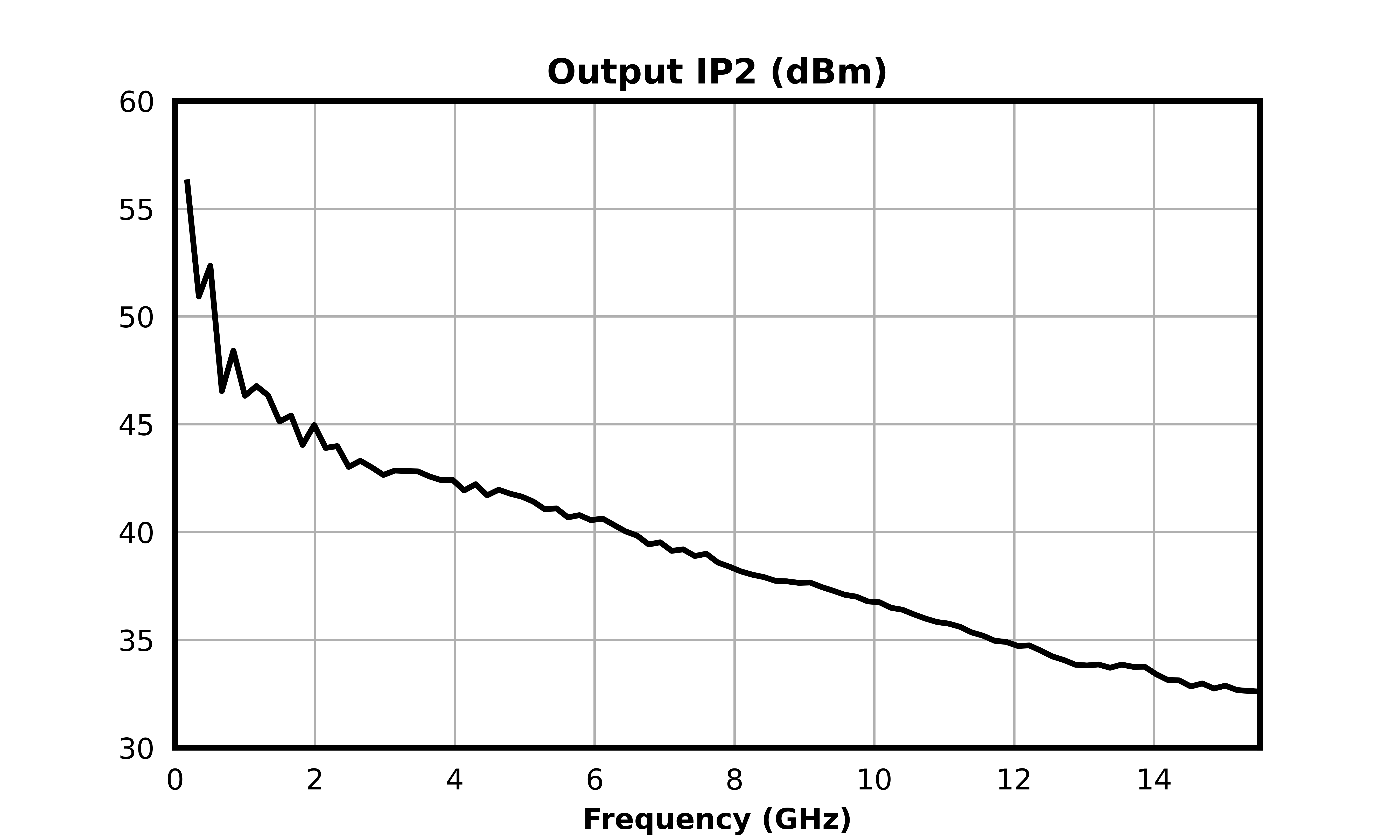

Output IP2 (dBm) graph for AMM-11561CH

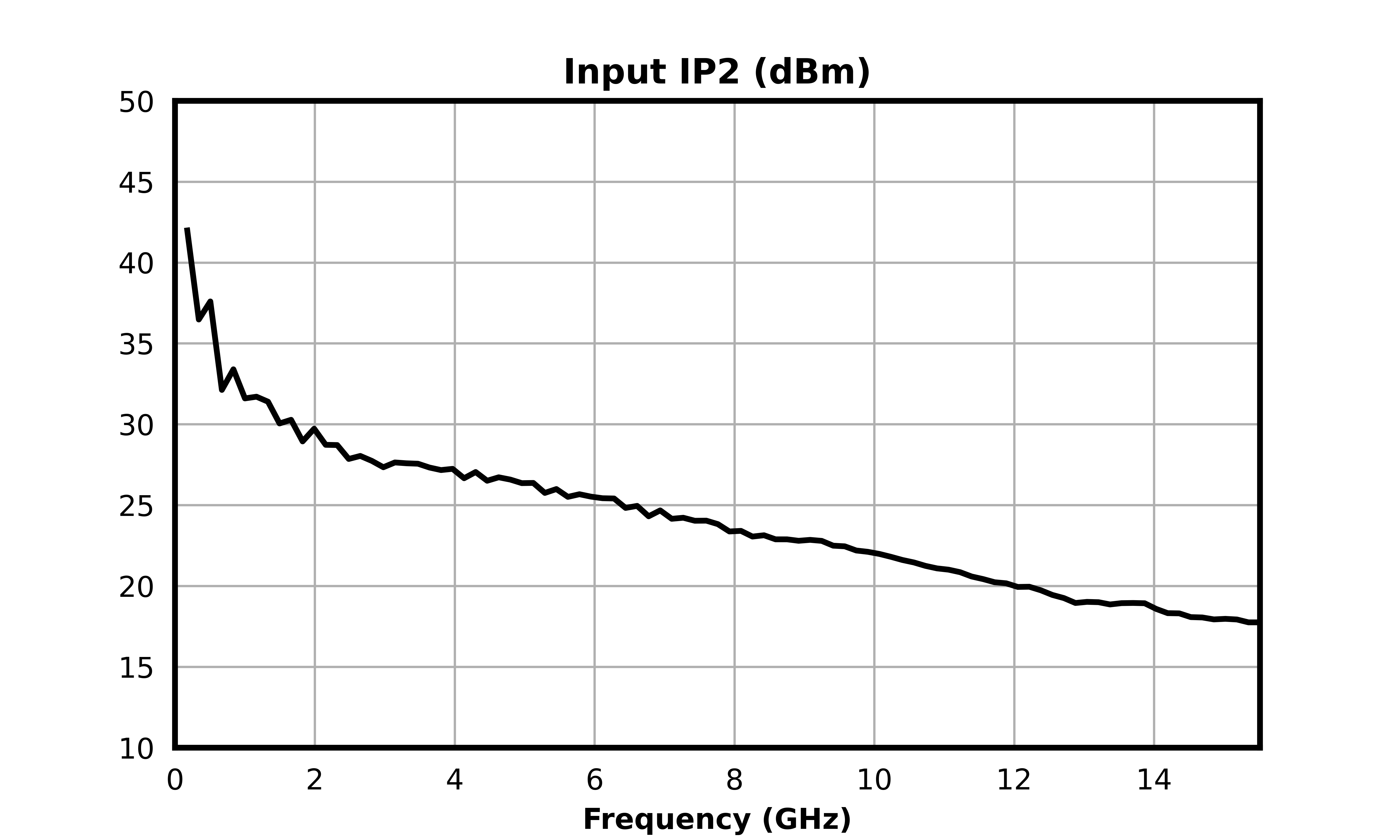

Input IP2 (dBm) graph for AMM-11561CH

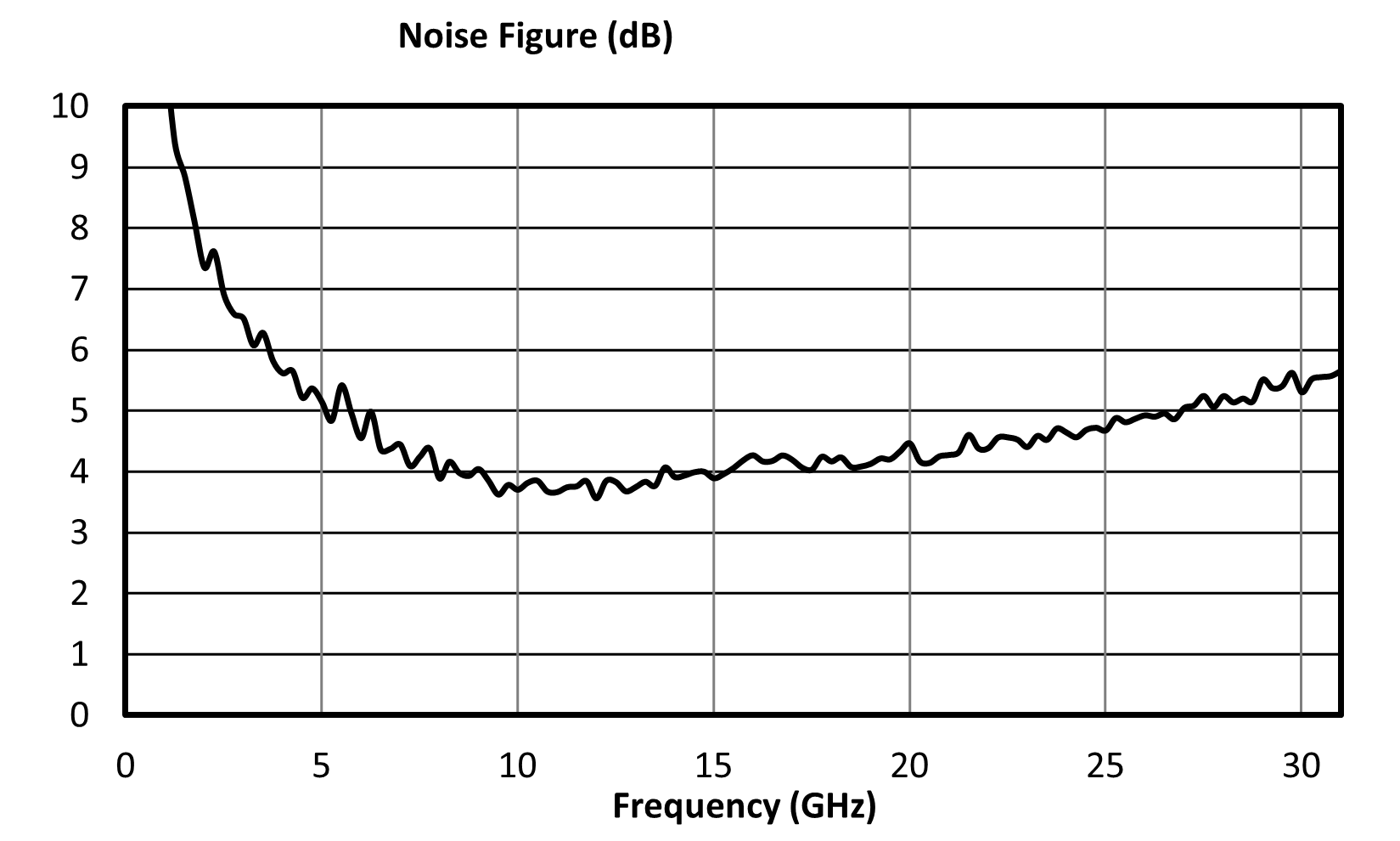

Noise Figure (dBm) graph for AMM-11561CH

Application Circuit

Application Circuit for AMM-11561CH

Mechanical Data

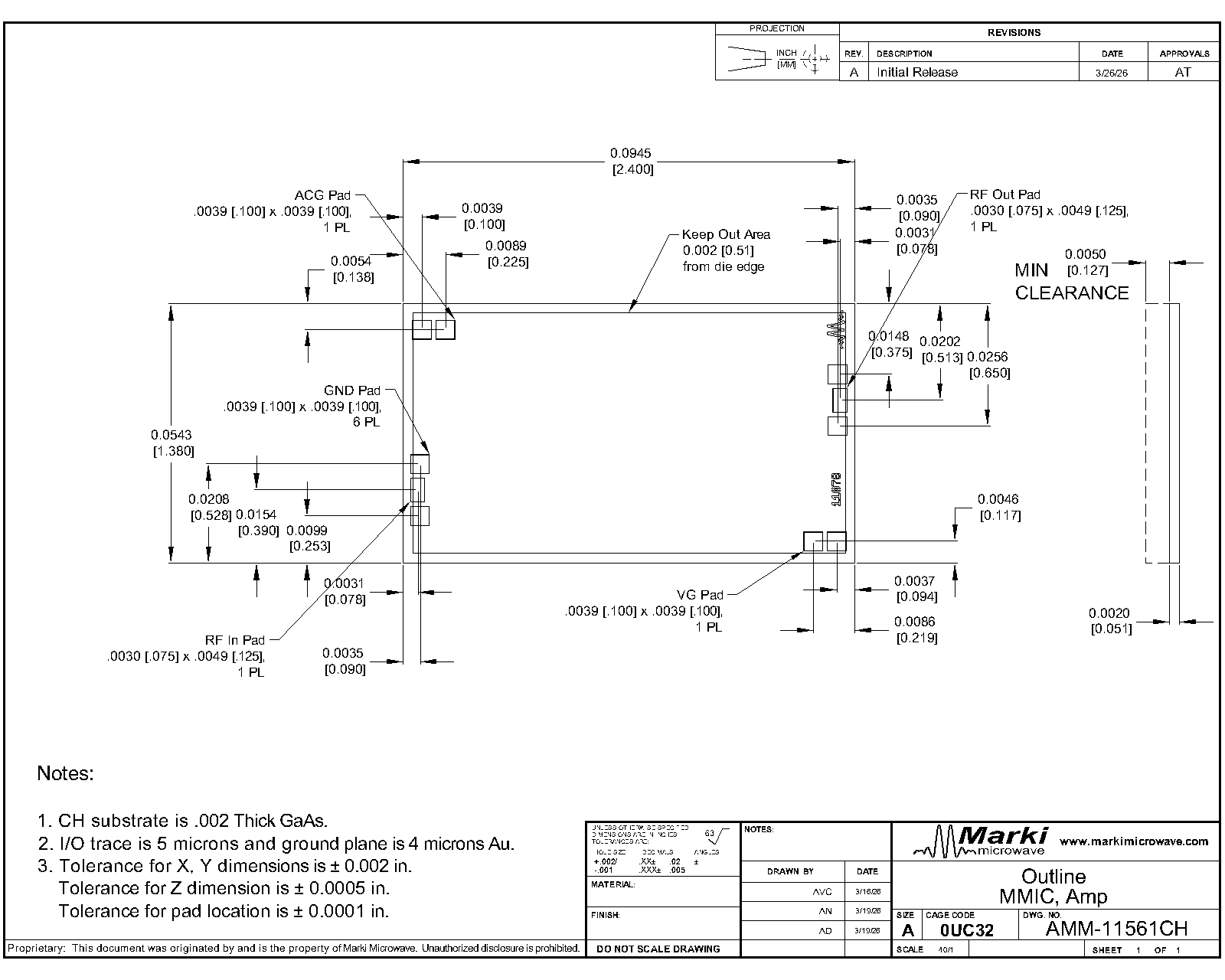

Outline Drawing

Download : Outline 2D Drawing

Outline Drawing
