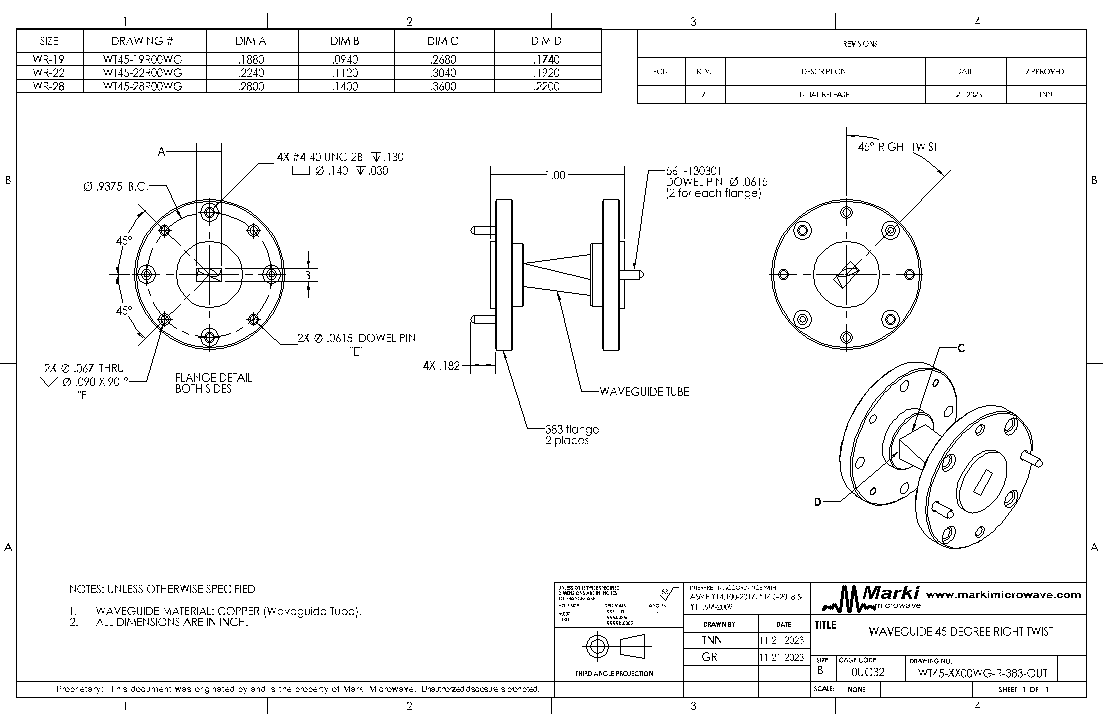

Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | L = 2 in. |
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
WR-19 45-degree Waveguide Right Twists, operating from 40-60 GHz, provide accurate offsets and directional changes for waveguide transmission lines. They are built with high precision and gold plated for high corrosion resistance. They have very low loss and excellent VSWR. Manufactured to rigid specifications, these transmission line components provide minimum detrimental effects on overall system VSWR.
Features
- Copper waveguide
- Brass UG-383/U flanges
- Gold plated
- Length = 2 in.
- Very low loss
Applications
- 5G
- Radar
- Satellite Communications
- Communication Systems
Functional Block Diagram
N/A
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| WT45-19L00WG | WR-19 45-Degree Waveguide Left Twist | WR-19 | REACH RoHS | Released | EAR99 |
| WT45-19R00WG | WR-19 45-Degree Waveguide Right Twist | WR-19 | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| WT45-19L00WG | WR-19 45-Degree Waveguide Left Twist | WR-19 | REACH RoHS | Released | EAR99 |
| WT45-19R00WG | WR-19 45-Degree Waveguide Right Twist | WR-19 | REACH RoHS | Released | EAR99 |
WT45-19R00WG
WR-19 45-Degree Waveguide Right Twist
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-05-01 | Initial Release |
WT45-19R00WG
WR-19 45-Degree Waveguide Right Twist
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | RF Input / Output | - | RF input/output port | - |
| Port 2 | RF Input / Output | - | RF input/output port | - |
WT45-19R00WG
WR-19 45-Degree Waveguide Right Twist
Specifications
WT45-19R00WG
WR-19 45-Degree Waveguide Right Twist
Electrical Specifications
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss | - | 40 | 60 | - | 0.13 | - | dB |
| Return Loss | - | 40 | 60 | - | 37 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss | - | 40 | 60 | - | 0.13 | - | dB |
| Return Loss | - | 40 | 60 | - | 37 | - | dB |
WT45-19R00WG
WR-19 45-Degree Waveguide Right Twist
