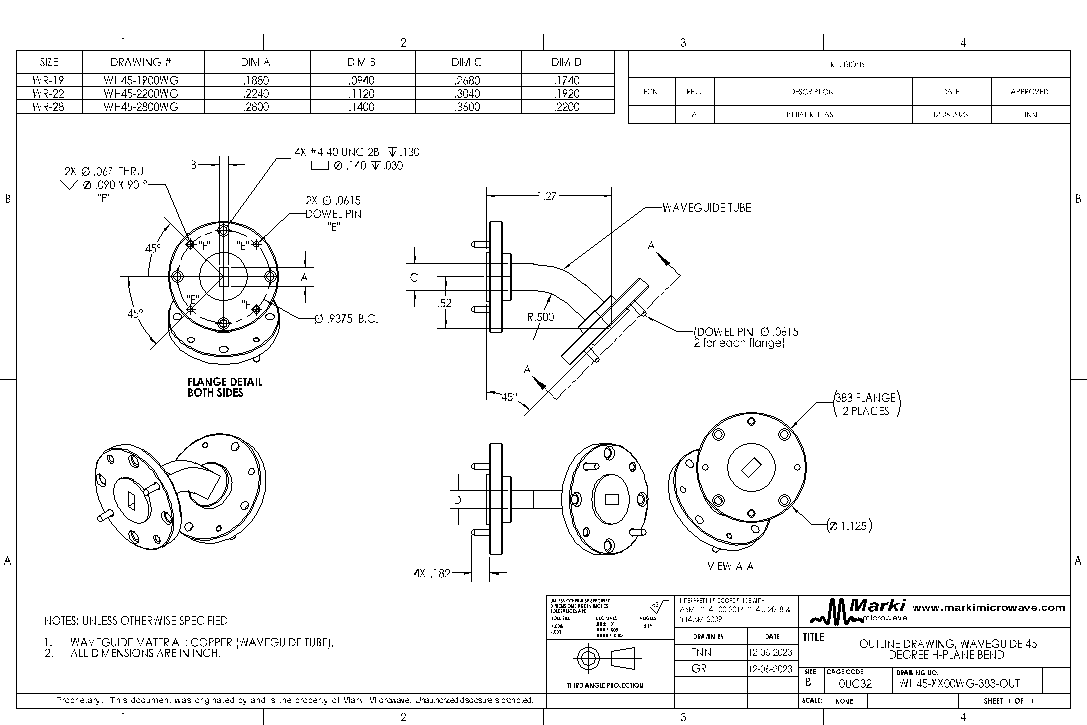

Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | L = 1 in. |
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
WR-28 45-Degree Waveguide H-Plane Bend, operating from 26.5-40 GHz, are built with high precision and gold plated for high corrosion resistance. They have very low loss and excellent VSWR. Manufactured to rigid specifications, these transmission line components provide minimum detrimental effects on overall system VSWR.
Features
- Copper waveguide
- Brass UG-383/U flanges
- Gold plated
- Length = 1 in.
- Very low loss
Applications
- 5G
- Radar
- Satellite Communications
- Communication Systems
Functional Block Diagram
N/A
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| WH45-2800WG | WR-28 45-Degree Waveguide H-Plane Bend | WR-28 | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| WH45-2800WG | WR-28 45-Degree Waveguide H-Plane Bend | WR-28 | REACH RoHS | Released | EAR99 |
WH45-2800WG
WR-28 45-Degree Waveguide H-Plane Bend
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-05-01 | Initial Release |
WH45-2800WG
WR-28 45-Degree Waveguide H-Plane Bend
Specifications
WH45-2800WG
WR-28 45-Degree Waveguide H-Plane Bend
Electrical Specifications
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss | - | 26.5 | 40 | - | 0.1 | - | dB |
| Return Loss | - | 26.5 | 40 | - | 37 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss | - | 26.5 | 40 | - | 0.1 | - | dB |
| Return Loss | - | 26.5 | 40 | - | 37 | - | dB |
WH45-2800WG
WR-28 45-Degree Waveguide H-Plane Bend
