Device Overview
General Description

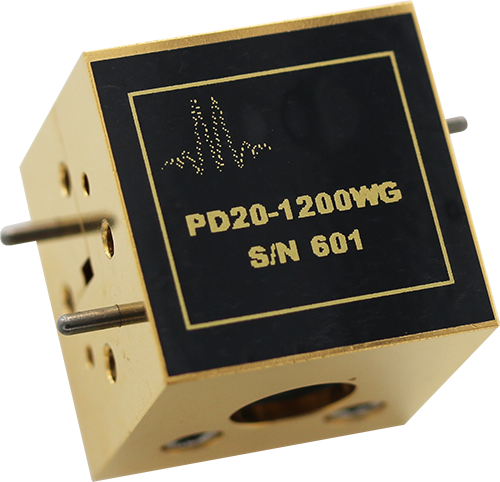

Marki Microwave wave power dividers are 1 inch square, made of brass and then gold plated. They provide an equal power split with low insertion loss. When power is applied to the input port it is divided between the two output ports to result in equal power split and in-phase output signals.
Features
- 60 to 90 GHz
- EIA WR-12 compliant waveguide
- UG-387/U flanges
- Equal power division
- In-phase outputs
- 20dB isolation
- 0.5dB power balance
Applications
- 5G
- Communication Systems
- Power Division
- Signal Splitting
Functional Block Diagram
N/A
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| PD20-1200WG | WR-12 Waveguide Power Divider | WR-12 | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| PD20-1200WG | WR-12 Waveguide Power Divider | WR-12 | REACH RoHS | Released | EAR99 |
PD20-1200WG
WR-12 Waveguide Power Divider
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-05-01 | Initial Release |
PD20-1200WG
WR-12 Waveguide Power Divider
Specifications
PD20-1200WG
WR-12 Waveguide Power Divider
Electrical Specifications
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | - | 60 | 90 | - | 0.5 | - | dB |
| Excess Insertion Loss | - | 60 | 90 | - | 0.5 | - | dB |
| Input VSWR | - | 60 | 90 | - | 1.6 | - | |
| Isolation 1 | Port 1 to Port 2 | 60 | 90 | - | 20 | - | dB |
| Output VSWR | - | 60 | 90 | - | 1.5 | - |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | - | 60 | 90 | - | 0.5 | - | dB |
| Excess Insertion Loss | - | 60 | 90 | - | 0.5 | - | dB |
| Input VSWR | - | 60 | 90 | - | 1.6 | - | |
| Isolation 1 | Port 1 to Port 2 | 60 | 90 | - | 20 | - | dB |
| Output VSWR | - | 60 | 90 | - | 1.5 | - |
[1] Measured between output ports.
PD20-1200WG
WR-12 Waveguide Power Divider
