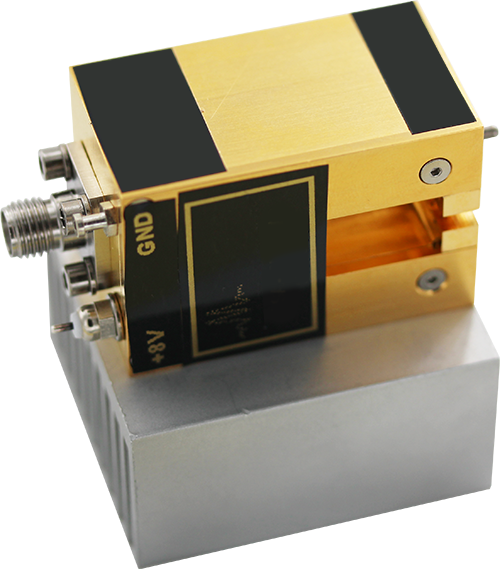

ASA-10F00WG_WR-10, 6x Multiplier

Device Overview

General Description

WR-10, W-Band Multipliers are built with high quality materials and utilize a combination of the latest Schottky Diode and MMIC technology. An internal Bias/Regulator circuit included for single voltage supply.

Features

Greater than 10 dBm output power
Low input drive power
Removable Heatsink can be provided
Side and Bottom mounting holes
Compact and lightweight
UG-387/U Flange

Applications

5G
Communication Systems
Frequency Extenders

Functional Block Diagram

N/A

Part Ordering Options

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
ASA-10F00WG	WR-10, 6x Multiplier	WR-10	REACH RoHS	Released	3A001.b.7.c.3

Part Number

Description

Package

Green Status

Product Lifecycle

Export Classification

ASA-10F00WG

WR-10, 6x Multiplier

WR-10

REACH

RoHS

Released

3A001.b.7.c.3

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
ASA-10F00WG	WR-10, 6x Multiplier	WR-10	REACH RoHS	Released	3A001.b.7.c.3

Device Overview
Revision History
Specifications

Revision History

Revision Code	Revision Date	Comment
-	2024-05-01	Initial Release

Specifications

Absolute Maximum Ratings

Parameter	Maximum Rating	Unit
Positive Bias Current	600	mA
Positive Bias Voltage	8	V

Electrical Specifications

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Input Frequency Range	-	-	-	12.5	-	18.3	GHz
Input Power	-	12.5	18.3	0	3	10	dBm
Output Frequency Range	-	-	-	75	-	110	GHz
Output Power	-	75	110	10	-	-	dBm
Suppression, 1F	-	-	-	-	20	-	dBc

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Input Frequency Range	-	-	-	12.5	-	18.3	GHz
Input Power	-	12.5	18.3	0	3	10	dBm
Output Frequency Range	-	-	-	75	-	110	GHz
Output Power	-	75	110	10	-	-	dBm
Suppression, 1F	-	-	-	-	20	-	dBc

Typical Performance

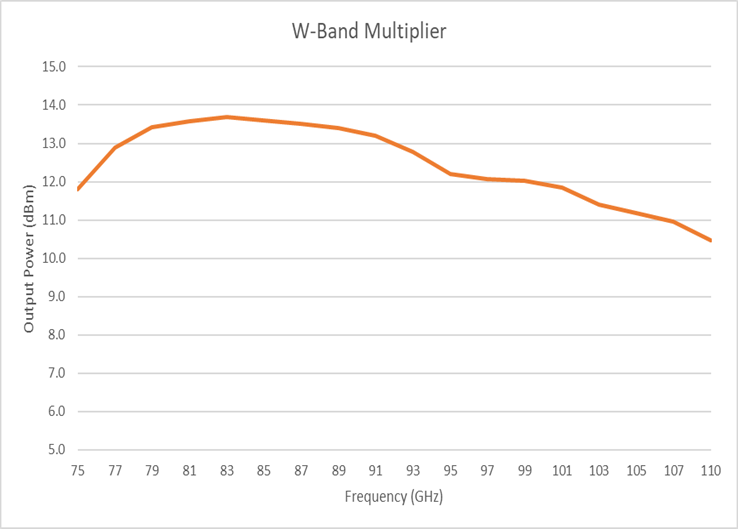

Fundamental Output Power (dBm) graph for ASA-10F00WG
