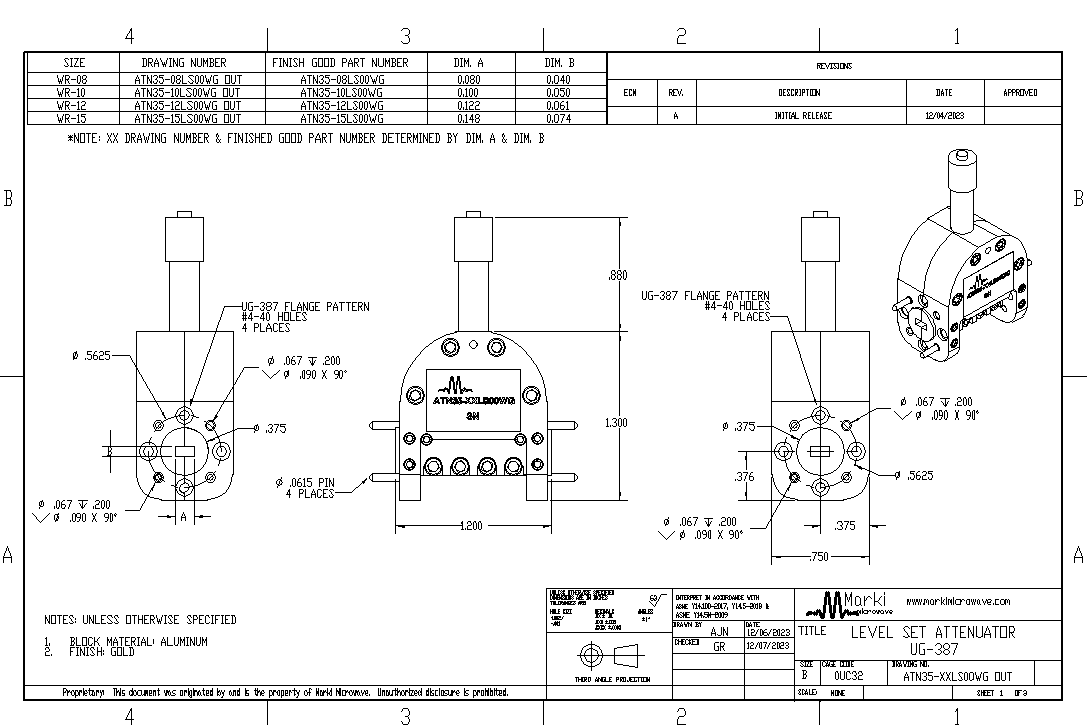

Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 1.2 x 2.18 in |
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
WR-12 Level Set Attenuator, operating from 60-90 GHz, is built with high precision and then gold plated for high corrosion resistance. They have great VSWR and accurate attenuation.
Features
- 0-35 dB of attenuation
- Low Return Loss, 1.2:1 typical
- A = 1.20 inches
- UG-387 flange
Applications
- 5G
- Communication Systems
- Frequency Extenders
Functional Block Diagram
N/A
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ATN35-12LS00WG | WR-12 Level Set Attenuator | WR-12 | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ATN35-12LS00WG | WR-12 Level Set Attenuator | WR-12 | REACH RoHS | Released | EAR99 |
ATN35-12LS00WG
WR-12 Level Set Attenuator
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-05-01 | Initial Release |
ATN35-12LS00WG
WR-12 Level Set Attenuator
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | RF Input / Output | - | RF input/output. | - |
| Port 2 | RF Input / Output | - | RF input/output. | - |
ATN35-12LS00WG
WR-12 Level Set Attenuator
Specifications
ATN35-12LS00WG
WR-12 Level Set Attenuator
Electrical Specifications
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Attenuation | - | 60 | 90 | 0 | - | 35 | dB |
| Return Loss | - | 60 | 90 | - | 21 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Attenuation | - | 60 | 90 | 0 | - | 35 | dB |
| Return Loss | - | 60 | 90 | - | 21 | - | dB |
