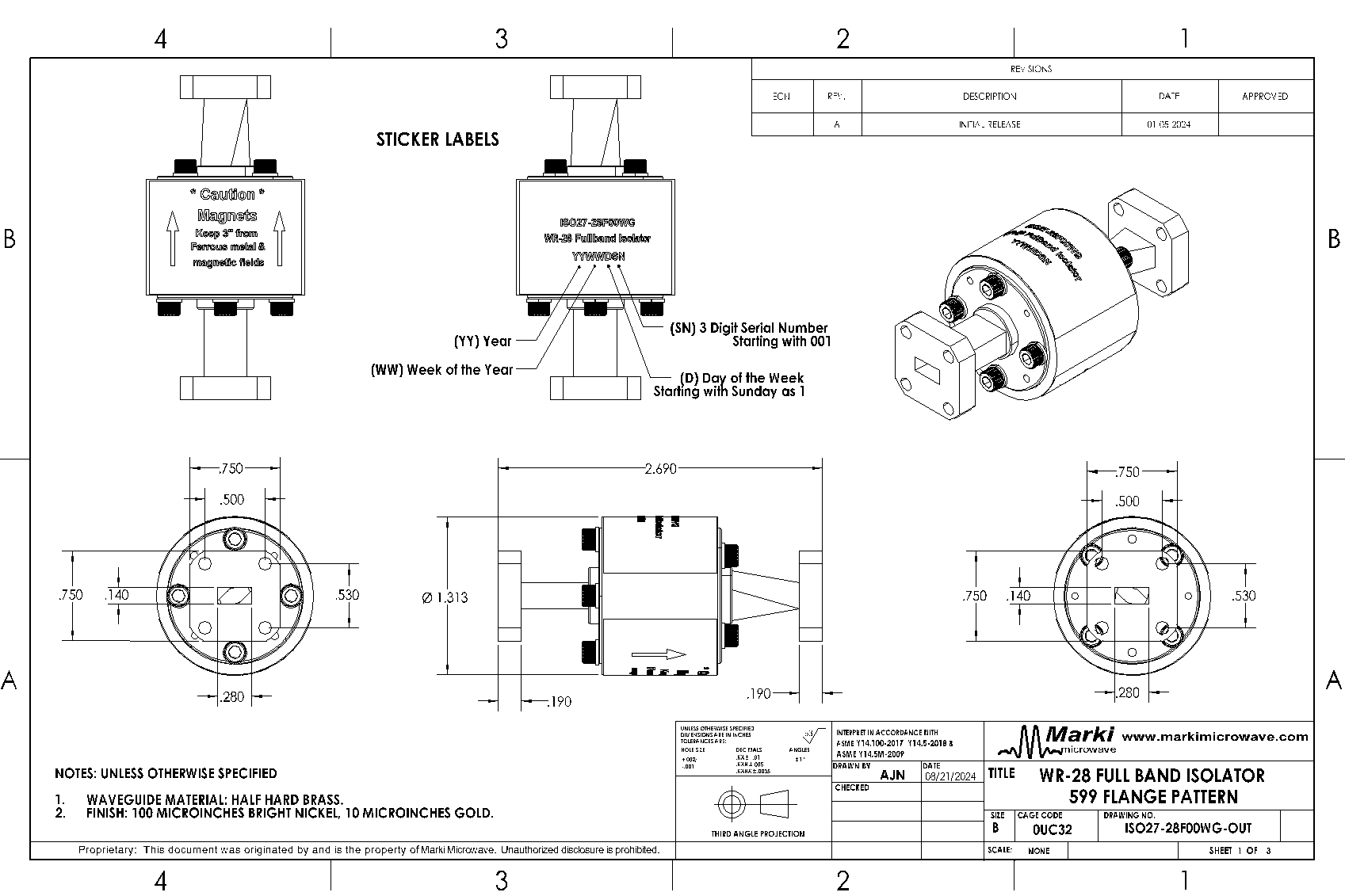

Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 83 x 34 mm |
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
Isolator WR-28 Marki Microwave Ka-band Isolators, operating from 26.5-40 GHz, are built with high quality materials and use the Faraday principle in our full band isolator design. They have low loss and high isolation.
Features
- Isolation 27 dB TYP
- Insertion Loss 1.0 dB TYP
- VSWR 1.3:1 MAX
- Max Power: 1.5W
- UG-599/U Flange
Applications
- 5G
- Communication Systems
Functional Block Diagram
N/A
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ISO27-28F00WG | Isolator WR-28 (Ka-Band) | WR-28 | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ISO27-28F00WG | Isolator WR-28 (Ka-Band) | WR-28 | REACH RoHS | Released | EAR99 |
ISO27-28F00WG
Isolator WR-28 (Ka-Band)
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-05-01 | Initial Release |
ISO27-28F00WG
Isolator WR-28 (Ka-Band)
Specifications
ISO27-28F00WG
Isolator WR-28 (Ka-Band)
Electrical Specifications
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss | - | 26.5 | 40 | - | 1 | - | dB |
| Isolation | - | 26.5 | 40 | - | 27 | - | dB |
| Return Loss | - | 26.5 | 40 | - | - | 18 | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss | - | 26.5 | 40 | - | 1 | - | dB |
| Isolation | - | 26.5 | 40 | - | 27 | - | dB |
| Return Loss | - | 26.5 | 40 | - | - | 18 | dB |
ISO27-28F00WG
Isolator WR-28 (Ka-Band)
