| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 60 to 90 | GHz |
| Directivity | 38 | dB |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
C20-1200WG
WR-12 High Directivity Waveguide Coupler, 20dB, 60-90GHz
General Description
The C20-1200WG is a WR-12 20 dB waveguide coupler featuring high 38 dB directivity over a 60-90GHz operational bandwidth. These waveguide components are built with high precision and then gold plated for high corrosion resistance. They have very low 0.8 dB insertion loss and excellent 34 dB return loss. Manufactured to rigid specifications, these transmission line components provide minimum detrimental effects on overall system VSWR.
Features
- 19 dB Coupling
- Low 0.8 dB Insertion Loss
- High 38 dB Directivity
- WR-12 Waveguide
- UG-387/U Input and Output Flanges
Functional Block Diagram
Electrical Performance Summary
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| C20-1200WG | WR-12 High Directivity Waveguide Coupler, 20dB, 60-90GHz | WR-12 | RoHS | Released | EAR99 |
Table Of Contents

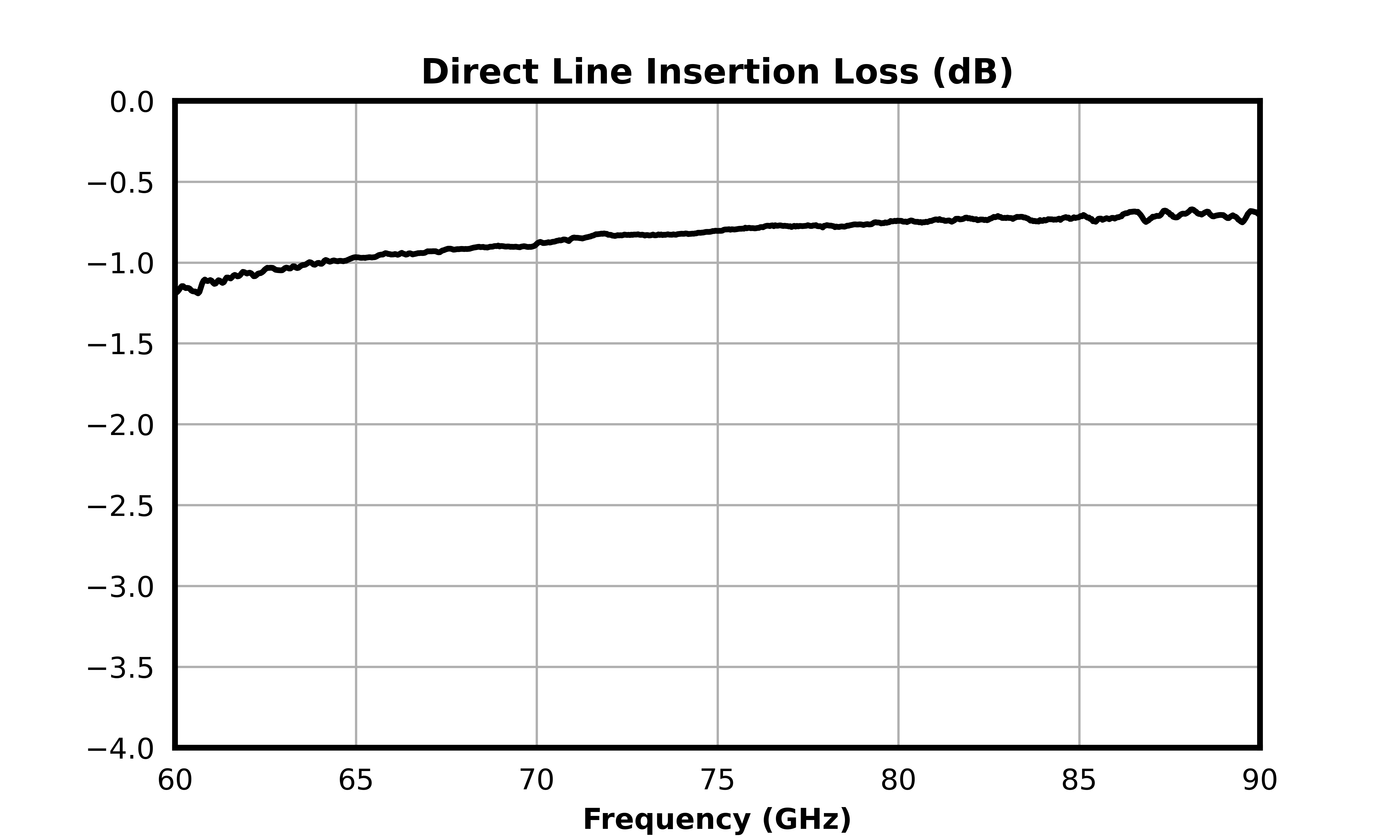

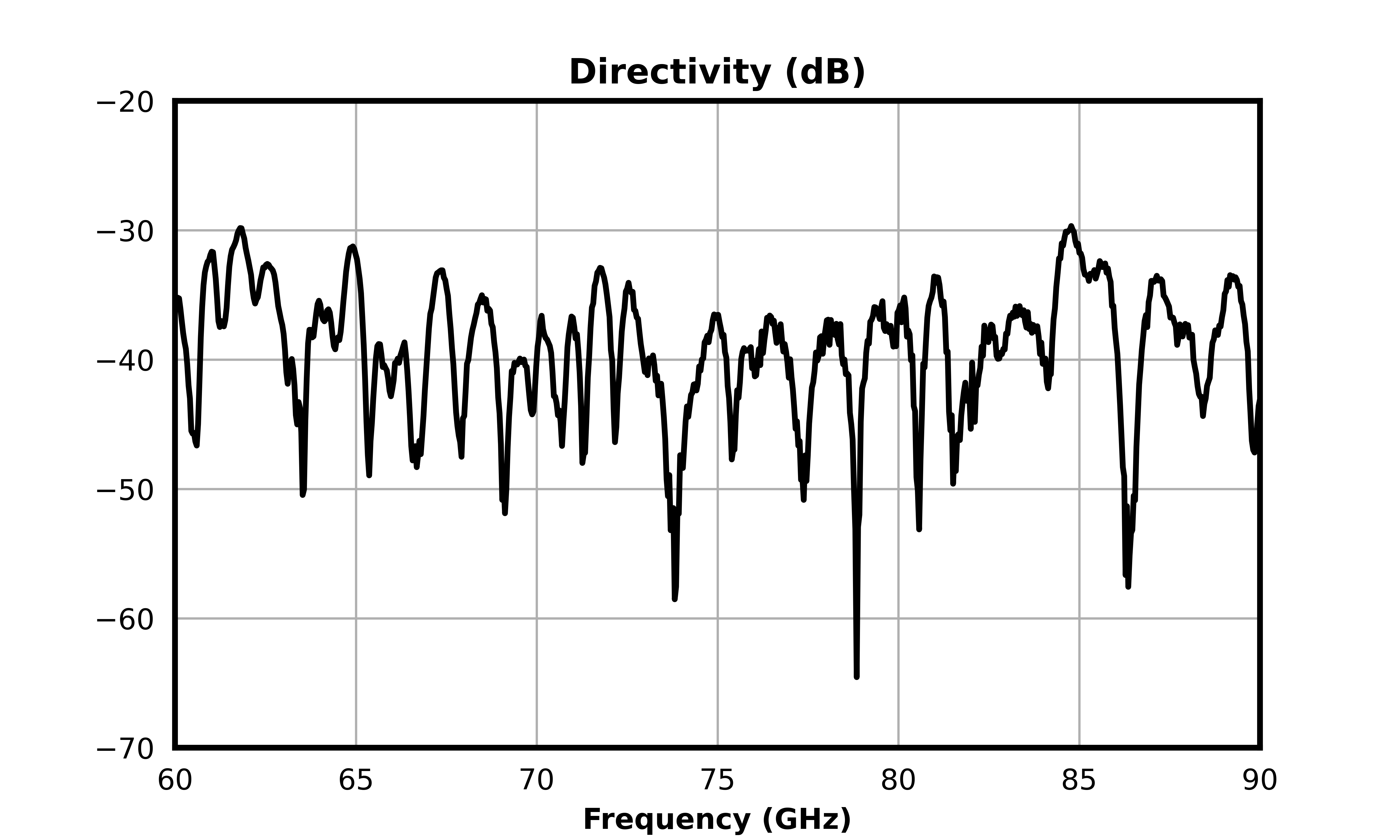

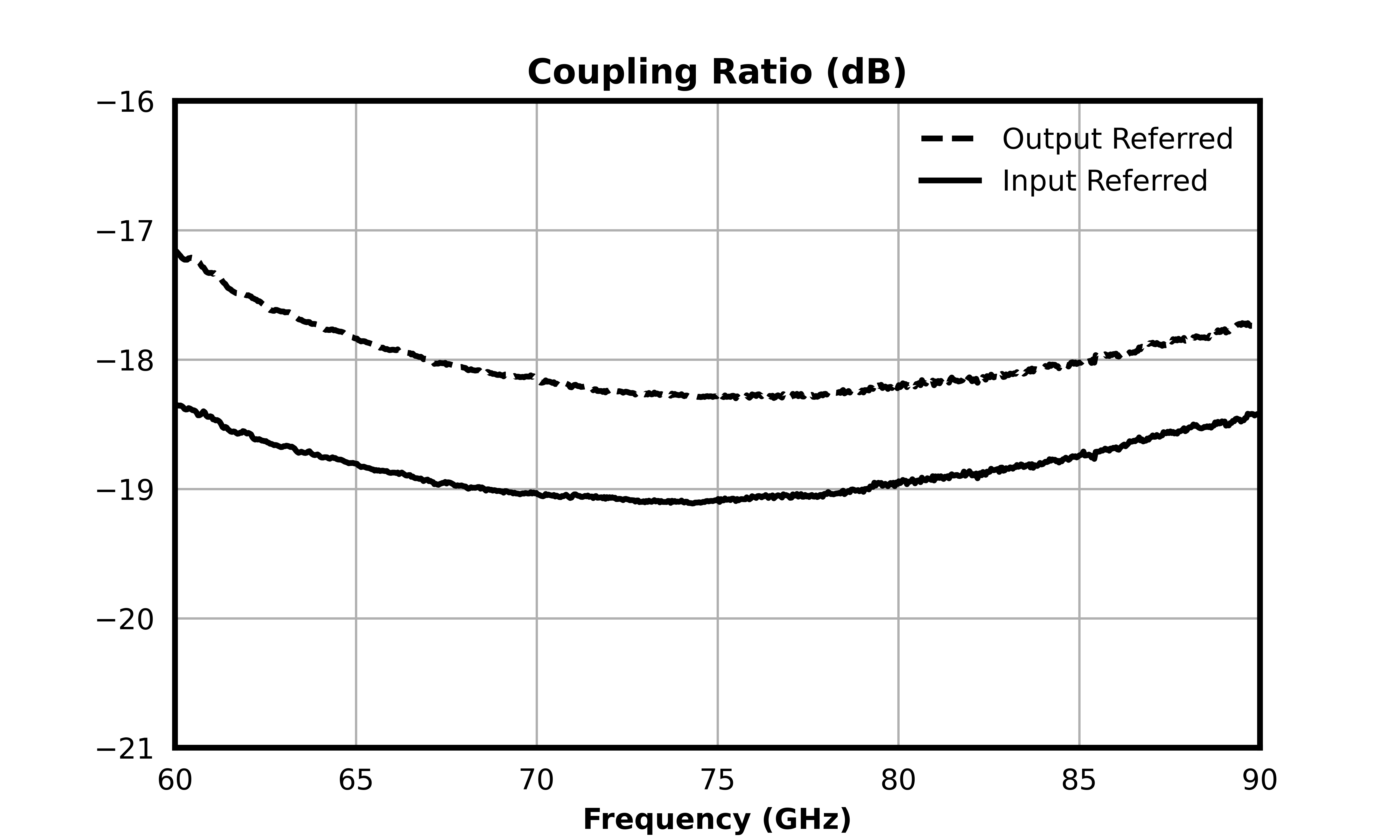

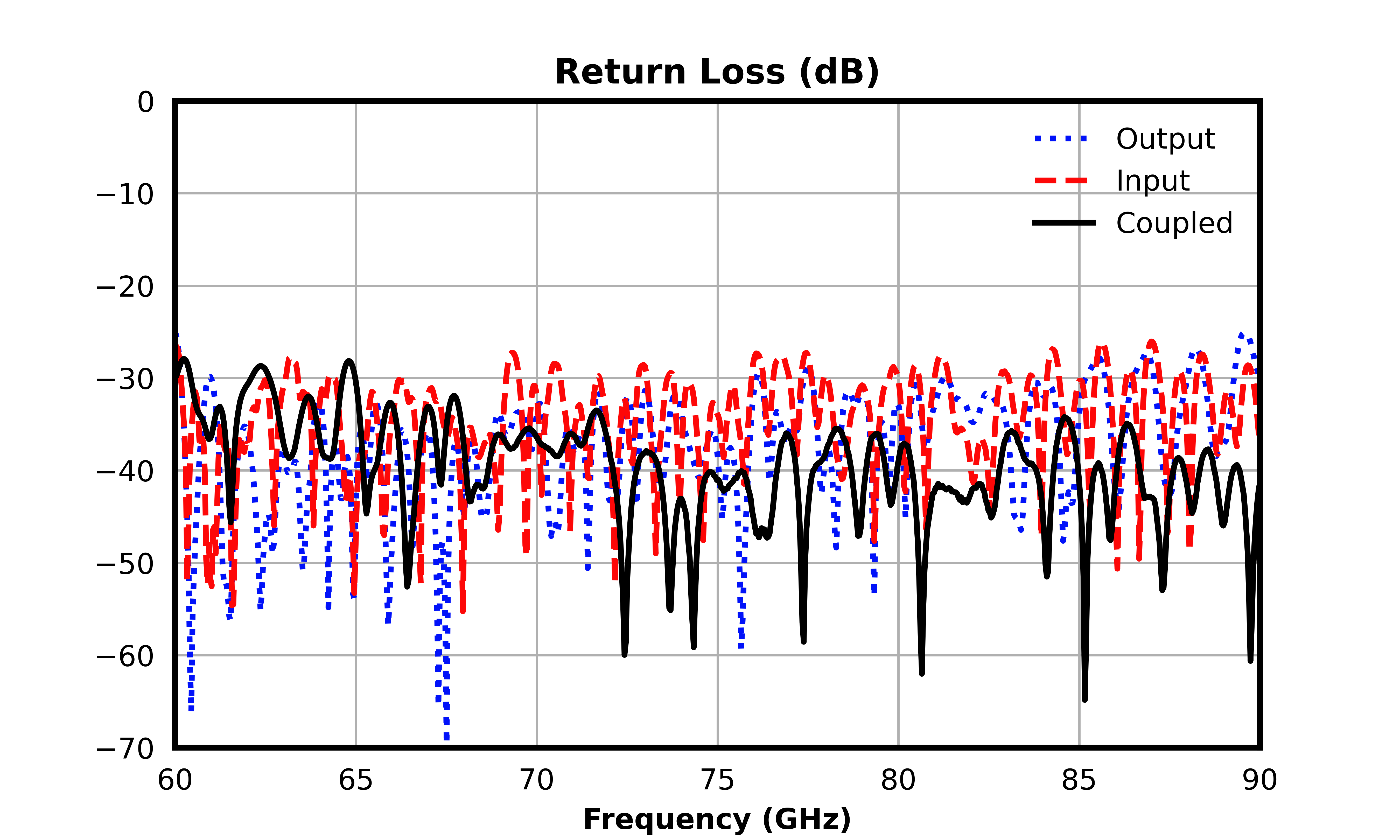

Typical Performance Plots
.png)
.png)
.png)
.png)
Specifications
Electrical Specifications
Min and Max limits are guaranteed at Ta = 25°C
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Frequency Range | - | 60 | 90 | - | - | - | GHz |
| Coupling Ratio | Configuration A, Temp = 25°C | 60 | 90 | - | 18.9 | - | dB |
| Direct Line Insertion Loss | Configuration A, Temp = 25°C | 60 | 90 | - | 0.8 | - | dB |
| Directivity | Configuration A, Temp = 25°C | 60 | 90 | - | 38 | - | dB |
| Coupled Port Return Loss | Configuration A, Temp = 25°C | 60 | 90 | - | 39 | - | dB |
| Frequency Sensitivity | Configuration A, Temp = 25°C | 60 | 90 | - | 0.76 | - | dB |
| Amplitude Flatness 1 | Configuration A, Temp = 25°C | 60 | 90 | - | 0.19 | - | dB |
[1] Amplitude Flatness = Median value of ABS(Measured Coupling Power – Average Coupling Factor)
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 85 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -40 | °C |
| Minimum Storage Temperature | -55 | °C |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | This device is not sensitive to ESD. | N/A |
| Dimensions | - | 85.85 x 30.48 x 21.96 mm |
Port Configuration and Functions
Port Diagram
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | Input | WR-12-UG-387/U | - | - |
| Port 2 | Coupled | WR-12-UG-387/U | -20dB coupled output port | - |
| Port 3 | Output | WR-12-UG-387/U | - | - |
Mechanical Data
Outline Drawing
Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-08-11 | Initial Release |
